VA24D Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus VA24DQSB

Summary of Contents for Asus VA24DQSB

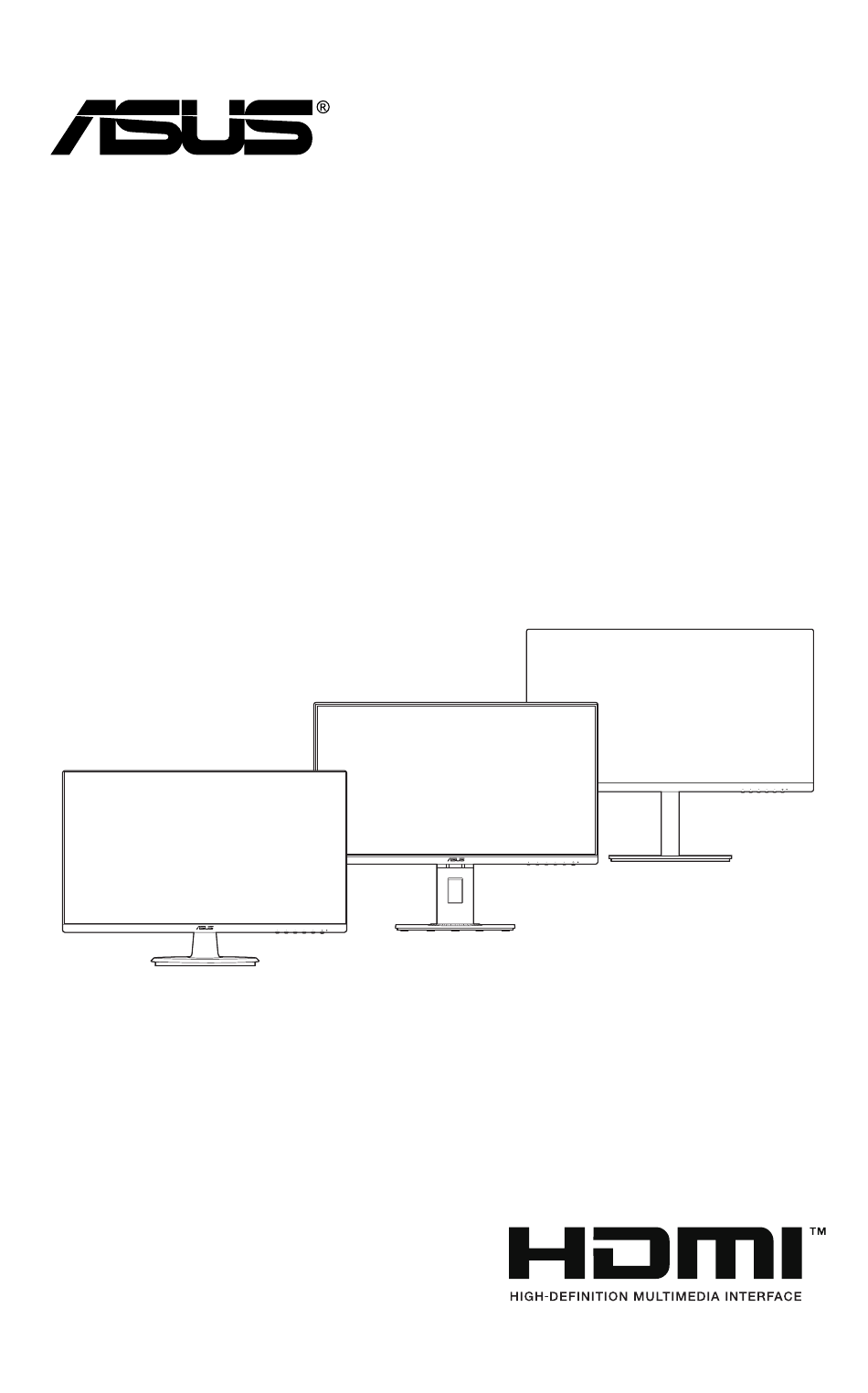

  • Page 1 VA24D Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents ...................... iii Notices ......................iv Safety information ..................vi Care & Cleaning ..................vii Takeback Services ..................viii Product information for EU energy label ..........viii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ...............

  • Page 4: Notices

    All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
  • Page 5 NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating system. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 6: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 7: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 8: Takeback Services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 9 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 11: Welcome

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 12: Monitor Introduction

    Monitor introduction 1.3.1 Front view VA24DQ VA24DQLB / VA24DQLB-W VA24DQSB/ VA24DQSBY Menu Menu Menu Close Close Close Input Select Input Select Input Select Brightness Brightness Brightness Blue Light Filter Blue Light Filter Blue Light Filter Power button/power indicator • Turns the monitor on/off.

  • Page 13: Back View

    DisplayPort in. This port is for connection with a DisplayPort compatible device. HDMI port. This port is for connection with an HDMI compatible device. VGA port. This 15-pin port is for PC VGA connection. ASUS VA24D Series LCD Monitor...
  • Page 14 USB 2.0 upstream port. This port is for connection with a USB upstream cable. The connection enables the USB ports on the monitor. USB 2.0 downstream ports. These ports are for connection with USB devices, such as USB keyboard/mouse, USB flash drive, etc. Kensington lock slot.

  • Page 15: Assembling The Monitor Arm/Base

    VA24DQLB/ VA24DQLB-W/ VA24DQSB/ VA24DQSBY: Fix the base to the arm by fastening the bundled screw. VA24DQSB/ VA24DQSBY: Remove the stop screw at the bottom of the base to allow 180˚ swiwel adjustment from either left or right. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

  • Page 16: Detaching The Arm/Base (For Vesa Wall Mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: VA24DQ Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes. (Figure 1) Remove the base (Figure 2).
  • Page 17 VA24DQLB/ VA24DQLB-W/ VA24DQSB/ VA24DQSBY Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes. (Figure 1) Remove the base (Figure 2). Use a screwdriver to remove the screw(s) on the hinge (Figure 3), then remove the hinge.

  • Page 18: Adjusting The Monitor

    (for tilt)/+90˚ to -90˚ (for swiveling)/ +130 mm (for height adjustment)/90˚ (for portrait view). • VA24DQSB/ VA24DQSBY: The recommended adjusting angle is +35˚ to -5˚ (for tilt)/+180˚ to -180˚ (for swiveling by removing the stop screw)/ +130 mm (for height adjustment)/90˚ (for portrait view).
  • Page 19 Pivoting the monitor (VA24DQLB/ VA24DQLB-W/ VA24DQSB/ VA24DQSBY) Lift the monitor to the highest position. Tilt the monitor to its maximum angle. Pivot the monitor to the angle you need. VA24DQLB / VA24DQLB-W 0° -90° -5°~+35° 0° 90° VA24DQSB/ VA24DQSBY 0°...

  • Page 20: Connecting The Cables

    Connect the cables as the following instructions: VA24DQ VA24DQLB / VA24DQLB-W VA24DQSB/ VA24DQSBY • To connect the power cord: Connect one end of the power cord securely to the monitor’s AC input port, the other end to a power outlet.

  • Page 21: Turning On The Monitor

    • To use the USB 2.0 ports (VA24DQLB/ VA24DQLB-W/ VA24DQSB/ VA24DQSBY only): Take an USB 2.0 cable, and plug the smaller end (type B) of the USB upstream cable to the monitor’s USB upstream port, and the larger end (type A) to your computer’s USB 2.0 port. Make sure your computer is installed with the lastest Windows 7/Windows 8.1/Windows 10 operating...
  • Page 22 Chapter 2: Setup...

  • Page 23: Osd (On-Screen Display) Menu

    Highlight the desired sub-menu function and press to activate it. Press to change the settings of the selected function. To exit and save the OSD menu, press repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS VA24D Series LCD Monitor...

  • Page 24: Osd Function Introduction

    This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VA24D Splendid Standard Mode HDMI 1920 x 1080 @ 60Hz...
  • Page 25 Eye Care (VA24DQSB/ VA24DQSBY only) In this function, you can adjust settings to better protect your eyes. ASUS VA24D Eye Care Standard Mode HDMI 1920 x 1080 @ 60Hz Bl u e L i g h t F i l t er...
  • Page 26 This function is not available when Reddish or Yellowish is selected in the Skin Tone menu. Blue Light Filter In this function, you can adjust the blue light filter level. ASUS VA24D Blue Light Filter Standard Mode HDMI 1920 x 1080 @ 60Hz...
  • Page 27 • Saturation: The adjusting range is from 0 to 100. • Color Temp.: Contains 4 modes including Cool, Normal, Warm and User Mode. • Skin Tone: contains three color modes including Reddish, Natural, and Yellowish. ASUS VA24D Series LCD Monitor...
  • Page 28 • VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Adaptive-Sync/FreeSync (DisplayPort and HDMI only): Allows an Adaptive-Sync/FreeSync supported* graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.
  • Page 29 G a mePl u s Q u i ckF i t ECO Mod e U SB Ch a rg i n g O SD Se t up L a n gu a g e Mor e ASUS VA24D Series LCD Monitor...
  • Page 30 • Splendid Demo Mode: Splits the screen into two for Splendid modes comparison. (Scenery mode only) • GamePlus: The GamePlus function provides a toolkit and creates a better gaming environment for users when playing different types of games. The crosshair overlay with different crosshair options lets you choose the one that best suits the game you’re playing.
  • Page 31 8x10 • ECO Mode: reduces power consumption. • USB charging (VA24DQLB/ VA24DQLB-W/ VA24DQSB/ VA24DQSBY only): “On” allows the USB downstream ports to generate a 5V/500mA output when the monitor is turned on or in standby mode. “Off“ allows the USB downstream ports to generate a 5V/500mA output only when the monitor is turned on.
  • Page 32 Shortcut Defines the functions for Shortcut 1 and 2 buttons. ASUS VA24D Shortcut Standard Mode HDMI 1920 x 1080 @ 60Hz Sh o rt cu t 1 Sh o rt cu t 2 • Shortcut 1/Shortcut 2: selects a function for Shortcut 1 and 2 buttons.

  • Page 33: Specifications Summary

    VA24DQSBY: 0~130 mm Kensington lock AC input voltage AC: 100~240V Power consumption Power On: < 16.7 W** (Typ.), Standby: < 0.5 W (Typ.), Power Off: < 0.3 W Temperature (Operating) 0˚C~40˚C Temperature (Non-operating) -20˚C~+60˚C ASUS VA24D Series LCD Monitor 3-11...
  • Page 34 5.32 kg (gross) VA24DQLB/ VA24DQLB-W: 3.3 kg (net without stand); 5.5 kg (net with stand); 7.8 kg (gross) VA24DQSB/ VA24DQSBY: 3.3 kg (net without stand); 5.31 kg (net with stand); 6.8 kg (gross) Multi-languages 21 languages (English, French, German, Italian,...

  • Page 35: Outline Dimensions

    Outline dimensions VA24DQ ASUS VA24D Series LCD Monitor 3-13...
  • Page 36 VA24DQLB/ VA24DQLB-W 3-14 Chapter 3: OSD (On-Screen Display) menu...
  • Page 37 VA24DQSB/ VA24DQSBY ASUS VA24D Series LCD Monitor 3-15...

  • Page 38: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •...

  • Page 39: Supported Operating Modes

    1366x768 59.79(P) 47.712(P) 1440x900 59.89(P) 55.94(N) 1600x1200 60.00(P) 75.00(P) 1680x1050 60.00(P) 65.29(N) 1920x1080 60.00(P) 67.5(P) 1920x1080 (HDMI/DP) 75.00(P) 84.64(N) * “P” / “N” stands for “Positive” / “Negative” polarity of incoming H-sync/V-sync (input timing). ASUS VA24D Series LCD Monitor 3-17...
  • Page 40 When the monitor is operating in the video mode (i.e., not displaying data), the following high definition modes shall be supported in addition to standard definition video. Preset Timing Pixel Format Horizontal Vertical Pixel Rate Name Frequency Frequency (MHz) Display (kHz) (Hz) 480p...
