Caution for Connection

1. Turn off the POWER switch.

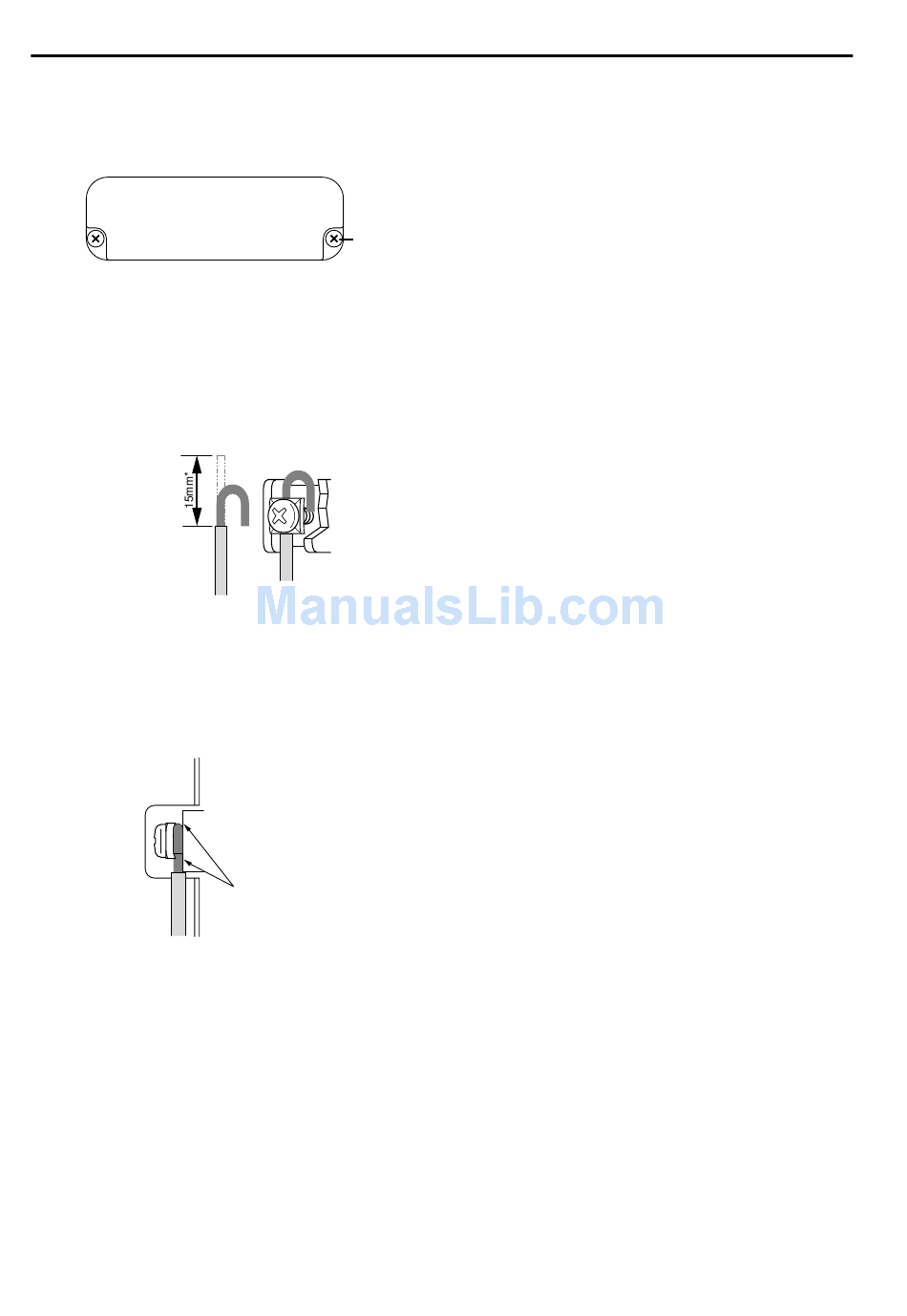

2. Remove the cover attachment screws and remove the
protective cover from the speaker terminals.
3. After removing approx. 15 mm of insulation from the
ends of the speaker cables, bind the bare ends of the
speaker wires in the corresponding speaker terminals
and tighten the terminals to securely clamp the wires.
Refer to page 5 for speaker porality.
*
Shown actual size.
At this time make sure that the bare ends of the
speaker cables do not extend from the terminals in
such a way that they touch the chassis.
4. Reattach the protective cover over the speaker
terminals.
8
Screw
Wire should not
touch the chassis.
