For detection: Fall Detection Switches
AHF2 (TiP) Switches

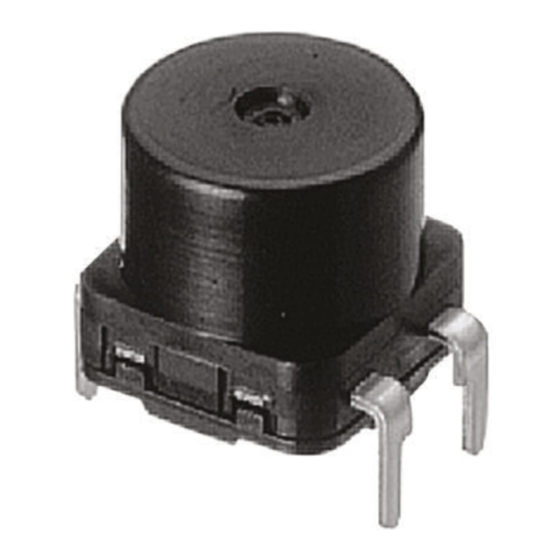

Small, Highly reliable Tilt Detection Switches Containing a Photo Sensor
TYPES
Mounting direction
Part No.
PC board mounting condition
Note: Standard Packaging: Tube 50 pcs.
BASIC CHARACTERISTICS
For Ta = 25°C and applicable circuit conditions
1) Operation characteristics (Operation speed 6 degrees/
second)
• Operation angle (Output: V
• Return angle (Output: V
Operating
point
Output characteristics H
2021.10
industrial.panasonic.com/ac/e/
Arrow.com.
Downloaded from
9.3
9.5
9.5
(Unit ： mm)
Vertical mounting
AHF21
→ V ): 25 to 60 degrees
OL OH
→ V ): Min. 20 degrees
OH OL
Basic point
Operating
point
FEATURES
Non-contact type switch containing a photo sensor
The contact form is equivalent to SPST-NC, which
satisfies the PL Act.
The internal sphere can be used over an operation
angle of 360 degrees in the circumferential direction.
There are three standard terminal types
TYPICAL APPLICATIONS
Fan heaters
Warm water washing toilet seat
Electric jar pot
24-hour circulation bath
Horizontal mounting
AHF22
2) Output (V ) characteristics (The sphere must be stationary.)
O
• V (photo transistor ON): Max. 1.0 V (horizontal)
OL
• V (photo transistor OFF): Min. 4.0 V (inclined at an angle
OH
Note: Output characteristics are the values of the applied circuit conditions,
below. Also, the microcomputer input terminals actually used use the
following voltages.
• Low level input terminal: 1.5 V or less
• High level input terminal: 3.5 V or higher
Please use with a detection method to prevent malfunction.
Refer to the "Preventing a malfunction" of "CAUTIONS FOR USE".
Panasonic Corporation 2021
ー 1 ー
Reverse mounting
AHF23
of at least 60 degrees)
