For detection: Non Seal Type Switches

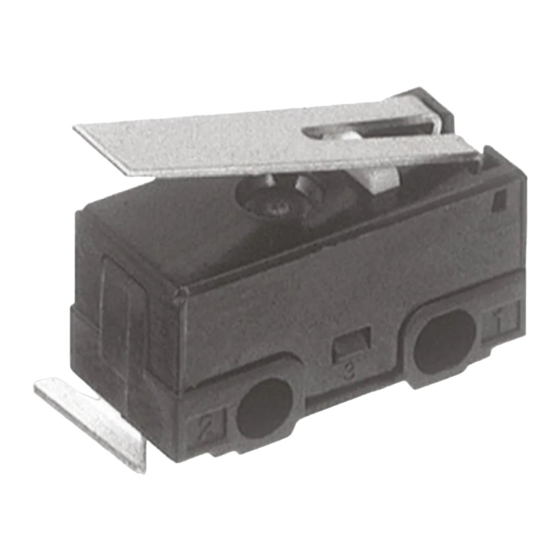

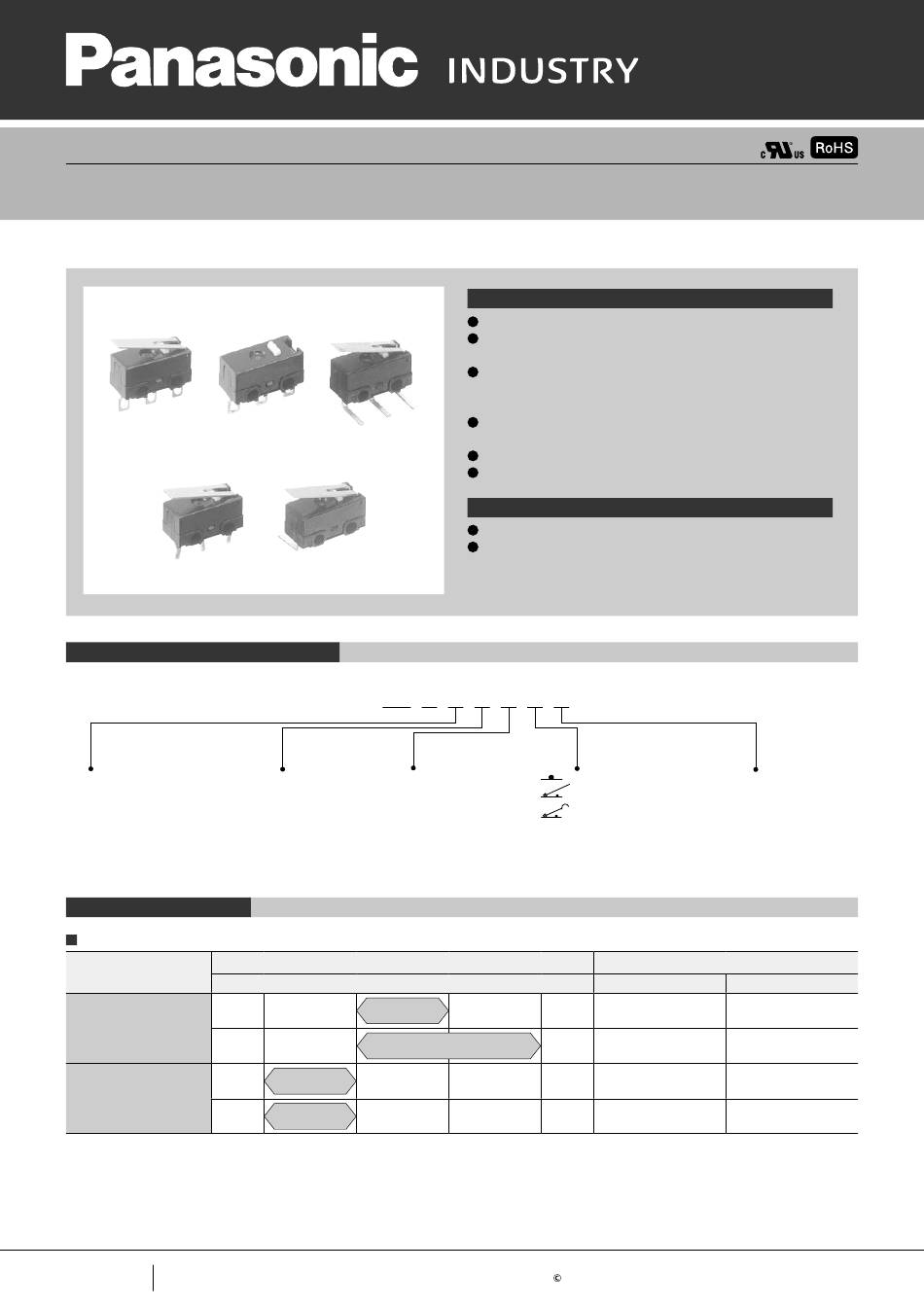

AH1 (FJ) Switches
Ultra-miniature Size Switches High Precision
ORDERING INFORMATION (PART NO.)
Mounting hole and terminal
4: Self­standing P/C board terminal
5: Straight P/C board terminal
6: Solder terminal
7: Right angle terminal
8: Left angle terminal
Note) When ordering, please add "­A" at the end of the part num ber.
PRODUCT TYPES TABLE
Mounting hole M2 mm type (with stand off)
Contact specification
AgNi alloy contact type
AgNi alloy +
Au-clad contact type
2022.03
industrial.panasonic.com/ac/e/
Right angle terminal
Left angle terminal
AH 1
Operation Force (OF) Actuator
by pin plunger, Max. 0: Pin plunger
6: 1.47 N
2: Hinge lever
8: 0.74 N 4: Simulated roller lever
Applicable current range
1 mA 0.1 A
FEATURES
Compact size, light weight and high precision
Switches that can be used with M2 general-purpose
screws
Integrally molded terminals that discourage inflow of
solder flux provide and also switch body has stand-
off
Lineup also includes AgNi alloy + Au-clad contact
types optimized for low-voltage current loading
Self-standing terminal easily mounted on P/C boards
Protection grade: IP40
TYPICAL APPLICATIONS
Electric pot
Automobiles (Detection of key position), etc.
Contact material
Nil: AgNi alloy contact
61: AgNi alloy＋Au­clad contact
1 A 3 A
ー 1 ー
Panasonic Corporation 2022
Safety standard
9: UL/C­UL
Operating Force OF (max.)
0.74 N 1.47 N
Available
Available
Available
Available
AECTB15E 202203
