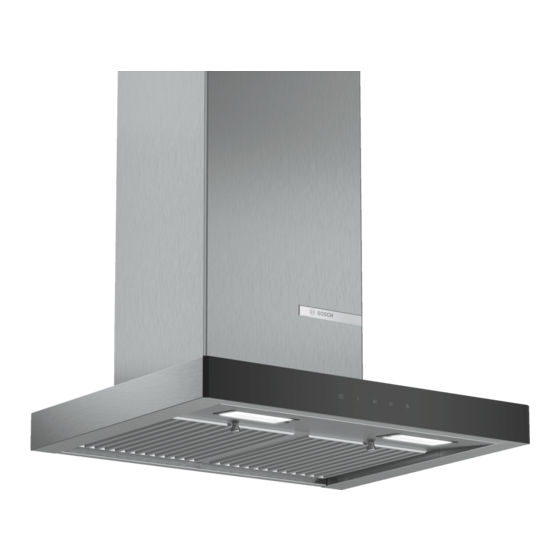

- Page 1 Extractor hood DWB068G50I DWB098G50I DWB068G60I DWB098G60I DIB098G50I DIB128G50I, [en] User manual and installation instructions...
-
Page 2: Table Of Contents
8.8 Changing odour filter .... 14 1.4 Safe use ........ 4 9 Troubleshooting...... 15 9.1 Replacing the LED lights for 2 Preventing material damage .. 8 DWB068G50I, DW- 2.1 Avoiding material damage .. 8 B098G50I, DWB068G60I 3 Environmental protection and and DWB098G60I.... 16 saving energy....... -
Page 3: Safety
Safety en 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use The appliance can only be used safely if it is correctly installed ac- cording to the safety instructions. -
Page 4: Safe Use
en Safety 1.4 Safe use WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate. - Page 5 Safety en is able to enter through openings that cannot be sealed, for ex- ample in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit. ▶ In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will sug- gest the suitable ventilation measures to you.
- Page 6 en Safety ▶ Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok. WARNING ‒ Risk of burns! The accessible parts of the appliance become hot during opera- tion. ▶ Never touch these hot parts. ▶...
- Page 7 Safety en An ingress of moisture can cause an electric shock. ▶ Before cleaning, pull out the mains plug or switch off the fuse in the fuse box. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ance. WARNING ‒ Risk of explosion! Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may...
-
Page 8: Preventing Material Damage
en Preventing Painted surfaces are easily damaged. Preventing 2 Preventing material Follow the cleaning instructions. ▶ → "Cleaning the appliance", damage Page 12 Ensure that the painted surfaces Preventing ▶ 2.1 Avoiding material damage are not scratched. ATTENTION! Condensate may cause corrosion 3 Environmental protec- damage. tion and saving energy To prevent condensation from ▶... -
Page 9: Operating Modes
Operating modes en Switch the appliance off when you ¡ If the exhaust air is con- are not using it. veyed through the ex- ternal wall, a telescopic a The appliance does not consume duct should be used. any energy. Switch off the lighting if you no 4.2 Air recirculation mode longer require it. -
Page 10: Familiarising Yourself With Your Appliance
(E no.) of your appli- - DWBxxxx- 60I / ance. → Page 19 DWGxxxx60I You can find out which accessories are available for your appliance in Ducting Kit DHZ5468 our catalogue, in the online shop or from our after-sales service. www.bosch-home.com... -
Page 11: Basic Operation
operation en switched off. This eliminates any re- operation 7 Basic operation maining cooking smells. The ex- tractor hood will then switch itself off operation automatically. 7.1 Switching on the appli- Press and hold . ance Press the button for the required fan setting , ... -
Page 12: Cleaning And Servicing
en Cleaning and servicing conjunction with aluminium parts, 8 Cleaning and servicing e.g. grease filter on extractor hoods. To keep your appliance working effi- ciently for a long time, it is important WARNING to clean and maintain it carefully. Risk of electric shock! An ingress of moisture can cause an 8.1 Cleaning products electric shock. -
Page 13: Cleaning Controls
Cleaning and servicing en Apply a thin layer of the stainless Note: The metal grease filters must steel cleaning product to stainless be cleaned every 20 operating hours steel surfaces using a soft cloth. or at least every 2 weeks. You can obtain stainless steel 8.5 Cleaning grease filters cleaning products from the after- manually... -
Page 14: Fitting Grease Filters
en Cleaning and servicing high level of grease removal. We re- Insert the metal grease filter with commend cleaning the grease filters the lock facing the front into the every two months. underside of the appliance. Make sure that the locks engage. WARNING Risk of fire! 8.8 Changing odour filter... -
Page 15: Troubleshooting
Troubleshooting en 9 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of injury! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 16: Replacing The Led Lights For Dwb068G50I, Dw- B098G50I, Dwb068G60I And Dwb098G60I
Unscrew the bulb and replace it 9.1 Replacing the LED lights with a bulb of the same type. for DWB068G50I, DW- B098G50I, DWB068G60I and DWB098G60I WARNING Risk of electric shock! When changing the bulb, the bulb socket contacts are live. - Page 17 Troubleshooting en Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. ▶...
-
Page 18: Disposal
Environment (Protec- the soil and the tion) Act 1986. ground water. ¡ Do not keep any re- ¡ Please visit our web- placed spare part(s) site https:// from the product in www.bosch-home.in/ exposed area. metapages/e-waste-... -
Page 19: Disposing Of Batteries
Customer Service en 10.2 Disposing of batteries 11.1 Product number (E-Nr.) and production number Batteries should be recycled in an (FD) environmentally friendly manner. Do not dispose of the batteries in the You can find the product number (E- household rubbish. Nr.) and the production number (FD) on the appliance's rating plate. -
Page 20: Included With The Appliance
en Installation instructions 12.1 Included with the appli- 12.3 Safety clearances ance Comply with the safety clearances for the appliance. After unpacking all parts, check for any damage in transit and complete- ness of the delivery. 12.2 Appliance dimensions You will find the dimensions of the appliance here... -
Page 21: Secure Installation
Installation instructions en 12.4 Secure installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of poisoning! Risk of poisoning from flue gases being drawn back in. Room-air- dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) ob- tain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. - Page 22 en Installation instructions Risk of poisoning from flue gases being drawn back in. ▶ If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch. Risk of poisoning from flue gases being drawn back in.
- Page 23 Installation instructions en ▶ Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is present. There must be no flying sparks. WARNING ‒ Risk of injury! Components inside the appliance may have sharp edges. ▶...
- Page 24 en Installation instructions Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by trained specialist staff.
-
Page 25: General Information
Installation instructions en ¡ Diameter of 120 mm corresponds 12.5 General information to approx. 113 cm². Follow these general instructions dur- ¡ Use sealing strips for different pipe ing the installation. diameters. ¡ For the installation, observe the ¡ Do not use any flat ducts with currently valid building regulations sharp bends. -
Page 26: Installation
en Installation instructions If this is not possible, an all-pole ¡ Do not connect the appliance to ▶ isolating switch must be integrated the power supply during installa- into the permanent electrical in- tion. stallation according to the condi- ¡ Ensure that the protection against tions of overvoltage category III contact is guaranteed during in- and according to the installation... - Page 27 Centre the angle brackets using the centre lines, position them horizontally and mark the positions of the holes. Distances b min-max DWG068D.0I 290-310 DWB068G50I 630 304-324 DWB098D50I 620 294-314 DWG098D.0I 290-310 DWB098G50I 630 304-324 DWB068D50I 620 294-314 DWH0.8D.0I...
- Page 28 en Installation instructions Mark the holes. Preparing the appliance Remove the metal grease filter. ▶ Tighten the screws. Installing the appliance WARNING Risk of injury! Parts that are accessible during in- stallation may have sharp edges and may lead to cutting injuries. Wear protective gloves ▶...
- Page 29 Installation instructions en Align the appliance horizontally by Tighten the screws. turning the screws on the mount- ing brackets. Install the metal grease filters. The screws are accessible from Connecting the appliance the inside of the appliance. Connect the air extractor and es- ▶...
- Page 30 en Installation instructions Connect it to the exhaust air open- Fix the back flap on the exhaust ing. and secure with clamping ring. Use suitable means to seal the joints. Connecting the power supply Plug the mains plug into the eared socket.
- Page 31 Installation instructions en Place the flue duct on the appli- Screw the flue duct to the ends of ance and fix it in place. the angle bracket. Gently push the two side panels Installing the flue duct extension apart, hook them in behind the angle bracket and then push them back together as far as they will WARNING...
- Page 32 en Installation instructions Place the flue duct extension in- Screw the flue duct extension to side the flue duct. the ends of the angle bracket. Removing the appliance WARNING Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves. ▶...
- Page 36 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
