Condensate Drain Connection Location and Sizes

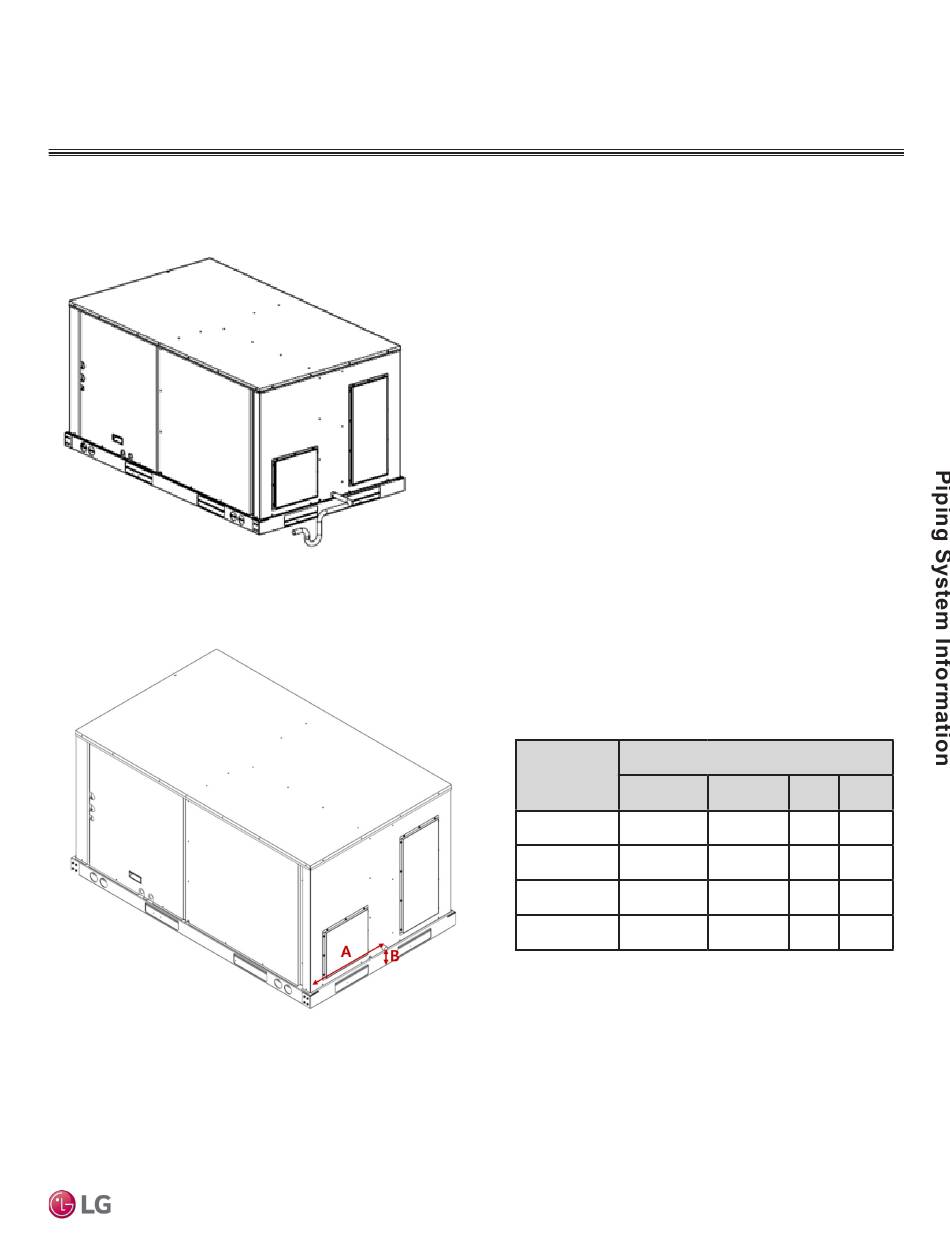

Figure 25: Split Rooftop Unit Condensate drain location.
Figure 26: Split Rooftop Unit Condensate drain location and sizes.
CONDENSATE PIPING INFORMATION
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
Table 12: Split RTU Condensate drain location and sizes.
Model Name
Drain Pipe
Dia. (OD, in.)
ARUN363DDA4 1
ARUN483DDA4 1
ARUN603DDA4 1
ARUN723DDA4 1
Gravity Drain
Connection A B
Plain 24-1/4 4-19/32
Plain 24-1/4 4-19/32
Plain 24-1/4 4-19/32
Plain 24-1/4 4-19/32
39
