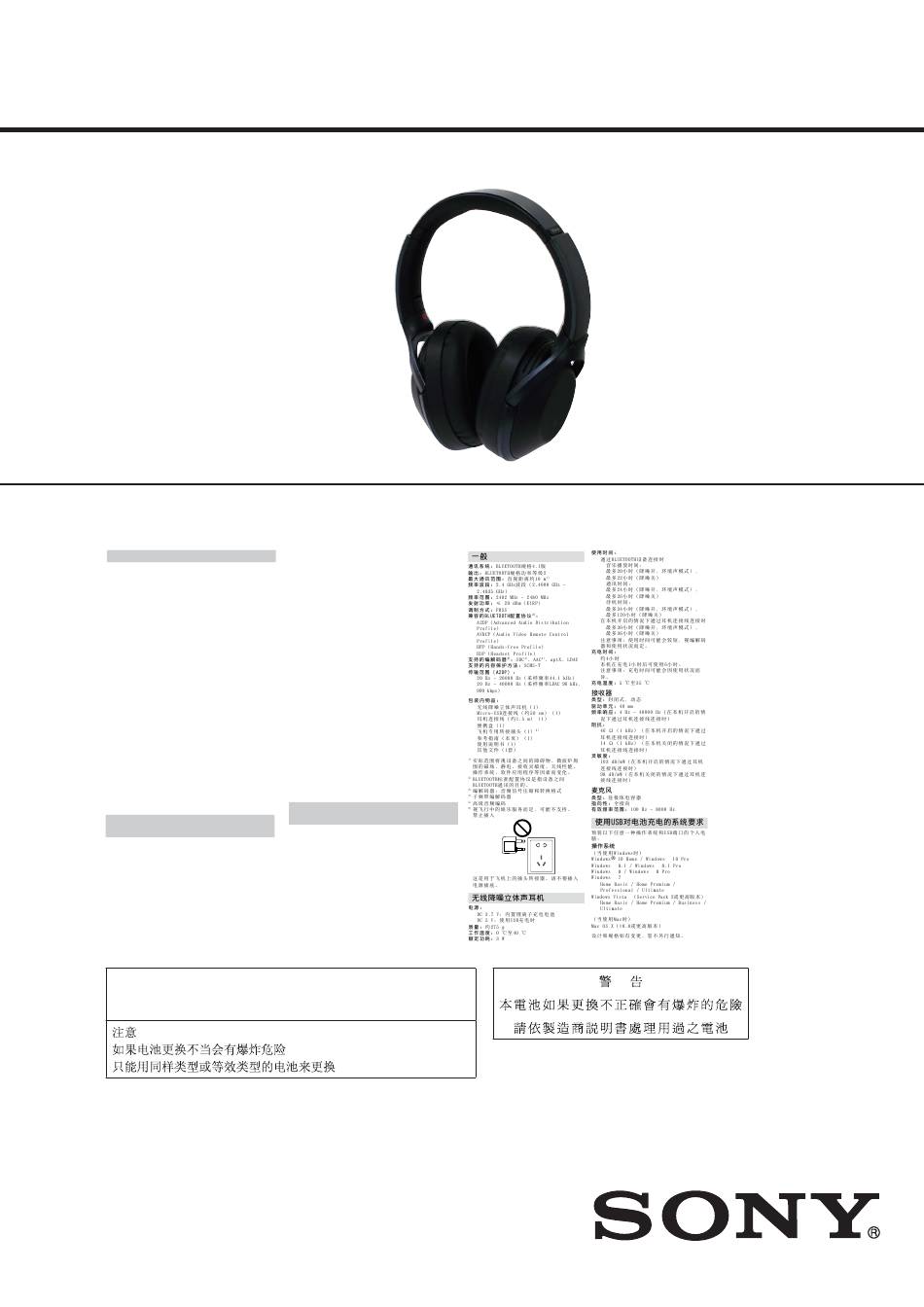

Sony MDR-1000X Service Manual

SERVICE MANUAL
Ver. 1.1 2016.10
Except Chinese model
General
Communication system: BLUETOOTH Specification version 4.1
Output: BLUETOOTH Specification Power Class 2
Maximum communication range: Line of sight approx. 10 m (30
ft) 1)
Frequency band: 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH profiles 2) :
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HFP (Hands-free Profile)
HSP (Headset Profile)
Supported Codec 3) : SBC 4) , AAC 5) , aptX, LDAC
Supported content protection method: SCMS-T
Transmission range (A2DP):
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
20 Hz - 40,000 Hz (Sampling frequency LDAC 96 kHz,
990 kbps)
Included items:
Wireless noise canceling stereo headset (1)
Micro-USB cable (approx. 50 cm (19 3/4 in.)) (1)
Headphone cable (approx. 1.5 m (59 1/8 in.)) (1)
Carrying case (1)
6)
Plug adaptor for airplane (1)
Reference Guide (1)
Operating Instructions (1)
Other documents (1 set) (US, CND, AEP, UK, LA only)
1) The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a microwave
oven, static electricity, reception sensitivity, antenna's
performance, operating system, software application, etc.
2) BLUETOOTH standard profiles indicate the purpose of
BLUETOOTH communications between devices.
3) Codec: Audio signal compression and conversion format
4) Subband Codec
5) Advanced Audio Coding
6) Depending on the in-flight entertainment services, it may not be
supported.
Wireless noise canceling stereo
headset
Power source:
DC 3.7 V: Built-in lithium-ion rechargeable battery
DC 5 V: When charged using USB
Mass: Approx. 275 g (9.70 oz)
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Rated power consumption: 3 W
Usage hours:
When connecting via the BLUETOOTH device
Music playback time:
Max. 20 hours (NC ON, Ambient Sound Mode), Max. 22 hours
(NC OFF)
Communication time:
Max. 24 hours (NC ON, Ambient Sound Mode), Max. 26 hours
(NC OFF)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
9-896-305-02
2016J33-1
Sony Video & Sound Products Inc.
©
2016.10
SPECIFICATIONS
Standby time:
Max. 34 hours (NC ON, Ambient Sound Mode), Max. 120 hours
(NC OFF)
When connecting via the headphone cable with the unit
turned on
Max. 30 hours (NC ON, Ambient Sound Mode), Max. 36 hours
(NC OFF)
Note: Usage hours may be shorter depending on the Codec
and the conditions of use.
Charging time:
Approx. 4 hours
This unit can be used for 6 hours after
1 hour charging.
Note: Charging hours may be different depending on the
conditions of use.
Charging temperature: 5 °C to 35 °C (41 °F to 95 °F)
Receiver
Type: Closed, Dynamic
Driver unit: 40 mm
Frequency response: 4 Hz - 40,000 Hz (when connecting via the
headphone cable with the unit turned on)
Impedance:
46 Ω (1 kHz) (when connecting via the headphone cable with
the unit turned on)
14 Ω (1 kHz) (when connecting via the headphone cable with
the unit turned off)
Sensitivity:
103 dB/mW (when connecting via the headphone cable with
the unit turned on)
98 dB/mW (when connecting via the headphone cable with
the unit turned off)
Microphone
Type: Electret condenser
Directivity: Omni directional
Effective frequency range: 100 Hz - 8,000 Hz
System requirements for battery
charge using USB
Personal Computer with pre-installed with any of the following
operating systems and USB port:
Operating Systems
(when using Windows)
Windows ® 10 Home / Windows ® 10 Pro
Windows ® 8.1 / Windows ® 8.1 Pro
Windows ® 8 / Windows ® 8 Pro
®
Windows 7
Home Basic / Home Premium / Professional / Ultimate
Windows Vista ® (Service Pack 2 or later)
Home Basic / Home Premium / Business / Ultimate
(when using Mac)
Mac OS X (version.10.8 or later)
Design and specifications are subject to change without notice.

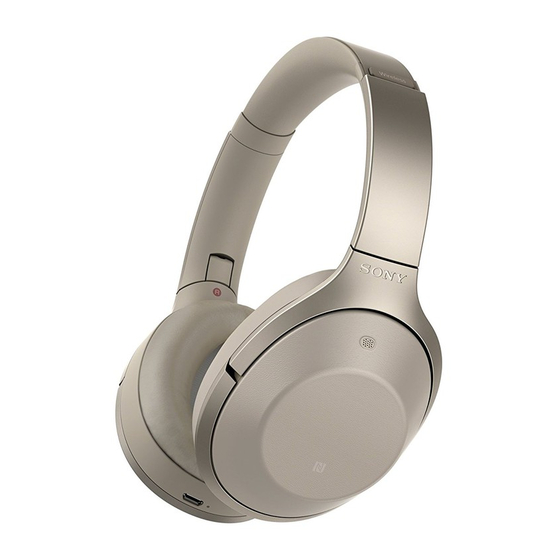

WIRELESS NOISE CANCELING STEREO HEADSET
MDR-1000X
Chinese model
®
®
®
®
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
The LDAC™ name and logo is a trademark of Sony Corporation.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license.
The N-Mark is a trademark or registered trademark of NFC Forum,
Inc. in the United States and in other countries.
Microsoft, Windows and Windows Vista are registered trademarks
or trademarks of Microsoft Corporation in the United States and/or
other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S.
and other countries.
iPhone is a trademark of Apple Inc., registered in the U.S. and other
countries.
Qualcomm® is a trademark of Qualcomm Incorporated, registered
in the United States and other countries, used with permission.
Qualcomm aptX™ audio is a trademark of Qualcomm Technologies
International, Ltd., registered in the United States and other
countries, used with permission.
Other trademarks and trade names are those of their respective
owners.
®
®
®
