Summary of Contents for Panasonic EYFR03

  • Page 1 Panasonic...

  • Page 2: Table Of Contents

    Table Of Contents • Comparison Between Models……..……………………… Page 3 • Inputs/Outputs Overview………………………………..… Page 4 • Run Screen………………………………………………..… Page 5 • Main Menu……………………………………….……….…… Page 6 • Tools…………………………………………………………... Page 7 – Learn/Learn Open – Replace/Edit/Forget (Unlearn) • Programming Modes…………………………………….…. Page 9 – Parameter Mode –...
  • Page 3 EYFR03 Model Comparison Page 3...

  • Page 4: Inputs/Outputs Overview

    EYFR03 Inputs/Outputs Overview Page 4 Discrete I/O (24 Pin Connector) Used to connect directly to the assembly line or a PLC. 8 Inputs/12 Outputs (Used in EYFR03A) AND/ Socket Tray Ethernet Connection (RJ45 Qty. 2) I/O Module Ethernet IP, Open Protocol, ToolsNet...

  • Page 5: Run Screen

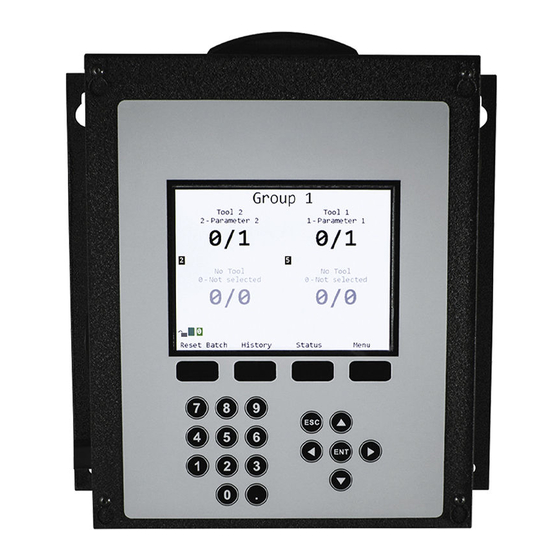

    EYFR03 Run Screen Page 5 Parameter Name & Tool Name Network Status Batch Count Unit Radio Status Tool Status Indicator Unit Lock Reset Batch History Status Menu Current Access to setting configurations up the Qualifier Password - 1011 Group View Screen Shot...
  • Page 6 EYFR03 Menu Navigation Page 6 Parameters Tools Select, View and Edit Learn and Edit Tools Parameters Network Settings Groups View and Edit General, Select, View and Edit ACOP, ToolsNet and Groups EIP Network Settings Qualifier Settings View and Edit Global...

  • Page 7: Main Menu

    Tools - Learn/Learn Open Page 7 Menu Password Tools (Enter) (1011 Enter) (Enter) Learn Tool Learn Open Tool Exit Tool (Starts the learn sequence (Starts the learn sequence (Returns to the Main Menu) for the highlighted tool slot) for the first empty tool slot) 1.

  • Page 8: Tools

    Tools - Replace/Edit/Forget (Unlearn) Page 8 Menu Password Tools (Enter) (1011 Enter) (Enter) Replace Tool Edit Tool Learn Open Tool Exit Tool (Starts the learn sequence (Edit the highlighted tool) (Starts the learn sequence (Returns to the Main Menu) for the highlighted tool slot) for the first empty tool slot) 1.

  • Page 9: Programming Modes

    EYFR03 Programming Modes Page 9 Parameter Mode – Select a single tool, from the learned tools, to run on an application. • Use - When a single tool is required. • Not to use - When a group or a sequence is required.
  • Page 10 EYFR03 Create And Run A Parameter Page 10 Select Parameter Password Menu Parameters (Arrow over to a Parameter to (1011 Enter) (Enter) (Enter) Create/Edit (Enter)) Press “Save” and the The Run Screen should be Edit the Arrow over to the...
  • Page 11 Parameter - Select/Edit/Copy Page 11 Menu Password Parameters (Enter) (1011 Enter) (Enter) Copy Parameter Select Parameter Edit Parameter Exit Parameter (Copy the highlighted (Select the highlighted (Edit the highlighted (Returns to the Main Menu) parameter to another parameter to run) parameter) location) 1.
  • Page 12 EYFR03 Create And Run A Group Page 12 Select Group Menu Password Groups (Arrow over to a Group to (Enter) (1011 Enter) (Enter) Create/Edit (Enter)) Choose the different Press “Exit” and the Press “Parameter” Edit the Group tools to be attached...

  • Page 13: Group Mode

    Group - Select/Edit/Copy Page 13 Menu (Enter) Password (1011 Enter) Group (Enter) Select Group Edit Group Copy Group Exit Group (Select the highlighted group (Create and/or Edit the (Copy the highlighted group (Returns to the Main Menu) to run) highlighted group) to another location) 1.
  • Page 14 EYFR03 Create And Run A Job Page 14 Select Job Menu Password Jobs (Arrow over to a Job to (Enter) (1011 Enter) (Enter) Create/Edit (Enter)) Choose the different Press “Exit” and the Press “Steps” Edit the Job as Parameters/Groups to...

  • Page 15: Job Mode

    Job - Select/Edit/Copy Page 15 Menu (Enter) Password (1011 Enter) Job (Enter) Select Job Edit Job Copy Job Exit Job (Select the highlighted job to (Edit the highlighted job) (Copy the highlighted job to (Returns to the Main Menu) run) another location) 1.

  • Page 16: History

    History - View Page 16 The History screen shows some information about the tightenings stored in unit memory. More information about the tightenings is not shown but is available via the network protocols. Main menu - Events History Run Screen (Soft Key) Previous Next...

  • Page 17: Events

    Events - View Page 17 The Events screen shows the log of non-tightening events that have occurred. Main menu - Events Events Screen Menu Password Events (Enter) (1011 Enter) (Enter) Next Exit Events (Steps to the next page of (Returns to the Main Menu) events)

  • Page 18: Qualifier Settings

    Qualifier Settings – View/Edit Page 18 Menu Password Qualifier Settings (Enter) (1011 Enter) (Enter) Save Settings Cancel Settings Edit Setting Restore Defaults (Saves changes made to the (Cancels changes made to (Edit the highlighted setting) (Restores to factory defaults) qualifier settings) the qualifier settings) 1.
  • Page 19 EYFR03 Protocol Types Page 19 General – Configure standard network settings (DHCP Capable) ACOP (Open Protocol) – Configure ACOP settings • Use – select parameters/groups/jobs from a remote system (PC). ToolsNet – Configure ToolsNet settings • Use – data collection purposes only.
  • Page 20 EYFR03 Inputs/Outputs Overview Page 20 Discrete I/O (24 Pin Connector) Used to connect directly to the assembly line or a PLC. (Applies to EYFR03A) Inputs (8) – The inputs can be configured to meet the needs of the customer. •...
  • Page 21 EYFR03 Updating Firmware Page 21 Put firmware on Wait for Turn Qualifier Insert USB into a USB drive in Qualifier to Qualifier the root folder detect USB Drive Select “Upload Select Items To Press “Upload” Upload USB File to Button Device”...
  • Page 22 EYFR03 Checking Firmware Version Page 22 Firmware Run Screen Click “Status” Version is Listed at the Top...
  • Page 23 EYFR03 Assembly Manager Software Page 23 View/Download History – Data Collection Setup Inputs/Outputs – Not available through the Qualifier keypad/screen Backup/Restore Settings Program Parameters/Groups/Jobs View Qualifier Events Connect Via Ethernet Cable Directly/Network Standard or Crossover Ethernet Cable *Learning a tool has to be done at the Qualifier through the keypad/screen.
  • Page 24 Installing EYFR03 Assembly Manager Page 24 EYFR03 Assembly Manager Install file name “EYFR03 Assembly Manager 1_0 setup.exe. Follow the prompts 1. Click “Next” to continue install. 2. Select Destination Location, Click “Next” 3. Select Start Menu Folder, Click “Next” 4. Select Additional Tasks (Desktop Icon), Click “Next”...
  • Page 25 Connecting A PC To A EYFR03 Qualifier Page 25 Items Needed – PC, Ethernet Cable, Assembly Manager Installed Connect the Ethernet cable into both the PC & Qualifier. Configure the Qualifier Network Settings Go to “Menu” / “Network Setting” / “General”...
  • Page 26 Connecting EYFR03 Assembly Manager Page 26 1. Enter the IP address of the Qualifier, click “Connect” 2. Choose what you would like to read from the Qualifier and click “Read”. 3. If the PC connects correctly to the Qualifier, this screen will appear.
  • Page 27 EYFR03 Assembly Manager Software – Data Collection Page 27 Collect Data Via View Data Collection • Assembly Manager Software • At the Qualifier - Live • ACOP/ToolsNet • Assembly Manager Software - Download • EtherNet/IP – USB Flash Drive • ACOP/ToolsNet – Live •...
  • Page 28 EYFR03 Download Data To USB Drive Page 28 Wait for Turn Qualifier Insert USB into Qualifier to Qualifier detect USB Drive Select Select Items To Press “Download Upload “Download” Device Data To Results = “Yes” Button USB” (Enter) The Qualifier will Press Select “Exit”...
  • Page 29 EYFR03 Save The Configuration To USB Drive Page 29 Wait for Turn Qualifier Insert USB into Qualifier to Qualifier detect USB Drive Select Select Items To Press “Download Upload “Download” Device Data To Configuration = “Yes” Button USB” (Enter) The Qualifier will Press Select “Exit”...
  • Page 30 EYFR03 Upload Configuration From USB Drive Page 30 Put the Wait for configuration file on Turn Qualifier Insert USB into Qualifier to a USB drive in the Qualifier detect USB Drive root folder Select “Upload Select Items To Press “Upload”...

  • Page 31: Assembly Manager

    EYFR03 Assembly Manager Software – Create CSV Data File Page 31 Connect PC To Start Up “EYFR03 Configure PC Configure Qualifier Qualifier Via Assembly IP Address IP Address Ethernet Cable Manager” Connection Window Sync with Device Top Menu Upload tightenings Select what to click the “Upload...
