HCD-DR8AV/W900AV
SERVICE MANUAL
Ver 1.1 2003. 05
HCD-DR8AV/W900AV is the tuner, deck, CD and
amplifier section in LBT-DR8AV/W900AV.
Amplifier section
LBT-W900AV
Front Speaker:
Continuous RMS power output (Reference)
100 + 100W
(8 Ω at 1 kHz, 10% THD)
Total harmonics distortion
Less than 0.07%
(8 Ω at 1 kHz, 50W)
Center Speaker:
Continuous RMS power output (Reference)
45W
(8 Ω at 1 kHz, 10% THD)
Rear Speaker:
Continuous RMS power output (Reference)
40 + 40W
(8 Ω at 1 kHz, 10% THD)
LBT-DR8AV
Front Speaker:
The following measured at AC 120/220/240V, 50Hz
DIN power output (Rated)
130 + 130W
(6 Ω at 1 kHz, DIN)
Continuous RMS power output (Reference)
160 +160W
(6 Ω at 1 kHz, 10% THD)
Center Speaker:
DIN power output (Rated)
30W
(8 Ω at 1 kHz, DIN)
Continuous RMS power output (Reference)
40W
(8 Ω at 1 kHz, 10% THD)
Sony Corporation
9-928-902-12
2003E16-1
Home Audio Company
© 2003.05
Published by Sony Engineering Corporation

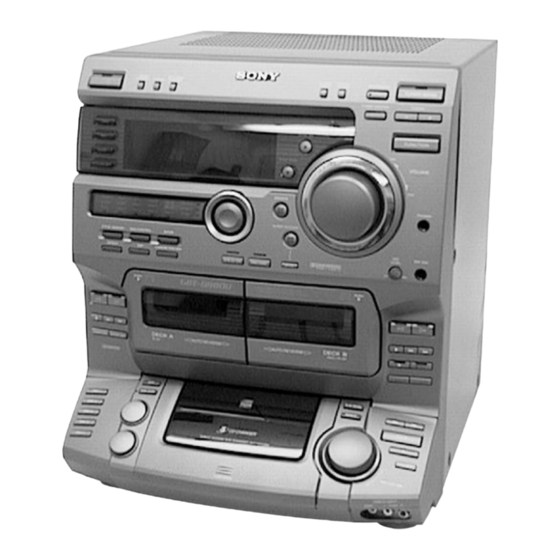

Photo: HCD-DR8AV
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
Rear Speaker:
DIN power output (Rated)
30 + 30W
(8 Ω at 1 kHz, DIN)
Continuous RMS power output (Reference)
40 + 40W
(8 Ω at 1 kHz, 10%
THD)
Inputs
PHONO IN (phono jacks):
sensitivity 3mV,
impedance 47k Ω
MIX MIC (phone jack):
sensitivity 1mV,
impedance 10k Ω
VIDEO1 IN (phono jacks):
sensitivity 250mV,
impedance 47k Ω
VIDEO2 IN (phono jacks):
sensitivity 250mV,
impedance 47k Ω
MD IN (phono jacks):
sensitivity 450mV,
impedance 47k Ω
(LBT-DR8AV/W900AV)
DVD IN (phono jacks):
sensitivity 450mV,
impedance 47kΩ
Outputs
PHONES (stereo phone jack):
accepts headphones of 8
Ω or more
VIDEO OUT (phono jack):
voltage 250mV,
impedance 1k Ω
COMPACT DISC DECK RECEIVER
US Model
Canadian Model
HCD-W900AV
E Model
Australian Model
HCD-DR8AV
HCD-DR4/DR5/DR6/DR440/
W300/W5000/XB500
CDM37M-5BD32L
BU-5BD32L
KSS-213D/Q-N
NEW
TCM-230AWR2/230PWR2
MD OUT (phono jacks):
voltage 250mV, impedance
1k Ω
WOOFER OUT (phono jack):
voltage 1V, impedance
1k Ω
FRONT SPEAKER:
(LBT-W900AV)
accepts impedance of 8 to
16 Ω
(LBT-DR8AV)
accepts impedance of 6 to
16 Ω
CENTER SPEAKER:
accepts impedance of 8 to
16 Ω
REAR SPEAKER:
accepts impedance of 8 to
16 Ω
Video section
Inputs
VIDEO1 IN (phono jacks):
1Vp-p, 75 Ω
VIDEO2 IN (phono jacks):
1Vp-p, 75 Ω
Output
VIDEO OUT (phono jack):
1Vp-p, 75 Ω
— Continued on next page —
