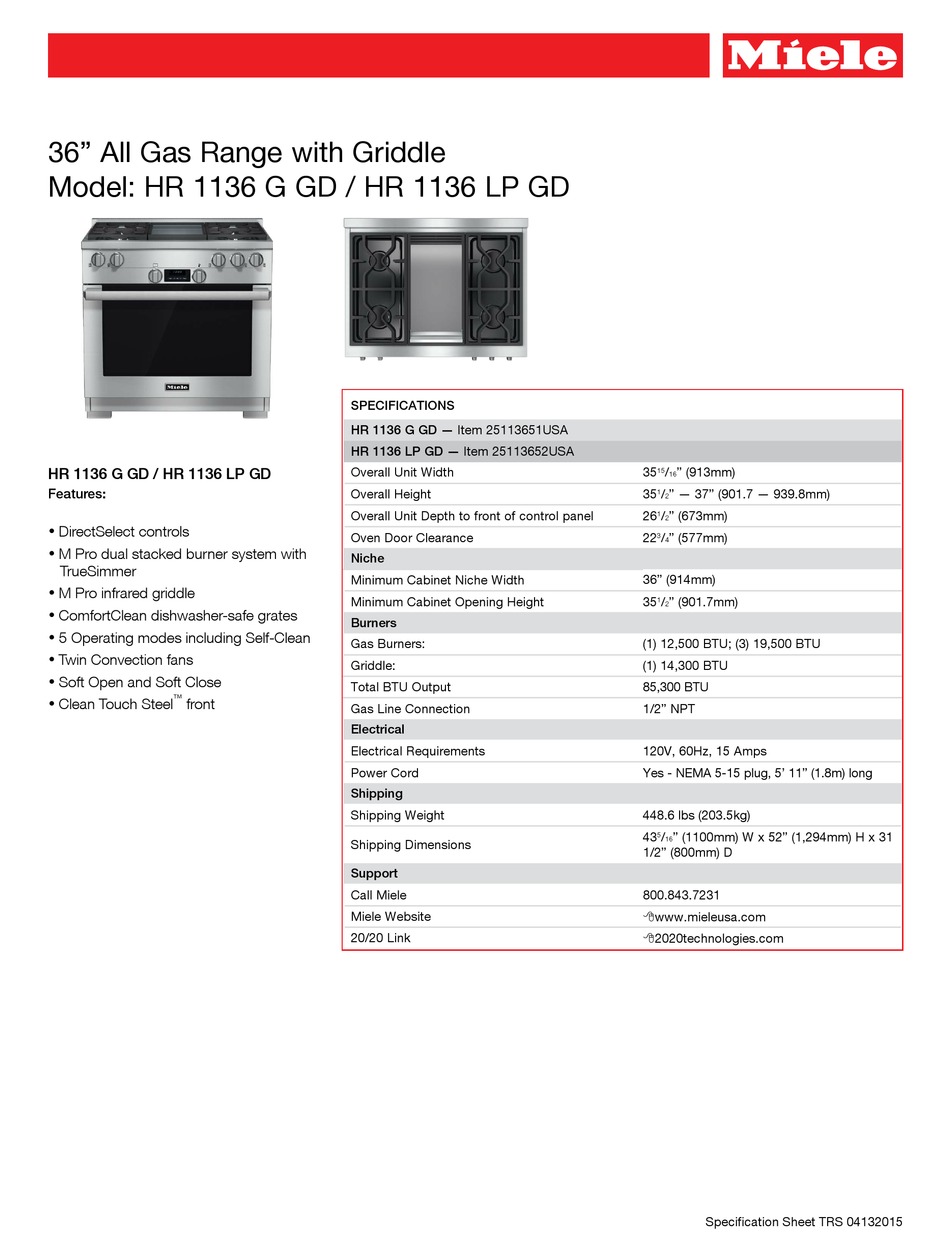

36" All Gas Range with Griddle
Model: HR 1136 G GD / HR 1136 LP GD
HR 1136 G GD / HR 1136 LP GD
Features:
 DirectSelect controls
 M Pro dual stacked burner system with
TrueSimmer
 M Pro infrared griddle
 ComfortClean dishwasher-safe grates
 5 Operating modes including Self-Clean
 Twin Convection fans
 Soft Open and Soft Close
™
 Clean Touch Steel front
SPECIFICATIONS
HR 1136 G GD — Item 25113651USA
HR 1136 LP GD — Item 25113652USA
Overall Unit Width
Overall Height
Overall Unit Depth to front of control panel
Oven Door Clearance
Niche
Minimum Cabinet Niche Width
Minimum Cabinet Opening Height
Burners
Gas Burners:
Griddle:
Total BTU Output
Gas Line Connection
Electrical
Electrical Requirements
Power Cord
Shipping
Shipping Weight
Shipping Dimensions
Support
Call Miele
Miele Website
20/20 Link
FOREVER BETTER
35 / " (913mm)
15
16
35 / " — 37" (901.7 — 939.8mm)
1
2
26 / " (673mm)
1
2
22 / " (577mm)
3
4
36" (914mm)
35 / " (901.7mm)
1
2
(1) 12,500 BTU; (3) 19,500 BTU
(1) 14,300 BTU
85,300 BTU
1/2" NPT
120V, 60Hz, 15 Amps
Yes - NEMA 5-15 plug, 5' 11" (1.8m) long
448.6 lbs (203.5kg)
43 / " (1100mm) W x 52" (1,294mm) H x 31
5
16
1/2" (800mm) D
800.843.7231
8www.mieleusa.com
82020technologies.com
Specification Sheet TRS 04132015
