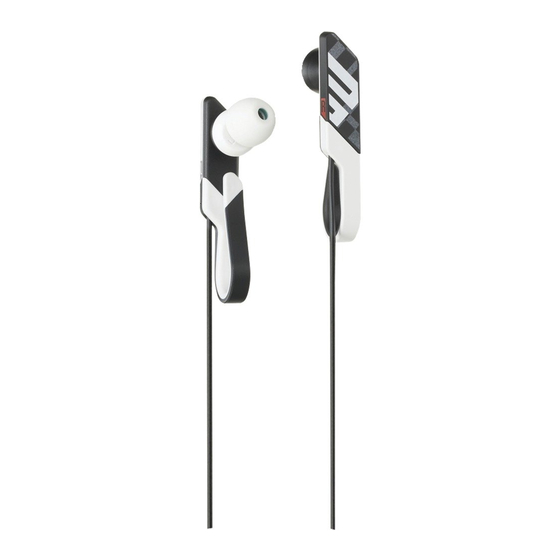

Sony PIIQ MDR-PQ4 Operating Instructions

Stereo
Headphones
ステレオ
イヤーレシーバー
Operating Instructions
取扱説明書
お買い上げいただきありがとうございます。
電気製品は安全のための注意事項を守らないと、火災や人
身事故になることがあります。
この取扱説明書には、事故を防ぐための重要な注意事項と製品の取り
扱いかたを示しています。この取扱説明書をよくお読みのうえ、製品
を安全にお使いください。お読みになったあとは、いつでも見られる
ところに必ず保管してください。
MDR-PQ4
©2010 Sony Corporation Printed in Thailand


Cord slider

Tactile dot


Sectional View

 

4-169-775-03(1)
English
Features
 Ear-clip design for secure fit
 Neodymium magnets deliver clear and powerful sound
 Hybrid silicone rubber earbuds for comfort and secure fit
 Cord slider to prevent tangled cords
How to use

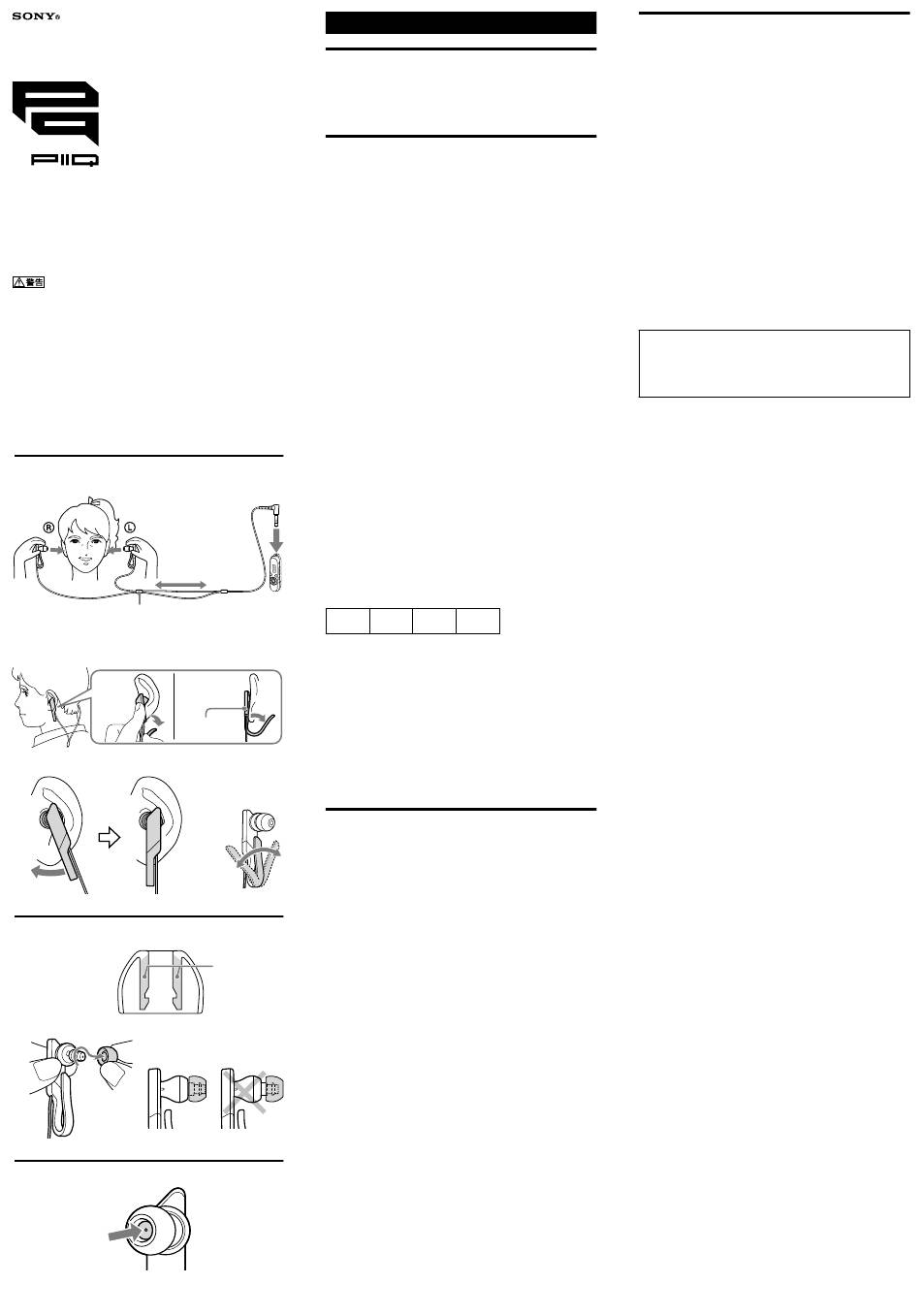

Wearing the headphones (see fig. )
1
Wear the earbud marked  in your right ear and
the one marked  in your left ear (see fig. -).
2
Hook the headphones around your ears
(see fig. -).
There is a tactile dot on the unit marked  to
distinguish the left side.
3
Clip around your ear lobes by rotating the
headphones (see fig. -).
4
Adjust the earbuds to comfortably fit your ears.
Move the clip as shown in the figure (-) for a
comfortable fit.
How to use the cord slider (see fig. -)
Move up and down to change the split position of the cord.
After you use the headphones, keep them with the cord
slider high positioned to avoid entangling the cord.
How to install the earbuds correctly
(see fig. )
If the earbuds do not fit your ears correctly, low-bass sound
may not be heard. To enjoy better sound quality, change the
earbuds to another size, or adjust the earbuds position to sit
on your ears comfortably and fit your ears snugly.
If the earbuds do not fit your ears, try another size. Confirm
the size of the earbuds by checking color inside
(see fig. -).
When you change the earbuds, turn to install them firmly
on the headphones to prevent the earbud from detaching
and remaining in your ear.
Earbud sizes (inside color)
Small

SS*
(Red)
* This size is optional and available at purchase.
To detach an earbud (see fig. -)
While holding the headphone, twist and pull the earbud off.
 Tip

If the earbud slips and cannot be detached, wrap it in a dry soft cloth.
To attach an earbud (see fig. -)
Push the parts inside of the earbud into the headphone until
the projecting part of the headphone is fully covered.
Cleaning the earbuds
Remove the earbuds from the headphones, and wash them

with a mild detergent solution.
Specifications
Type:
Driver unit:
Power handling capacity:
Impedance:
Sensitivity:
Frequency response:
Cord:
Plug:
Colored parts
Mass:
Supplied accessories
Earbuds (S (2), M (2), L (2)), Operating Instructions (1),
Card warranty (1)
* IEC = International Electrotechnical Commission
Design and specifications are subject to change without
notice.
Large

S M L
(Orange) (Green) (Light blue)
Closed, dynamic
9 mm (CCAW adopted),
dome type
100 mW (IEC*)
16 Ω at 1 kHz
102 dB/mW
6 – 23,000 Hz
1.2 m (47 / in), Litz cord
1
4
Y-type
Gold-plated L-shaped
stereo mini plug
Approx. 8 g (0.28 oz)
without cord
Precautions
 Please keep your headphones clean at all times especially
inside the rubber earbud (see fig. ).
If any dust or ear wax inside the earbud, you may
experience some listening difficulties.
 Listening with headphones at high volume may affect
your hearing. For traffic safety, do not use while driving
or cycling.
 The earbuds may deteriorate due to long-term storage or
use.
 Install the earbuds firmly onto the headphones. If an
earbud accidentally detaches and is left in your ear, it may
cause injury.
 It may be advisable to remove earrings or pierced
accessories before using the headphones.
 Do not bend the ear-clip excessively. If it is bent 90
degrees or more, it may break.
Note on static electricity
In particularly dry air conditions, mild tingling may be felt
on your ears. This is a result of static electricity accumulated
in the body, and not a malfunction of the headphones.
The effect can be minimized by wearing clothes made from
natural materials.
EP-EX10 is available (sold separately) as optional
replacement earbuds.
EP-EX10 offers 4 types of the earbuds: SS, S, M and L.
Optional replacement earbuds in other colors can be
ordered from your nearest Sony dealer.
