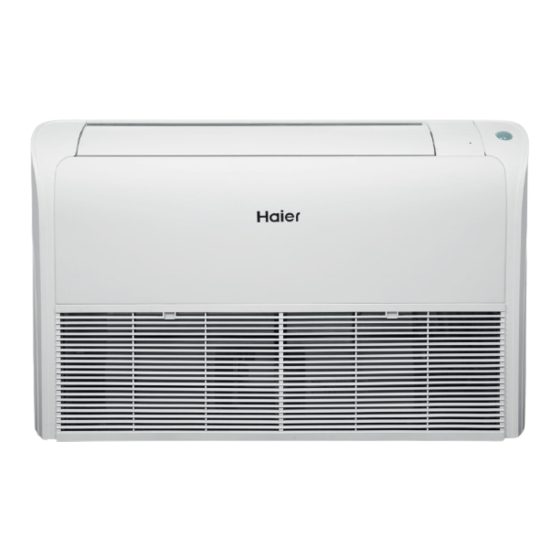

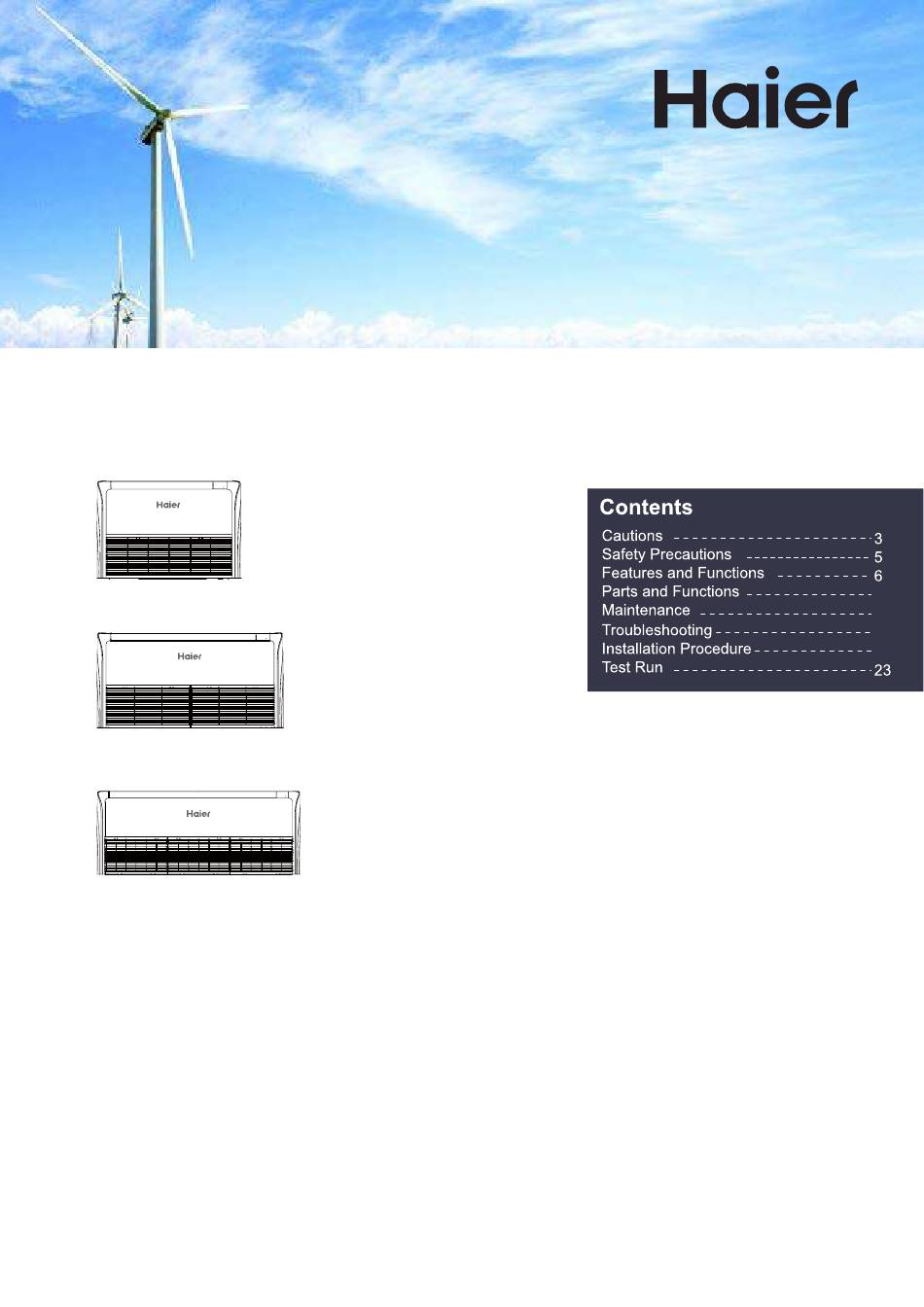

CONVERTIBLE TYPE AIR CONDITIONER OPERATION MANUAL AND INSTALLATION MANUAL AC35S2SG1FA AC50S2SG1FA AC71S2SG1FA AC90S2SH1FA AC105S2SH1FA AC125S2SK1FA AC140S2SK1FA No.0150532721 Please read this manual carefully before installation. Keep this operation manual for future reference.
Page 2
Read the precautions in this manual This appliance is filled with R32. carefully before operating the unit. Service indicator; Read technical Read the operator's manual manual Keep this manual where the user can easily find it. WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
Page 3
WARNING •A brazed, welded, or mechanical connection shall be made before opening the valves to permit refrigerant to flow between the refrigerating system parts. A vacuum valve shall be provided to evacuate the interconnecting pipe and/or any uncharged refrigerating system part. •The maximum working pressure is 4.3 MPa.
Haier Industrial Park, No.1 Haier road, Qingdao,P.R.China EUROPEAN REGULATIONS IMPORTANT INFORMATION REGA- CONFORMITY FOR THE MODELS RDING THE REFRIGERANT USED Contains fluorinated greenhouse gases covered by the Kyoto Protocol All the products are in conformity with the following European provision:...
Page 5
Cautions Disposal of the old air conditioner Before disposing an old air conditioner that goes out of use, please make sure it's inoperative and safe. Unplug the air conditioner in order to avoid the risk of child entrapment. It must be noticed that air conditioner system contains refrigerants, which require specialized waste disposal. The valuable materials contained in a air conditioner can be recycled.
Page 6
Cautions Specifications The refrigerating circuit is leak-proof. For all the models in this manual, the all-pole discon-nexion connection method should be applied in the power supply. Such means for disconnection must be incorporation in the fixed wiring. Temperature and Humidity Range max.
Safety Precautions WARNING The breaker of the air conditioner should be all-pole switch, and the distance between its two contacts should be no less 3 mm. Such means for disconnection must be incorporation in the fixed wiring. Use copper wire only. All the cables shall have got the European authentication certificate. The power supply connects from the outdoor side.
Page 9
Parts and Functions Indoor Unit Operating Control Panel 1 Operating Control Panel 1 (1) Operation Control Panel (2) Cover Plate (3) Front Panel (4) Inlet Grill(Filter inside) (5) Human Sensor (6) RUNNING Indicator Lamp (7) TIMER Indicator Lamp (8) POWER Indicator Lamp (9) Emergency Switch (10) Remote Receiver Operating Control Panel 2...
Maintenance Clean the air filter Pull the filters upward to remove them from the Intake Grill. Clean the air filter: Remove the dust from the filters by vacuum cleaner or washing them. After washing, allow the air filters to dry thoroughly in an area protected from sunlight.
Troubleshooting Followings are not problems Sound of water flowing is not a problem. During unit operation or at stop, a swishing or gurgling noise may be heard. This noise is generated by refrigerant flowing in the system. Sound of cracking is heard. During unit operation, a cracking noise may be heard.
Page 12
Troubleshooting Before ask for services, please first check your unit against the following. Air conditioner won't start. Is power supply switch turned on? Is city power supply normal? Is leakage current breaker activated? Power This is very dangerous, please failure? disconnect power supply immediately Power supply switch is not set at ON.
Installation Procedure Please ask the dealer or specialist to install, never try by the users themselves. After the installation please be sure of the following conditions. WARNING Please call dealer to install the air-conditioner. Incorrect installation may cause water leaking, shock and fire hazard.
Installation Procedure SELECTING THE MOUNTING POSITION WARNING Install at a place that can withstand the weight of the indoor unit and install it positively so that the unit will not topple or fall. CAUTION Do not install the unit where there is the danger of combustible gas leakage. Do not install near heat sources.
Page 17
AC35S2SG1FA 9.52mm 6.35mm AC50S2SG1FA 12.7mm 6.35mm AC71S2SG1FA 15.88mm 9.52mm AC90S2SH1FA 15.88mm AC105S2SH1FA 9.52mm AC125S2SK1FA AC140S2SK1FA 9.52mm 15.88mm (1) Open the intake grill (2) Remove the Side cover(Right and left side) Open the intake grill (1) Push the embeding switch according to the direction of the arrowhead.(Refer to Fig.1) (2)Turn into the intake grill according to the direction of the arrowhead.(Refer to Fig.2)
Page 18
Cut intake grill for drain pipe (1) Tools:Knife or Pliers. (2) Cut the intake grill before installing the drain pipe,Then,pass the drain pipe through the hole.As the following schematic. After removal Location of the cut Installing the drain pipe and the connecting pipe (1) When the unit is installed in the ceiling,Installing them as below.
Page 19
MODEL 1204 1530 3. Drilling the holes and attaching the suspension bolts Special nut A (included) Ceiling panel (1) Drill 25mm holes at the suspension-bolt locations. The two special nuts are provided with the unit. The M10 nut must be obtained locally. (2) Install the bolts, then temporarily attach Special nuts A and B and a normal 10 to 15 mm M10 nut to each bolt.
Page 20
Installation Procedure 4.Installing the indoor unit Ceiling Ceiling panel (1) Lift unit so that suspension bolts pass through suspension fittings at the sides (four places),and slide the unit back. Wall (2) Fasten the indoor unit into place by tightening-up the special "B" bolts and the M10 nuts.
Installation Procedure INSTALLING THE DRAIN HOSE Install the drain pipe with downward gradient (1/50 to 1/100) and so there are no rises or traps in the pipe. Use general hard polyvinyl chloride pipe (VP25) (outside diameter 38 mm) During installation of the drain pipe, be careful to avoid applying pressure to the drain point of the unit. When the pipe is long, install supporters.
Page 22
Use VW-1, 0.5 to 1.0 mm thick, PVC tube as the insulation tube. Electrical requirement Select wire sizes and circuit protection from table below. (This table shows 20m length wires with less than 2% voltage drop). AC35S2SG1FA AC50S2SG1FA AC71S2SG1FA AC90S2SH1FA...
Installation Procedure Wiringadiagram 1 2 3 Indoor unit Indoor unit terminal block terminal block Outdoor unit Outdoor unit R S T N 1 2 3 terminal block terminal block Power supply Power supply 1PH,220-230V~,50Hz 380-400V, 3N~,50/60Hz WARNING The power cable and connecting cable are self-provided. Always use a special branch circuit and install a special receptacle to supply power to the room air conditioner.
Page 24
Test Run Check items 1. Indoor unit Is operation of each button on the remote control unit normal? Does each lamp light normally? Do not air flow direction louvers operate normally? Is the drain normal? 2. Outdoor unit Is there any abnormal noise and vibration during operation? Will noise, wind, or drain water from the unit disturb the neighbors? Is there any gas leakage? Customer guidance...
