Precautions To Avoid Possible Exposure To Excessive Microwave Energy Important Safety Instructions Grounding Installation Installation Utensils Setting Up Your Oven Control Panel and Features Operation Instructions Touble shooting Technical Data Customer Care Center EN-1...
Page 3

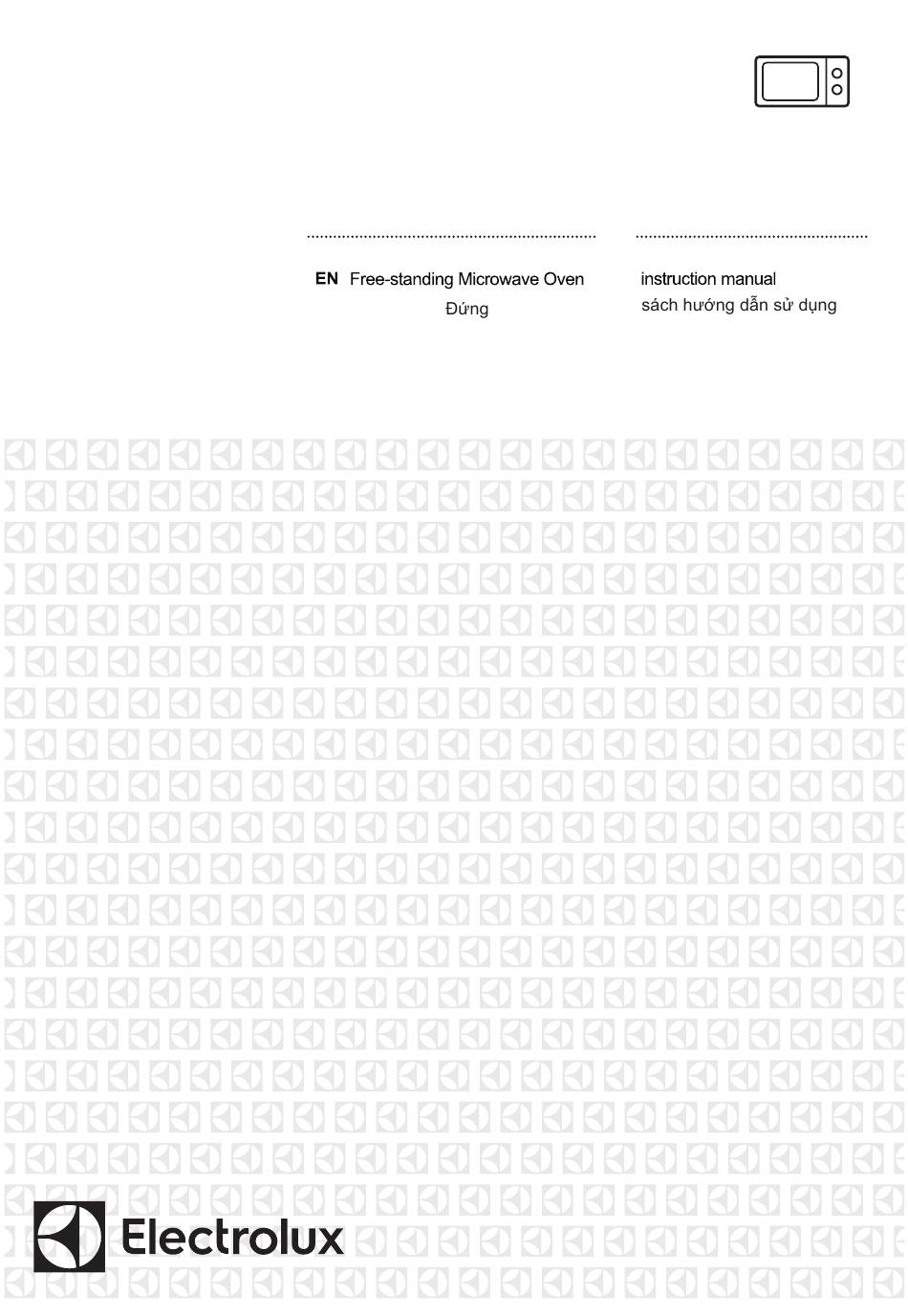

Microwave Oven INSTRUCTION MANUAL MODEL: EMS2382GRI Read these instructions carefully before using your microwave oven,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY EN-2...
Precautions To Avoid Possible Exposure To Excessive Microwave Energy (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
Important Safety Instructions To reduce the risk of fire, electric shock, injury to persons Warning or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must 13. Install or locate this oven only in not be heated in sealed containers since accordance with the installation they are liable to explode.
Page 6
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
To Reduce the Risk of Injury to Persons Grounding Installation 2)The extension cord must be a grounding- Danger type 3-wire cord. Electric Shock Hazard 3)The long cord should be arranged so that Touching some of the interna components it will not drape over the counter top or can cause serious personal injury or death.
Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged.
Page 9
Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window...
Operation Instructions 1. Clock Setting 1) Press " TIMER / CLOCK " twice to select clock function, the hour figures "0" will flash. The CLOCK icon will appear. 2) Turn " " to adjust the hour figures, the input time should be within 0--23. TIMER / CLOCK 3) Press "...
Page 13
Note: the step quantities for the adjustment time of the coding switch are as follow: 0---1 : 5 seconds 1---5 : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes " Microwave/Grill/Combi." Pad instructions Microwave Grill Instructions...
Page 14
5. Combination Function COMBI will light. 1) Press " ", the screen displays "0:00". "M+GRILL" 2) Turn " " to adjust the cooking time. The maximum cooking time is 95 minutes. 3) Press " START " to start cooking. 6. Quick Start START 1) In standby mode, press "...
Page 15
TIMER / CLOCK (2) In timer state, press " " once to inquire the current time for 3 seconds. TIMER / CLOCK (3) In cooking state with timer, press " " once to inquire the timer. 10. Multi-setting cooking At most 2 sections can be set for cooking. In multi-setting cooking, if one section is defrosting, then defrosting shall be placed in the first section.
Page 16
The menu chart: Menu Display Weight 200 g Pizza 400 g 250 g 350 g Meat 450 g 200 g Vegetable 300 g 400 g 50g(with 450 ml cold water) Pasta 100g(with 800 ml cold water) 200 g Potato 400 g 600 g 250 g 350 g...
Page 17
13. Memory Function 1) The oven will remember the last microwave cooking setting. For example, the oven worked for 5 minutes with M-HI power level. MICROWAVE Press " " again, then turn " " to set the cooking time. START Press "...
Normal Radio and TV reception may be interfered when microwave oven operating.It is similar Microwave oven interfering to the interference of small electrical appliances, TV reception like mixer,vacuum cleaner and electric fan. It is normal. In low power microwave cooking,oven light may Dim oven light become dim.It is normal.
Email : wecare@electrolux.com Malaysia Indonesia Consumer Care Center Tel: 1300-88-11-22 Hotline service: 08041119999 Electrolux Home Appliances Sdn. Bhd. PT. Electrolux Indonesia Corporate Office Address: Unit T2-7, 7th Floor, Tower 2 , Electrolux Building Jaya33 Hyperoffice, No. 3, Jalan Semangat, Seksyen 13, Jl.Abdul Muis No.34, Petojo Selatan,...
Page 25
HƯỚNG DẪN AN TOÀN QUAN TRỌNG CẦN ĐỌC KỸ VÀ GIỮ LẠI ĐỂ THAM KHẢO SAU NÀY C NH BÁO sóng điện từ. Thiết bị này chỉ được sử dụng bởi trẻ em từ 8 tuổi trở lên và người suy giảm thể chất, thiểu năng trí...
Page 26
35. CẢNH BÁO: Nếu cánh cửa hoặc gioăng cửa bị hư hại, không được sử dụng thiết bị cho tới khi thiết bị được sửa chữa bởi người có chuyên môn kỹ thuật. VI-5...
