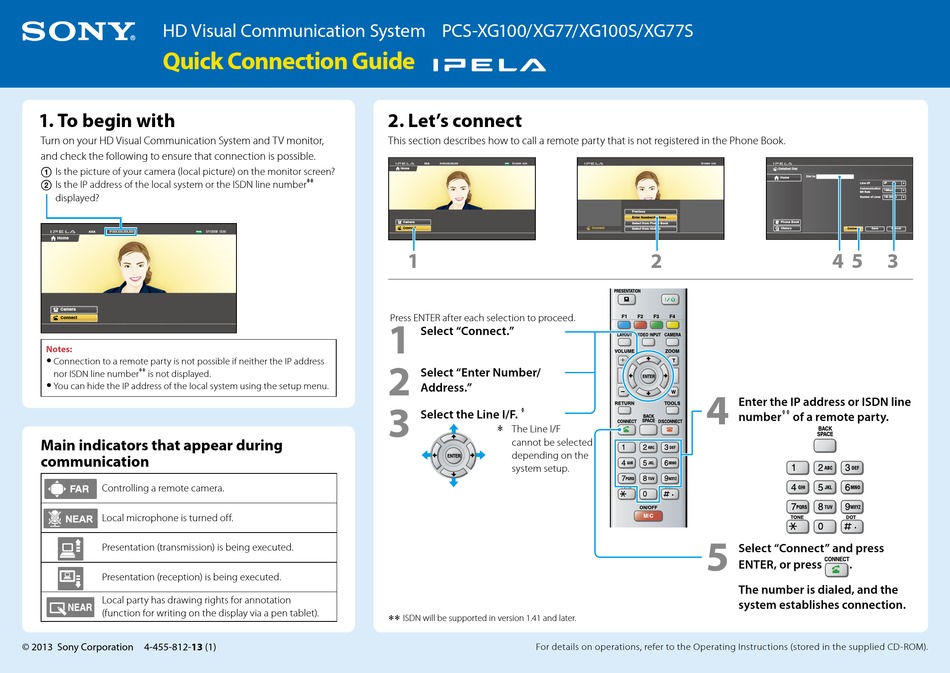

Sony Ipela PCS-XG100 Quick Connection Manual

HD Visual Communication System PCS-XG100/XG77/XG100S/XG77S
Quick Connection Guide
1. To begin with
Turn on your HD Visual Communication System and TV monitor,
and check the following to ensure that connection is possible.
 Is the picture of your camera (local picture) on the monitor screen?
 Is the IP address of the local system or the ISDN line number
displayed?
AAA
IP:XXX.XXX.XXX.XXX Ready
Home
Camera
Connect
Notes:
ˎ
Connection to a remote party is not possible if neither the IP address

nor ISDN line number is not displayed.
ˎ
You can hide the IP address of the local system using the setup menu.
Main indicators that appear during
communication
Controlling a remote camera.
Local microphone is turned off.
Presentation (transmission) is being executed.
Presentation (reception) is being executed.
Local party has drawing rights for annotation
(function for writing on the display via a pen tablet).
© 2013 Sony Corporation 4-455-812-13 (1)

5/11/2008 13:00
2. Let's connect
This section describes how to call a remote party that is not registered in the Phone Book.
AAA IP:XXX.XXX.XXX.XXX Ready 5/11/2008 13:00
Home
Camera
Connect
1
Press ENTER after each selection to proceed.
1
Select "Connect."
2
Select "Enter Number/
Address."
3

Select the Line I/F.
 The Line I/F
cannot be selected
depending on the
system setup.
 ISDN will be supported in version 1.41 and later.
For details on operations, refer to the Operating Instructions (stored in the supplied CD-ROM).
IP:192.168.0.11 5/11/2008 13:00
Previous
Enter Number/Address
Select from Phone Book
Connect
Select from History
2
4
Enter the IP address or ISDN line
number
5
Select "Connect" and press
ENTER, or press
The number is dialed, and the
system establishes connection.
Detailed Dial
Dial to:
Home
Line I/F IP
Communication
1Mbps
Bit Rate
Number of Lines 1B (64K)
Phone Book
History Connect Save Cancel
4 5 3

of a remote party.
.
