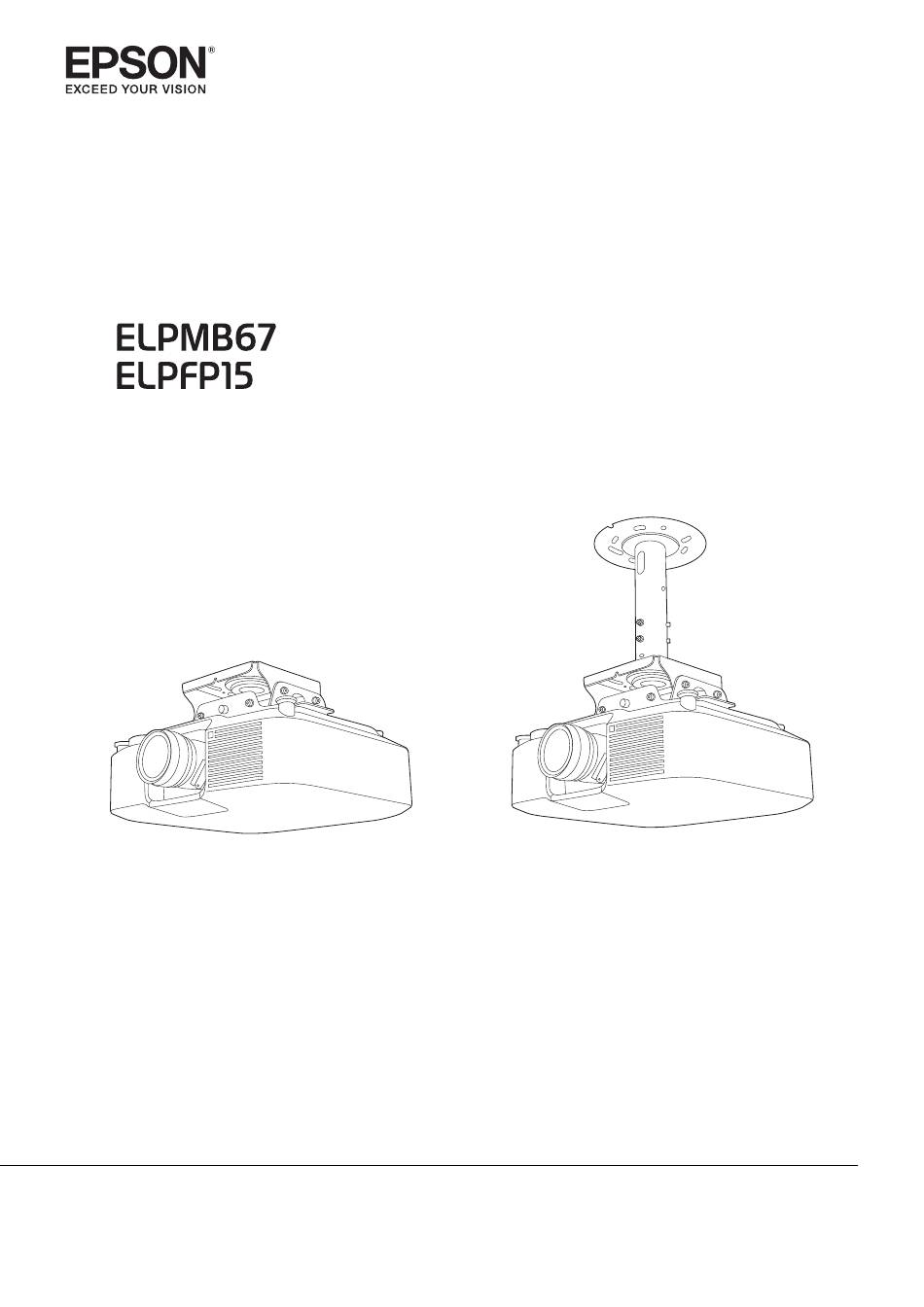

- Page 1 Installation Guide...
-
Page 2: About This Guide
• Installing the projector using the Ceiling Mount (ELPMB67) • Installing the projector using a combination of the Ceiling Mount (ELPMB67) and Suspension Adapter (ELPFP15) • Illustrations of the projector used in this guide may differ from the projector you are using. -
Page 3: Table Of Contents
Specifications ......9 ELPMB67 ......9 ELPFP15 . -
Page 4: Introduction
Incomplete or incorrect installation could cause the product or projector to fall and cause personal injury or an accident. Do not attach anything other than an Epson projector to this product. Doing so could cause the mount to fall or break and cause personal injury or an accident. - Page 5 Introduction Warning Handle the power cord carefully to avoid fire or electric shock. Incorrect handling could cause fire or electric shock. Observe the following precautions when handling: • Do not handle the power plug with wet hands. • Do not use a power cord that is damaged or modified. •...
-
Page 6: Notes On The Installation Location
Introduction Caution Do not disassemble or remodel this product. Install the product in a location free from humidity and dust to prevent the projector's lens and optical components from becoming dirty. Do not use excessive force when adjusting this product. This product may break, resulting in personal injury. -
Page 7: Package Contents
Introduction Package Contents ELPMB67 Part Name Application A: Ceiling plate B: Projector mount Temporarily assembled at the time of purchase. See the illustration on the left to separate the parts before installing. M6 x 15 mm hexagon socket head cap... -
Page 8: Elpfp15
Suspen- sion Adapter less noticeable. M6 x 16 mm hexagon socket head Used to attach the adjustment cap bolts pipe to the ceiling plate for the with washers (x3) ELPMB67. - Page 9 Introduction Part Name Application Safety wire set (for ceiling installa- Used to connect the product tion) to the installation surface to prevent the product from fall- • Safety wire (x2) ing. • Wire clips (x2) • Use only the supplied bolts to install the mount. •...
-
Page 10: Specifications
Introduction Specifications ELPMB67 External dimensions when assembled 330 × 124 × 356 mm Mass Approx. 5.7 kg Load-bearing capacity 40 kg Adjustment Vertical tilt angle -15 to 5° range Horizontal tilt angle ±5° Horizontal rotation angle ±5° Front/back slide ±36 mm... - Page 11 Introduction 460 〜 680mm 20mm...
-
Page 12: Installation Method
Installation Method Preparation Checking the Installation Location Before installing, check the projection distance to the screen and make sure the projector is in the correct position. The projection distance to the screen varies depending on the projector. See the User's Guide supplied with the projector you are using. - Page 13 Installation Method Insert the adjustment pipe into the ceiling plate for the ELPMB67 Secure with the M6 x 16 mm bolts (x3) supplied Insert the ceiling mount pipe into the adjustment pipe...
- Page 14 Installation Method Adjust the position so that it reaches the required length, and then insert the fixing bolts (x2) that were removed beforehand The holes for height adjustment are 20 mm apart. Tighten all of the fixing bolts (6 points) to secure it in place...
-
Page 15: Installing On A Ceiling Or A Wall
When replacing from the ELPMB22: Use the holes indicated by A. • When replacing from the ELPMB47/ELPMB48: Use the holes indicated by B. ELPMB67 ELPMB67+ELPFP15 Drill holes in the ceiling or wall where the product will be installed The holes for securing the mount are shown in the following illustration. The notch in the mount is on the lens side of the projector. -
Page 16: When Attaching To An Aluminum Truss (Elpmb67 Only)
When adjustment is complete, tighten the nut to completely secure the ceiling plate or the ceiling mount pipe When attaching to an aluminum truss (ELPMB67 only) When attaching to an aluminum truss, use at least two commercially available clamps to secure it in place. -
Page 17: Attaching The Projector Mount To The Ceiling Plate
Installation Method Caution • When attaching the clamps, be sure to use the nuts to secure them in place. • Secure at least two of the following screw holes for clamping so that they are symmetrical. • If you are using the ELPFP15, it cannot be secured with clamps. Attaching the projector mount to the ceiling plate Align the shaft of the projector mount with the slot in the ceiling plate, and insert it Use the first 2 bolts that you removed to secure the 2 points shown in the following... -
Page 18: Adjusting The Position Of The Image
Installation Method Only when mounting on a wall, use the two M8 x 16 mm bolts supplied to secure the projector in place Adjusting the position of the image Project an image and adjust the position. Connect the power cable to the projector in advance and turn it on. Adjusting the vertical position of the image You can tilt the projector to adjust the vertical position of the image. - Page 19 Installation Method Loosen the bolts (2 points) shown below using the M8 wrench supplied When installing the projector on a wall, loosen the bolts (4 points) shown below. Raise and lower the back side of the projector to adjust the position of the image When you have finished adjusting, re-tighten the loosened bolts (2 points) When installing the projector on a wall, re-tighten the bolts (4 points) shown below.
-
Page 20: Adjusting The Angle Of The Image
Installation Method Adjusting the angle of the image You can tilt the projector to adjust the angle of the image. Loosen the bolts (4 points) shown below using the M8 wrench supplied Tilt the projector to the left or right to adjust the angle of the image When you have finished adjusting, re-tighten the loosened bolts (4 points) Adjusting the size of the image You can adjust the size of the image by adjusting the front-to-back position of the projector... -
Page 21: Installing The Safety Wire
Installation Method Loosen the bolts (2 points) shown below using the M8 wrench supplied Adjust the size of the image by sliding the projector back and forth When you have finished adjusting, re-tighten the loosened bolts (2 points) Installing the safety wire To prevent the projector from falling, attach the safety wires (x2) supplied after installation. - Page 22 • We recommend installing the anchor bolts on the ceiling within 1 meter from the center of this product. • If you are only using the ELPMB67, install the 2 wires diagonally. • If you are using the ELPMB67 in combination with the ELPFP15, install the 4 wires. Installing...
-
Page 23: Connecting The Ceiling Mount To The Projector With A Wire
Installation Method Loosen the screws on the wire clip and thread the safety wire through Thread the safety wire through the hole in the projector mount Make sure the end of the safety wire is threaded through the wire clip. Adjust the length of the safety wire and tighten the screws on the wire clip to secure it in place Make sure the safety wire is as taut as possible. - Page 24 If you are using a projector that does not have a dedicated wire ring attachment section, thread it through the safety wire attachment section. Thread the safety wire through the projector mount and ceiling plate, and then tighten the carabiner © 2021 Seiko Epson Corporation 2021.4 Rev.1.0 (414137700)
