3 Description of the connections and displays

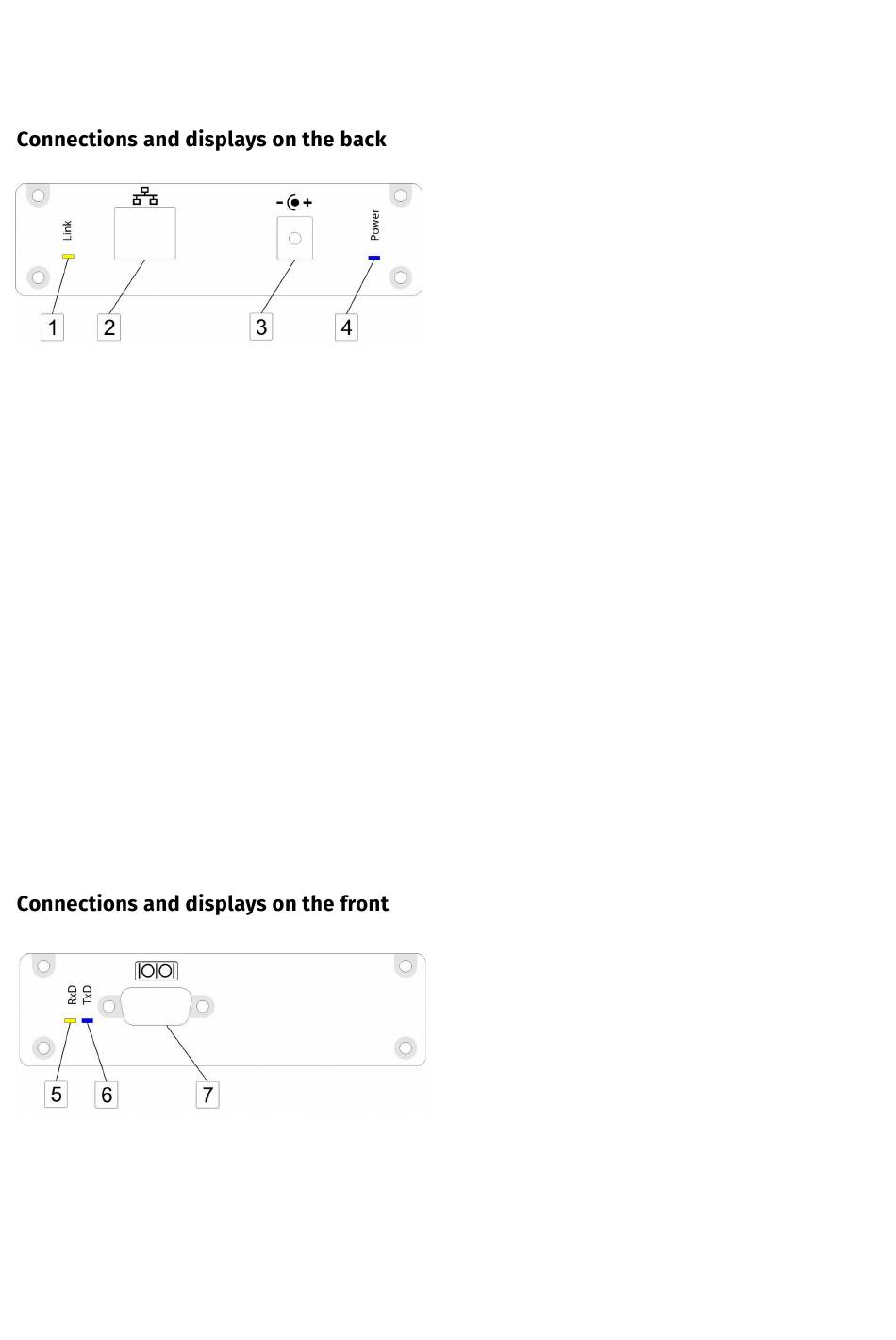

1| Link LED
This LED will flash yellow if data is being transferred via the network.
2| Ethernet connection
Connect the module to your network here. If your network has PoE functionality the
module will be supplied with power via this connection.
3| DC connector socket
If your network is not PoE-ready the module can optionally be provided with power using
this socket.
4| Power LED
This LED will light up blue if the module is receiving an adequate power supply, either via
the mains power adapter and DC connector socket or via PoE.
5| Receive LED
