Quick Setup Guide

Network Media Player

NSZ-GS7

Connection

Connect to your TV

step

Follow :

to connect to your TV directly.

to connect to your TV via AV Receiver

if your connection differs from the diagrams below.

Direct to TV

(optional)

HDMI cable (not supplied)

Set Top Box /

Personal Video Recorder

Prepare for Network

step

connection

Wireless LAN

router*1*2

Broadband

router*2

LAN cable (not supplied)

*1 When using wireless connection, you need to set the Network Setup in the Initial Setup Wizard (on step 4).

*2 You can find MAC address in the Initial Setup Wizard (step 4) as needed. Select "Explain step" on "Connect to the Internet" screen.

To control connected devices using the remote

This player is equipped with a built-in IR Blaster that accepts remote commands and sends them to various connected devices to control them with your remote. This function works when the player is turned on.

When you set the player close to a connected device (as illustrated on the

right), you can control the device using the remote, including operations such as

adjusting the volume of the TV or an AV Receiver.

However, if you place the player in a location where IR signals cannot reach,

you cannot control connected devices with the built-in IR Blaster. In this case,

connect the supplied IR Blaster as follows:

 Connect the IR Blaster cable to the player.

 Place the IR Blaster so that the infrared transmitter points to the IR receiver

(sensor) on the device you want to control, as illustrated on the right.

To TV via AV Receiver

HDMI cable (supplied)

(optional)

Set Top Box /

Personal Video Recorder

step

AC power cord (mains lead)

In the Box

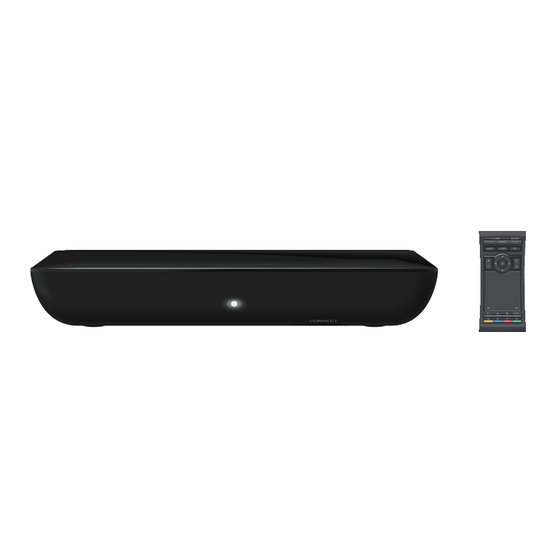

Network Media Player

Remote control

(Remote) (1)

To insert batteries into the

remote control

AV Receiver

HDMI cable (supplied)

HDMI cable (not supplied)

Connect to the power

source (mains)

 Connect to the power

source (mains)

 Change the TV input

Switch the input selector on the TV

so that the signal from the player

appears on your TV screen.

Then, a screen that shows how to

setup your remote appears.

Note

This will only appear the first time you setup your

player.

IR Blaster

Printed in China

4-433-769-11(1)

AC power cord

Quick Setup Guide (1)

(mains lead) (1)

Getting Started (1)

HDMI cable (1)

Reference Guide and

R6 (size AA)

Summary of Contents for Sony NSZ-GS7

Page 1 © 2012 Sony Corporation Printed in China 4-433-769-11(1) In the Box Quick Setup Guide Network Media Player AC power cord Quick Setup Guide (1) (mains lead) (1) Remote control Getting Started (1) (Remote) (1) HDMI cable (1) Reference Guide and R6 (size AA) other documents To insert batteries into the batteries (2) remote control What’s this? IR (infrared) The IR Blaster enables you to control connected devices with your remote. Blaster Please see “To control connected cable (1) devices using the remote” shown below for more information.
Page 2 The remote does not function. connection. – Make sure that the batteries are inserted correctly. – Check the settings of the LAN router or Wireless LAN router. For details, refer to the operating instructions supplied with the LAN router or Wireless LAN router. – Operate the remote closer to the player. – Disconnect and reconnect the AC power cord (mains lead). – Move the player and the Wireless LAN router closer to each other. The Wireless LAN connection is affected by the surrounding environment (the wall material, radio wave receiving condition, obstacles between the player and the Wireless LAN router, etc.). – Perform re-pairing according to the following procedure. – Move the player away from devices that use a 2.4 GHz frequency band (microwaves,  Press the CONNECT button, located on the bottom of the player, with a thin, sharp Bluetooth devices, cordless digital devices, etc.), or turn off such devices. These devices object such as the point of a pen, etc. may interrupt the communication between the player and the Wireless LAN router.  Follow the instructions on the screen. – If you cannot get Wi-Fi over the Internet, please make sure you do not have a LAN cable connected. The player places priority on a LAN connection over a Wi-Fi connection. Use a thin, sharp object such as the point of a pen to press the CONNECT button. – If the touch-pad of the remote is not operated for a while, it will not sense any attempts at operations. When you want to use it again, hold the remote up, or after clicking the touch- pad, lift your finger off it for a few seconds. – Do not cover the upper left part of the remote because that is where the antenna is located. The remote may malfunction or may not work properly if you cover the antenna. Others Sony Customer Support Please visit the following website: http://www.sony-asia.com/support/...
