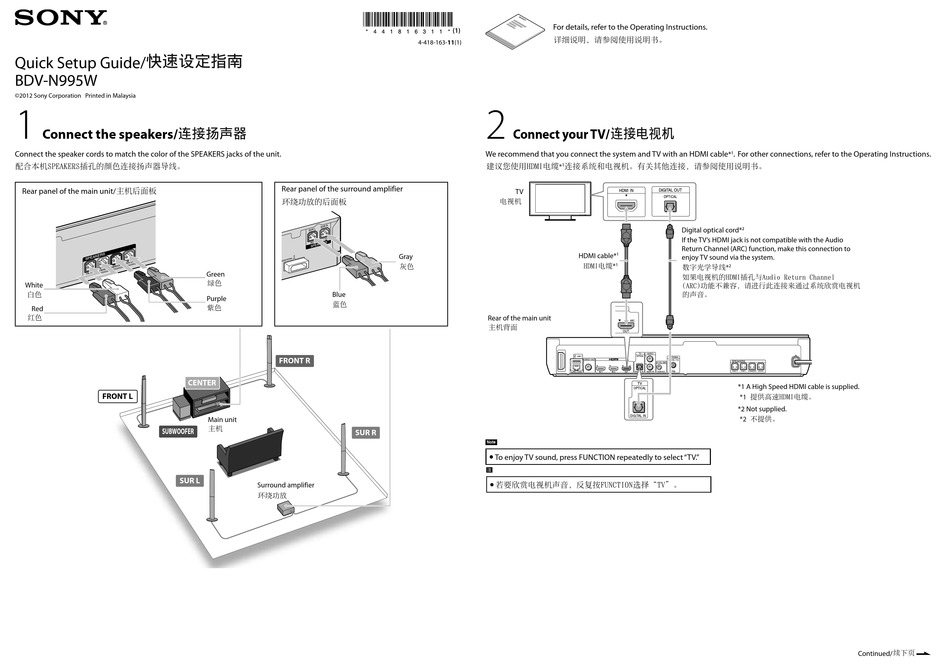

Quick Setup Guide/ 快速设定指南
BDV-N995W
©2012 Sony Corporation Printed in Malaysia
1
Connect the speakers/连接扬声器
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
配合本机SPEAKERS插孔的颜色连接扬声器导线。
Rear panel of the main unit/主机后面板
R S
A K E
S P E
White
白色
Red
红色
CENTER
FRONT L
SUBWOOFER
SUR L
Rear panel of the surround amplifier
环绕功放的后面板
Green
绿色
Blue
Purple
蓝色
紫色
FRONT R
Main unit
主机
SUR R
Surround amplifier
环绕功放
For details, refer to the Operating Instructions.
(1)
详细说明，请参阅使用说明书。
4-418-163-11(1)
2
Connect your TV/连接电视机
We recommend that you connect the system and TV with an HDMI cable
建议您使用HDMI电缆 * 1 连接系统和电视机。有关其他连接，请参阅使用说明书。
TV
电视机
Gray
灰色
Rear of the main unit
主机背面
Note
 To enjoy TV sound, press FUNCTION repeatedly to select "TV. "
注
 若要欣赏电视机声音，反复按FUNCTION选择"TV"。
. For other connections, refer to the Operating Instructions.
* 1
Digital optical cord*
2
If the TV's HDMI jack is not compatible with the Audio
Return Channel (ARC) function, make this connection to
HDMI cable* 1
enjoy TV sound via the system.
HDMI电缆* 1
数字光学导线* 2
如果电视机的HDMI插孔与Audio Return Channel
(ARC)功能不兼容，请进行此连接来通过系统欣赏电视机
的声音。
*1 A High Speed HDMI cable is supplied.
*1 提供高速HDMI电缆。
*2 Not supplied.
*2 不提供。
Continued/ 续下页 
