Note
™
The Allegro
panel assigns
the DTIM to Group 39 auto-
matically and also assigns
pre-programmed sensor text
for it (PHONE MODULE).
Note
Antennas must be installed
and the DTIM should be at
least 10 feet from the panel
for learning.
2
Programming—Adding the DTIM to Panel Memory
The DTIM uses a 3-2-1 tamper switch activation sequence for learning, which causes the
LED to blink in a corresponding 3-2-1 sequence. You must wait for the LED to turn off after
each flash sequence before releasing the tamper switch (see Figure 2).
To learn the DTIM into an Allegro panel:
1. Remove the DTIM cover and install the antennas (see Figure 1).
Align antenna...
2. With the system disarmed, enter program mode at the Allegro panel by pressing
8
CODE
.
+
twice and ƒ twice. The Allegro display shows
3. Press
4. Locate the DTIM tamper switch and LED (see Figure 2).
Important !
Timing is the key to success with step 5. Read the complete step before you begin to help
ensure successful programming. Do not wait more than 1 second between tamper switch activa-
tions in step 5. If you wait too long, the LED will not flash and you must start over. Also, do not
release the tamper switch before the LED is done flashing or you must start over.
5. Press and release the DTIM tamper switch as follows:
Press 3 times, holding the tamper switch down on the third press until the LED flashes 3
times, then release after the third flash.
Immediately press 2 times, holding the tamper switch down on the second press until the
LED flashes 2 times, then release after the second flash.
Immediately press and hold, then wait for the panel to beep once indicating it learned the
DTIM. Release the tamper switch.
6. Exit from program mode.
Refer to the Allegro Installation Instructions (466-1821) for more information on program-
ming the DTIM with an Allegro panel.
To learn the DTIM into a Simon
1. Remove the DTIM cover and install the antennas (see Figure 1).
2. Press Add. The panel announces "Select from Main Menu."
...push down until bare metal is
not visible. Repeat for other
antenna.

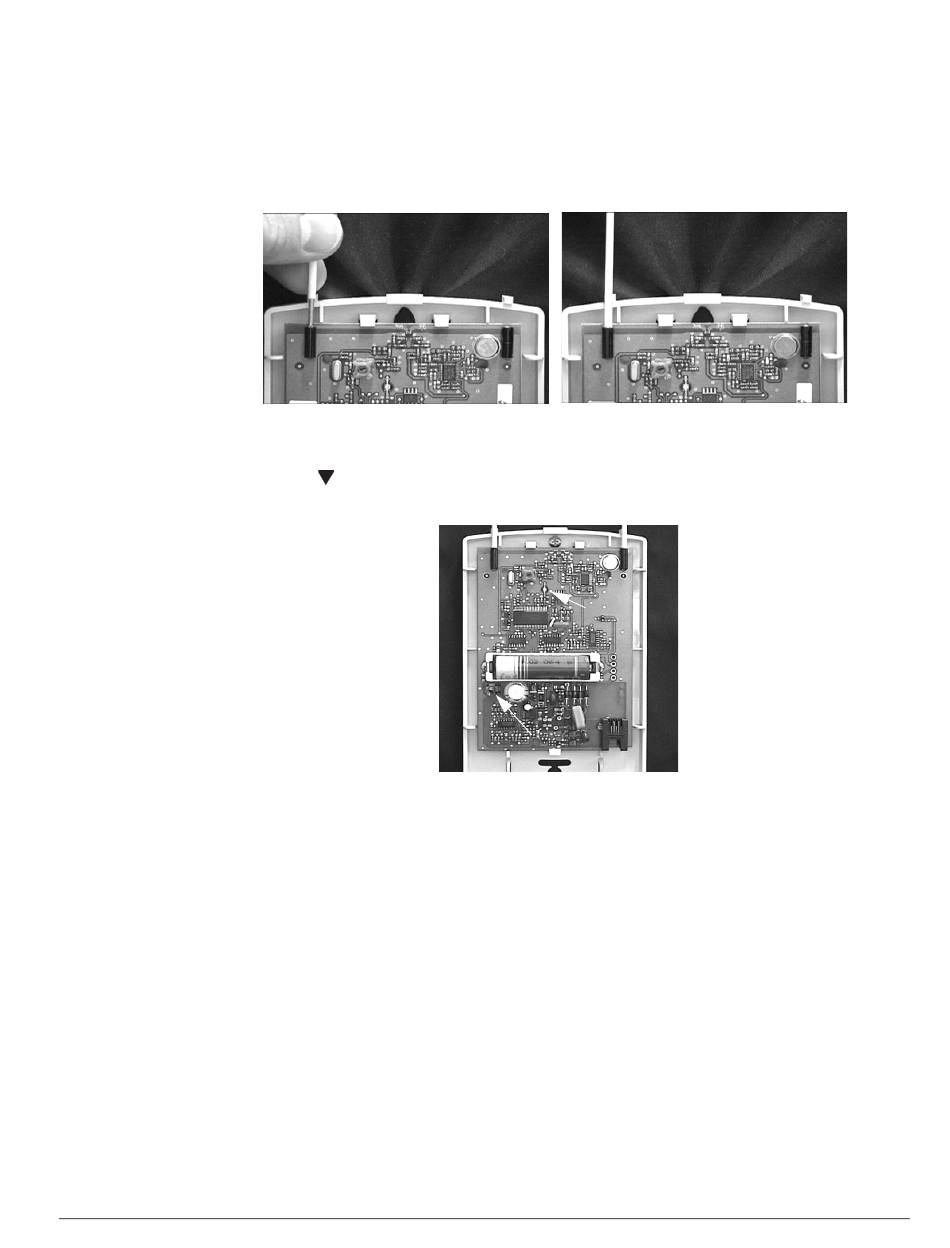

Figure 1. Antenna Installation
LED
Tamper Switch
Figure 2. Tamper Switch and LED Locations
®
panel:
Dialog Telephone Interface Module Installation Instructions
-
.
