Dishwasher
Installation
instructions
instructions
d'instaHation
du _ave-vaisseIRe
Instrucciones
de insta_aci6n para _avavajiHas
Use and Care Manua_ _ocated on reverse
side
Tourner
_e guide
pour _ee instructions
d'utiHsation
et d'entretien
Vo_tee e_ manua_ para encontrar
_as instrucciones
de uso y cuidado
9000063716
(8504)
Advertisement
Table of Contents
Related Manuals for Bosch SHE660
Summary of Contents for Bosch SHE660

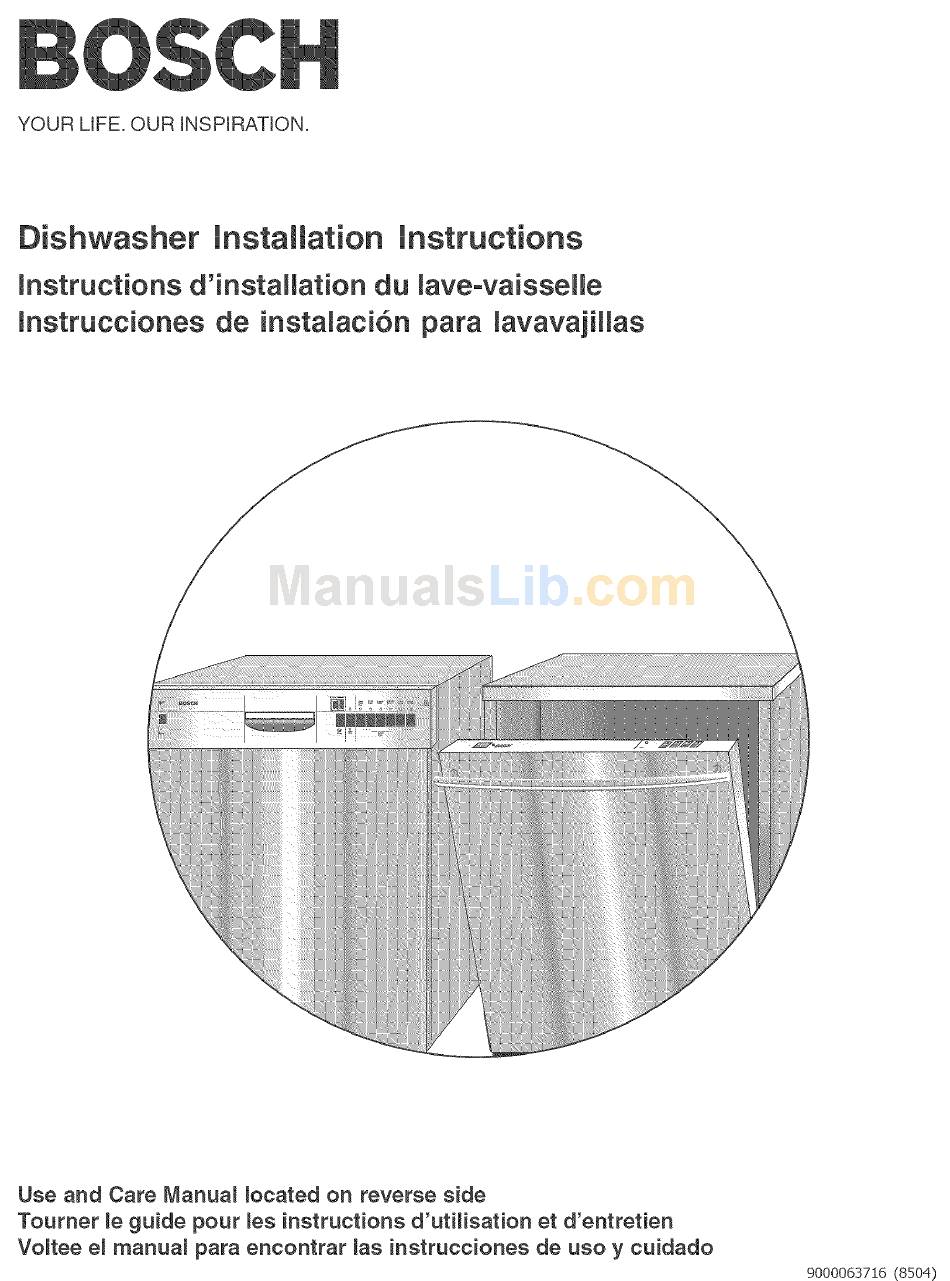

- Page 1 YOUR LIFE. OUR INSPIRATION. Dishwasher Installation instructions d'instaHation Instrucciones de insta_aci6n para _avavajiHas Use and Care Manua_ _ocated on reverse Tourner _e guide pour _ee instructions Vo_tee e_ manua_ para encontrar instructions du _ave-vaisseIRe side d'utiHsation et d'entretien _as instrucciones...
- Page 2 This dishwasher is intended for residential use only, and should not be used in commercial food service establishments. o NEW INSTALLATION - If the dishwasher is a new installation, most of the work must be done before the dishwasher is moved into place.
- Page 3 Ebctrbal Supply CaNe - Minimum #14 AWG, 2 conductor, 1 ground, insulated copper conductors rated 75°C or higher, _> Hot Water Supply Line - Minimum 3/8" O,D, copper tubing or metal braided dishwasher "_* s {_: ... supply line, Shut-off valve and fittings appropriate for hot water supply line (copper tubing/ compression fitting, or braided hose), 90 °...
- Page 4 SUPPUED Accessory Parts Supplied Accessory parts for your dishwasher come in one or more pUastic bags that are outlined bebw. NOTE: Make sure you save aHthe bags until you have compbted NOTE: Always use the suppibd or recommended hardware. f Manual Set Bag...
- Page 5 For proper dishwasher operation and appearance, ensure that the enclosure is square and has the dimensions shown in Figure !. if the dishwasher is to be installed in a corner, make sure that there is adequate clearance to open the door. See Figure 2,...
- Page 6 The dishwasher is designed for an electrical supply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amps.
- Page 7 Hot Water Supply The hot water heater should be set to deliver approximately 120 ° F (49 ° C) water to the dishwasher, Water that is too hot can cause some detergents to lose effectiveness, Lower water temperatures will increase run...
- Page 8 PREPARATmON Drain Ptumbing Under Sink Drain Connection ff the dishwasher is to drain either directUy into the househoUd drain pUumbing or through an air gap, install a y-branch taHpbce under the sink as shown in Figure 7, installing an Air Gap...
- Page 9 Set the toe paneHaside, HtwHH be reinstaHHed Hater, PJastic Base Access Panel and Toe PaneJ (SHY660, SHX99A, SHE660, SHE990, SHX570, and SHV570 modeJe only) The pHasticbase access paneHand toe paneHare in pHace...
- Page 10 SH U/SH E ModeJs - Accessory Ufyou have an SHU/SHE modeUand have ordered an accessory paneUkit, install the paneUprior to sliding the 1/4" max, dishwasher into pUace.The paneUdimensions are shown in ; ram) _ Figure 16. SHI Modets - Panet Installation SHUmodeUscome with additionaU mounting hardware and a tempUate sheet with installation instructions.
- Page 11 2 Position the dishwasher close enough to the enclosure so that you can run the dishwasher drain hose to the under sink drain connection, Make certain that the hot water supply line and the electrical supply cable are in...
- Page 12 Ptumbing manual, NOTE: if the dishwasher drain hose is to be connected to a disposer dishwasher drain connection, remove the plug from the disposer's dishwasher drain connection. Use the supplied Rubber Drain Hose Adaptor and Drain Hose Clamps to connect the dishwasher drain hose to the plumbing drain connection.
- Page 13 * Be sure to use pipe thread compound or Teflon tape to seal the connection when required, , Before connecting the copper hot water supply line to the dishwasher, flush it with hot water to clear any foreign material, * Turn on the water supply to check for leaks after...
- Page 14 Make sure that the dishwasher is connected to a suitable ground in compliance with all local codes or, in the absence of a local code, with the NATIONAL ELECTRICAL CODE in...
- Page 15 Figure 30, 5 Using the supplied wire nuts, connect the electrical supply wires to the dishwasher's wires, black to black, white to white, and green or bare, Make certain that the insulated wires show no bare wire from the...
- Page 16 FINAL mNSTRUCTmONS 1 Energize the dishwasher power supply circuit, 2 Consult the Dishwasher Use and Care Manual, and run the dishwasher through one complete cycle, if the dishwasher does not operate properly, refer to the Self- Help section of the Use and Care Manual, if the...
- Page 17 Your Bosch dishwasher requires no special care other than that described in the Care and Cleaning section of the Use and Care Manual, if you are having a problem with your dishwasher, before calling for service please refer to the Self-...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 Notes...
- Page 21 © BSH Home Appliances Corporation 2005 • Litho U,S,A, 07/04 90 00 06 37 16 (8504)
