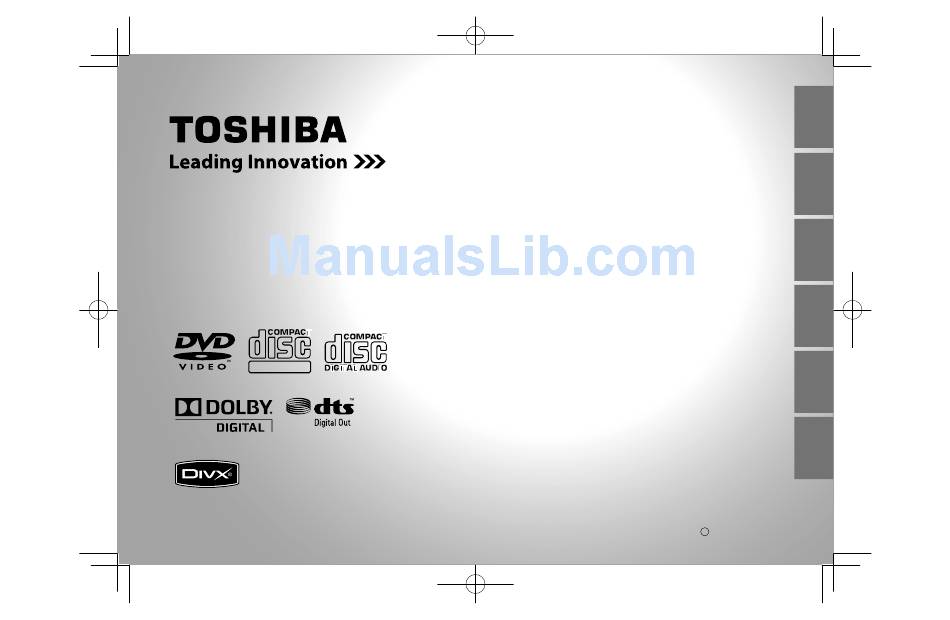

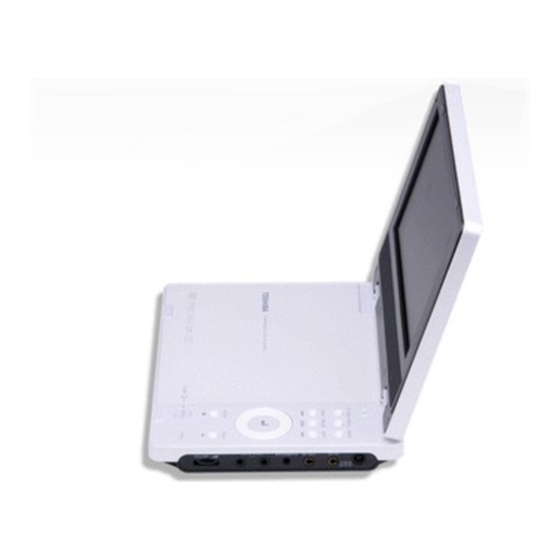

- Page 1 PORTABLE DVD PLAYER SDP63SWE OWNER’S MANUAL DIGITAL VIDEO SDP63SWE_E_01-52.indd 1 SDP63SWE_E_01-52.indd 1 Introduction Preparations Playback Function Settings Connections Others PX1D00005100 2009/02/02 16:21:09 2009/02/02 16:21:09...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. CAUTION: This equipment employs a Laser System. - Page 3 “This product is marked with “CE” and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC.” Responsible for CE-marking is TOSHIBA INFORMATION SYSTEMS (U.K.) LTD, Toshiba Court, Weybridge Business Park, Addlestone Road, Weybridge,...
- Page 4 For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product. SDP63SWE_E_01-52.indd 4 SDP63SWE_E_01-52.indd 4 MODEL NO.SDP63SWE 2009/02/02 16:21:10 2009/02/02 16:21:10...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This unit is fully transistorized and does not contain any parts that can be repaired by the user. DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. - Page 6 IMPORTANT SAFETY INSTRUCTIONS ADDITIONAL SAFETY INSTRUCTIONS 12. When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damaged. 13. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
- Page 7 SDP63SWE_E_01-52.indd 7 SDP63SWE_E_01-52.indd 7 Take care not to burn yourself if the battery gets hot. For details on repair, consult Toshiba Customer Service. 27. Battery Pack (Lithium ion battery pack) a) WARNING: Do not use a battery pack other than the one specified as it can result in a fire or damage to the unit.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS g) Never dispose of used battery packs with other ordinary solid wastes, since they contain toxic substances. Always dispose of used battery packs in accordance with community regulations that apply to the disposal of batteries. Cover the metal terminals with insulating tape, in order to prevent accidental short-circuiting.
- Page 9 29. After unpacking coin-shaped batteries, store them in poly bags, etc. separately one by one when unused. If you leave them unwrapped, they may be short-circuited by contact with metal objects, resulting in battery leakage, heat or bursting. This may cause burns or injury. The batteries must be completely discharged when they are deposited in collection containers for old batteries.
- Page 10 IMPORTANT SAFETY INSTRUCTIONS e) When handling, using or storing the adapter power cord NEVER: Place or locate near any apparatus that produces heat. Disassemble, splice or extend the cord. Pull, force or place any heavy objects on the cord. Bend, twist or bind the cord. f) Keep away from the driving device (such as brake pedal, etc.) and the moving equipment (such as a seat rail, car windows, door, etc.).
-
Page 11: Precautions
Precautions Notes on handling Do not shock the LCD monitor. It may cause unit damage and malfunction. Do not use the player in a place subject to vibration. Neglecting this may cause malfunction of the player or damage to the disc. When transporting the player, the original shipping carton and packing materials come in handy. - Page 12 Precautions (continued) Notes on moisture condensation Moisture condensation damages the player. Please read the following carefully. Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the player.
-
Page 13: Notes On Region Numbers
About this owner’s manual This owner’s manual explains the basic instructions of this player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the player may not respond to all operating commands. -
Page 14: Table Of Contents
Table of contents Introduction SAFETY PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 5 Precautions ...11 Identification of controls ...16 Accessories ...19 Notes and Information ... 20 Playable discs...20 Preparations Preparation of the remote control ... 24 Power connection ... 25 Using the battery pack ... - Page 15 Changing the camera angle ... 44 Selecting subtitles ... 44 Selecting a playback sound ... 45 Playing audio/video/picture files ... 46 Selecting the sound enhancement ... 50 Adjusting the picture ... 50 On-screen display mode ... 51 Function Settings Customizing the function settings ... 54 Connections Viewing on a connected TV ...
-
Page 16: Identification Of Controls
Identification of controls Main unit See page in for details. monitor Speakers Disc cover Right side Front SDP63SWE_E_01-52.indd 16 SDP63SWE_E_01-52.indd 16 Instructions and actual buttons Most instructions are based on remote control operation, unless otherwise noted. You can use the buttons on the remote control and those on the main unit as well when they have the same function. - Page 17 Right side Volume control To adjust the volume Headphone jacks (× 2) To connect headphones BITSTREAM/PCM jack Connect to Digital Out jack of your amplifier Left side Front SDP63SWE_E_01-52.indd 17 SDP63SWE_E_01-52.indd 17 DC IN 12V jack To connect the AC adapter (supplied) AV IN jack Connect to AV output terminal of your video equipment...
- Page 18 Identification of controls (continued) Remote control See page in for details. MENU button MODE/DISPLAY button TOP MENU button SUBTITLE button AUDIO button PAUSE/STEP button STOP button REV button SLOW button Direction buttons SKIP buttons Number buttons SHIFT button +10 button MENU button Use the MENU button to display the menu included on many DVD video discs.
-
Page 19: Accessories
Accessories Check that the following accessories are supplied. Remote control (MEDR16UX) Audio/video cable Coin-shaped battery (CR2025) Battery pack* (SD-PBP70EL) Vehicle adapter* (MEDC01AX) SDP63SWE_E_01-52.indd 19 SDP63SWE_E_01-52.indd 19 Power cord* AC adapter (ADPV16A)* Owner’s manual Do not use an AC adapter, a power cord, a battery pack and a vehicle adapter other than one specified. -
Page 20: Notes And Information
Notes and Information Playable discs This player can play the following discs. Disc Disc Mark Disc Size DVD Video disc DVD-RW DVD-R VIDEO CDs DIGITAL VIDEO Audio CDs CD-ROM CD-R/RW R e W r i t a b l e is a trademark of DVD Format/Logo Licensing Corporation. - Page 21 • Depending on the data recording method or the disc status, playback on this player may not be possible, even if the disc is labeled as left. Toshiba cannot assure that all discs bearing the DVD or CD logos will operate as expected.
- Page 22 Notes and Information (continued) On handling discs Do not touch the playback side of the disc. Do not attach paper or tape to discs. On cleaning discs Fingerprints and dust on the disc may cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.
-
Page 23: Preparations
Preparations Preparations before using. Preparation of the remote control Power connection Using the battery pack Powering on/off Changing the mode SDP63SWE_E_01-52.indd 23 SDP63SWE_E_01-52.indd 23 2009/02/02 16:21:13 2009/02/02 16:21:13... -
Page 24: Preparation Of The Remote Control
Preparation of the remote control Insert the specified battery to the remote control. See page 8 for safe use of coin-shaped batteries. Gently insert a fingernail in groove 1 and pull out the holder in direction 2 . Backside Take care not to break your fingernail. Place a coin-shaped battery (CR2025) with the side up on the holder. -
Page 25: Power Connection
Power connection Connect the supplied AC adapter to wall outlet as below. To the DC IN 12V jack Follow steps 1 to 3 to connect. When disconnecting, reverse this order. AC adapter Connect the supplied AC adapter and the power cord firmly. To wall outlet Power cord... -
Page 26: Using The Battery Pack
Using the battery pack The supplied battery pack (lithium ion battery pack) can power the player for operation outdoors or in a place with no outlets. WARNING • Do not use a battery pack other than one specified as it can result in a fire or damage to the unit. •... - Page 27 Important • Detach the battery pack from the player after being used. It is possible to leave the battery pack attached while powering the player with the AC adapter. Charging the battery pack The battery pack needs to be charged before use. (The battery indicator is shown on the screen when the power in the battery pack is running low.) Perform a full charge before the first use.
- Page 28 Using the battery pack (continued) Detaching the battery pack Turn the player off. Disconnect all cables and cords from the player. Turn the player upside down. Slide the battery pack’s lock switch in the direction of the arrow , then slide the battery pack in the direction of the arrow Lock switch Attach the connector cover on the bottom of the...
-
Page 29: Powering On/Off
Powering on/off Slide the POWER switch to turn the power on or off. POWER switch POWER indicator SDP63SWE_E_01-52.indd 29 SDP63SWE_E_01-52.indd 29 Important • When you use this player for the first time, before powering, be sure to open the disc cover by pressing the OPEN button on the main unit and remove the protective sheet. -
Page 30: Changing The Mode
Changing the mode You can enjoy disc contents or various inputs from connected equipment by changing the mode. Change it depending on your needs. Press MODE repeatedly to select the mode. Each time you press MODE, the mode changes on the screen as below. Select when you want to view the picture of a disc on the LCD monitor of this player. -
Page 31: Playback
Playback Play your favorite disc. Loading a disc Connecting to headphones Playing a disc Changing a playback speed Playing a desired scene Playing in random order Playing repeatedly Playing in a favorite order Zooming a picture SDP63SWE_E_01-52.indd 31 SDP63SWE_E_01-52.indd 31 Changing the camera angle Selecting subtitles Selecting a playback sound... -
Page 32: Loading A Disc
Loading a disc For disc compatibility information, see page 20 . Open the LCD monitor. Press OPEN on the main unit. The disc cover opens. Before using the player for the first time, remove the protective sheet beneath the disc cover. Set a disc. -
Page 33: Connecting To Headphones
CAUTION • Keep your fingers clear of the disc as it is spinning. Neglecting to may cause serious personal injury. • Be careful not to catch your fingers in the disc holder. • Do not use a cracked, deformed, or repaired disc. •... -
Page 34: Playing A Disc
Playing a disc DVD-V Preparations • Turn on the power of the player. • Place a disc to the player. Caution Never operate the player in a moving vehicle. Vibration may prevent proper playback of the player or cause damage to the disc. Press MODE repeatedly to select DVD/CD. -
Page 35: Pausing Playback (Still Mode)
This type of damage is not covered by your Toshiba Warranty. To avoid this, be sure to press the STOP button once the movie is completed. SDP63SWE_E_01-52.indd 35 SDP63SWE_E_01-52.indd 35... - Page 36 Playing a disc (continued) About the screen saver If 20 minutes elapse while the power is on and there is no disc in the player or while the disc is stopped, the screen saver is automatically displayed (when “Screen saver” (refer to “Function Settings”) is set to “On”...
-
Page 37: Changing A Playback Speed
Changing a playback speed Playing in fast reverse or fast forward DVD-V Press REV or FWD on the remote control during playback. : Fast reverse playback : Fast forward playback Each time you press the REV or FWD button, the playback speed changes. -
Page 38: Playing A Desired Scene
Playing a desired scene DVD-V Skipping chapters or tracks Press SKIP ( ) repeatedly to locate the chapter or track you want. Playback starts from the selected chapter or track. : Playback starts from the beginning of the next chapter or track. : Playback starts from the beginning of the current chapter or track. -
Page 39: Marking The Desired Position To Locate (Bookmark Function)
Notes • Press the CLEAR button while pressing the SHIFT button resets the numbers. • Some discs may not respond to this process. • Some scenes may not be located precisely as you specified. Marking the desired position to locate (Bookmark function) First register a bookmark referring to “To register a bookmark”... -
Page 40: Playing In Random Order
Playing in random order DVD-V During playback, press RANDOM to display “Shuffle On” on the screen. Each time you press the button, the random mode “Shuffle On” and “Shuffle off” alternate. The mode on the screen will disappear in a few seconds if not operated. -
Page 41: Repeating A Title, Chapter Or Track
Repeating a title, chapter or track During playback, press REPEAT repeatedly to select the repeat mode. Each time you press the button, the repeat mode changes on the screen. The mode on the screen will disappear in a few seconds if not operated. Repeat playback starts after finishing the current chapter or track. -
Page 42: Playing In A Favorite Order
Playing in a favorite order DVD-V During stop, press MEMORY. The programming display appears. e.g. DVD-V T ／ C Program Enter a track number ー ー ー ー ー ー Play when using a VIDEO ー ー ー ー ー ー ー... -
Page 43: Zooming A Picture
Zooming a picture DVD-V Press ZOOM during playback. The zoom icon appears. This operation is available also during slow, still, fast forward or fast reverse playback. Select the zoom point and magnification level. • Magnification level: Press ZOOM repeatedly. The magnification level changes as follows: “... -
Page 44: Changing The Camera Angle
Changing the camera angle DVD-V Press ANGLE while playing a scene recorded with multiple camera angles. The angle icon ( ) appears on the screen. e.g. Number of angles Angle icon Current angle This display does not appear if the disc includes no scenes recorded with multiple angles. -
Page 45: Selecting A Playback Sound
Selecting a playback sound DVD-V Press AUDIO during playback. The current audio setting is displayed. e.g. D 2 ch Sound recording Audio language system Press AUDIO while the audio setting is displayed on the screen. Each time you press the button, you can select a preferred sound from those included on the DVD video disc. -
Page 46: Playing Audio/Video/Picture Files
Use of CD-RW for MP3 files is not recommended. ® (video) or You must obtain any required permission from copyright owners to download or use copyrighted content. Toshiba cannot and does not grant such permission. JPEG compatibility Playable discs... - Page 47 Insert a disc you want to play. The menu appears. e.g. /Track01.CDA Track01 Repeat Track02 Mode Track03 Edit Mode Track04 Track05 Track06 Music Playing Track07 Track08 Select the track/file you want to play using then press ENTER or PLAY. Playback starts. A slide show begins when playing JPEG file.
- Page 48 Playing audio/video/picture files (continued) Playing repeatedly Select “Repeat” on the screen using during playback then press ENTER. Each time you press ENTER, the repeat mode changes. Off: Resumes to normal playback. Single: Repeats current track. All: Repeats all tracks in order. (Audio CD) Folder: Repeats current folder.
- Page 49 Playing in a favorite order You can combine your favorite track/file and play in the order you determine. 1 Select “Edit mode” on the screen using then press ENTER. 2 Position the cursor using to the screen displayed track/file. 3 Select track/file you want to play using press ENTER.
-
Page 50: Selecting The Sound Enhancement
Selecting the sound enhancement DVD-V Press E.A.M.* The current sound enhancement setting appears. * E.A.M. = Enhanced Audio Mode Press E.A.M. repeatedly. • 3D Off Normal sound. • 3D On To obtain expansive virtual surround sound effects from just two speakers. Notes •... -
Page 51: On-Screen Display Mode
On-screen display mode DVD-V Press DISPLAY while pressing SHIFT during playback. The current instructional information appears. e.g.: DVD video disc Elapsed time of the current title Current chapter Current title Remained time of or track number number the current title DVD Video Time 00:22:59 / 01:56:59... - Page 52 SDP63SWE_E_01-52.indd 52 SDP63SWE_E_01-52.indd 52 2009/02/02 16:21:19 2009/02/02 16:21:19...
-
Page 53: Function Settings
Function Settings You can change the default settings to customize performance to your preference. Customizing the function settings SDP63SWE_E_53-76.indd 53 SDP63SWE_E_53-76.indd 53 2009/02/02 16:21:47 2009/02/02 16:21:47... -
Page 54: Customizing The Function Settings
Customizing the function settings DVD-V You can change the default settings to customize performance to your preference. Press SETUP during stop. The setting menu appears. Press to select the icon of the setting (listed below) to change, then press Press to select the setting you want to change, then press ENTER. - Page 55 Video Aspect Ratio DVD-V View Mode DVD-V Audio E.A.M. DVD-V D.R.C. DVD-V Digital Out DVD-V Rating Parental control DVD-V DVD-V Screen saver DVD-V Default Default DivX Registration SDP63SWE_E_53-76.indd 55 SDP63SWE_E_53-76.indd 55 To select a picture size according to the aspect ratio of your TV, when connected to this player to monitor playback picture.
- Page 56 Customizing the function settings (continued) Language OSD Menu DVD-V English: To view on-screen displays in English. Français: To view on-screen displays in French. Español: To view on-screen displays in Spanish. Deutsch: To view on-screen displays in German. Nederlands: To view on-screen displays in Dutch. Svenska: To view on-screen displays in Swedish.
-
Page 57: View Mode
DivX subtitle Western European: To display subtitles in west European language. Central European: To display subtitles in Central European language. Cyrillic: To display subtitles in Slavonic Cyrillic language. Notes • Some DVD video discs may be set to display subtitles in a different language than you selected. - Page 58 Customizing the function settings (continued) Audio E.A.M. DVD-V Normal: Normal sound. To obtain expansive virtual surround sound effects from just two speakers. Note • Pressing the E.A.M. button on the remote control also allows you to achieve the same setup. D.R.C.
-
Page 59: Parental Control Dvd-V Vcd Cd
Rating Parental control DVD-V DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. - Page 60 Customizing the function settings (continued) 4 Press to select the parental level to set and then press ENTER. 8 : Adult 7 : NC-17 6 : R 5 : PG-R 4 : PG-13 3 : PG 2 : G 1 : Kid Safe To change the parental lock level Follow the step “To set the parental level”...
-
Page 61: Connections
Connections You can connect the player to a TV or audio system. Viewing on a connected TV Viewing pictures from connected video equipment Connecting to audio equipment Using the automobile/vehicle adapter or power port SDP63SWE_E_53-76.indd 61 SDP63SWE_E_53-76.indd 61 2009/02/02 16:21:49 2009/02/02 16:21:49... -
Page 62: Viewing On A Connected Tv
Viewing on a connected TV You can connect a TV to this player. Connect a TV to the AV OUT jack of this player. To AV OUT Connection to To video input this jack disables the Yellow (Video) VIDEO IN LCD of the player. -
Page 63: Viewing Pictures From Connected Video Equipment
Viewing pictures from connected video equipment You can use the LCD of this player to monitor pictures of connected video equipment. Connect video equipment to the AV IN jack of this player. To AV IN Yellow (Video) To video output Video equipment White (Left) To analog audio inputs... -
Page 64: Connecting To Audio Equipment
Connecting to audio equipment You can enjoy high quality dynamic sounds by connecting the player to audio equipment. The connecting method depends on the types of audio input, digital or audio. Select the method according to the type of your equipment. -
Page 65: Connecting To An Audio System Equipped With Analog Audio Inputs
CAUTION • When you are connecting (via the BITSTREAM/PCM jack) an AV decoder that does not have Dolby Digital, DTS or MPEG2 decoding function, be sure to set “Digital Out” to “PCM” from the on-screen displays Otherwise, high volume sound may damage your hearing as well as the speakers. -
Page 66: Using The Automobile/Vehicle Adapter Or Power Port
Using the automobile/vehicle adapter or power port For use of the DVD player in a car, this adapter can power the DVD player from the cigarette lighter socket. WARNING • NEVER operate the DVD player or view a DVD Video while operating an automobile or other vehicle. - Page 67 1 Be sure to turn off the DVD player then remove the battery pack from the player. (Note: Charging the battery pack with the vehicle adapter may cause smoke, fire or electrical shock to human body. ALWAYS remove the battery pack before using the vehicle adapter.) 2 Turn on the vehicle engine so that the cigarette lighter socket or power port is powered.
- Page 68 Using the automobile/vehicle adapter or power port (continued) • Do not force the adapter into an incompatible lighter socket or power port. • Avoid dropping the adapter or placing heavy objects on it. Never use the damaged adapter. • Do not pull the adapter power cord when removing it from a socket or power port.
-
Page 69: Others
Others Useful information. Output sound conversion table Before calling service personnel Specifications SDP63SWE_E_53-76.indd 69 SDP63SWE_E_53-76.indd 69 2009/02/02 16:21:50 2009/02/02 16:21:50... -
Page 70: Output Sound Conversion Table
Output sound conversion table Sound recording system Discs BITSTREAM/PCM jack Dolby Digital Bitstream 48 kHz Linear 96 kHz PCM* video discs Bitstream MPEG1, MPEG2 Bitstream VIDEO CDs Bitstream MPEG1 Linear PCM 44.1 kHz AUDIO CDs Bitstream *PCM: down sampling PCM •... -
Page 71: Before Calling Service Personnel
Before calling service personnel Check the following guide for the possible cause of a problem before contacting service. Symptom Cause No power. • The AC adapter or power plug is disconnected. • The battery pack has been removed. • Battery empty. The LCD turned off by •... - Page 72 Before calling service personnel (continued) Symptom Cause The player does not start • No disc is inserted. playback. • An unplayable disc is inserted. • The disc is inserted upside down. • The disc is not inserted securely. • The disc is dirty. •...
-
Page 73: Specifications
Specifications Player Power supply DC 12 V (Rated current : 1.5 A (Maximum: during battery pack charging)) 100 – 240 V AC, 50/60 Hz (with the supplied AC adapter) Mass Approximately 740 g External dimensions 190 × 39 × 148 mm (W/H/D) Signal system PAL/3.58NTSC Laser... - Page 74 Specifications (continued) Liquid crystal display Panel size 17.8 cm (7 inches diagonally measured) Projection system TN colour transmission Driving system Amorphous silicon TFT active matrix Resolution 480 (H) × 234 (V) pixels (effective pixel rate : more than 99.99%) This model complies with the specifications. •...
