Macintosh Ethernet and Wireless Network Configuration
The following screens describe how to configure the network settings for a Macintosh
OS 9 computer.
Macintosh OS 9 Configuration
Ethernet Settings

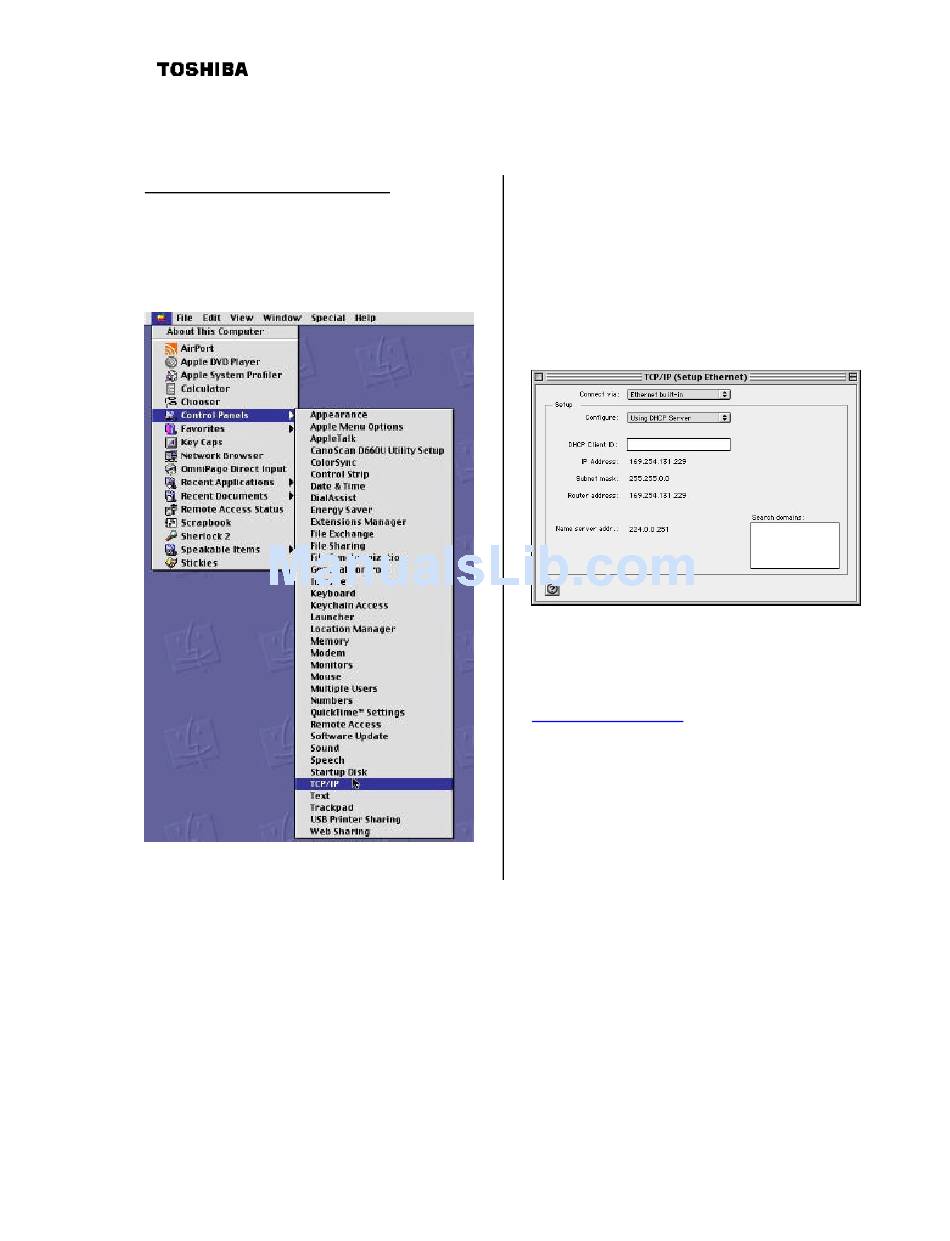

Step 1: At the Macintosh desktop, click the
Apple icon at the top left of the screen,
select "Control Panel", and then click on
the "TCP/IP" listing on the side panel.
Step 2: In the TCP/IP (Setup Ethernet)
panel, select the Ethernet port you are using
to connect your Macintosh to the PCX5000
in the Show choice box. The default port is
"Built–in Ethernet". Then select "Using
DHCP Server" in the Configure choice box.
Close the panel by clicking on the top left
corner. You will be prompted to save the
configuration.
Step 3: You should now be able to access
the
Launch the browser supplied with the
Macintosh
http://192.168.100.1"
Configuring the PCX5000 section of this
manual.
0
PCX5000
Configuration
and
open
Proceed
Pages.
location:"
to
the
