6.12.2 Adjusting the compression of the
Fox damper
Only applies to pedelecs with this equipment
The compression adjuster makes it possible to
make quick adjustments to the suspension
behaviour of the damper to suit changes in terrain.
It is intended for adjustments made during the
ride.

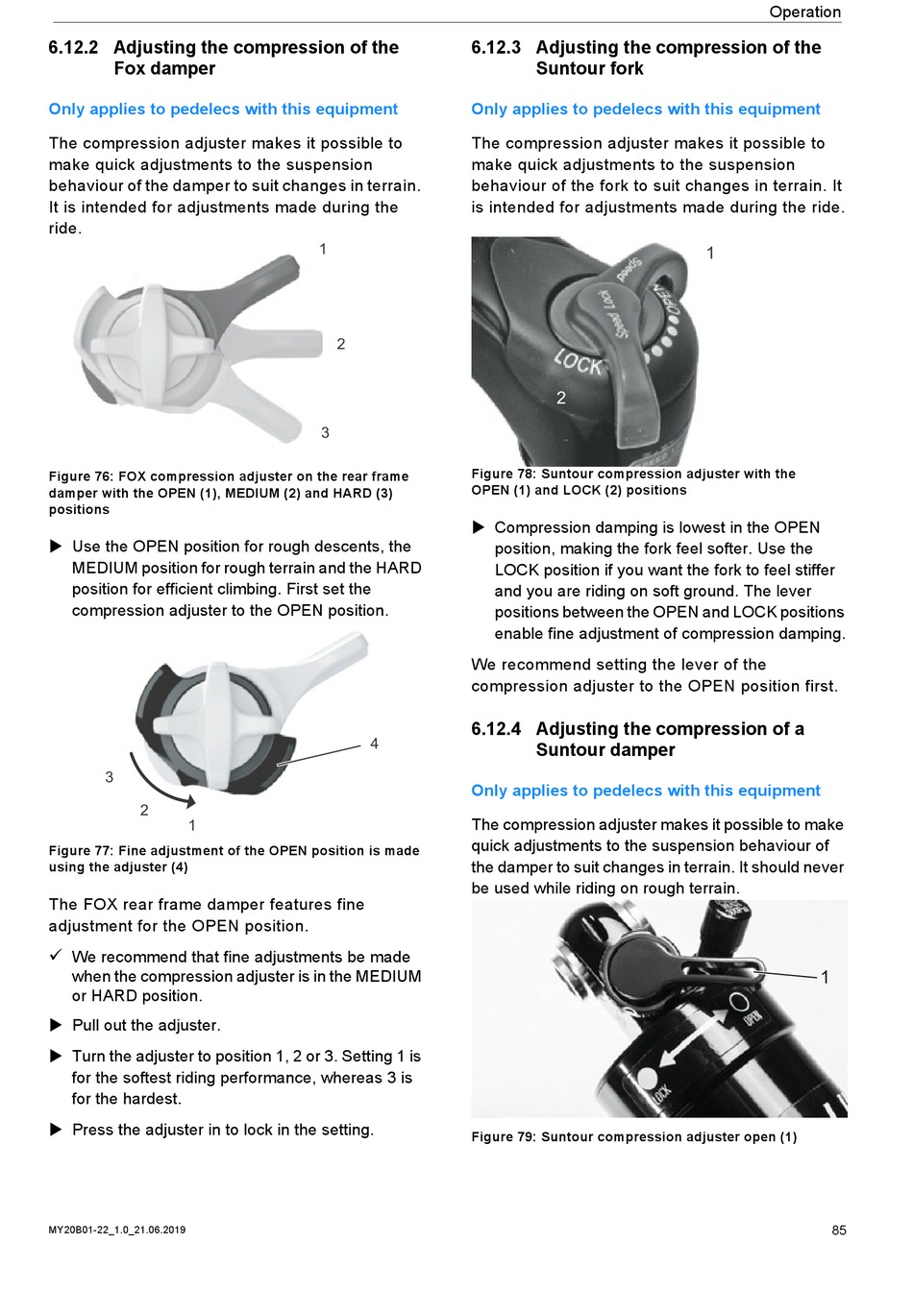

Figure 76: FOX compression adjuster on the rear frame
damper with the OPEN (1), MEDIUM (2) and HARD (3)
positions
 Use the OPEN position for rough descents, the
MEDIUM position for rough terrain and the HARD
position for efficient climbing. First set the
compression adjuster to the OPEN position.
3
2
1
Figure 77: Fine adjustment of the OPEN position is made
using the adjuster (4)
The FOX rear frame damper features fine
adjustment for the OPEN position.

We recommend that fine adjustments be made
when the compression adjuster is in the MEDIUM
or HARD position.
 Pull out the adjuster.
 Turn the adjuster to position 1, 2 or 3. Setting 1 is
for the softest riding performance, whereas 3 is
for the hardest.
 Press the adjuster in to lock in the setting.
MY20B01-22_1.0_21.06.2019
6.12.3 Adjusting the compression of the
Only applies to pedelecs with this equipment
The compression adjuster makes it possible to
make quick adjustments to the suspension
behaviour of the fork to suit changes in terrain. It
is intended for adjustments made during the ride.
1
2
3
Figure 78: Suntour compression adjuster with the
OPEN (1) and LOCK (2) positions
 Compression damping is lowest in the OPEN
We recommend setting the lever of the
compression adjuster to the OPEN position first.
6.12.4 Adjusting the compression of a
4
Only applies to pedelecs with this equipment
The compression adjuster makes it possible to make
quick adjustments to the suspension behaviour of
the damper to suit changes in terrain. It should never
be used while riding on rough terrain.
Figure 79: Suntour compression adjuster open (1)
Suntour fork
2
position, making the fork feel softer. Use the
LOCK position if you want the fork to feel stiffer
and you are riding on soft ground. The lever
positions between the OPEN and LOCK positions
enable fine adjustment of compression damping.
Suntour damper
Operation
1
1
