Sony HT-DDW755 Speakers Connection

4-253-405-51(2)
HOME THEATRE
SYSTEM
HT-DDW755
Speaker Connection
English

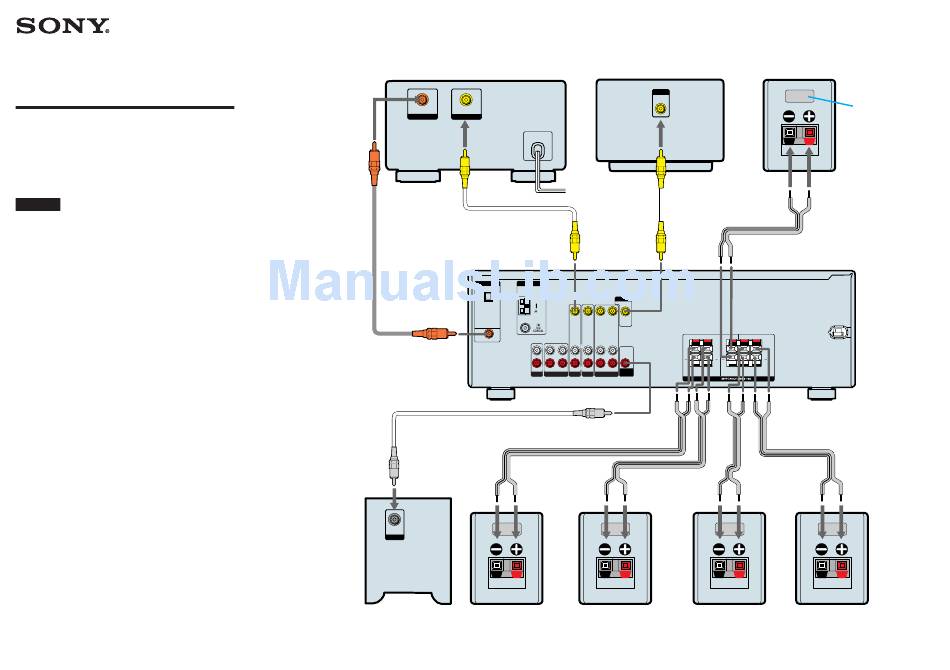

This Speaker Connection explains how to connect the DVD player, TV, speakers, and sub woofer so
you can enjoy multi channel surround sound from the DVD player. For details, refer to the operating
instructions supplied with the receiver.
Before you connect the speakers, check the speaker label on the rear panel of the speakers for the
model name. Connect the speakers as shown in the illustration at right.
The front and center speakers and the sub woofer are magnetically shielded to allow it to be installed
near a TV set. However, as the surround speakers are not magnetically shielded, we recommend that
you place the surround speakers slightly further away from TV set.
Sony Corporation © 2004 Printed in Malaysia
DVD player
COAXIAL VIDEO
DIGITAL OUT OUTPUT
Video cord
DIGITAL ANTENNA
OPTICAL
VIDEO 2
IN
AM
Coaxial cord
DVD IN
COAXIAL
L
R
IN OUT
CD MD/TAPE
Monaural audio cord
INPUT
SA-WMSP76 SS-MSP66SR
Sub woofer
Surround speaker (right)
TV
INPUT
VIDEO
Video cord
MONITOR
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
R L
L L L + + +
AUDIO
OUT
R R R
R L
IN AUDIO IN AUDIO IN AUDIO OUT AUDIO IN
SUB
DVD VIDEO 2 VIDEO 1 WOOFER SURROUND CENTER
SPEAKERS
Speaker cord
SS-MSP66SL SS-MSP66R
Surround speaker (left) Front speaker (right)
Center speaker
SS-CNP66
Speaker label
Speaker cord
R L
+
R L
FRONT
SS-MSP66L
Front speaker (left)
