Installation Instructions
BE 300 LSN
Installation procedure and technical data

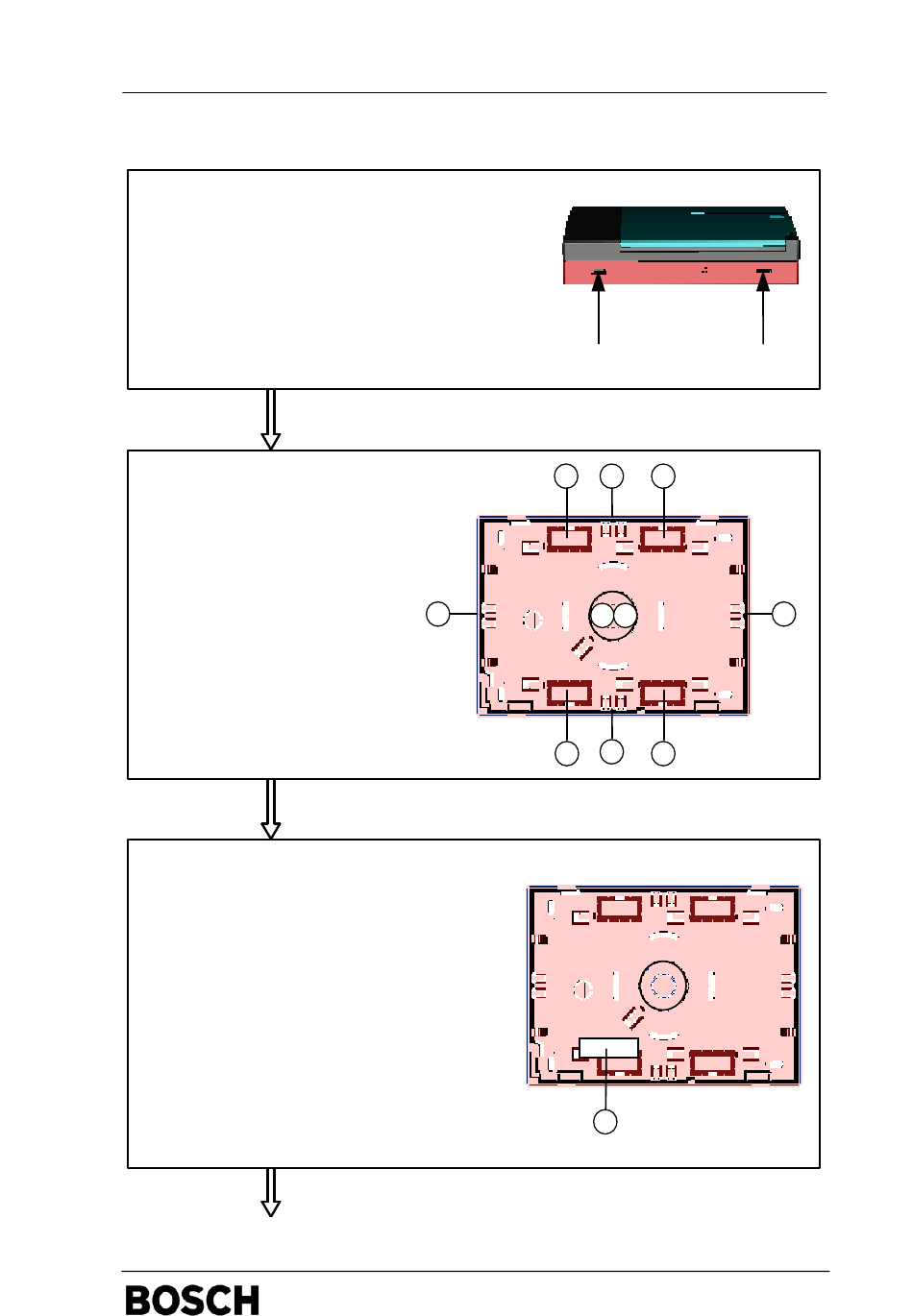

Remove the top of the casing:
1. Press a screwdriver into the slots in the
bottom of the casing in order to raise the top
of the casing slightly.
2. Swing the bottom part of the top of the
casing approx. 45° relative to the bottom of
the casing. Pull off the top part to the front.
Fitting the bottom of the casing:
1. Cable entry points for recessed
cabling (1).
2. Cable entry points for surface-
routed cabling (2).
3. Cable entry point if the unit is
fitted over a recessed socket (3).
4. Recommended bolts 2x for 4x40
installation.
Cable routing:
1. The data cables are strain-relieved and
stripped directly after entering the cable
entry point.
Strip the cables to the required length (up
to the marked area (1) + approx. 10 cm)).
2. Very important: Pull insulating sheathing
over the auxiliary shielding wires.
3. Route the cable wires together with the
auxiliary shielding wire in the direction of
the marked area (1) (see next page for
maintenance position).
Continued on page 2
Slot
1
2
3 1
1
1
- 1 -
Slot
2
1
2
2
1
