Bosch Condens 7000 F Operating Instructions For Users
Gas condensing boiler
Hide thumbs
Also See for Condens 7000 F:
- Installation and maintenance instructions for the contractor (68 pages) ,
- Operating instructions for users (20 pages)
Related Manuals for Bosch Condens 7000 F
Summary of Contents for Bosch Condens 7000 F
- Page 1 Operating instructions for users Gas condensing boiler Condens 7000 F GC7000F 75...300...
-
Page 2: Table Of Contents
Inspection and maintenance ......16 What makes regular service important? ... . 16 Condens 7000 F – 6720871579 (2018/07) -
Page 3: Explanation Of Symbols And Safety Instructions
▶ Only permit an authorised contractor to install the boiler. ▶ Never modify any parts for flue gas routing. Condens 7000 F – 6720871579 (2018/07) - Page 4 ▶ Only use genuine spare parts! Damage caused by the pump in case of overheating or if the gas supply the use of spare parts not supplied by Bosch is not does not shut down. Instead, interrupt the gas covered by the warranty.
-
Page 5: Product Information

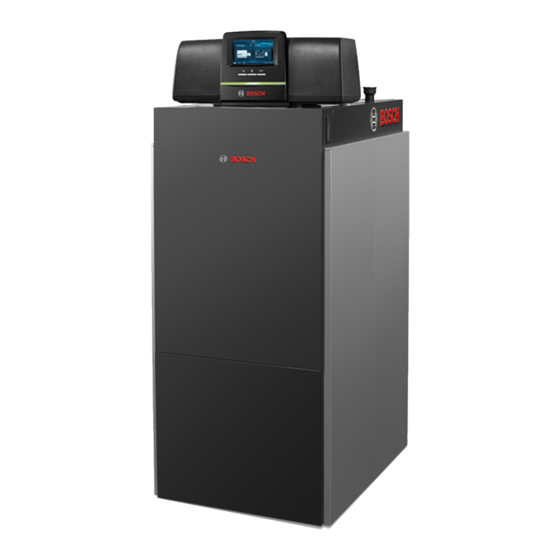

"Water quality requirements for heat sources made from aluminium". Do not use softened water as fill and top-up water. Product overview The Condens 7000 F is a floor standing condensing boiler with an aluminium heat exchanger. Condens 7000 F – 6720871579 (2018/07) -
Page 6: Product Description
Technical documentation of the installed control unit. 0010014182-001 Fig. 1 Condens 7000 F, 75...100 kW main components (shown: right-hand version; cleaning cover and flow and return are located on the right) Boiler front panel (2-part) Boiler block with thermal insulation Gas valve... -
Page 7: The Heating System Is Operated And Monitored Via App Or Web Portal
Product description of optional control units 0010014184-001 Fig. 2 Condens 7000 F, 150...300 kW main components (shown: right-hand version; cleaning cover and flow and return are located on the right) Boiler front panel (2-part) Product description of optional control units... -
Page 8: Mx25 Control Unit
CW 400/CW 800 user interface or (RJ45, only available with IP inside control units) the CR 100 and CR 10 (available separately). [10] Selector [11] Flue gas inspector, reset and emergency operation key [12] Status-LED [13] Service key connection Condens 7000 F – 6720871579 (2018/07) -
Page 9: Overview Of Control Elements
Switching on the boiler ▶ Switching on the boiler at the ON/OFF switch [1]. The display lights up and shows the appliance temperature after a short time. 0010004475-001 Fig. 5 Main power switch Main power switch Condens 7000 F – 6720871579 (2018/07) -
Page 10: Cc8313 Control Unit
(e.g. following triggering of the high limit safety cut-out or resetting of the SAFe). To unlock a function: ▶ Key Hold down for 2 seconds. Condens 7000 F – 6720871579 (2018/07) -
Page 11: Flue Gas Inspector Key (Flue Gas Test)
To conclude the flue gas test: ▶ Press key again. If the flue gas test is not ended manually, it ends automatically after 30 minutes. Condens 7000 F – 6720871579 (2018/07) -
Page 12: Operating The Appliance
Tap and swipe the touch screen to navigate through the menu levels and The symbols used are listed in Fig. 7 on page 10, accompanied by an operate the functions. explanation. To go back to the previous level/screen: ▶ Tap symbol. Condens 7000 F – 6720871579 (2018/07) -
Page 13: Switch On And Enable Control Unit
Fig. 12 Calling up a menu level or function overview. Heat production To display the system overview: Status display ▶ Tap the display. System Fault history The next menu level or function is displayed. 12:00 0010009266-001 Fig. 11 System Overview Condens 7000 F – 6720871579 (2018/07) -
Page 14: Calling Up Submenus
Depending on the area, the following information is e.g. displayed: 12:00 • Statuses of safety equipment • Temperatures 0010006536-001 • Operating modes Fig. 14 Scrolling • Hours run -or- ▶ Swipe your finger across the display. Condens 7000 F – 6720871579 (2018/07) -
Page 15: Commissioning
▶ Ask a certified heating contractor if the local water can be used untreated or whether it needs to be treated. ▶ Notify your heating contractor if you frequently need to top up your heating system. Condens 7000 F – 6720871579 (2018/07) -
Page 16: Environmental Protection/Disposal
▶ We recommend you enter a contract covering an annual inspection and demand-based maintenance. Cleaning and care To clean the boiler: ▶ Do not use abrasive or aggressive cleaning agents. ▶ Clean the casing with a damp cloth (soapy solution). Condens 7000 F – 6720871579 (2018/07) - Page 20 Bosch Thermotechnik GmbH Sophienstrasse 30-32 D-35576 Wetzlar www.bosch-industrial.com...
