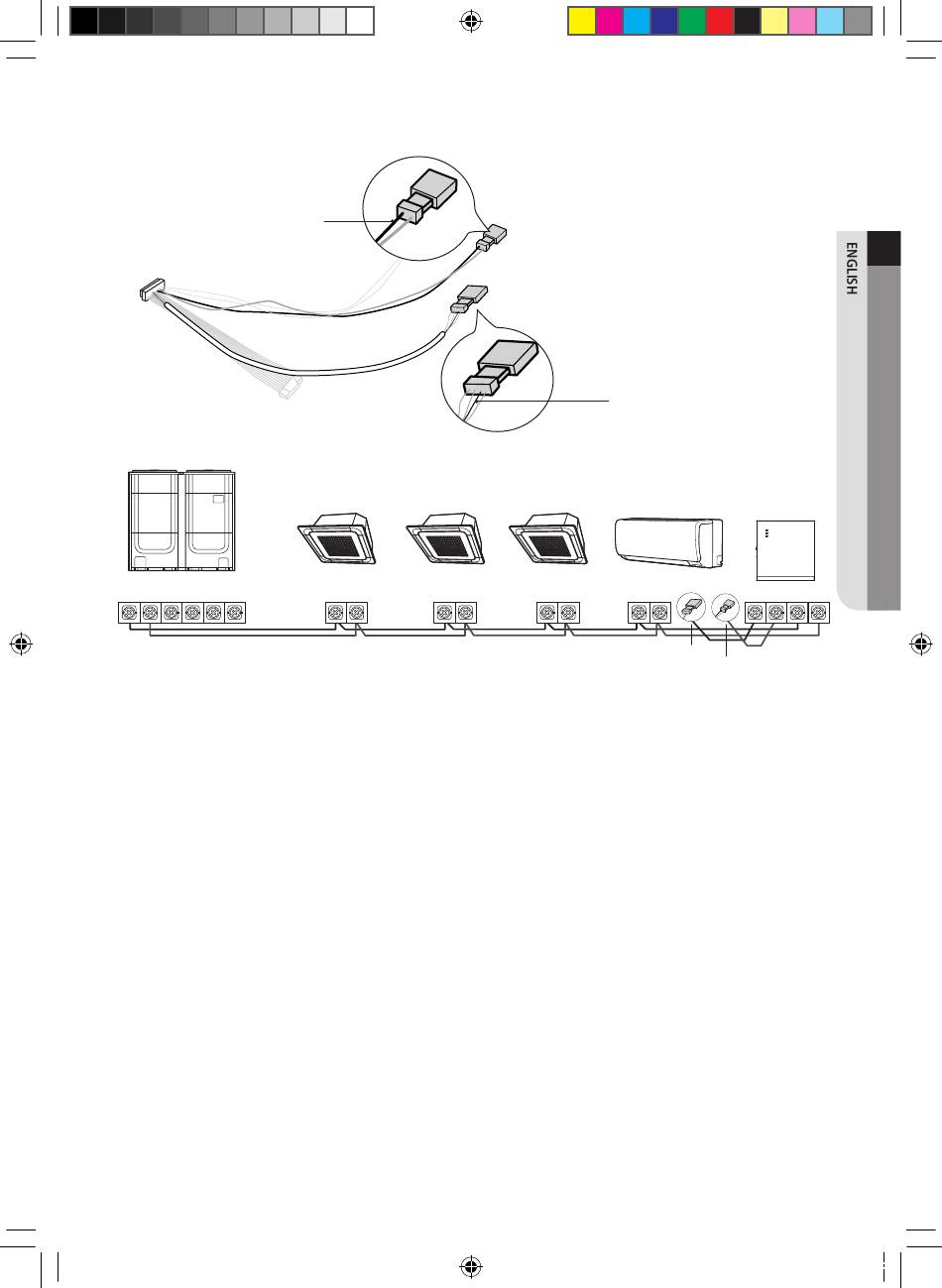

❋ ❋ If an indoor unit does not have V1 and V2 terminal block, use the exterior control 2-wire for SUB PBA which is placed
inside the indoor unit to supply power to the Wi-Fi kit .
BLK
Connect the BLK wire to V2 .
ORG
Connect the ORG wire to V1 .
F1
F2
R1 R2
F1
F2
F1
F2
F1
F2
F1
F2
V1
V2
F1
F2
V1(ORG)
V2(BLK)
< Connecting the Wi-Fi kit to an indoor unit without V1 and V2 terminal block >
11
