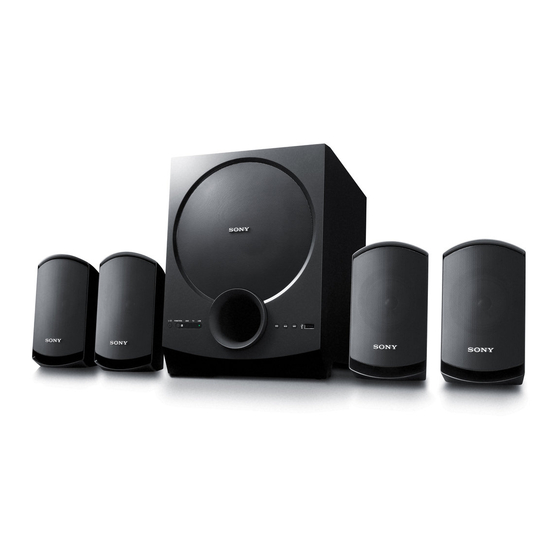

Sony SA-D10 Operating Instructions

Multimedia Speaker System

Operating Instructions

SA-D10
©2012 Sony Corporation Printed in China
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place
objects filled with liquids, such as vases, on the appliance.
To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths,
curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).
As the main plug of AC adaptor is used to disconnect the AC adaptor from the mains, connect it to an easily
accessible AC outlet. Should you notice an abnormality in it, disconnect it from the AC outlet immediately.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
The AC adaptor is not disconnected from the mains as long as it is connected to the AC outlet, even if the main
unit itself has been turned off.
The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the
countries EEA (European Economic Area).
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will
help to conserve natural resources. For more detailed information about recycling of this product, please contact
your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Applicable accessory: Remote commander
Disposal of waste batteries (applicable in the European Union and other European
countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product
shall not be treated as household waste.
On certain batteries this symbol might be used in combination with a chemical symbol. The
chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than
0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent
potentially negative consequences for the environment and human health which could otherwise be caused by
inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an
incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will
be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of
electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely. Hand the
battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic Office,
your household waste disposal service or the shop where you purchased the product.
License and Trademark Notice
 MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
 Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries.
 This product contains technology subject to certain intellectual property rights of Microsoft.
Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
Precautions
On safety On placement
 Completely disconnect the power cord (mains lead) from  Do not set the speakers in an inclined position.
the wall outlet (mains) if it is not going to be used for an
 Do not place the speakers in locations that are:
extended period of time. When unplugging the system,
— Extremely hot or cold
always grip the plug. Never pull the cord itself.
— Dusty or dirty
 Should any solid object or liquid get into the system, unplug
— Very humid
the system, and have it checked by qualified personnel
— Subject to vibrations
before operating it again.
— Subject to direct sunlight
 The AC power cord can be changed only by a qualified
 Use caution when placing the speaker on a specially treated
service facility.
(waxed, oiled, polished, etc.) floor, as staining or
On operation
discoloration may result.
 Do not drive the speaker system with a continuous wattage
On cleaning
exceeding the maximum input power of the system.
Clean the speaker cabinets with a soft cloth lightly moistened
 If the polarity of the speaker connections is not correct, the
with a mild detergent solution or water. Do not use any type
bass tones will be weak and the position of the various
of abrasive pad, scouring powder or solvent such as alcohol or
instruments obscure.
benzine.
 Before connecting, turn off the amplifier (subwoofer) to
avoid damaging the speaker system.
On your TV's color
 The speaker grille cannot be removed. Do not attempt to
If the speakers should cause your TV screen to have color
remove the grille on the speaker system. If you try to
irregularity, turn off the TV then turn it on after 15 to 30
remove it, you may damage the speaker.
minutes. If color irregularity should persist, place the
 The volume level should not be turned up to the point of
speakers further away from your TV set.
distortion.
4-435-894-13(1)
Specifications
Satellite speakers
Speaker System Full range, Bass reflex
Speaker units 80 mm cone type
Rated impedance 12 ohms
Dimensions (approx.) 106 mm × 188 mm ×
96 mm (w/h/d)
Mass (approx.) 0.5 kg
Subwoofer
Speaker System Active subwoofer, Bass
reflex
Speaker units 160 mm cone type
Rated impedance 4 ohms
Dimensions (approx.) 255 mm × 340 mm ×
335 mm (w/h/d)
Mass (approx.) 4.4 kg
Inputs
DVD Pin Jack (L/R) × 1
TV Stereo mini jack × 1
(USB) port Type A
Amplifier section
Satellite speakers
Power output (rated):
12 W + 12 W (at 12 + 12 ohms, 1 kHz, 1% THD)
RMS output power (reference):
19 W + 19 W (at 12 + 12 ohms, 1 kHz)
Subwoofer
RMS output power (reference):
32 W (at 4 ohms, 80 Hz)
Unpacking
 Satellite speakers (4)  Subwoofer (1)
 Foot pads (1 set)
Attaching the foot pads to the satellite speakers
Attach the foot pads (supplied) to the bottom of the speakers to stabilize the speakers and prevent them from
slipping.
Remove the foot pads from
the protective cover.
Inserting the batteries into the remote
Insert two R03 (size AAA) batteries (supplied) by matching the  and  ends on the batteries to the marking
inside the compartment. To use the remote, point it at the remote sensor on the subwoofer.
Notes
 Do not leave the remote in an extremely hot or humid place.
 Do not use a new battery with an old one.
 Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
 Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.
 If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from
battery leakage and corrosion.
Index to parts and controls
Subwoofer
Front panel indicators
 
 ON/STANDBY indicator
Lights up red when the subwoofer is in standby
mode. Turns off when the subwoofer is turned on.
 FUNCTION button
 Remote sensor
USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps – 320 kbps, VBR
WMA: 48 kbps – 192 kbps
AAC: 48 kbps – 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32 kHz/44.1 kHz/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Transfer speed
Full-Speed
Supported USB device
Mass Storage Class
Maximum current
500 mA
General
Power requirements:
DC 18 V 0.8 A (supplied AC power adaptor)
AC power adaptor
Input: 120 V – 240 V AC, 50/60 Hz
or
100 V – 240 V AC, 50/60 Hz
Output: DC 18 V 2.6 A
Power consumption: 15 watts
Design and specifications are subject to change
without notice.
 Stereo mini plug cord  Remote commander
(1) (remote) (1)
 R03 (size AAA)
batteries (2)
 AC power adaptor (1)
 Power cord (1)
  

 FUNCTION indicators
DVD
TV
USB
Lights up green when the function is selected.
 USB PLAYBACK buttons
 (USB) port
There is a tactile dot on the  button. Use the
tactile dot as a reference when operating the system.
Remote commander (remote)
 / (on/standby)
Turns on the system, or sets it to standby mode.

 FUNCTION
Selects an input source.

  (play/pause)
Plays/Pauses playback.
  (rewind/skip back)/ (fast forward/

skip forward),
Selects files/folders on a USB device.
 VOLUME +/–

Adjusts the volume.
There is a tactile dot to the right of the VOLUME +
button. Use the tactile dot as a reference when

operating the remote.
+/–
Continued 
