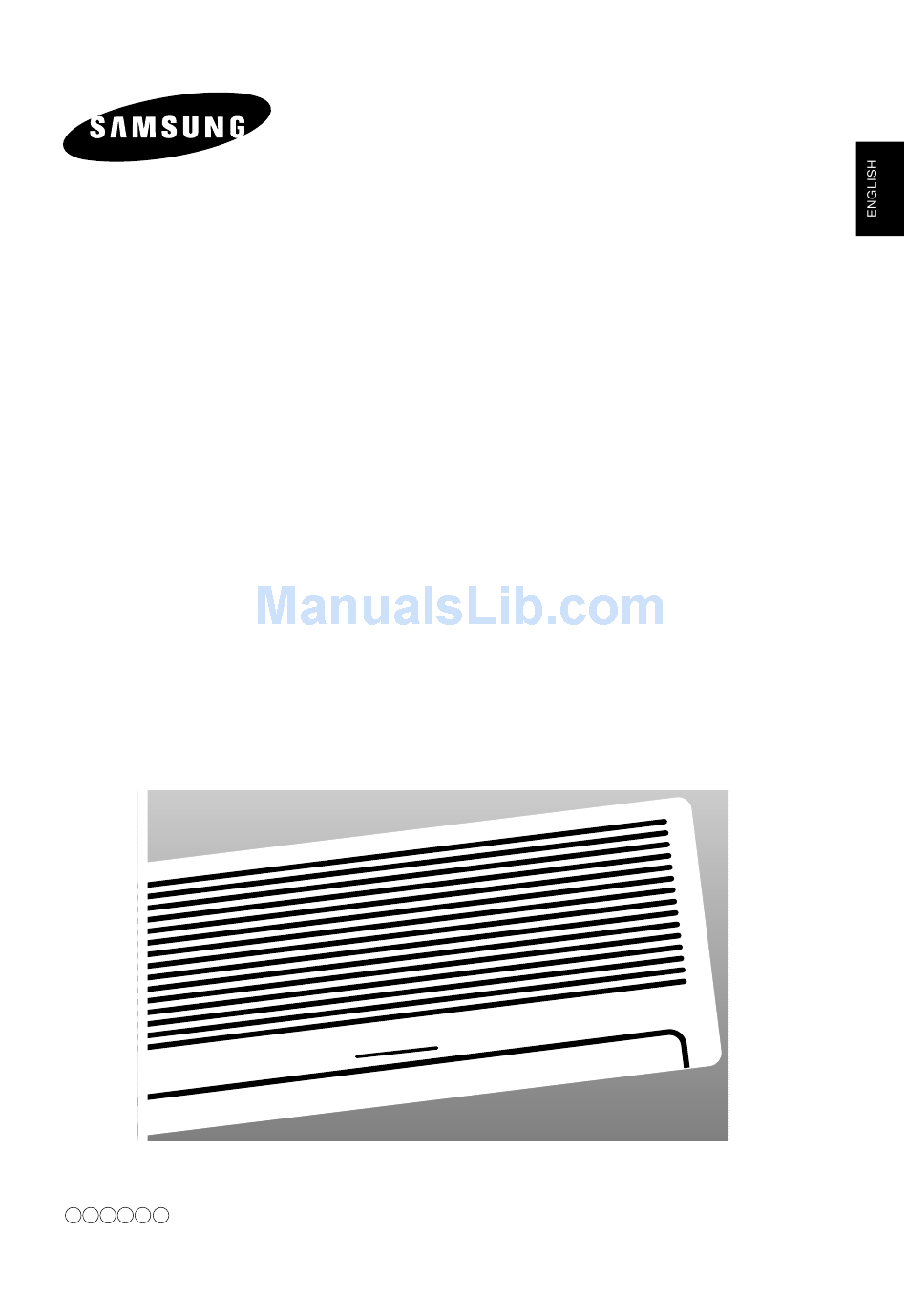

E S I P F D DB68-30912B(4) OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES MANUEL D’UTILISATION GEBRAUCHSANWEISUNG Indoor Unit Outdoor Unit ASHM070VE AXHM260VE ASHM120VE MH07ZV-26 XMH26ZV MH12ZV-26 ( Cool and Heat ) ( Refrigeración y Calefacción ) ( Raffreddamento e Riscaldamento ) ( Refrigeração e Aquecimento )
NEVER spill liquids of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist. Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.
ECOMMENDATIONS FOR Operating Recommendations ... Temperature and Humidity Ranges ... Cleaning Your Air Conditioner ... Solving Common Problems ... Operating Your Air Conditioner Without the Remote Control ... Installing a Filter (Option) ... Operation Function Chart ... ECHNICAL PECIFICATIONS Contents...
View of the Indoor Unit Air Filter (under the grille) OPERATION OPERATION indicator - Operation : GREEN - Deice : RED TIMER indicator - YELLOW View of the Outdoor Unit Air Outlet Air flow blades (outlet) Remote control sensor TIMER TURBO TURBO indicator - RED...
Getting Started You have just purchased a split-type room air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of the unit’s features.
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when: You purchase the air conditioner The remote control does not work correctly Use two LR03 1.5 V batteries. Do not use old batteries or different kinds of batteries together.
Setting the Time Your air conditioner contains a clock used to start and stop the unit automatically at a given time. You must set the time when you: Purchase the air conditioner Replace the batteries Be sure to reset the time when you change clocks from standard todaylight savings time and vice versa.
Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed.
(On/Off) button. Result: The OPERATION indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. The air conditioner is fitted with a protection mechanism to...
(On/Off) button. Result: The OPERATION indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. The air conditioner is fitted with a protection mechanism...
The temperature and fan settings are adjusted automatically. The TURBO indicator on the indoor unit lights up. The air conditioner cools or heats the room as quickly as possible. After 30 minutes, the air conditioner is reset automatically to the previous mode, temperature and fan settings.
(On/Off) button. Result: The OPERATION indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. The air conditioner is fitted with a protection mechanism...
If necessary, press the (On/Off) button. Result: The OPERATION indicator on the indoor unit comes on. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. If the indication is not displayed at the top of the remote control,...
Result: The blade move up and down, around the base position set. To stop the blade moving up and down, press the If you switch the air conditioner... On again Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally.
Switching the Unit On and Off Automatically (On/Off Timer) You can set the timer to switch the air conditioner on and/or off automatically at given times. Example: You wish to start cooling your room before you return from work; you decide to: Switch the air conditioner on at 5:30 p.m.
Setting the Sleep Timer The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 16.
Setting the Quick Timer The Quick Timer enables you to set the air conditioner to switch off automatically after a given period of time, by pressing one single button. The unit can be switched off automatically after 30 minutes, one hour, two hours, three hours or five hours.
The TIMER indicator on the indoor unit switches off if no other timer is currently set. The air conditioner operates normally. Cancelling the Sleep Timer If you no longer wish to use the Sleep Timer that you have set, you can cancel it at any time.
The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, ensure that you IMPORTANT have switched off the breaker used for the unit.
(On/Off) on the remote control. Check whether the TIMER indicator on the indoor unit is switched on. If so: - Wait until the switch-on time is reached and the air conditioner starts up automatically - Cancel the timer (see page 19 for further details) Check whether the operation modes of B unit and C unit are same.
Open the front grille by pulling on the tabs on the lower right and left sides of the indoor unit. To switch the air conditioner on, press the ON/OFF switch on the right side of the indoor unit. Result: The OPERATION indicator on the indoor unit comes on.
Bio-pure filter The air conditioner can be fitted with a deodorizing and Bio-pure filter to remove minute dust particles or odours. The service life of the filter is approximately three months depending on the time during which the air conditioner is used.
Turn off the B-unit or change it into the "HEAT (COOL)" operation mode if you want to operate the C-unit in the "HEAT (COOL)" mode while the C-unit is being operated in the "COOL (HEAT)" MODE. Technical Specifications Model Indoor unit ASHM070VE / ASHM120VE MH07ZV-26 / MH12ZV-26 Power Supply 220-240V~, 50Hz...
Page 26
THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: DIESE KLIMAANLAGE IST FABRIZIERT VON: ELECTRONICS Printed in Korea...
