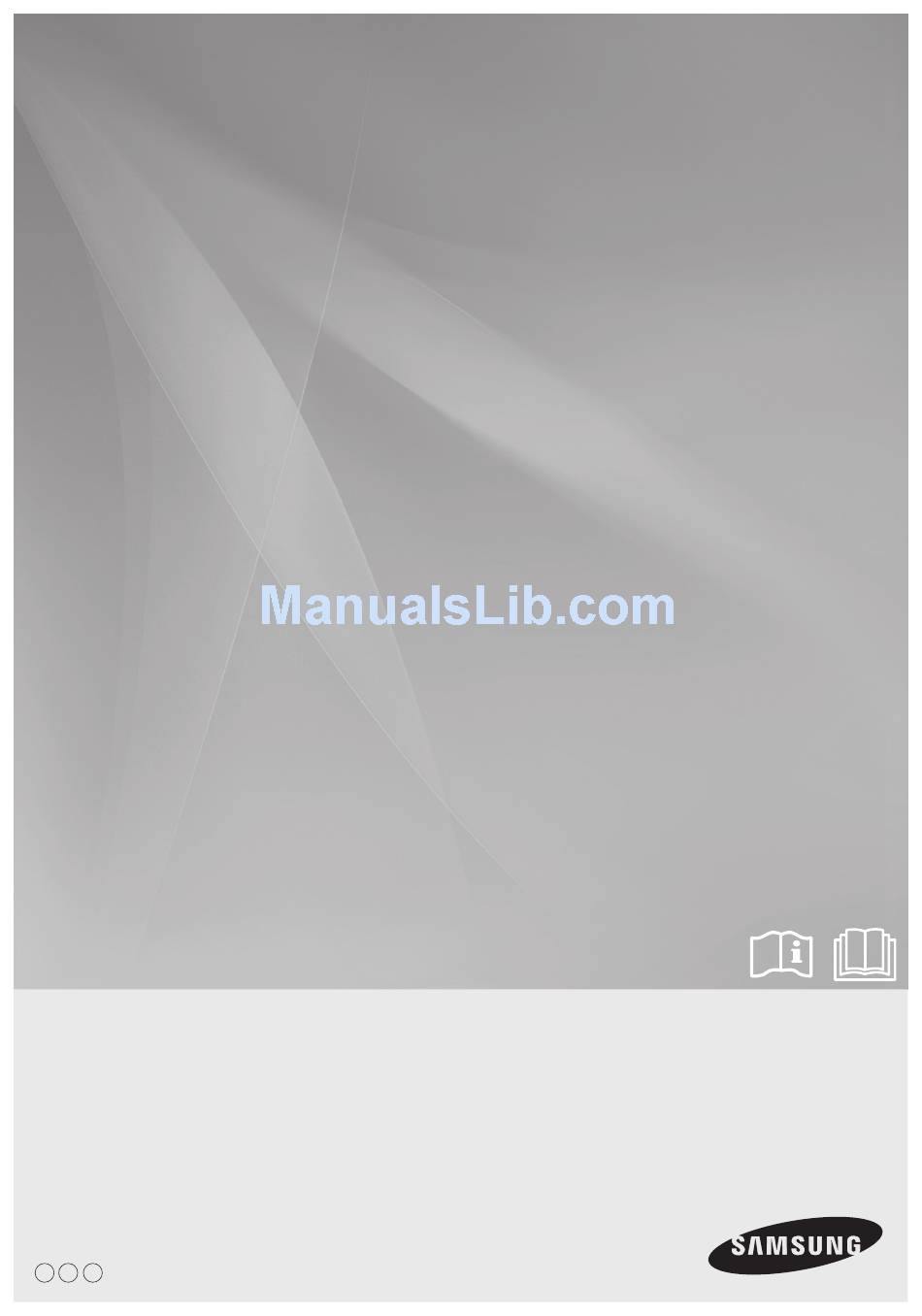

Page 1: Air Conditioner
ASV09E ✴ Series ASV12E ✴ Series ASV18E ✴ Series ASV24E ✴ Series Air Conditioner user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register DB98-31630A(2) - Page 2 features of your new air conditioner • Cool Summer Offer On those hot sweltering summer days and long restless nights, there is no better escape from the heat than the cool comforts of home. Your new air conditioner brings an end to exhausting hot summer days and lets you rest.
-
Page 3: Safety Information
Because the following operating instructions cover various models, the characteristics of your air conditioner may differ slightly from those described in this manual. If you have any questions, call your nearest contact center or find help and information online at www.samsung.com. Important safety symbols and precautions: Hazards or unsafe practices that may result in severe personal injury or death. - Page 4 safety information SEVERE WARNING SIGNS WARNING Do not place the air conditioner near hazardous substances or equipment that releases free flames to avoid fire, explosions or injuries. • Potential risk of fire hazard or explosion. Do not install the outdoor unit at an unstable place or elevated surface where there is potential risk of falling.
- Page 5 Make sure that children take precautions against access to the air conditioner and they do not play with the unit. Do not clean the interior of air conditioner on your own. • You may damage the parts which can cause electric shock or fire. • Consult contact center for cleaning the interior of the air conditioner.
- Page 6 safety information SEVERE WARNING SIGNS (CONT’D) WARNING Use a receptacle that has a ground terminal. The receptacle must be used exclusively for the air conditioner. • Improper electrical grounding may cause electric shock or fire. Be sure to ground the unit. Do not connect the ground wire to gas or water pipes, lighting rods, or telephone grounding lines.
- Page 7 Do not touch the pipe connected to the air conditioner. Install the indoor unit away from lighting apparatus using the ballast. • If you use the wireless remote control, reception error may occur due to the ballast of the lighting apparatus. Install the outdoor unit where operating noise and vibration will not disturb your neighbor and in a well-ventilated area with no obstacle.
- Page 8 safety information CAUTION SIGNS (CONT’D) CAUTION Inspect the condition, electric connections, pipes and external case of the air conditioner regularly by a qualified service technician. Do not open doors and windows in the room being cooled during operation unless necessary. Do not block the air conditioner vents.
-
Page 9: Table Of Contents
contents VIEWING YOUR AIR CONDITIONER 10 Checking the indoor unit and display Main parts Display 11 Opening the front panel Power button, Room temperature sensor and Humidity sensor 11 Checking the outdoor unit 12 Checking the remote control Remote control display Using the remote control Inserting the batteries OPERATING BASIC FUNCTION... -
Page 10: Viewing Your Air Conditioner
viewing your air conditioner Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool or warm with optimal efficiency. Please read the user manual to get started and to make the best use of the air conditioner. CHECKING THE INDOOR UNIT AND DISPLAY Carefully unpack your air conditioner and check the indoor unit to make sure it is not damaged. -
Page 11: Opening The Front Panel
OPENING THE FRONT PANEL Tightly grab front side of the front panel and lift up the panel to open. Then slightly push the panel up until the panel is hanged over the hooks of the unit. Power button, Room temperature sensor and Humidity sensor You may find the Power button on the right bottom side of the air conditioner. -
Page 12: Checking The Remote Control
viewing your air conditioner CHECKING THE REMOTE CONTROL You can activate the air conditioner by pointing the remote control away from it. When using the remote control, always point it directly at the air conditioner. Remote control display Turbo Power Operate in auto fan speed to Turn on/off the air conditioner. -
Page 13: Using The Remote Control
Remote control display Operation mode indicator On Timer indicator indicator Set temperature/ Off Timer indicator time indicator Fan speed indicator Air swing indicator Auto (Turbo) Silence Low battery indicator Medium Transmit indicator High Smart Saver indicator Silence indicator Turbo indicator indicator Using the remote control • Point the remote control towards the remote control receiver of the indoor unit... -
Page 14: Operating Basic Function
operating basic function TURNING THE AIR CONDITIONER ON AND OFF Press the Power button on the remote control. You will hear a ringing sound and the air flow blade will move up and down automatically when the air conditioner is properly on. The air conditioner will operate in the most recent operation mode used or Auto mode. -
Page 15: Cool
Cool In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in hot season. 1. Turn on the air conditioner. Press the Power button on the remote control. 2. Set the operating mode. -
Page 16: Dry
operating basic function SELECTING OPERATION MODE The air conditioner in Dry mode acts like a dehumidi er by removing moisture from the indoor air. Dry mode makes the air feel refreshing in a humid climate. 1. Turn on the air conditioner. Press the Power button on the remote control. -
Page 17: Fan
Fan mode can be selected to ventilate your room. Fan mode will be helpful to refresh the stale air in your room. 1. Turn on the air conditioner. Press the Power button on the remote control. 2. Set the operating mode. Press the Mode button on the remote control until Fan mode indicator appears on the remote control display. -
Page 18: Adjusting The Air Flow Direction
operating basic function ADJUSTING THE AIR FLOW DIRECTION Air flow can be directed to your desired position. Vertical air flow Air flow blades move up and down. 1. Press the Air swing button on the remote control. Air swing indicator will be on and air flow blades move up and down continuously to circulate the air. -
Page 19: Using Advanced Functions
using advanced functions USING THE TURBO FUNCTION Turbo function will be helpful to cool or heat your room quickly and effectively by operating at the maximum fan speed for 30 minutes. 1. Turn on the air conditioner. Press the Power button on the remote control. 2. Set the operating mode. -
Page 20: Setting Timer
using advanced functions SETTING TIMER This advanced Timer function allows you to turn on/off your air conditioner automatically even when you are away. Simply set the time and your air conditioner will turn on/off automatically. On Timer This function allows you to turn on the air conditioner automatically within the time range of 24 hours. -
Page 21: Off Timer
SETTING TIMER Off Timer This function allows you to turn off the air conditioner automatically within the time range of 24 hours. Off timer is available while your air conditioner is on/off. 1. Press the Off Timer button on the remote control. Off timer indicator blinks on the remote control display. -
Page 22: Combining On Timer And Off Timer
using advanced functions Combining On Timer and Off Timer You can combine the On timer and Off timer together for more convenient use of the timer function. 1. Set the On timer. Press the On Timer button. Set the time with Time or button. Press Set/Cancel button to activate the On timer. -
Page 23: Mode
SETTING TIMER mode mode allows you to set a comfortable sleep temperature while saving energy and having sound sleep. mode can be set up when the air conditioner is on. 1. Set the operating mode. Press the Mode button on the remote control until Cool appears on the remote control display. -
Page 24: Temperature Changes In Mode
using advanced functions Temperature changes in mode To prevent excessive cooling during sleep, the mode automatically modifies the temperature setting in accordance with the time setting. Temperature and air current change mode, according to the three stages; Fall asleep, Sound sleep, and Wake up from and then the air conditioner will automatically turn off when the set time has elapsed. -
Page 25: Using The Smart Saver Function
USING THE SMART SAVER FUNCTION This function will set the temperature range limit to help you save energy while the air conditioner is operating in Cool mode. 1. Press the Smart Saver button on the remote control while the air conditioner is operating in Cool mode. Smart Saver indicator and air swing indicator appears automatically on the remote control display. -
Page 26: Using The Evaporator Clean Function
USING THE EVAPORATOR CLEAN FUNCTION Evaporator clean function will prevent from growing mold by eliminating the moisture inside of the indoor unit. Your indoor unit evaporates the moisture inside of the unit. Activate this function to provide you with more clean and healthier air. -
Page 27: Cleaning And Maintaining The Air Conditioner
cleaning and maintaining the air conditioner Make sure the power is turned off and unplugged from the wall socket when cleaning the air conditioner. CAUTION If system contains 3 kg or more of fluorinated greenhouse gases. In this case, it has to be checked for leakage at least once every 12 months, according to regulation n°842/2006. -
Page 28: Cleaning The Filter
cleaning and maintaining the air conditioner CLEANING THE FILTER When cleaning the filter, make sure to unplug the power from the unit. No special tools are needed to clean it. Air filter Washable foam based air filter captures large particles from the air. The filter is cleaned with a vacuum or by hand washing. -
Page 29: Bio Filter
Bio filter Washable foam based Bio filter leads to reduction in allergens that thrive in polluted air. The filter is cleaned with a vacuum or by hand washing. 1. Open the front panel. Tightly grab front side of the front panel and lift up the panel to open. Then slightly push the panel up until the panel is hanged over the hooks of the unit. -
Page 30: Replacing The Filter
cleaning and maintaining the air conditioner REPLACING THE FILTER Replacement filter may be purchased from the retail store or ordered from the dealer where you purchased the unit. If you cannot find one, please call a contact center. Deodorizing filter Deodorizing filter absorbs efficiently cigarette smoke, pet odors and other unpleasant smells. -
Page 31: Maintaining Your Air Conditioner
MAINTAINING YOUR AIR CONDITIONER If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. 1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. -
Page 32: Internal Protections Via The Unit Control System
cleaning and maintaining the air conditioner MAINTAINING YOUR AIR CONDITIONER Internal protections via the unit control system This internal protection operates if an internal fault occurs in the air conditioner. Type Description The compressor will be off to protect internal battery when the air Anti-protection of conditioner operates in Cool mode. -
Page 33: Appendix
appendix TROUBLESHOOTING Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses. PROBLEM SOLUTION The air conditioner does • Because of the protective mechanism, the appliance does not start operating immediately to keep the unit from overloading. not operate immediately The air conditioner will start in 3 minutes. -
Page 34: Operation Ranges
appendix OPERATION RANGES The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use. OPERATIONAL TEMPERATURE MODE INDOOR HUMIDITY IF OUT OF CONDITIONS INDOOR OUTDOOR Condensation may occur on the indoor unit with risk to have COOLING 16˚C to 32˚C 16˚C to 46˚C... - Page 35 memo _35...
- Page 36 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT ARGENTINE 0800-333-3733 www.samsung.com/ar 0800-124-421 BRAZIL www.samsung.com/br 4004-0000 CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl Nicaragua 00-1800-5077267 www.samsung.com/latin Honduras 800-7919267 www.samsung.com/latin COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin...
