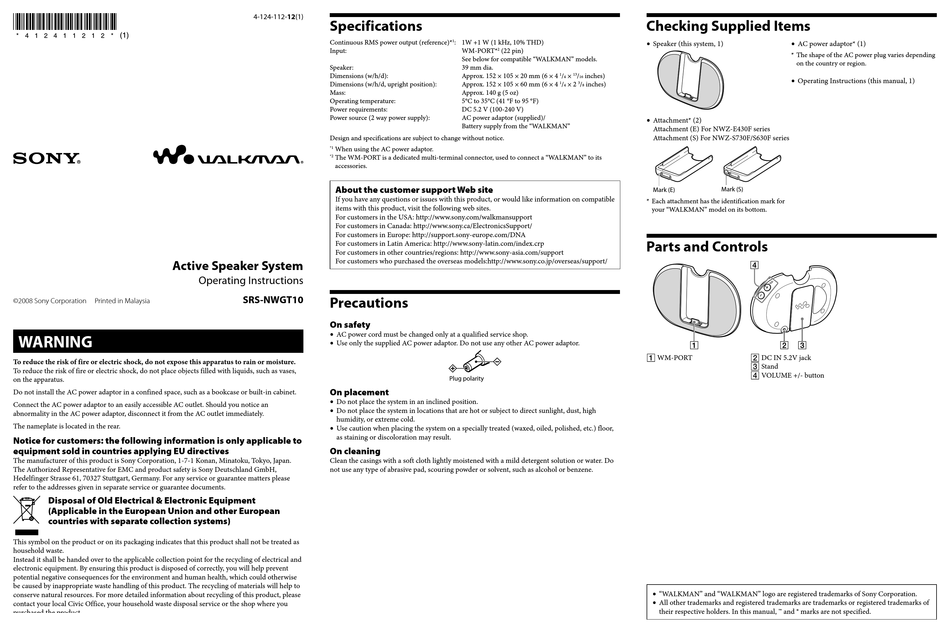

Sony WALKMAN SRS-NWGT10 Operating Instructions

Active Speaker System
©2008 Sony Corporation Printed in Malaysia
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To reduce the risk of fire or electric shock, do not place objects filled with liquids, such as vases,
on the apparatus.
Do not install the AC power adaptor in a confined space, such as a bookcase or built-in cabinet.
Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an
abnormality in the AC power adaptor, disconnect it from the AC outlet immediately.
The nameplate is located in the rear.
Notice for customers: the following information is only applicable to
equipment sold in countries applying EU directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minatoku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please
refer to the addresses given in separate service or guarantee documents.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of materials will help to
conserve natural resources. For more detailed information about recycling of this product, please
contact your local Civic Office, your household waste disposal service or the shop where you
purchased the product.
4-124-112-12(1)

Specifications

Continuous RMS power output (reference)*
Input:
Speaker:
Dimensions (w/h/d):
Dimensions (w/h/d, upright position):
Mass:
Operating temperature:
Power requirements:
Power source (2 way power supply):
Design and specifications are subject to change without notice.
When using the AC power adaptor.
*1
The WM-PORT is a dedicated multi-terminal connector, used to connect a "WALKMAN" to its
*2
accessories.
About the customer support Web site
If you have any questions or issues with this product, or would like information on compatible
items with this product, visit the following web sites.
For customers in the USA: http://www.sony.com/walkmansupport
For customers in Canada: http://www.sony.ca/ElectronicsSupport/
For customers in Europe: http://support.sony-europe.com/DNA
For customers in Latin America: http://www.sony-latin.com/index.crp
For customers in other countries/regions: http://www.sony-asia.com/support
For customers who purchased the overseas models:http://www.sony.co.jp/overseas/support/

Operating Instructions

SRS-NWGT10 Precautions
On safety
AC power cord must be changed only at a qualified service shop.

Use only the supplied AC power adaptor. Do not use any other AC power adaptor.

On placement
Do not place the system in an inclined position.

Do not place the system in locations that are hot or subject to direct sunlight, dust, high

humidity, or extreme cold.
Use caution when placing the system on a specially treated (waxed, oiled, polished, etc.) floor,

as staining or discoloration may result.
On cleaning
Clean the casings with a soft cloth lightly moistened with a mild detergent solution or water. Do
not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.
: 1W +1 W (1 kHz, 10% THD)
1
WM-PORT* 2 (22 pin)
See below for compatible "WALKMAN" models.
39 mm dia.
Approx. 152 × 105 × 20 mm (6 × 4 1 / × 13 / inches)
4 16
Approx. 152 × 105 × 60 mm (6 × 4 / × 2 / inches)
1 3
4 8
Approx. 140 g (5 oz)
5°C to 35°C (41 °F to 95 °F)
DC 5.2 V (100-240 V)
AC power adaptor (supplied)/
Battery supply from the "WALKMAN"
Plug polarity
Checking Supplied Items

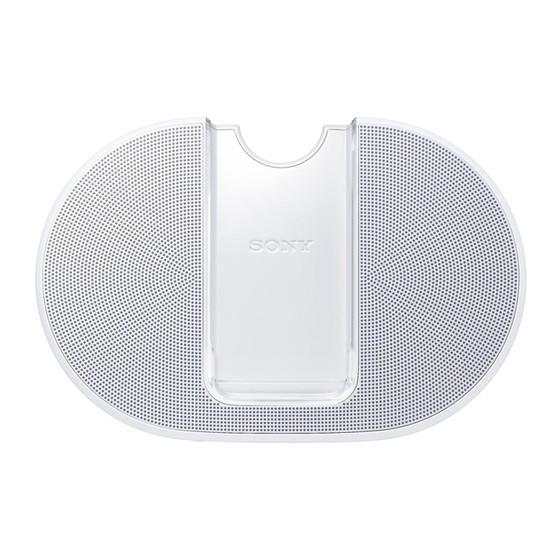

Speaker (this system, 1) AC power adaptor* (1)
 
* The shape of the AC power plug varies depending
on the country or region.
Operating Instructions (this manual, 1)

Attachment* (2)

Attachment (E) For NWZ-E430F series
Attachment (S) For NWZ-S730F/S630F series
Mark (E) Mark (S)
* Each attachment has the identification mark for
your "WALKMAN" model on its bottom.

Parts and Controls

 WM-PORT  DC IN 5.2V jack
 Stand
 VOLUME +/- button
"WALKMAN" and "WALKMAN" logo are registered trademarks of Sony Corporation.

All other trademarks and registered trademarks are trademarks or registered trademarks of

their respective holders. In this manual, ™ and ® marks are not specified.
