Electrolux EHH6332FOK Installation Manual

INSTALLATION
WARNING!
Refer to Safety chapters.
1 Before the installation
Before you install the hob, write down the
information bellow from the rating plate.
The rating plate is on the bottom of the
hob.
Serial number ...........................
2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in

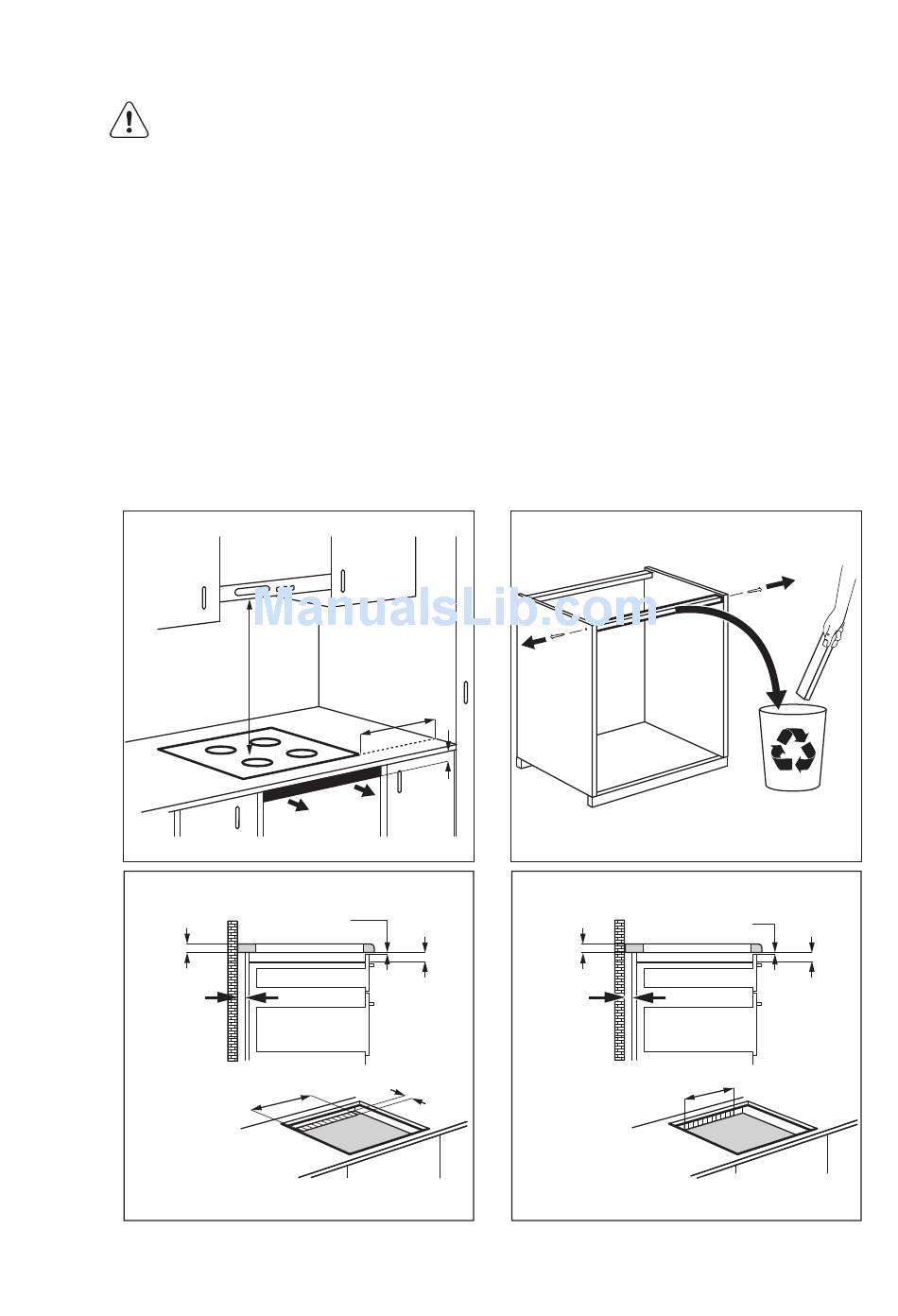

4 Assembly
A
< 20 mm
A B
12 mm 57 mm
28 mm 41 mm
38 mm 31 mm
min.
500mm
min.
50mm
min.
2mm
min. 2 mm
min
min. 500 mm
30 mm
units and work surfaces that align to the
standards.
3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable
use the following (or higher) mains
cable type: H05BB-F T min 90°C.
Speak to your local Service Centre.
A
B
> 20 mm
A B
12 mm 57 mm
28 mm 41 mm
38 mm 31 mm
ENGLISH
min. 2 mm
B
min. 500 mm
