Video playing duration:about 7~8hr;

Conversation duration:12~14hr.

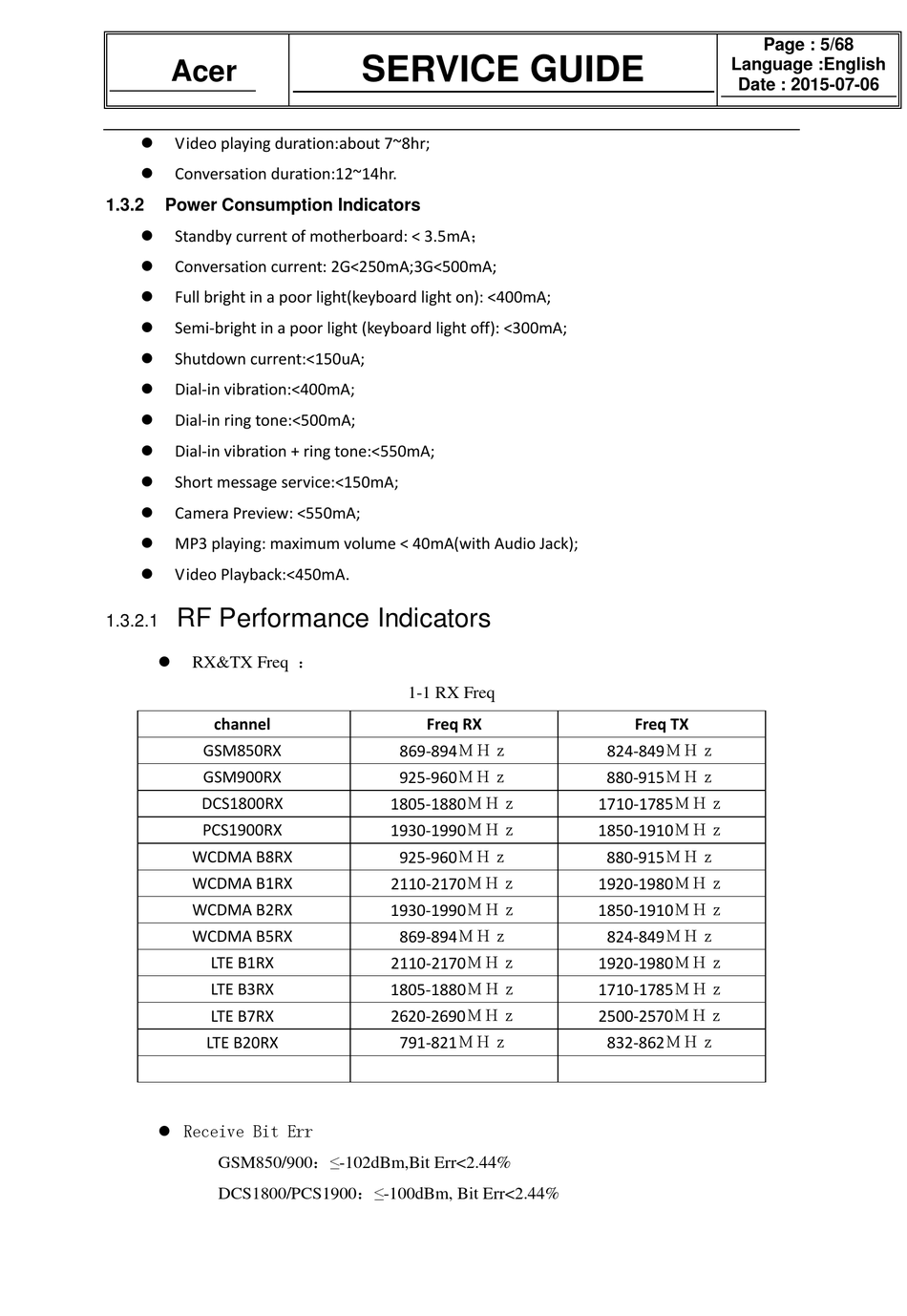

1.3.2

Power Consumption Indicators


Standby current of motherboard: < 3.5mA；

Conversation current: 2G<250mA;3G<500mA;

Full bright in a poor light(keyboard light on): <400mA;

Semi-bright in a poor light (keyboard light off): <300mA;

Shutdown current:<150uA;

Dial-in vibration:<400mA;

Dial-in ring tone:<500mA;

Dial-in vibration + ring tone:<550mA;

Short message service:<150mA;

Camera Preview: <550mA;

MP3 playing: maximum volume < 40mA(with Audio Jack);

Video Playback:<450mA.
RF Performance Indicators
1.3.2.1
 RX&TX Freq ：
channel
GSM850RX
GSM900RX
DCS1800RX
PCS1900RX
WCDMA B8RX
WCDMA B1RX
WCDMA B2RX
WCDMA B5RX
LTE B1RX
LTE B3RX
LTE B7RX
LTE B20RX
 Receive Bit Err
GSM850/900：≤-102dBm,Bit Err<2.44%
DCS1800/PCS1900：≤-100dBm, Bit Err<2.44%
SERVICE GUIDE
1-1 RX Freq
Freq RX
869-894ＭＨｚ
925-960ＭＨｚ
1805-1880ＭＨｚ
1930-1990ＭＨｚ
925-960ＭＨｚ
2110-2170ＭＨｚ
1930-1990ＭＨｚ
869-894ＭＨｚ
2110-2170ＭＨｚ
1805-1880ＭＨｚ
2620-2690ＭＨｚ
791-821ＭＨｚ
Page : 5/68
Language :English
Date : 2015-07-06
Freq TX
824-849ＭＨｚ
880-915ＭＨｚ
1710-1785ＭＨｚ
1850-1910ＭＨｚ
880-915ＭＨｚ
1920-1980ＭＨｚ
1850-1910ＭＨｚ
824-849ＭＨｚ
1920-1980ＭＨｚ
1710-1785ＭＨｚ
2500-2570ＭＨｚ
832-862ＭＨｚ
