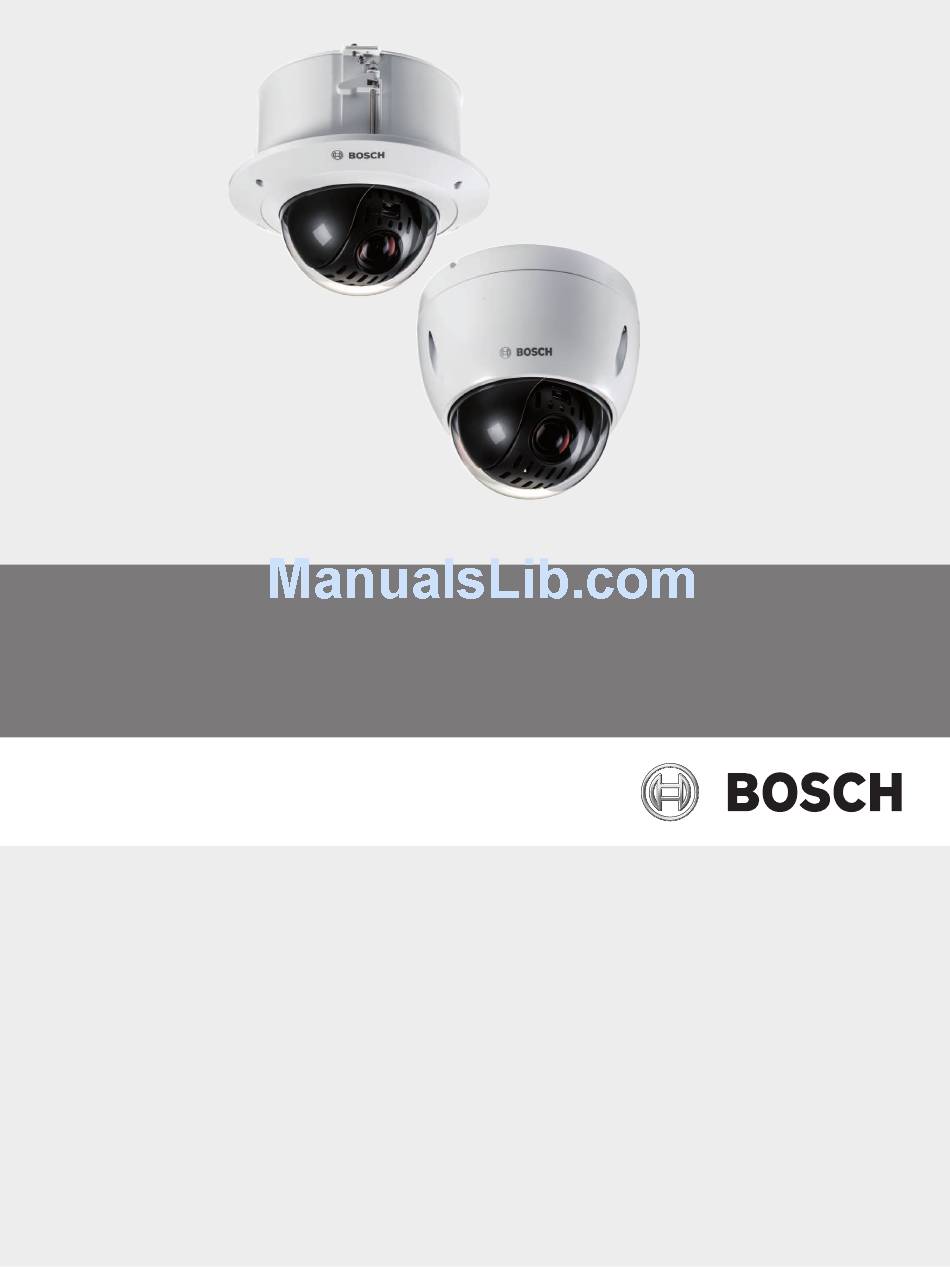

- Page 1 AUTODOME IP 4000i NDP-4502-Z12 │ NDP-4502-Z12C Installation Manual...
-
Page 3: Table Of Contents
AUTODOME IP 4000i Table of contents | en Table of contents Safety About this Manual Legal Information Safety Precautions Important Safety Instructions Safety Addendum Important Notices Customer Support and Service Unpacking Product Description Mounting Accessories Preparing Wiring Preparing the Camera... -
Page 4: Safety
Legal Information Copyright This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 5: Important Safety Instructions
Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems, Inc. accepts no liability for any damages or losses caused by incorrect or improper installation. All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at least 3 mm, into the electrical installation of the building. -
Page 6: Safety Addendum
Failure to do so could allow water to enter the housing and damage the device. Always use Teflon tape and sealant on connector threads of any mount (sold separately by Bosch or user-supplied). If a sealant is used, ensure that it is a neutral cure type. Sealants that release acetic acid may harm electronics. - Page 7 AUTODOME IP 4000i Safety | en – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made.
-
Page 8: Customer Support And Service
| Safety AUTODOME IP 4000i Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Telephone: 800-366-2283 or 585-340-4162 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com... -
Page 9: Unpacking
Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. – Do not use this product if any component appears to be damaged. Please contact Bosch Security Systems in the event of damaged goods. –... -
Page 10: Product Description

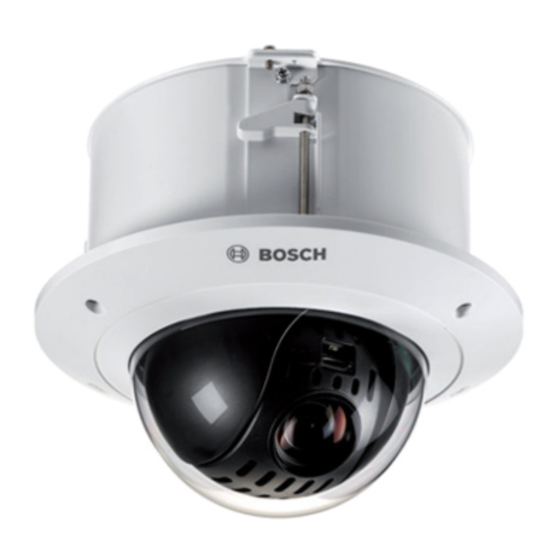

AUTODOME IP 4000i Product Description The AUTODOME IP 4000i is a compact, indoor PTZ dome camera with a high-resolution 1080p60 HD sensor and a 12x optical zoom that allows operators to monitor wide scenes without losing any details. The camera’s aesthetic design and flexible mounting options allow unobtrusive surveillance of large halls, reception areas, or waiting areas that would otherwise require multiple cameras for effective surveillance. -
Page 11: Mounting Accessories
AUTODOME IP 4000i Mounting Accessories | en Mounting Accessories Model Number Description Installation Location NDA-U-WMT Pendant wall mount Indoor walls (direct installation) Outdoor walls (onto NDA-U-PAx or NDA-U-WMP) NDA-U-PA0 Surveillance cabinet Indoor/outdoor walls NDA-U-PA1 (24VAC, 120VAC, or 230VAC) NDA-U-PA2 NDA-U-CMT... -
Page 12: Preparing Wiring
| Preparing Wiring AUTODOME IP 4000i Preparing Wiring Prepare and install all wiring for 24 VAC, PoE+ (Cat5e/Cat6), alarms, and audio as necessary. For 24 VAC, follow the recommendations for maximum cable distance and wire gage. Maximum cable distance in meters (feet) per minimum cable diameter The following table identifies the recommended transmission distance (maximum) in meters (feet), based on the specified wattage, per the minimum cable diameter (in mm²), when the... -
Page 13: Preparing The Camera
AUTODOME IP 4000i Preparing the Camera | en Preparing the Camera Note: For pendant models, use T15. For in-ceiling models, use T10. Loosen the three (3) Hex screws in the trim ring / bubble enclosure with the appropriate Torx screwdriver. - Page 14 | Preparing the Camera AUTODOME IP 4000i 3× Remove the foam insert that protects the camera block. Remove the tape holding the plastic lens protector; remove the lens protector. 2017.08 | 1.0 | F.01U.xxx.xxx Installation Manual Bosch Security Systems...
-
Page 15: Installing A Microsd Card (Optional)
AUTODOME IP 4000i Installing a microSD card (optional) | en Installing a microSD card (optional) Push the camera block until you see the card slot (item 1 in the following figure). Insert the card into the slot (item 2 in the following figure). - Page 16 | Installing a microSD card (optional) AUTODOME IP 4000i Replace the trim ring / bubble enclosure. Tighten the screws with the T15 Torx screwdriver. 3× 2017.08 | 1.0 | F.01U.xxx.xxx Installation Manual Bosch Security Systems...
-
Page 17: Installing A Surface Mount And Camera
AUTODOME IP 4000i Installing a Surface Mount and Camera | en Installing a Surface Mount and Camera Tools Required – Appropriate screwdriver (Phillips head) – Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) – One (1) ground Installation Requirements –... - Page 18 | Installing a Surface Mount and Camera AUTODOME IP 4000i Attach conduit to the side of the adapter from which you removed the plug (the side from which the external cables are to be routed). Note: The conduit should have M20 or NPT ¾ inch threads.
- Page 19 AUTODOME IP 4000i Installing a Surface Mount and Camera | en 3× Bosch Security Systems Installation Manual 2017.08 | 1.0 | F.01U.xxx.xxx...
-
Page 20: Installing An In-Ceiling Camera In A Suspended Ceiling
| Installing an In-ceiling Camera in a Suspended Ceiling AUTODOME IP 4000i Installing an In-ceiling Camera in a Suspended Ceiling Tools Required – Appropriate screwdriver (Phillips head) – Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) Installation Requirements –... -
Page 21: Securing The Camera To The Ceiling
AUTODOME IP 4000i Installing an In-ceiling Camera in a Suspended Ceiling | en Figure 9.2: Cut Hole in Ceiling Tile Tighten the four (4) securing screws to the Bracket Assembly. Figure 9.3: Tighten Bracket Securing Screw Secure the Bracket Assembly to an overhead securing point with a safety wire. - Page 22 | Installing an In-ceiling Camera in a Suspended Ceiling AUTODOME IP 4000i Insert the camera (without the trim ring / bubble enclosure) into the hole in the ceiling. Ensure not to pinch the cables. Turn each fastening screw to secure the clamps in the ceiling.
- Page 23 AUTODOME IP 4000i Installing an In-ceiling Camera in a Suspended Ceiling | en Warning! Over torquing the ceiling clamps can damage the clamp or ceiling. Only tighten the clamp until it contacts the ceiling and you start to feel some resistance. If using a power screwdriver, set the torque level to the lowest setting.
-
Page 24: Installing An In-Ceiling Camera In A Drywall Ceiling
| Installing an In-Ceiling Camera in a Drywall Ceiling AUTODOME IP 4000i Installing an In-Ceiling Camera in a Drywall Ceiling 10.1 Tools Required – Appropriate screwdriver (Phillips head) – Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) 10.2... -
Page 25: Securing The Camera To The Ceiling
AUTODOME IP 4000i Installing an In-Ceiling Camera in a Drywall Ceiling | en 10.4 Securing the Camera to the Ceiling Connect the cables from the ceiling to the cables on the camera. Refer to the chapter Connection for more information. - Page 26 | Installing an In-Ceiling Camera in a Drywall Ceiling AUTODOME IP 4000i Insert the camera (without the trim ring / bubble enclosure) into the hole in the ceiling. Ensure not to pinch the cables. Turn each fastening screw to secure the clamps in the ceiling.
- Page 27 AUTODOME IP 4000i Installing an In-Ceiling Camera in a Drywall Ceiling | en 3× Bosch Security Systems Installation Manual 2017.08 | 1.0 | F.01U.xxx.xxx...
-
Page 28: Installing A Camera Directly To An Indoor Wall
| Installing a Camera Directly to an Indoor Wall AUTODOME IP 4000i Installing a Camera Directly to an Indoor Wall 11.1 Installation Requirements – The wall is thick enough to install the mounting screws. – The wall can sustain at least eight (8) times the weight of the camera (1.88 kg (4.14 lb)): >... - Page 29 AUTODOME IP 4000i Installing a Camera Directly to an Indoor Wall | en Route the cables from the ceiling out of the side of the mounting plate with the crescent- shaped cut-out. Attach the metal mounting plate to the inside of the pendant interface plate mount with the three (3) M4 screws.
- Page 30 | Installing a Camera Directly to an Indoor Wall AUTODOME IP 4000i Connect the mating connectors from the user-supplied cables from the ceiling to the matching connectors from the camera. Refer to the chapter Connection, page 39 for more information.
- Page 31 AUTODOME IP 4000i Installing a Camera Directly to an Indoor Wall | en ≈15° Bosch Security Systems Installation Manual 2017.08 | 1.0 | F.01U.xxx.xxx...
-
Page 32: Installing A Surveillance Cabinet And Camera
| Installing a Surveillance Cabinet and Camera AUTODOME IP 4000i Installing a Surveillance Cabinet and Camera The surveillance cabinet can attach directly to a wall, to a corner mount, or to a pole mount. To install the cabinet (power supply box), follow the instructions in the Surveillance Cabinet Installation Manual. - Page 33 AUTODOME IP 4000i Installing a Surveillance Cabinet and Camera | en 3× Attach the hook of the safety tether from the adapter to the bottom of the camera. Connect the mating connectors from the user-supplied cables from the ceiling to the matching connectors from the camera.
- Page 34 | Installing a Surveillance Cabinet and Camera AUTODOME IP 4000i Unlock the single safety locking screw on the base of the unit using the T10 Torx screwdriver. Attach the camera to the mounting plate by inserting the vertical tab on the plate into the recessed slot on the top of the camera dome to the right of the safety locking screw.
-
Page 35: Installing A Pipe Mount And Camera
AUTODOME IP 4000i Installing a Pipe Mount and Camera | en Installing a Pipe Mount and Camera Notice! Indoor use only! This mount shall only be installed indoors. No outdoors installation is permitted. 13.1 Tools Required – Appropriate tool for cutting a hole in drywall –... -
Page 36: Attaching The Camera To The Pendant Interface Plate
| Installing a Pipe Mount and Camera AUTODOME IP 4000i If you choose to install the pipe mount extension, thread the cables through the extension. Attach the pipe extension to the open end of the pipe mount. Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. - Page 37 AUTODOME IP 4000i Installing a Pipe Mount and Camera | en 3× Attach the hook of the safety tether from the adapter to the bottom of the camera. Connect the mating connectors from the user-supplied cables from the ceiling to the matching connectors from the camera.
- Page 38 | Installing a Pipe Mount and Camera AUTODOME IP 4000i Unlock the single safety locking screw on the base of the unit using the T10 Torx screwdriver. Attach the camera to the mounting plate by inserting the vertical tab on the plate into the recessed slot on the top of the camera dome to the right of the safety locking screw.
-
Page 39: Connection
AUTODOME IP 4000i Connection | en Connection Caution! Compliance with EN50130-4 Alarm Standard – CCTV for Security Applications To meet the requirements of the EN50130-4 Alarm Standard, an ancillary uninterruptable power (UPS) supply is necessary. The UPS must have a Transfer Time between 2–6 ms and a Backup Runtime of greater than 5 seconds for the power level as specified on the product datasheet. - Page 40 | Connection AUTODOME IP 4000i Label ID Description Cable Wire Color ALARM_IN1 Alarm In 1 White ALARM_IN2 Alarm In 2 Blue AUDIO OUT Audio Out Grey Ground Black AUDIO GND Audio Ground Green AUDIO IN Audio In Purple 2017.08 | 1.0 | F.01U.xxx.xxx...
-
Page 41: Maintenance
Never scrub the bubble with any abrasive material or cleaners. Bosch recommends cleaning the exterior of the bubble with NOVUS “No. 1” Plastic Clean & Shine (or equivalent), according to manufacturer’s instructions. Refer to www.novuspolish.com to order or to find a local distributor. -
Page 42: Decommissioning
16.2 Disposal Disposal Your Bosch product has been developed and manufactured using high- quality materials and components that can be reused. This symbol means that electronic and electrical devices that have reached the end of their working life must be disposed of separately from household waste. - Page 44 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2017...
