Chapter 2
Installing the Device

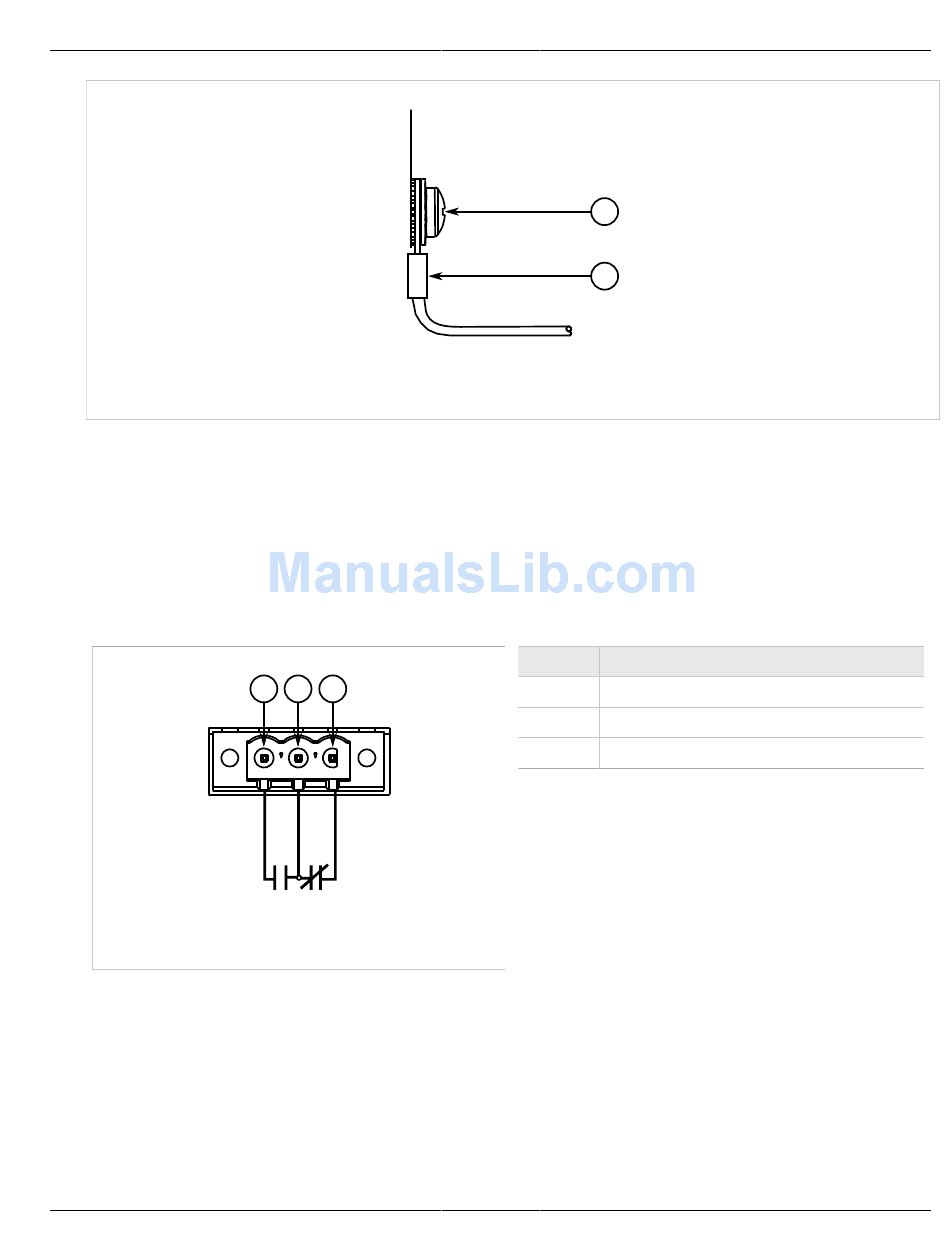

Figure 10: Chassis Ground Connection
1. #8-32 Screw 2. #8 Ring Lug
Section 2.4

Connecting the Failsafe Relay

The failsafe relay on the Control Module (CM) can be configured to latch based on alarm conditions. The NO
(Normally Open) contact is closed when the unit is powered and there are no active alarms. If the device is not
powered or if an active alarm is configured, the relay opens the NO contact and closes the NC (Normally Closed)
contact.
Figure 11: Failsafe Alarm Relay Wiring
1. Normally Open 2. Common (Ground)
Section 2.5

Connecting to the Device

The following describes the various methods for accessing the ROX II console and Web interfaces on the device.
For more detailed instructions, refer to the ROX II User Guide for the RX5000.
14
1 2 3
3. Normally Closed
1
2
Pin
NC
Common
NO
RUGGEDCOM RX5000
Installation Guide
Function
Normally Closed
Ground
Normally Open
Connecting the Failsafe Relay
