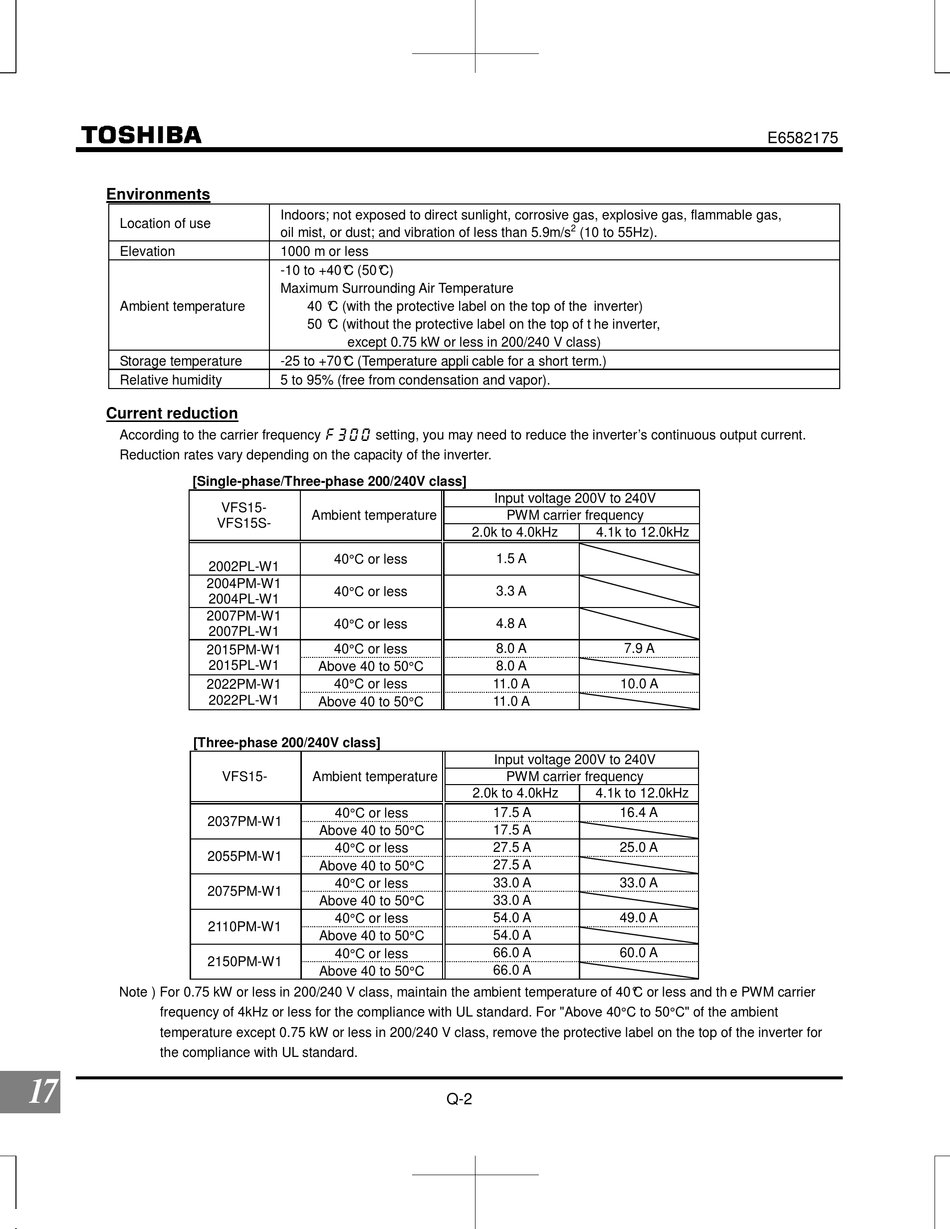

Toshiba Tosvert VF-S15 Instruction Manual page 373

Environments
Location of use
Elevation
Ambient temperature
Storage temperature
Relative humidity
Current reduction
According to the carrier frequency f300 setting, you may need to reduce the inverter's continuous output current.
Reduction rates vary depending on the capacity of the inverter.
[Single-phase/Three-phase 200/240V class]
2004PM-W1
2007PM-W1
2015PM-W1
2022PM-W1
[Three-phase 200/240V class]
2037PM-W1
2055PM-W1
2075PM-W1
2150PM-W1
Note ) For 0.75 kW or less in 200/240 V class, maintain the ambient temperature of 40° C or less and th e PWM carrier
frequency of 4kHz or less for the compliance with UL standard. For "Above 40°C to 50°C" of the ambient
temperature except 0.75 kW or less in 200/240 V class, remove the protective label on the top of the inverter for
the compliance with UL standard.
17
Indoors; not exposed to direct sunlight, corrosive gas, explosive gas, flammable gas,
oil mist, or dust; and vibration of less than 5.9m/s
1000 m or less
-10 to +40° C (50° C)
Maximum Surrounding Air Temperature
40 ° C (with the protective label on the top of the inverter)
50 ° C (without the protective label on the top of t he inverter,
except 0.75 kW or less in 200/240 V class)
-25 to +70° C (Temperature appli cable for a short term.)
5 to 95% (free from condensation and vapor).
VFS15-
Ambient temperature
VFS15S-
40°C or less
2002PL-W1
40°C or less
2004PL-W1
40°C or less
2007PL-W1
40°C or less
2015PL-W1
Above 40 to 50°C
40°C or less
2022PL-W1
Above 40 to 50°C
VFS15- Ambient temperature
40°C or less
Above 40 to 50°C
40°C or less
Above 40 to 50°C
40°C or less
Above 40 to 50°C
40°C or less
2110PM-W1
Above 40 to 50°C
40°C or less
Above 40 to 50°C
2
(10 to 55Hz).
Input voltage 200V to 240V
PWM carrier frequency
2.0k to 4.0kHz 4.1k to 12.0kHz
1.5 A
3.3 A
4.8 A
8.0 A 7.9 A
8.0 A
11.0 A 10.0 A
11.0 A
Input voltage 200V to 240V
PWM carrier frequency
2.0k to 4.0kHz 4.1k to 12.0kHz
17.5 A 16.4 A
17.5 A
27.5 A 25.0 A
27.5 A
33.0 A 33.0 A
33.0 A
54.0 A 49.0 A
54.0 A
66.0 A 60.0 A
66.0 A
