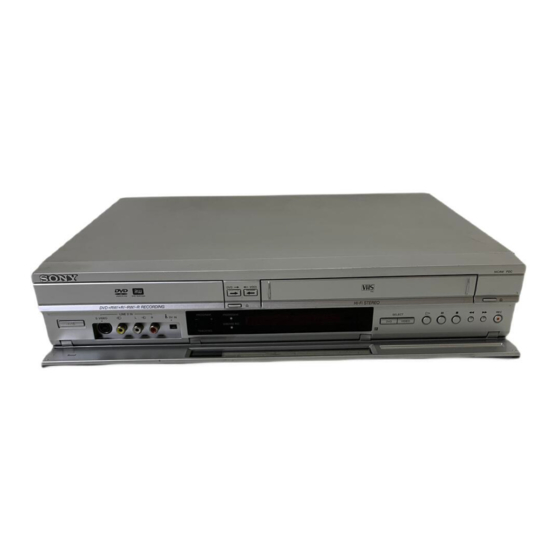

Sony RDR-VX410 Service Manual

Hide thumbs Also See for RDR-VX410:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
System
[DVD recorder section]
Laser
Semiconductor laser
Audio recording format
Dolby Digital
Video recording format
MPEG Video
[VCR section]
Format
VHS PAL standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Tape speed
SP: PAL 23.39 mm/s
LP: PAL 11.70 mm/s
EP: NTSC 11.12 mm/s,
playback only
Maximum recording/playback time
10 hrs. in LP mode (with E300 tape)
Rewind time
Approx. 1 min (with E180 tape)
PAL
PAL SECAM
RDR-VX410
Refer to the SERVICE MANUAL of VHS MECHANI-
CAL ADJUSTMENT MANUAL VII for MECHANICAL
ADJUSTMENTS. (9-921-790-11)
SPECIFICATIONS
[Tuner section]
Chan
nel coverage
RDR-VX410 (B, E1, E2):
PAL (B/G, D/K)
VHF E2 to E12
VHF Italian channel A to H
UHF E21 to E69
CATV S01 to S05, S1 to S41
HYPER S21 to S41
RDR-VX410 (B):
SECAM (L): (For French model)
VHF F2 to F10
UHF F21 to F69
CATV B to Q
HYPER S21 to S41
RDR-VX410 (GI):
PAL (I)
VHF: Ireland A to J, South Africa 4 to 13
UHF: B21 to B69
CATV: S01 to S05, S1 to S20
HYPER: S21 to S41
RDR-VX410 (AU2):
PAL (B/G)
VHF: E2 to E12
UHF: E21 to E69
CATV: S01 to S05, S1 to S41
PAL (B/B)
VHF: R1 to R12
UHF: R21 to R69
VIDEO CASSETTE RECORDER/
RMT-D224P
AEP Model
UK Model
French Model
Australian Model
New Zealand Model
TS-10 MECHANISM
The above channel coverage merely ensures the
channel reception within these ranges. It does not
guarantee the ability to receive signals in all
circumstances.
Aerial out
75-ohm asymmetrical aerial socket
[Timer section]
Clock
Quartz locked
Timer indication
24-hour cycle
Timer setting
12 programmes in total (max.)
Inputs and outputs
LINE 2 IN
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO IN, phono jacks (2)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
S VIDEO, 4-pin, mini-DIN jack (1)
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
— Continued on next page —

DVD RECORDER
