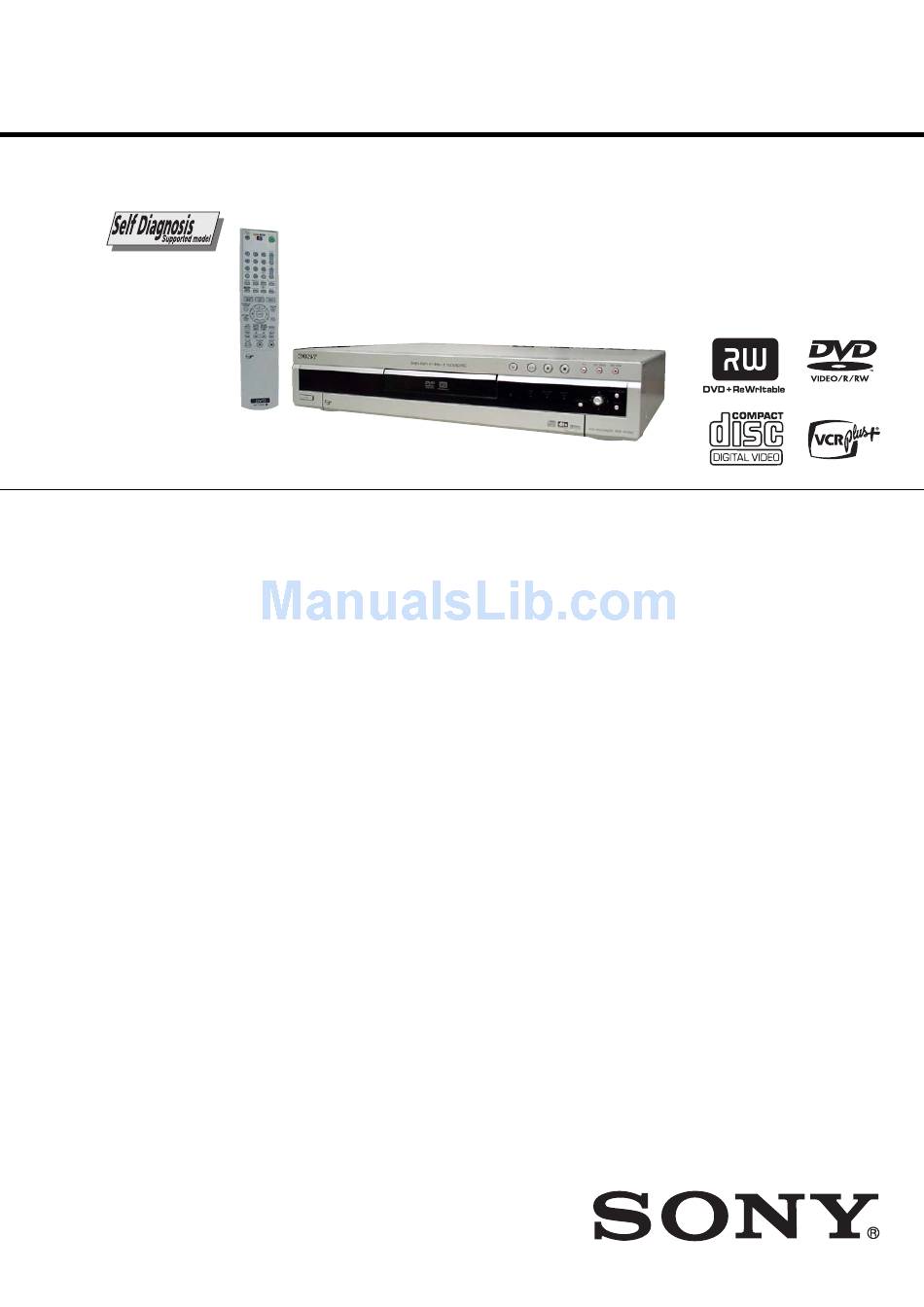

SERVICE MANUAL
System
Laser: Semiconductor laser
Channel coverage:
NTSC
VHF: 2 to 13/UHF: 14 to 69/CATV: A-8 to
A-1, A to W, W+1 to W+84
Video reception: Frequency synthesizer
system
Audio reception: Split carrier system
Antenna: 75-ohm antenna terminal for VHF/
UHF
Timer: Clock: Quartz locked/Timer indication:
12-hour cycle (digital)/Power back-up
duration: 1 hour
Video recording format: MPEG Video
Audio recording format/applicable bit rate:
Dolby Digital/2 ch, 256 kbps
When you play PCM sound tracks with a 96 kHz
sampling frequency, the output signals from the
DIGITAL OUT (OPTICAL or COAXIAL) jack
are converted to 48 kHz sampling frequency.
Inputs
(Jack name: Jack type/input level/input
impedance)
LINE IN 1/2/3
(AUDIO): Phono jack/2 Vrms/more than 22
kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y:1.0 Vp-p, C:
0.286 Vp-p
RDR-GX300
SPECIFICATIONS
Outputs
(Jack name: Jack type/output level/output
impedance)
LINE OUT 1/2
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y:1.0 Vp-p, C:
0.286 Vp-p
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm (wave length:
660 nm)
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT (Y, P
Phono jack/Y: 1.0 Vp-p/P
, P
:
B
R
interlace*=0.648 Vp-p, progressive or
interlace**=0.7 Vp-p
*
"Y/Pb/Pr Out Black Level" is "On"
** "Y/Pb/Pr Out Black Level" is "Off"
SET TOP BOX CONTROL:
Mini jack
Canadian Model
General
Power requirements: 120 V AC, 60 Hz
Power consumption: 37 W
Dimensions (approx.): 430 × 85 × 345 mm
(17 × 3
× 13
3
5
/
8
incl. projecting parts
Mass (approx.): 4.8 kg (10.58 lb)
Operating temperature: 5 ºC to 35 ºC
(41 ºF to 95 ºF)
Operating humidity: 25 % to 80 %
Supplied accessories:
Audio/video cord (1)
Power cord (1)
, P
):
Antenna cable (1)
B
R
Set top box controller (1)
Remote commander (remote) (1)
Size AA(R6) batteries (2)
Specifications and design are subject to change
without notice.

DVD RECORDER

RMT-D205A
US Model
/
in.) (width/height/depth)
8

Advertisement

Table of Contents
loading

Summary of Contents for Sony RDR-GX300

  • Page 1: Dvd Recorder

    RDR-GX300 RMT-D205A SERVICE MANUAL US Model Canadian Model SPECIFICATIONS System Outputs General Laser: Semiconductor laser (Jack name: Jack type/output level/output Power requirements: 120 V AC, 60 Hz Channel coverage: impedance) Power consumption: 37 W Dimensions (approx.): 430 × 85 × 345 mm...
  • Page 2 COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SERVICE NOTE 2-5. TRAY COVER ASSEMBLY ·········································· 2-5 2-6. DVD DRIVE ··································································· 2-6 DISK REMOVAL PROCEDURE IF THE TRAY 2-7. FRONT PANEL SECTION ············································· 2-7 CANNOT BE EJECTED (FORCED EJECTION) ············ 5 2-8. DOOR ·············································································· 2-7 2-9. FR-216 BOARD, FL-141 BOARD ································· 2-8 GENERAL 2-10.
  • Page 4 • RD-50 (13/19) (SDRAM, NAND FLASH) SCHEMATIC DIAGRAM ···························· 4-53 • RD-50 (14/19) (SWA/UNSW BUFFER-1) SCHEMATIC DIAGRAM ···························· 4-55 • RD-50 (15/19) (SWA/UNSW BUFFER-2) SCHEMATIC DIAGRAM ···························· 4-57 • RD-50 (16/19) (FLASH ROM) SCHEMATIC DIAGRAM ···························· 4-59 • RD-50 (17/19) (GPS3 (HOST GLUE)) SCHEMATIC DIAGRAM ····························...
  • Page 5: Service Note

    SERVICE NOTE 1. DISK REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION) Remove the upper case. Remove the RD-50 board, RD bracket. Insert the stiff wire in the hole and eject the tray. Tray The hole Fig. 1 The stiff wire Fig.
  • Page 6 MEMO — 6 —...
  • Page 7: General

    To prevent fire or shock hazard, due to a malfunction of the 3 Heed all warnings. whenever you call upon your Sony dealer required when the apparatus has found to comply with the limits set do not expose the unit to rain or recorder, disc, etc.
  • Page 8: Quick Guide To Disc Types

    Quick Guide to Disc Types Recordable and playable discs Recording Features Editing Features Icon Compatibility with Disc used in Formatting Type other DVD players Auto Manual Record Change Rewrite Delete title A-B Erase Playlist Logo this (new discs) Chapter Chapter 16:9 sizes title name (finalizing)
  • Page 9: Hookups And Settings

    Using the cable box/satellite A: Cable box or satellite receiver with a video/audio output Hookups and Settings receiver control function With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the satellite receiver or cable box is turned on. The cable box/satellite receiver control function Hooking Up the Recorder To watch cable or satellite programs, you need to match the channel on the recorder (L1 or L3) to the...
  • Page 10: Step 3: Connecting The Video Cords

    Connecting to a video input jack Using the PROGRESSIVE button Step 3: Connecting the Video Cords Connect the yellow plug of the audio/video cord By using the PROGRESSIVE button on the (supplied) to the yellow (video) jack. You will remote, you can select the signal format in which Select one of the following patterns A through C, according to the input jack on your TV monitor, enjoy standard quality images.
  • Page 11: Step 5: Connecting The Power Cord

    VOL +/– J.C.Penney 04, 10, 12 Notes TV/VIDEO • If the supplied remote interferes your other Sony DVD recorder or player, change the command mode number to AC outlet for this recorder (page 22). Magnavox 03, 04, 08, 12, 21 •...
  • Page 12: Setting Up The Vcr Plus System

    Switch the input selector on your TV so that Once the clock is set, the Setup Display for If you connect the satellite receiver or cable “4:3 Letter Box”: For standard TVs. the signal from the recorder appears on cable box/satellite receiver control appears. box to the recorder’s antenna input (page 14), Displays “wide screen”...
  • Page 13: Connecting A Vcr Or Similar Device

    If you connected a cable box or satellite Connecting a VCR or Similar Device receiver to the recorder and set “Set Top Box Control” to “On,” enter the TV channel number on your cable box. After disconnecting the recorder’s power cord from an AC outlet, connect a VCR or similar recording If you connected a cable box and set “Set Top device to the LINE IN jacks of this recorder.
  • Page 14: Using The Title List

    To scroll the list display by page (Page mode) Standard Title List (Example: DVD-RW in VR TOOLS Using the Title List mode) Press CURSOR MODE while the list display is turned on. The display enters Page mode. Each The TOOLS menu appears when you press time you press M/m, the entire Title List changes TOOLS, and displays options applicable to the - RW...
  • Page 15: Checking The Play Information And Playing Time

    B Available functions for DVD VIDEOs Select “Finalize,” and press ENTER. Finalizing a disc (preparing a disc Checking the Play The display shows the approximate time angle/ audio/ subtitle, etc.) for playback on other equipment) required for finalizing and asks for C The current selected function or audio Information and Playing confirmation.
  • Page 16: Recording

    Recording mode Recording time Copy control Recordable discs Timer Recording (Standard/ (minute) signals Recording VCR Plus+) HQ (High quality) Copy-Free - RW - RW Video Before Recording - RW - RW Video SP (Standard mode) Copy-Once - RW Ver.1.1 with You can set the timer for a total of 30 programs, up Before you start recording…...
  • Page 17: Checking/Changing/Canceling Timer Settings (Timer List)

    Select “OK,” and press ENTER. Select one of the options, and press To turn off the Timer List Checking/Changing/ Press O RETURN. The date, start and stop times, channel, and ENTER. recording mode appear. “Modify”: Changes the timer setting. Select Canceling Timer Settings z Hint an item using </, and adjust using M/m.
  • Page 18: Recording From A Vcr Or Similar Device

    This function works with DVD-Rs and DVD- Adjusting the recording picture Checking the disc status while Recording From a VCR or RWs (Video mode) when the recording mode quality and size recording is set to HQ, HSP, or SP. For all other Similar Device recording modes, the screen size is fixed at You can adjust the recording picture quality and...
  • Page 19 The TOOLS menu appears. • When you select one of the surround modes, turn off by Sony to produce “TVS OFF”: No surround effect the surround settings of the connected TV or amplifier home surround sound Select “Video Settings,”...
  • Page 20: Chasing Playback/Simultaneous Rec And Play

    Press </, to adjust the setting, and Adjusting the sound quality Playing a previous recording while Chasing Playback/ press ENTER. making another The default settings are underlined. - RW - RW Simultaneous Rec and Play Video Y NR : (weak) Off 3 (strong) “...
  • Page 21: Editing

    Edit options for DVD-RWs (VR mode) Notes • Depending on the software you use to create the DATA Editing CD, the playback order may differ from the above - RW illustration. Before Editing • Proceeding to the next or another album may take some You can enjoy advanced edit functions.
  • Page 22: Creating And Editing A Playlist

    Select a title, and press ENTER. Press TOOLS and select “Disc Map,” and Creating chapters manually Creating and Editing a press ENTER. A check mark appears in the check box next to the selected title. To clear the check mark, The Disc Map appears.
  • Page 23: Settings And Adjustments

    Combining multiple Playlist titles SETUP (Combine Titles) Settings and Adjustments Settings Tuner Preset Video Set VCR Plus+ Channels Using the Setup Displays Audio Clock - RW Features Set Top Box Control Options Language Press TITLE LIST to turn on the Title List By using the Setup Displays, you can make Easy Setup (Playlist) menu.
  • Page 24: Video Settings (Video)

    Time Zone Mode for SET button Clock Set Top Box Control Select the time zone for your area, or select Select “Mode 1” or “Mode 2” if your cable box or “Auto” to have the recorder automatically set satellite receiver requires pressing an ENTER You can control your cable box/satellite receiver Auto (Auto Clock Set) your time zone.
  • Page 25: Audio Settings (Audio)

    Audio ATT (attenuation) If you connect a component that does not accept Audio Settings (Audio) Dolby the selected audio signal, a loud noise (or no If the playback sound is distorted, set this item to Normally select this Surround position. sound) will come out from the speakers, and may “On.”...
  • Page 26: Disc And Remote Control Settings/Factory Settings

    Command Mode. Be sure to match the Command Select “SETUP,” and press ENTER. Mode switch on the remote to the setting made here. For details, see “If you have a Sony DVD Select “Options,” and press ENTER. SETUP player or more than one Sony DVD recorder” on...
  • Page 27: Self-Diagnosis Function

    STOP. The disc tray does not open and “TRAY LOCKED” appears on the front panel display. , Contact your Sony dealer or local authorized Sony service facility. , continued • After playing, store the disc in its case.
  • Page 28: Specifications

    Outputs Specifications Guide to Parts and Controls (Jack name: Jack type/output level/output impedance) LINE OUT 1/2 System For more information, see the pages in parentheses. (AUDIO): Phono jack/2 Vrms/10 kilohms Laser: Semiconductor laser (VIDEO): Phono jack/1.0 Vp-p Front panel Channel coverage: (S VIDEO): 4-pin mini DIN/Y:1.0 Vp-p, C: NTSC Buttons on the recorder have the same function as the buttons on the remote if they have the same or...
  • Page 29: Glossary

    DVD-RW (page 8) Front panel display Glossary A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD- RW has two different modes: VR mode and Video Chapter (page 58) PLAYLIST STEREO mode.
  • Page 30: Cable Box/Satellite Receiver Brand Code

    0722, 0724 Trinity 1248 Skygiant 1091 McIntosh 0869 Tristar 0883 SL Marx 0040 Memorex 0724 0255, 0024, 1018, 0003, 0303 Sony 1006, 1506, 1606 Mitsubishi 0749 Tusa 0015 Spectradyne 0769, 0058 Motorola 0869 TV COMM 0035, 0019 Spectravision 0058 1270...
  • Page 31 Primestar 0361, 0627, 0869 Proscan 0392, 0566 1367 RadioShack 0869 0566, 0392, 0143, 0855 Samsung 1109, 1276 0856, 0099, 1856 Sony 0639, 1639 Star Choice 0869 Star Trak 0869, 0772 Thomson 0566, 0392 Tivo 1142, 1442 Toshiba 0790, 0749, 1749, 1285...
  • Page 32 MEMO 1-26E...
  • Page 33: Disassembly

    RDR-GX300 SECTION 2 DISASSEMBLY NOTE: The following flow chart shows the disassembly procedure. Upper case (Page 2-2) D.C. fan Power block RD-50 board (Page 2-4) (Page 2-4) (Page 2-3) Tray cover assembly (Page 2-5) Front panel section Rear panel (Page 2-8)
  • Page 34: Upper Case

    NOTE: Follow the disassembly procedure in the numerical order given. 2-1. UPPER CASE Two tapping screws Three tapping screws (+BV sumitite B3 × 10) 4 Upper case Two tapping screws...
  • Page 35: Board

    2-2. RD-50 BOARD 3 Flexible flat cable 4 Flexible flat cable (FRA- 6) (CN1903, 25P) (FRA- 3) (CN1101, 40P) 2 Flexible flat cable (FRA- 5) (CN1905, 13P) Separation plate 6 Four tapping screws (+BV3(3-CR) B3 × 8) 7 Four tapping screws 1 Flexible flat cable (+BV3(3-CR) B3 ×...
  • Page 36: Fan

    2-3. D.C. FAN 3 Remove the D.C. fan in the direction of the arrow. Two tapping screws (+BV sumitite B3 × 10) 1 Connector (CN102, 3P) 2-4. POWER BLOCK 4 Six tapping screws (+BV3(3-CR) B3 × 8) 7 Power block 1 Harness (RP-120) (CN2, 15P) 3 Connector (CN3, 13P)
  • Page 37: Tray Cover Assembly

    2-5. TRAY COVER ASSEMBLY Tray cover assembly HOW TO EXECUTE THE FOCED EJECTION The hole 3 Two claws Open the tray Insert the stiff wire in the hole and eject the tray.
  • Page 38: Dvd Drive

    2-6. DVD DRIVE 3 Four tapping screws (+BV3(3-CR) B3 × 8) 1 Remove the harness that is fixed on the clamp. Clamp 4 Remove the DVD section in the direction of the arrow A . 2 Harness (PD-122) (CN4, 4P) 5 Harness (PD-122) (4P) 9 Two...
  • Page 39: Front Panel Section

    2-7. FRONT PANEL SECTION 1 Seven craws 2 Front panel section 2-8. DOOR 2 Door 1 Four craws...
  • Page 40: Board, Fl-141 Board

    2-9. FR-216 BOARD, FL-141 BOARD 7 Harness (AL-70) (CN105, 11P) 8 FL-141 board 6 Three tapping screws (+BV3(3-CR) B3 × 8) (CN102, 9P) (CN002, 9P) 2 Flexible flat cable (FAR-4) (CN001, 17P) 1 Flexible flat cable (FLR-4) 5 FR-216 board 4 Four tapping screws...
  • Page 41: Board

    2-11. AV-84 BOARD 1 Harness (AL-070) (CN801, 11P) 2 Connector (CN3, 13P) 4 Seven tapping screws (+BV3(3-CR) B3 × 8) 3 Flexible flat cable (FRA- 4) (CN603, 17P) 7 Flexible flat cable (FRA- 4) (CN502, 13P) 8 Flexible flat cable 6 Flexible flat cable (FRA- 4) (CN501, 17P) (FRA- 6) (CN503, 25P)
  • Page 42: Circuit Boards Location

    2-12. CIRCUIT BOARDS LOCATION Power block FL-141 board AV-84 board RD-50 board FR-216 board 2-10E...
  • Page 43: Block Diagrams

    RDR-GX300 SECTION 3 BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/2) AV-82 BOARD (1/2) LINE 1 IN LINE 3 IN IC701 VIDEO IN SELECT TU VIDEO CVBS IN1 S VIDEO CN501(1/2) Q703 C IN3 REC Y Y OUT RECY Y IN3...
  • Page 44: Overall Block Diagram (2/2)

    RDR-GX300 3-2. OVERALL BLOCK DIAGRAM (2/2) RD-46 BOARD CN-199 BOARD IC702 IC803 IC1101 IC901 (1/2) 512Fs 256Fs CN1101 CN1802 CN1801 AV ENCODER OS 0 56-59 84,86,91 ENC DT 0 ATP D0 56-59 IDE D0-D15 CN1904(1/2) 90,92,97 24-38 24-38 3-18 VIDDT0...
  • Page 45: Power Block Diagram (1/3)

    RDR-GX300 3-3. POWER BLOCK DIAGRAM (1/3) TU401 AV-82 BOARD Q415 3W REG CN101 UNSW 3.3V IC401 SW 3.3V IC404 Q414 UNSW 6V TU 5V POWER SW 12V BLOCK UNSW 12V UNSW -8V XP FAIL UNSW 6V CN503 IC607 IC1101 SWA 5V...
  • Page 46: Power Block Diagram (2/3)

    RDR-GX300 3-4. POWER BLOCK DIAGRAM (2/3) CN103 CN1801 D1801 UNSW 6V UNSW 5V NOT USE IC1804 SW 5V SW 5V IC108 IC103 IC104 IC111 IC112 IC106 IC109 BUFFER EEP ROM BUFFER CLOCK 256Mbit SDRAM SH 3.3V UNSW 3.3V IC1803 IC201...
  • Page 47: Power Block Diagram (3/3)

    RDR-GX300 3-5. POWER BLOCK DIAGRAM (3/3) SWITCHING REGULATOR(POWER BLOCK) F101 3.15A/250V t101 P811 POWER Q811 D811 L812 L811 tRANSFORMER 16V REG AC IN P511 D511 L511 Q521 CN208 D211 L101,102 CN101 IC101 D311 P521 SWItCHING P211 L211 PC101 D611 L611...
  • Page 48 RDR-GX300 MEMO 3-12E...
  • Page 49: Schematic Diagrams

    RDR-GX300 SECTION 4 SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM TU401 VHF/UHF AV-84 BOARD CN501 27P CN1904 27P RD-50 BOARD AI_LRCK AI_LRCK AADXRST AADXRST AI_SDT AI_SDT DGND DGND TUNER AI_BCK AI_BCK DGND DGND DGND DGND DGND DGND CN1101 40P 256FS 256FS...
  • Page 50: Schematic Diagrams

    RDR-GX300 4-2. SCHEMATIC DIAGRAMS WAVEFORMS AV-84 THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS BOARD (In addition to this, the necessary note is printed in each block) (For schematic diagrams) IC603 0 IC802 ws • All capacitors are in µF unless otherwise noted. pF : µµF.
  • Page 51 RDR-GX300 RD-50 BOARD IC1702 34 IC103 (JL127) Q1301 E 4.5 Vp-p 780 mVp-p 2.0 Vp-p 29.5 ns 30.3 ns IC1702 78 IC702 7 (S-VIDEO) Q1302 E 1.0 Vp-p 4.4 Vp-p 390 mVp-p 37.0 ns IC1702 qs Q1303 E IC702 qh (S-VIDEO) 3.9 Vp-p...
  • Page 52 RDR-GX300 AV-84 BOARD(1/8) NO MARK:REC/PB MODE POWER R :REC MODE P :PB MODE -REF.NO.:10000 SERIES- CN101 JL101 JL102 JLxx UNSW18V JL103 SW3.3V SW3.3V JL104 UNSW6V TO(2/8) UNSW6V SWITCHING REGULATOR UNSW6V VIN_GND JL105 JL117 (SEE PAGE 4-68) SW12V SW3.3V JL106 UNSW12V...
  • Page 53 RDR-GX300 AV-84 BOARD(2/8) NO MARK:REC/PB MODE AUDIO IN SIGNAL PATH R :REC MODE P :PB MODE REF.NO.:10000 SERIES- VIDEO SIGNAL AUDIO CHROMA Y/CHROMA SIGNAL AU1INR FA_INR R207 AU3INR AU3INL TO(7/8) C209 C210 C217 C214 FA_INL AU1INL ADGND R220 R222 R223 R224 ±...
  • Page 54 RDR-GX300 SIGNAL PATH AV-84 BOARD(3/8) AUDIO OUT NO MARK:REC/PB MODE VIDEO SIGNAL AUDIO -REF.NO.:10000 SERIES- CHROMA Y/CHROMA SIGNAL CN503 JL515 SPDIFO JL529 DGND JL530 Rch+ R310 4700 R320 RMUTE ± JL531 0.5% 2200 Rch- C313 R323 R311 AUGND 560p 5600...
  • Page 55 RDR-GX300 For Schematic Diagram • Refer to page 4-4 for waveforms. IC404 AV-84 BOARD(4/8) IC404 TK11819MTL R5.2 TUNER 30V REG V-IN R4.7 -REF.NO.:10000 SERIES- VHF/UHF IN/OUT L406 R33.7 R32.0 V-OUT L411 R457 NO MARK:REC/PB MODE 47uH R :REC MODE P :PB MODE...
  • Page 56 RDR-GX300 For Schematic Diagram • Refer to page 4-4 for waveforms. AV-84 BOARD(5/8) SYSTEM CONTROL -REF.NO.:10000 SERIES- -8.9 -8.8 UNSW-8V Q607 R623 2SD1781K-T146-QR R637 -8.1 CN603 JL636 SW-8V C659 IT_GND R635 R634 R1693 IT_GND Q603,604,607 2700 2700 5600 JL637 FLD_DATA...
  • Page 57 RDR-GX300 For Schematic Diagram • Refer to page 4-4 for waveforms. AV-84 BOARD(6/8) NO MARK:REC/PB MODE VIDEO IN R :REC MODE P :PB MODE -REF.NO.:10000 SERIES- UNSW5V C711 Q702 SIGNAL PATH 0.1u R709 2SB1197K-T-146-R VIDEO SIGNAL D701 Q701,702 M1MA152WK-T1 POEWR SW R710 SW3.3V...
  • Page 58: 7/8) (Video Out)

    RDR-GX300 For Schematic Diagram • Refer to page 4-4 for waveforms. CN801 S2 SW L2_YCYIN Y2 IN AV-84 BOARD(7/8) AN GND VIDEO OUT TO(6/8) L2_YCCIN C2 IN AN GND -REF.NO.:10000 SERIES- FL-141 BOARD L2_CVBSIN V2 IN CN105 (SEE PAGE 4-10)
  • Page 59 RDR-GX300 AV-84 BOARD(8/8) STB CONTROL R1132 -REF.NO.:10000 SERIES- D1101 Q1104 EC10DA40-TE12 2SB1561T100Q UNSW6V R1110 R1107 UNSW5V 2200 TO(1/8) C1103 IT_GND TU_GND C1102 IC1101 S3C80F9XKA-SO77 R1106 C1101 2200 0.01u P3.1/REM/ T0CK/SCLK C1104 P3.3/T0PWM/ JL1104 470p T0CAP/T1CAP/SDAT XOUT R1108 P2.4/INT9 X1101 TEST...
  • Page 60: Relay)

    RDR-GX300 CN-220 BOARD RELAY -REF.NO.:30000 SERIES- CN1801 CN1802 IDE_RST IDE_RST IDE_D7 IDE_D7 IDE_D8 IDE_D8 IDE_D6 IDE_D6 IDE_D9 IDE_D9 IDE_D5 IDE_D5 IDE_D10 IDE_D10 IDE_D4 IDE_D4 IDE_D11 IDE_D11 IDE_D3 IDE_D3 IDE_D12 IDE_D12 IDE_D2 IDE_D2 IDE_D13 IDE_D13 IDE_D1 IDE_D1 IDE_D14 IDE_D14 IDE_D0 IDE_D0...
  • Page 61: Dv/Line 2 In/Fl Driver)

    RDR-GX300 FL-141 BOARD ND101 FLUORESCENT INDICATOR TUBE LINE 2 IN/INDICATOR DRIVER -REF.NO.:40000 SERIES- NO MARK:REC/PB MODE 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57...
  • Page 62: Led Drive, Function Key

    RDR-GX300 FR-216 BOARD LED DRIVE,FUNCTION KEY R051 R053 2200 -REF.NO.:40000 SERIES- Q002 R054 MSB709-RT1 4700 LEDIM Q001 C063 IC062 DTC114EKA-T146 0.01u Q001,002 LED B+ SWITCH CN001 JL008 JL007 LED DRIVE IT_GND JL009 FLCS IC062 FLD_CS NJU3711M(TE2) SYNCHRO REC JL011 JL010...
  • Page 63 RDR-GX300 RD-50 BOARD(1/19) CONNECTOR -REF.NO.:20000 SERIES- DGND R1916 C1133 CN1101 40P CN1904 TO(19/19) JL1904 0.1u JL1167 AI_LRCK ADLRCKI SW3.3V C1132 JL1107 JL1910 C1130 C1131 0.1u 0.1u 0.1u AADXRST R1901 DASP JL1906 JL1108 ATP_A3 AI_SDT ADDATI IDE_A3(CS1) TO(3/19) JL1109 JL1909 ATP_A4...
  • Page 64: 2/19) (Video Decoder)

    RDR-GX300 For Schematic Diagram • Refer to page 4-5 for waveforms. RD-50 BOARD(2/19) VIDEO DECODER -REF.NO.:20000 SERIES- C730 C735 C733 0.1u 0.1u JL710 VIDDT0 VIDDT0 C737 C731 JL711 0.1u VIDDT1 VIDDT1 JL712 VIDDT2 VIDDT2 JL713 C718 VIDDT3 VIDDT3 0.1u JL714...
  • Page 65 RDR-GX300 RD-50 BOARD(3/19) (4/19, 5/19, (6/19, AV GLUE 11/19, TO(10/19) (4/19,5/19, 6/19, (18/19) 6/19,8/19,15/19) 15/19) 12/19) -REF.NO.:20000 SERIES- NO MARK:REC/PB MODE SILNZCVB7 SILNZCVB7 R :REC MODE SILNZCVB6 SILNZCVB6 P :PB MODE SILNZCVB5 SILNZCVB5 SILNZCVB4 SILNZCVB4 SILNZCVB3 SILNZCVB3 SILNZCVB2 R871 R886...
  • Page 66 RDR-GX300 RD-50 BOARD(4/19) AV ENCODER -REF.NO.:20000 SERIES- R931 NO MARK:REC/PB MODE XAVEWT R :REC MODE XAVERD P :PB MODE XAVECS TO(17/19) RB901 C912 RB904 RB905 C916 4700x4 0.1u 33x4 33x4 XAVEWE 0.1u R935 AVEINT R918 SWAHD0 SWAHD0 XAVERST C913 R903...
  • Page 67 RDR-GX300 RD-50 BOARD(5/19) :Voltage measurement of the CSP IC and the Transistors MR PROCESS NO MARK:REC/PB MODE with mark, is not possible. R :REC MODE -REF.NO.:20000 SERIES- P :PB MODE MRTRST MRTRST JTAGTMS JTAGTMS IC1102 JTAGTCK JTAGTCK TO(11/19) C1121 C1116...
  • Page 68 RDR-GX300 For Schematic Diagram • Refer to page 4-5 for waveforms. RD-50 BOARD(6/19) NO MARK:REC/PB MODE R :REC MODE AV DECODER P :PB MODE -REF.NO.:20000 SERIES- XSWARDA TO(5/19,15/19) XSWAWEA R1289 PLL27M1 TO(12/19) XAVDINT TO(18/19) R1290 PLL33M2 XAVDWT XAVDDACK0 R1291 XAVDDREQ0...
  • Page 69 RDR-GX300 RD-50 BOARD(7/19) SDRAM -REF.NO.:20000 SERIES- NO MARK:REC/PB MODE R :REC MODE P :PB MODE AVDSDDTO AVDSDDTO AVDSDDT1 IC1203 AVDSDDT1 IC1203 HY57V641620HGT-P-TR-V AVDSDDT2 AVDSDDT2 AVDSDDT3 64M SDRAM AVDSDDT3 R2.5/P1.7 AVDSDDT4 AVDSDDT0 AVDSDDT15 AVDSDDT4 DQ15 AVDSDDT5 AVDSDDT5 VDDQ VSSQ AVDSDDT6 AVDSDDT1...
  • Page 70 RDR-GX300 For Schematic Diagram • Refer to page 4-5 for waveforms. R4349 RV001 RD-50 BOARD(8/19) R1304 NO MARK:REC/PB MODE :Voltage measurement of the CSP IC R1301 2200 2200 and the Transistors with mark,is NAZCA not possible. R1308 IC1306 R1302 R1303 C1376 -REF.NO.:20000 SERIES-...
  • Page 71 RDR-GX300 IC1304 IC1305 RD-50 BOARD(9/19) SDRAM SDRAM SDRAM IC1304 IC1305 -REF.NO.:20000 SERIES- MT48LC2M32B2 MT48LC2M32B2 RB1319 RB1327 RB1323 RB1331 NO MARK:REC/PB MODE 47x4 SDR_DQ32 47x4 47x4 47x4 SDR_DQ47 SDR_DQ0 SDR_DQ15 DQ15 DQ15 VDDQ VSSQ VDDQ VSSQ SDR_DQ33 SDR_DQ46 SDR_DQ1 SDR_DQ14 DQ14...
  • Page 72 RDR-GX300 IC1601 R1604 2ch DAC XAMUTE XLMUTE RD-50 BOARD(10/19) SIGNAL PATH IC1601 AK4381VT-E2 D1601 1SS355TE-17 AUDY,DAC PLL512L2 MCLK DZFL AUDIO DABCKO -REF.NO.:20000 SERIES- BICK DZFR SIGNAL SDTI NO MARK:REC/PB MODE DALRCKO LRCK R1603 R :REC MODE XSWGBRST AOUTL+ AOUTL+ P :PB MODE...
  • Page 73: 11/19) (Jtag)

    RDR-GX300 RD-50 BOARD(11/19) NO MARK:REC/PB MODE JTAG -REF.NO.:20000 SERIES- JL1406 SILTDO JL1407 MRTDO JL1408 TO(3/19) JTAGTCK JL1409 JTAGTMS JL1410 JTAGTRST JL1411 MRTDO SIGNAL PATH JL1412 AUDTDO JL1413 TO(5/19) JTAGTCK JL1414 AUDIO JTAGTMS JL1415 SIGNAL MRTRST JL1416 AUDTDO JL1417 AVDTDO JL1418...
  • Page 74: 12/19) (Sh)

    RDR-GX300 For Schematic Diagram • Refer to page 4-5, 4-6 for waveforms. :Voltage measurement of the CSP IC and the Transistors with mark,is RD-50 BOARD(12/19) not possible. EPG_SCL EPG_SCL EPG_SDA EPG_SDA NO MARK:REC/PB MODE ADSMUTE TO(1/19) -REF.NO.:20000 SERIES- R :REC MODE...
  • Page 75 RDR-GX300 RD-50 BOARD(13/19) SDRAM,NAND FLASH IC108 -REF.NO.:20000 SERIES- 256M SDRAM NO MARK:REC/PB MODE R :REC MODE P :PB MODE IC108 MT48LC16M16A2P-75-Y16Y SHHA2 SHHA2 SHHA3 SHHA3 SHHD15 SHHD0 DQ15 SHHA4 SHHA4 VCCQ VSSQ IC402 SHHA5 SHHA5 SHHD1 SHHD14 DQ14 SHHA6 SHHA6...
  • Page 76 RDR-GX300 RD-50 BOARD(14/19) NO MARK:REC/PB MODE SWA/UNSW BUFFER-1 SWAHD0 SWAHD0 -REF.NO.:20000 SERIES- SWAHD1 RB301 RB303 SWAHD1 IC304 10kx4 10kx4 IC303 SN74LVC16245ADGGR SWAHD2 SN74LVC16245ADGGR SWAHD2 SHHD0 RB316 SHHD0 RB314 SWAHD3 10kx4 10kx4 SWAHD3 SHHD1 TO(3/19,4/19,5/19, SHHD1 2DIR 2DIR SWAHD4 6/19,8/19) SWAHD31...
  • Page 77 RDR-GX300 RD-50 BOARD(15/19) SWA/UNSW BUFFER-2 -REF.NO.:20000 SERIES- NO MARK:REC/PB MODE R :REC MODE IC301 IC305 IC308 IC308 P :PB MODE SN74LVC16244ADGGR IC301 IC305 SN74LVC16244ADGGR SN74LVC16244ADGGR SHHA2 RB332 SHHA2 UNSW BUFFER 2OE2 2OE1 2OE2 2OE1 10kx4 2OE2 2OE1 SHHA3 SWA BUFFER...
  • Page 78 RDR-GX300 RD-50 BOARD(16/19) FLASH ROM UNHA18 -REF.NO.:20000 SERIES- IC201 NO MARK:REC/PB MODE MBM29Z0003PCN-KE1 R :REC MODE IC201 P :PB MODE UNHD0 UNHA24 128M FLASH UNHD0 UNHD1 UNHA17 UNHD1 UNHD2 UNHA16 UNHD2 BYTE UNHD3 UNHA15 UNHD3 UNHD4 TO(14/19,17/19) UNHA14 UNHD15 UNHD4...
  • Page 79 RDR-GX300 RD-50 BOARD(17/19) GPS3(HOST GLUE) -REF.NO.:20000 SERIES- NO MARK:REC/PB MODE R :REC MODE P :PB MODE XSILCS XSILCS XSILWT XSILWT TO(3/19) XSILINT XSILINT R587 XSWGT2 XSWGT2 R583 R580 R598 TO(15/19) XNZCCS XSWGT0 XNZCCS XSWGT0 NZCRDY NZCRDY R585 TO(8/19) C505 XNZCDREQ...
  • Page 80 RDR-GX300 For Schematic Diagram • Refer to page 4-5, 4-6 for waveforms. IC1703 RD-50 BOARD(18/19) IC1701 512FS BUFFER 27M BUFFER -REF.NO.:20000 SERIES- IC1701 IC1703 C1709 SN74LVC08APWR SN74LVC08APWR 0.1u NO MARK:REC/PB MODE R :REC MODE R1709 4700 P :PB MODE R1721...
  • Page 81 RDR-GX300 RD-50 BOARD(19/19) IC1804 NO MARK:REC/PB MODE POWER R :REC MODE 5V REG P :PB MODE -REF.NO.:20000 SERIES- R5.9 P1.0 CN1801 FL1801 JL1802 JL1813 FB1801 UNSW5V UNSW6V SW3.3V SW3.3V TO(1/19,2/19, D1801 AGND EC10DA40-TE12 9/19,10/19, DGND 14/19,18/19) AGND JL1803 JL1814 SW3.3V UNSW3.3V...
  • Page 82 RDR-GX300 SWITCHING REGULATOR (SRV1469UC) P301 POWER SUPPLY C112 T101 -REF.NO.:30000 SERIES 1000p Q303 Q301 POWER TRANSFORMER L301 R305 2SJ438 2SJ525 10uH 12V REG SW12V REG SW12V D301 R301 R307 S3L20u HDD DISK D303 1.5k 1SS119 DRIVE C106 R306 R303 1000p/1kV...
  • Page 83: Ic Pin Function Description

    RDR-GX300 SECTION 5 IC PIN FUNCTION DESCRIPTION 5-1. IT CONTROL IC (IC603: M603H2MC-511FPUO (AV-84 BOARD)) Pin No. Pin Name Function TU_S/B_D Tuner Stereo detection L: Stereo SIRCS IN Remote control signal input JUSTCLK Timer pulse input Fixed to digital GND...
  • Page 84 Pin No. Pin Name Function TXT_EN SYNC_C_SW Fixed to digital GND SYNC_S/V_SW LIS/V switching signal while waiting for synchronized recording Analog power 6 V TU_FMONO Forced monaural signal output / clock adjustment 1 KHz output RESET_5V RESET 5 V signal output IT_XRESET Reset signal output to HOST (SH) TU_SCL...
  • Page 85 Pin No. Pin Name Function KEY5 – Not used BS_C/N_DET BSC / N detection (MAX: 2.9 V normal signal: 2.2 V) AVSS – Analog GND TU_GAIN_MAX Tuner AGC input VREF – Analog power 5 V AVCC – Analog power 6 V INSEL_C –...
  • Page 86 MEMO 5-4E...
  • Page 87: Board))

    RDR-GX300 SECTION 6 SERVICE MODE This is the diagnostics to define the faulty position. The diagnostics can be executed using the remote commander (Remote Control Mode 3) and monitor. To execute the service mode, connect the VIDEO OUT (L2 OUT) connector to the monitor.
  • Page 88: Screen Transition In The Service Mode

    6-2. Screen Transition in the Service Mode Main menu DEVICE TEST menu DEVICE TEST menu << MAIN MENU >> << DEVICE TEST MENU 1/2 >> << DEVICE TEST MENU 2/2 >> 1) DEVICE TEST 0) AUTO CHECK 1) NAND FLASH 2) PATH TEST 1) GPS3 •...
  • Page 89: Service Mode Menu Items And Description

    6-3. Service Mode Menu Items and Description << MAIN MENU >> When the key “1” is pressed down, the monitor display moves 1) DEVICE TEST to the device check menu screen. 2) PATH TEST When the key “2” is pressed down, the monitor display moves to the path check menu screen between deivces.
  • Page 90: Path Check Menu (1/2)

    6-6. Path Check Menu (1/2) << PATH TEST MENU 1/2 >> 1) When the key “0” is pressed down, the path check is 0) AUTO CHECK automatically executed. 1) NAZCA 2) When the key “1” is pressed down, the NAZCA path check is executed.
  • Page 91: Device Auto Check Screen Transition

    6-9. Device AUTO Check Screen Transition << DEVICE TEST MENU 1/2 >> Select the item of AUTO CHECK from menu. 0) AUTO CHECK Device check is executed automatically, from no.1 in numeric order. When all devices are checked, number of OK/NG items and names of the NG devices are displayed as the RESULT.
  • Page 92: Path Individual Check (Pasted Screen Check (Visual Check) And Data Check (Digital Video Data Auto-Check) )

    6-11. Path Individual Check << PATH TEST MENU 1/2 >> (Pasted Screen Check (visual check) and data check (digital video data auto-check) ) 1) NAZCA Screen Transition 1) Select the NAZCA item from the menu. · · · · 2) The device pasted screen (top of the color bar) is displayed. (When visual check is required, the display does not move to the judgment screen but remains displaying the picture.) 3) When the “ENTER”...
  • Page 93: Adjustment

    RDR-GX300 SECTION 7 ADJUSTMENT 2. S-Video Output S-Y Check 7-1. Video System Adjustment <Purpose> This check confirms that the S-video output. If it adjusted incorrectly, Preparing for Adjustment color will be to dark or too thin. 1. Equipments • Oscilloscope...
  • Page 94: S-Video Output S-C Level Check

    3. S-Video Output S-C Level Check 5. Component Video Output B-Y Chec <Purpose> <Purpose> This check confirms that the S-video output S-C conforms to the This check confirms that the B-Y signal of the component video NTSC standard. If it is adjusted incorrectly, color will be too dark output is correct.
  • Page 95: Repair Parts List

    Ref. No. Part No. Description Remarks X-2021-258-1 COVER ASSY, TRAY 1-827-794-11 CABLE, FLEXIBLE FLAT (FRA-6) 3-066-225-11 SONY BADGE (5-A) 1-829-256-11 CABLE, FLEXIBLE FLAT (FRA-5) A-1055-246-A PANEL BLOCK ASSY, FRONT 1-829-221-11 CABLE, FLEXIBLE FLAT (FRA-7) 3-070-883-41 SCREW, TAPPING 1-478-722-11 REMOTE COMMANDER (RMT-D205A)
  • Page 96: Dvd Drive

    8-1-2. DVD DRIVE supplied supplied Chassis block (See page 8-3) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 3-088-023-01 +B3 (3-CR) 8-457-599-50 DRIVE, DVD DW-U15A-S2 3-077-331-01 +BV3 (3-CR) 1-827-795-11 CABLE, FLEXIBLE FLAT (FRD-3) 4-662-796-01 CLIP, COACHING...
  • Page 97: Chassis Block

    8-1-3. CHASSIS BLOCK supplied supplied supplied supplied supplied 115 103 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks O 102 A-1056-648-A FR-216 (UB) COMPL O 109 A-1056-644-A AV-84 (UB) COMPL 3-077-331-01 +BV3 (3-CR) 1-787-118-11 FAN, D.C. 1-827-798-11 CABLE, FLEXIBLE FLAT (FLR-4) 3-088-022-01 +P3 (B TYPE) (3-CR) O 105...
  • Page 98: Electrical Parts List

    AV-84 8-2. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • COILS When indicating parts by reference number, uH: µH parts list may be different from the parts please include the board name. specified in the diagrams or the components •...
  • Page 99 AV-84 C617 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C805 1-162-970-11 CERAMIC CHIP 0.01uF 10.00% 25V C618 1-162-970-11 CERAMIC CHIP 0.01uF 10.00% 25V C806 1-162-970-11 CERAMIC CHIP 0.01uF 10.00% 25V C620 1-162-920-11 CERAMIC CHIP 27PF 5.00% 50V C809 1-126-947-11 ELECT 47uF 20.00% 16V C621 1-162-970-11 CERAMIC CHIP...
  • Page 100 Remarks IC607 8-759-242-70 IC TC7WU04F(TE12R) Q607 8-729-921-73 TRANSISTOR 2SD1781K-T146-QR IC701 6-705-005-01 IC LA73031V-TLM-E Q701 8-729-024-88 TRANSISTOR MUN2212T1 IC801 8-759-667-17 IC L79M05TLL-SONY-TL-E Q702 8-729-045-17 TRANSISTOR 2SB1561T100Q IC802 6-704-839-01 IC LA73056-TLM-E Q703 8-729-010-05 TRANSISTOR MSB709-RT1 IC1101 6-804-428-01 IC S3C80F9XKA-SO77 Q704 8-729-010-05 TRANSISTOR MSB709-RT1 <...
  • Page 101 AV-84 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R308 1-216-845-11 METAL CHIP 100K 1/10W R479 1-216-837-11 METAL CHIP 1/10W R309 1-216-830-11 METAL CHIP 5.6K 1/10W R480 1-216-864-11 SHORT CHIP R310 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W R481 1-216-837-11 METAL CHIP 1/10W...
  • Page 102 AV-84 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R679 1-216-817-11 METAL CHIP 1/10W R859 1-216-022-11 RES-CHIP 1/10W R680 1-216-809-11 METAL CHIP 1/10W R860 1-216-022-11 RES-CHIP 1/10W R685 1-216-817-11 METAL CHIP 1/10W R861 1-216-022-11 RES-CHIP 1/10W R686 1-216-809-11 METAL CHIP 1/10W...
  • Page 103 AV-84 CN-199 FL-141 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R1654 1-216-864-11 SHORT CHIP CN-199 (J) COMPL (NOT SUPPLIED) R1655 1-216-833-11 METAL CHIP 1/10W ***************************** R1656 1-216-864-11 SHORT CHIP R1657 1-216-864-11 SHORT CHIP CN1801 1-818-021-11 PIN, CONNECTOR 40P R1658 1-216-833-11 METAL CHIP 1/10W...
  • Page 104 FL-141 FR-216 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks JR106 1-216-296-11 SHORT CHIP A-1056-648-A FR-216 (UB) COMPL JR107 1-216-296-11 SHORT CHIP **************** JR108 1-216-295-91 SHORT CHIP JR109 1-216-295-91 SHORT CHIP < CAPASITOR > JR110 1-216-296-11 SHORT CHIP C062 1-107-726-91 CERAMIC CHIP 0.01uF...
  • Page 105 FR-216 POWER BLOCK Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < TRANSISTOR > < CONNECTOR > Q001 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q002 8-729-010-05 TRANSISTOR MSB709-RT1 1-778-318-21 CONNECTOR < RESISTOR > < DIODE > R001 1-216-817-11 METAL CHIP 1/10W D106 8-719-061-02 DIODE PR1003...
  • Page 106 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C340 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C341 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V A-1070-809-A RD-50 (UBS) COMPL (REUSE) C342 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C343 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V...
  • Page 107 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C733 1-162-915-11 CERAMIC CHIP 10PF 0.50PF 50V C1116 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V C734 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C1117 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V C735 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 108 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C1330 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C1711 1-162-916-11 CERAMIC CHIP 12PF 5.00% 50V C1332 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C1712 1-162-916-11 CERAMIC CHIP 12PF 5.00% 50V C1333 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 109 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < IC > IC1704 8-759-679-55 IC SN74LVC08APWR IC1802 6-705-292-01 IC PQ018EH02ZPH IC103 6-705-379-01 IC HD6417306BL200V IC1803 6-704-923-01 IC PQ015EZ01ZPH IC104 8-759-573-97 IC SN74LVC541APWR IC1804 6-703-756-01 IC PQ1L503M2SPQ IC106 6-703-875-01 IC CDCVF2505PWR IC108...
  • Page 110 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R182 1-218-965-11 RES-CHIP 1/16W R503 1-218-965-11 RES-CHIP 1/16W R183 1-218-965-11 RES-CHIP 1/16W R504 1-218-965-11 RES-CHIP 1/16W R184 1-218-965-11 RES-CHIP 1/16W R510 1-218-965-11 RES-CHIP 1/16W R185 1-218-965-11 RES-CHIP 1/16W R511 1-218-965-11 RES-CHIP...
  • Page 111 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R829 1-218-935-11 RES-CHIP 1/16W R1168 1-218-965-11 RES-CHIP 1/16W R830 1-218-935-11 RES-CHIP 1/16W R1169 1-218-962-11 RES-CHIP 5.6K 1/16W R831 1-218-935-11 RES-CHIP 1/16W R1170 1-218-935-11 RES-CHIP 1/16W R832 1-218-935-11 RES-CHIP 1/16W R1171 1-218-940-11 RES-CHIP...
  • Page 112 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R1340 1-218-965-11 RES-CHIP 1/16W R1738 1-218-961-11 RES-CHIP 4.7K 1/16W R1341 1-218-958-11 METAL CHIP 2.7K 0.50% 1/16W R1739 1-218-938-11 RES-CHIP 1/16W R1342 1-218-958-11 METAL CHIP 2.7K 0.50% 1/16W R1741 1-218-961-11 RES-CHIP 4.7K...
  • Page 113 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R3160 1-218-961-11 RES-CHIP 4.7K 1/16W R3272 1-218-965-11 RES-CHIP 1/16W R3163 1-218-938-11 RES-CHIP 1/16W R3273 1-218-965-11 RES-CHIP 1/16W R3165 1-218-938-11 RES-CHIP 1/16W R3274 1-218-965-11 RES-CHIP 1/16W R3166 1-218-965-11 RES-CHIP 1/16W R3280 1-218-965-11 RES-CHIP...
  • Page 114 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R4320 1-218-937-11 RES-CHIP 1/16W RB310 1-234-714-11 RES, NETWORK 56X4 (1005) R4321 1-218-937-11 RES-CHIP 1/16W RB311 1-234-714-11 RES, NETWORK 56X4 (1005) R4322 1-218-937-11 RES-CHIP 1/16W RB312 1-234-371-21 RES, NETWORK 47X4 (1005) R4329 1-218-935-11 RES-CHIP...
  • Page 115 RD-50 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks RB905 1-242-963-21 RES, NETWORK 33X4 (1005) ACCESSORIES RB906 1-234-378-21 RES, NETWORK 10KX4 (1005) ************ RB1101 1-242-963-21 RES, NETWORK 33X4 (1005) RB1102 1-242-963-21 RES, NETWORK 33X4 (1005) 2-024-212-11 MANUAL, INSTRUCTION (ENGLISH) RB1103 1-242-963-21 RES, NETWORK 33X4 (1005) 2-024-212-21 MANUAL, INSTRUCTION (FRENCH)
  • Page 116 MEMO 8-22E...

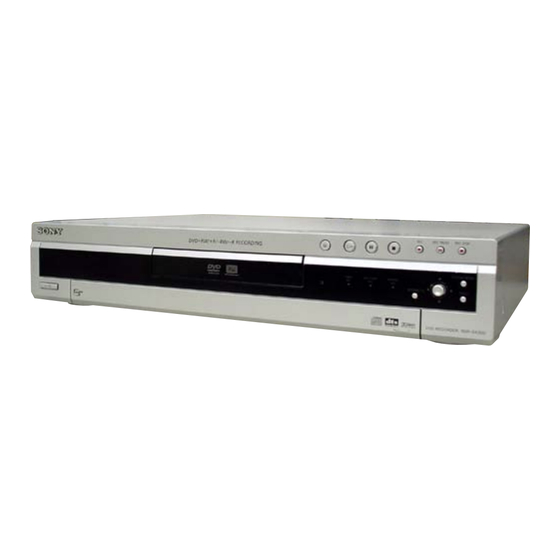

  • Page 117 RDR-GX300 Sony Corporation 2004G1600-1 Home Electronics Network Company 9-874-819-11 ©2004.7 — 156 — Published by Quality Assurance Dept.

Table of Contents
