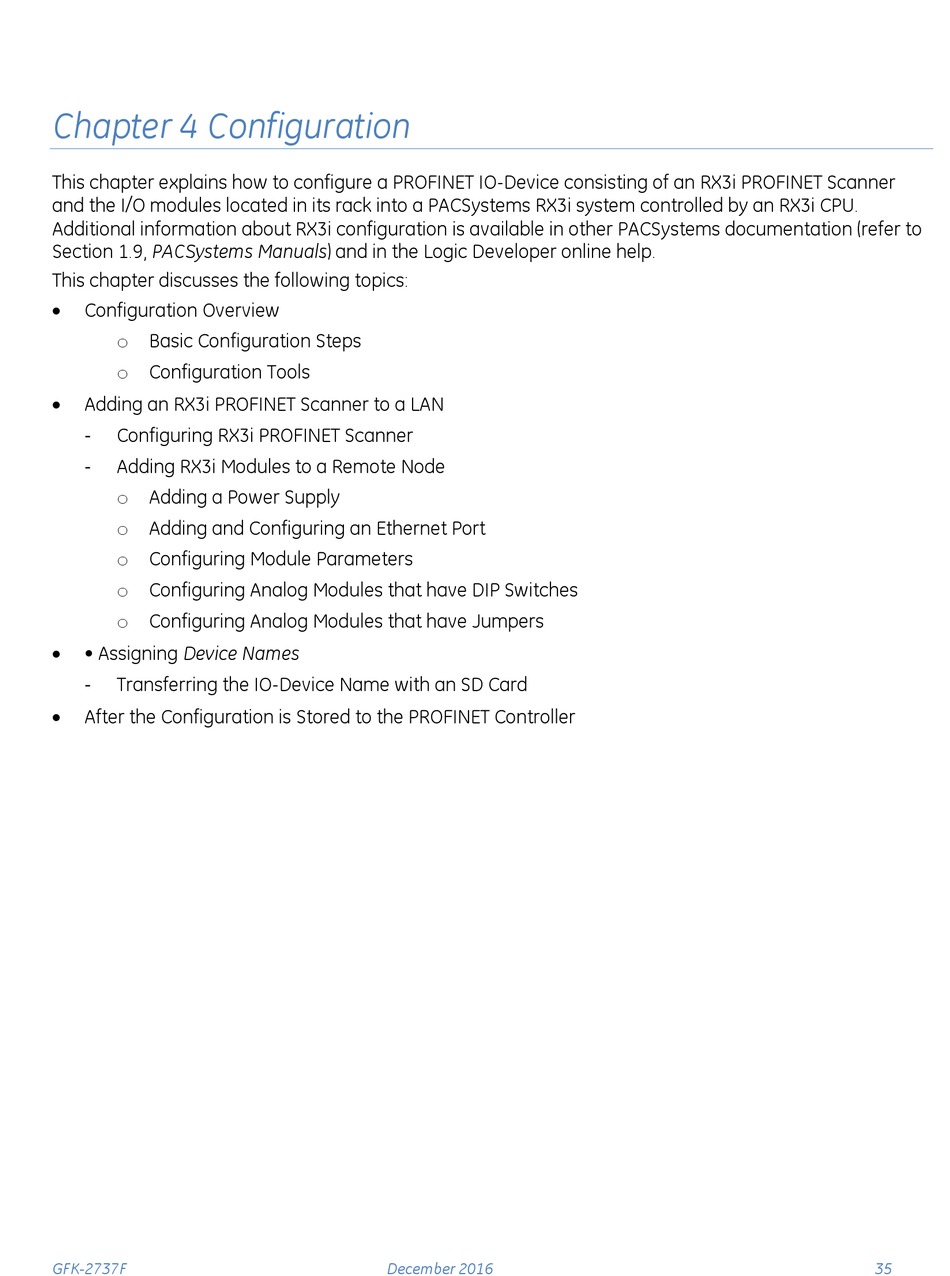

Chapter 4 Configuration

This chapter explains how to configure a PROFINET IO-Device consisting of an RX3i PROFINET Scanner
and the I/O modules located in its rack into a PACSystems RX3i system controlled by an RX3i CPU.
Additional information about RX3i configuration is available in other PACSystems documentation (refer to
Section 1.9, PACSystems Manuals) and in the Logic Developer online help.
This chapter discusses the following topics:

Configuration Overview
o Basic Configuration Steps
o Configuration Tools

Adding an RX3i PROFINET Scanner to a LAN
Configuring RX3i PROFINET Scanner
-
Adding RX3i Modules to a Remote Node
-
o Adding a Power Supply
o Adding and Configuring an Ethernet Port
o Configuring Module Parameters
o Configuring Analog Modules that have DIP Switches
o Configuring Analog Modules that have Jumpers

• Assigning Device Names
Transferring the IO-Device Name with an SD Card
-

After the Configuration is Stored to the PROFINET Controller
GFK-2737F December 2016 35
