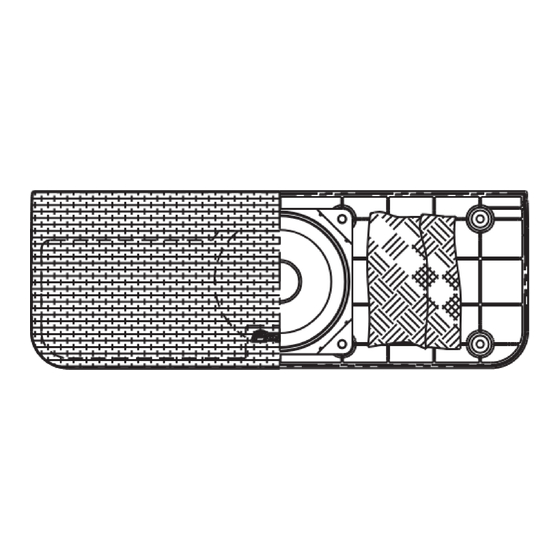

SPEAKER SYSTEM
S-ST606
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to
properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
Front Surround
Center
XTW/WL5
Health & Safety Code Section 25249.6 – Proposition 65
T – ZZS MAR. 2006 Printed in Japan
ORDER NO.
RRV3378
Advertisement
Related Manuals for Pioneer S-ST606 XTW
Summary of Contents for Pioneer S-ST606 XTW
- Page 1 PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 T –...
-
Page 2: For Precaution Of Reassembly And Disassembly
1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY 1.1 CS Assy (Front, Surround) GRILLE COSMETIC PANEL The grille is attached to the cabinet by its bosses applied with The cosmetic panel is attached to the baffle by its bosses. adhesive. To detach it, pry it open by inserting a flat blade screwdriver To detach it, pry it open by inserting a flat blade screwdriver into lower slot. -
Page 3: Packing Parts List
2. PARTS LIST NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. 2.1 PACKING 5-(1/2) 5-(2/2) - Page 4 2.2 CS Assy (Front, Surround) 27 (x2) 26 (x3) 27 (x8) (x2) : the bosses of the grille Model Label Speaker Stand Base CS Assy (Front, Surround) Parts List ( refer to 1.1 PACKING / No.4 ) Mark No. Description Part No.
- Page 5 2.3 CS Assy (Center) Model Label (x8) 46 (x2) CS Assy (Center) Parts List Mark No. Description Part No. Cabinet SNK2925 Grille SMG1868 Badge 28 SAM1506 Grille Cloth SAS1607 Baffle SNK2926 Connecting Cord SDD1345 Input Terminal SKX1096 Acoustic Absorbent (White) SMT1293 Plastic Cap SNK2790...
-
Page 6: Schematic Diagram
3. SCHEMATIC DIAGRAM 3.1 CS Assy (Front, Surround) Network Assy (SWN6020) INPUT Woofer Black Black Blue Woofer White Short Leg Tweeter Long Leg White 1.8µF/63V 3.2 CS Assy (Center) Connecting Cord (SDD1345) INPUT Speaker White S-ST606...
