iPF6400SE
4
Press ▲ or ▼ to select a setting value in the range -5 to 5, and then press the OK button.
At this time, if banding in dark colors appears, select a setting value in the range 1 to 5, and if banding in light
colors appears, select a setting value in the range -1 to -5.

Adjusting Line Length

Adjusting Line Length
To ensure that lines in CAD drawings are printed at exactly the right length, use Adjust Length to adjust the amount
that paper is advanced.
There are two options in Adjust Length : AdjustmentPrint and Change Settings.
• AdjustmentPrint
After a test pattern is printed, you will measure the discrepancy based on the results of printing.
• Change Settings
No test pattern is printed. Instead, you will measure a document already printed to determine the discrepancy.
Additionally, two modes are available in both AdjustmentPrint and Change Settings : A:High or B:Standard/Draft.
Choose the mode that suits your particular printing application.
• A:High
This setting is applied when Highest quality or High is selected in Print Quality in the printer driver.
• B:Standard/Draft
This setting is applied when Standard or Fast is selected in Print Quality in the printer driver.
•
We recommend executing the adjustment if you have changed the paper type or paper size.
•
Note
Always check the Adj. Priority values before using Adjust Length. (See "Selecting a Feed Amount Adjustment Meth-
od.")
P.558
➔
Paper to Prepare
When Using Rolls •
An unused roll at least 254.0 mm (10.00 in) wide
•
High-precision ruler
When Using Sheets •
One sheet of unused paper of at least A4/Letter size
•
High-precision ruler
Perform adjustment as follows.
1
Load the paper.
Loading Rolls on the Roll Holder
•
• Loading Rolls in the Printer
• Loading Sheets in the Feed Slot
•
Always make sure the loaded paper matches the type of paper specified. Adjustment cannot be completed
correctly unless the loaded paper matches the settings.
Important
2

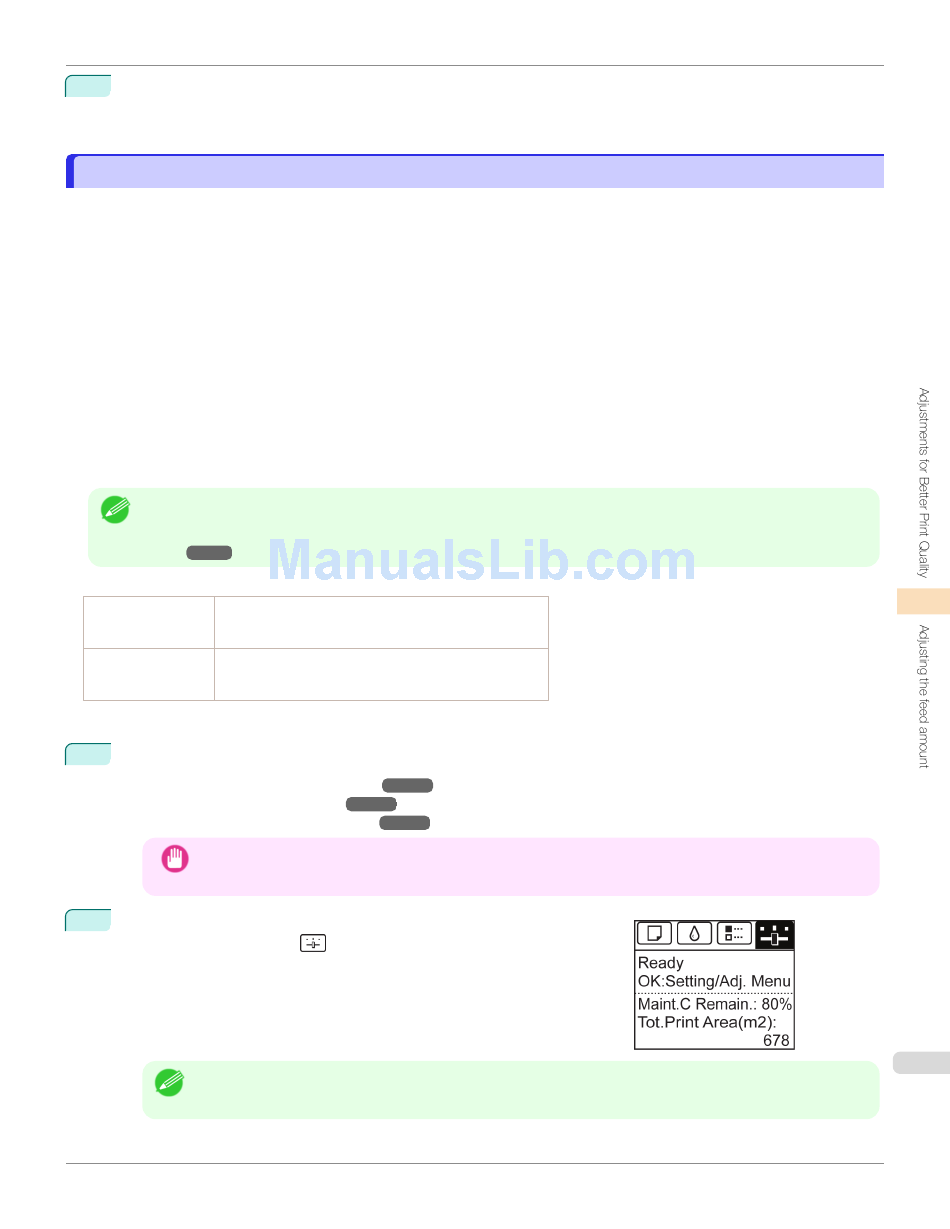

On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab (
•
If the Tab Selection screen is not displayed, press the Menu button.
Note
User's Guide
P.363
➔
P.365
➔
P.388
➔
).
Adjusting Line Length
563
