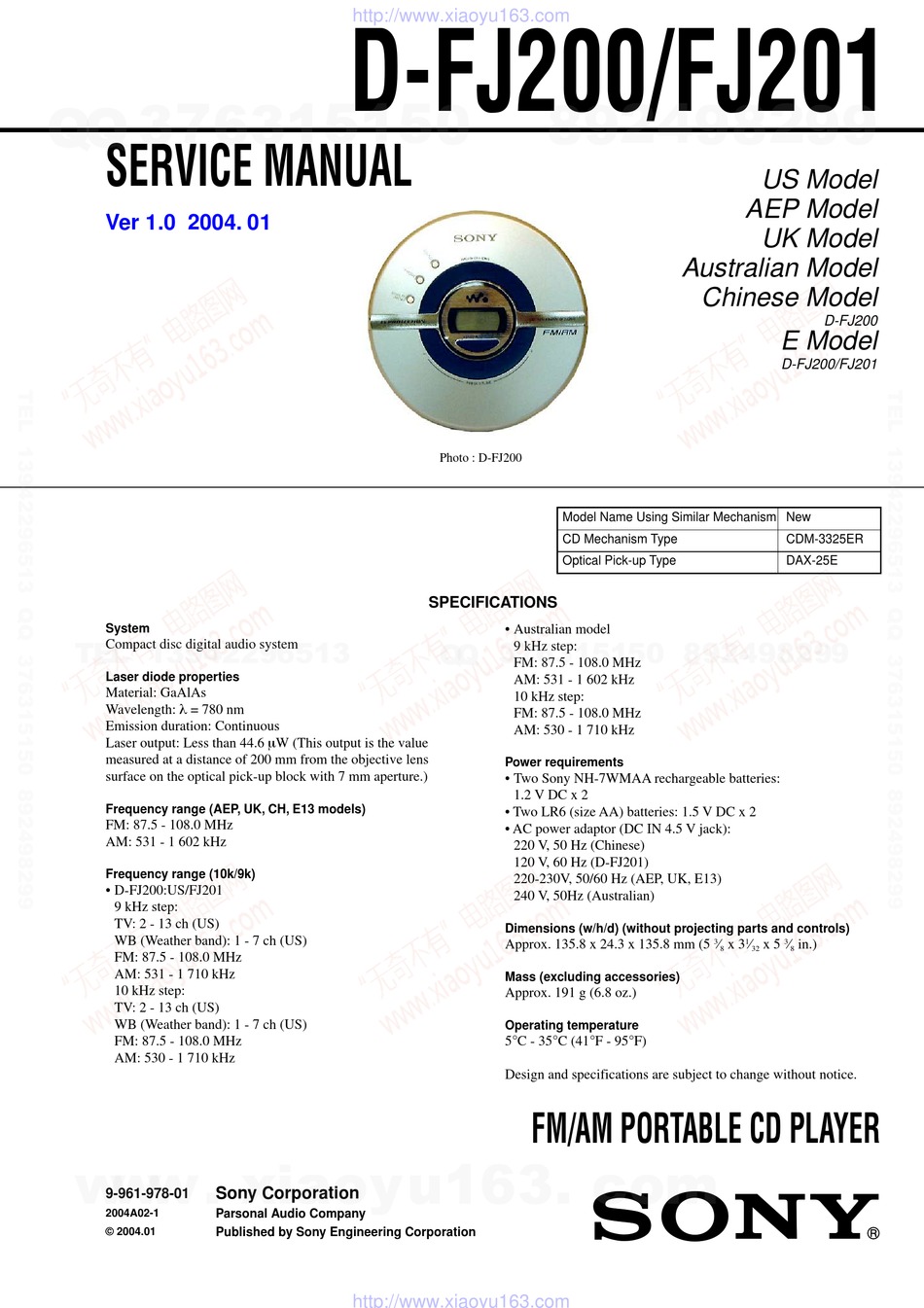

SERVICE MANUAL
Ver 1.0 2004. 01
System
TE
L 13942296513
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output is the value
measured at a distance of 200 mm from the objective lens
surface on the optical pick-up block with 7 mm aperture.)
Frequency range (AEP, UK, CH, E13 models)
FM: 87.5 - 108.0 MHz
AM: 531 - 1 602 kHz
Frequency range (10k/9k)
• D-FJ200:US/FJ201
9 kHz step:
TV: 2 - 13 ch (US)
WB (Weather band): 1 - 7 ch (US)
FM: 87.5 - 108.0 MHz
AM: 531 - 1 710 kHz
10 kHz step:
TV: 2 - 13 ch (US)
WB (Weather band): 1 - 7 ch (US)
FM: 87.5 - 108.0 MHz
AM: 530 - 1 710 kHz
www
.
Sony Corporation
9-961-978-01
2004A02-1
Parsonal Audio Company
Published by Sony Engineering Corporation
© 2004.01
http://www.xiaoyu163.com
D-FJ200/FJ201
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Photo : D-FJ200
Model Name Using Similar Mechanism New
CD Mechanism Type
Optical Pick-up Type
SPECIFICATIONS
Q Q
• Australian model
3
6 7
1 3
1 5
9 kHz step:
FM: 87.5 - 108.0 MHz
AM: 531 - 1 602 kHz
10 kHz step:
FM: 87.5 - 108.0 MHz
AM: 530 - 1 710 kHz
Power requirements
• Two Sony NH-7WMAA rechargeable batteries:
1.2 V DC x 2
• Two LR6 (size AA) batteries: 1.5 V DC x 2
• AC power adaptor (DC IN 4.5 V jack):
220 V, 50 Hz (Chinese)
120 V, 60 Hz (D-FJ201)
220-230V, 50/60 Hz (AEP, UK, E13)
240 V, 50Hz (Australian)
Dimensions (w/h/d) (without projecting parts and controls)
Approx. 135.8 x 24.3 x 135.8 mm (5
Mass (excluding accessories)
Approx. 191 g (6.8 oz.)
Operating temperature
5°C - 35°C (41°F - 95°F)
Design and specifications are subject to change without notice.
FM/AM PORTABLE CD PLAYER
co
.
9 4
2 8
US Model
AEP Model
UK Model
Australian Model
Chinese Model
E Model
D-FJ200/FJ201
CDM-3325ER
DAX-25E
0 5
8
2 9
9 4
2 8
3
1
3
⁄
x 3
⁄
x 5
⁄
in.)
8
32
8
m
9 9
D-FJ200
9 9
