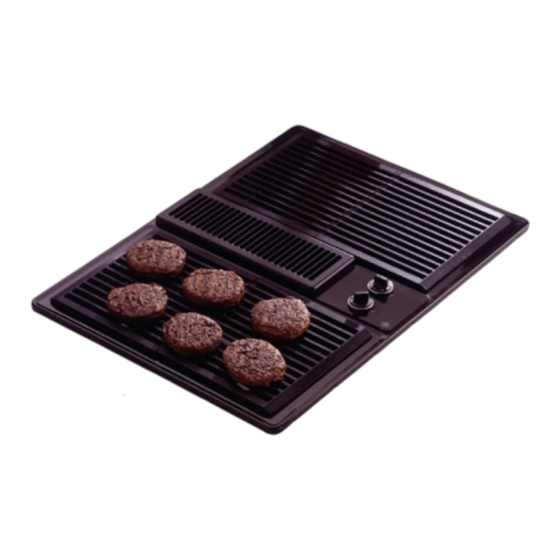

JP380BVBB - GE 30" Patio Grill with Downdraft Venting System
Built-In Downdraft Modular Cooktop

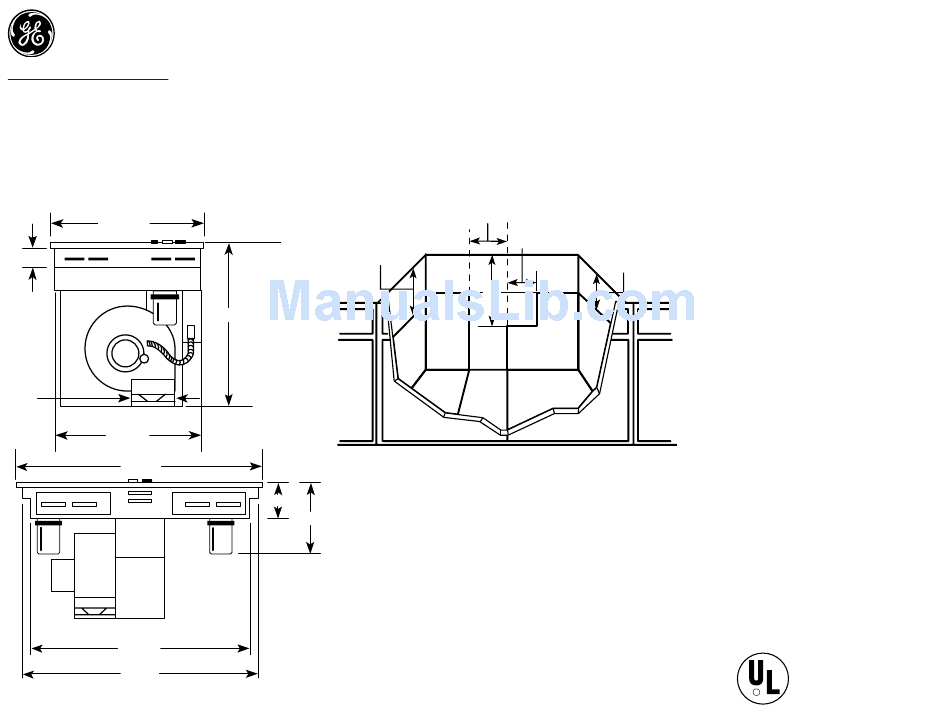

Dimensions (in inches)
21-9/16
3
6"
Dia.
20-1/2
29-7/8
27-1/2
28-7/8
Specification Revised 6/99
Built-In Downdraft Modular Cooktop Cabinet
Dimensions (in inches)
16
19
6
12-1/4
9
C L
4
10-1/2
20
Receptacle Location: Install an approved
junction box within shaded area shown in
diagram. Junction box must be at least 10-1/2"
below top of cabinet.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile Performance Series,
™
GE Profile
™
or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
R
®

Advertisement

loading

Related Manuals for GE jp380bvbb

Summary of Contents for GE jp380bvbb

  • Page 1 GE Appliances JP380BVBB - GE 30" Patio Grill with Downdraft Venting System Built-In Downdraft Modular Cooktop Built-In Downdraft Modular Cooktop Cabinet Dimensions (in inches) Dimensions (in inches) Receptacle Location: Install an approved 21-9/16 junction box within shaded area shown in diagram.
  • Page 2 GE Appliances JP380BV—GE 30" Patio Grill with Downdraft Venting System Venting Duct Information Install the Ductwork • Ducting must conform to local code materials and “make-up” requirements–300 CFM minimum. • IMPORTANT: Save for local electrical inspector’s use. • Ducting a cooktop is easy but critical for proper performance.

  • Page 3: Preparing The Cabinet For Installation

    GE Appliances JP380BVBB - GE 30" Patio Grill with Downdraft Venting System Cutout Dimensions (in inches) 20-5/8 Note: In some cabinets, the sides may need to be scooped or cut down 2" as shown and the corner braces removed in order to accommodate the cooktop.

  • Page 4: Venting Options

    GE Appliances JP380BVBB - GE 30" Patio Grill with Downdraft Venting System Venting Options KW Rating 240V Breaker Size 40 Amps † † Note: Check local codes for required breaker size Note: Ductwork must be vented to outside. Do not vent into a wall, ceiling, crawlspace, attic or any concealed space.
  • Page 5 GE Appliances JP380BVBB - GE 30" Patio Grill with Downdraft Venting System Features and Benefits • Black on black Model • 30" Patio Grill • Fixed Grill Elements On Each Side • Infinite Heat Rotary Controls • Powerful Downdraft Venting System •...
