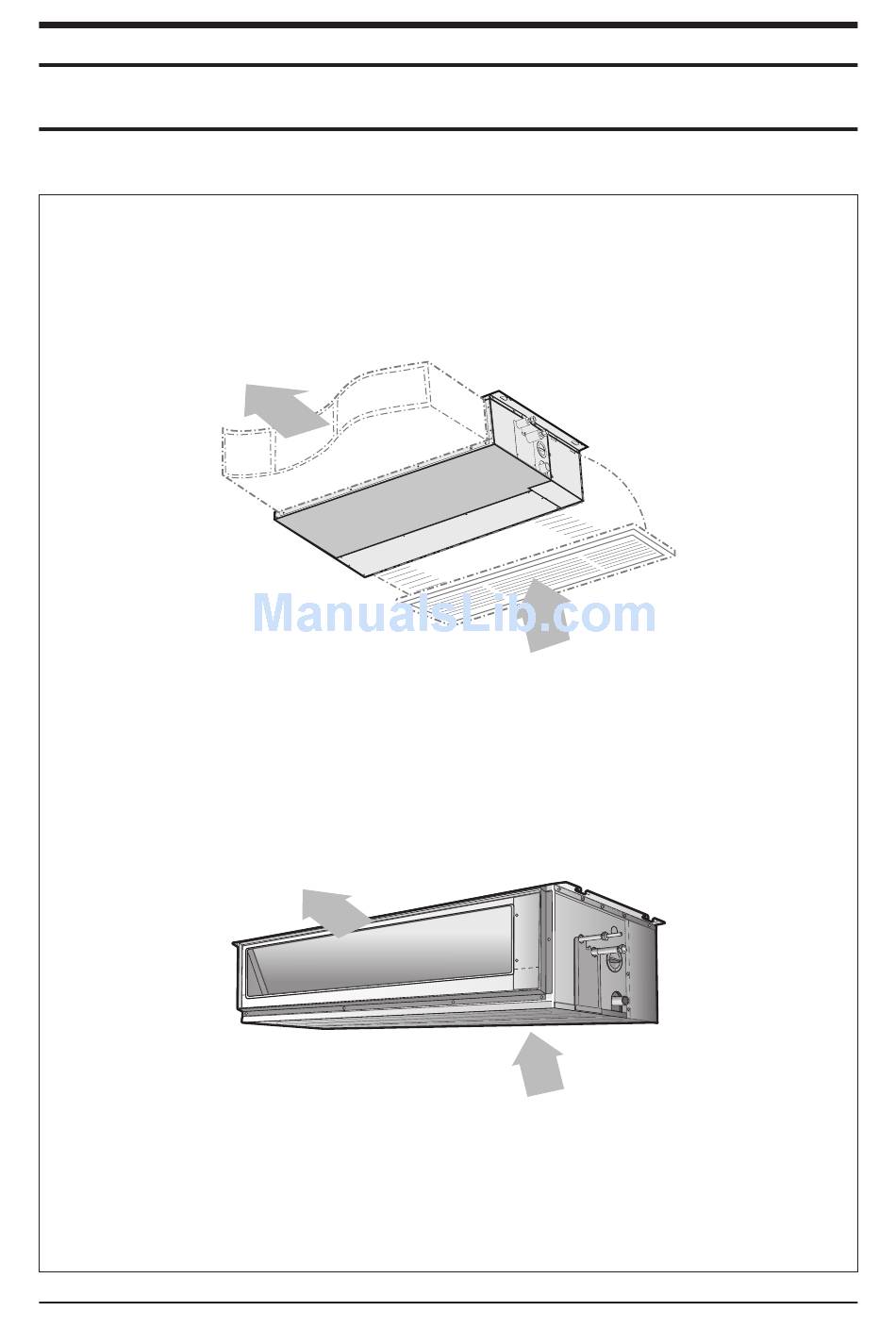

11. Operating Instructions 11-1 Name of Each Part 11-1-1 Indoor Unit The figures are shwon in this instruction may differ from yours depending on the model. ■ EH035EAV outlet Inlet ■ EH052EAV/EH070EAV outlet Inlet 11-1 Samsung Electronics...
Operating Instructions 11-1-2 Outdoor Unit ■ UH035EAV Air Inlet(Rear) Air Outlet Connection Valve (inside) ■ UH052EAV Air Inlet(Rear) Air Outlet Connection Valve ■ UH070EAV Air Inlet(Rear) Air Outlet Connection Valve Samsung Electronics 11-2...
3. To adjust the temperature, press the buttons one or more times until the required temperature is displayed. Possible temperatures are between 18˚C and 30˚C inclusive. 11-3 Samsung Electronics...
Page 4
Possible temperatures are between 16˚C and 30˚C inclusive. 4. Select the fan speed by pressing the button one or more times until the intended value is displayed : Automatic(rotated : ➔ ➔ Medium High Samsung Electronics 11-4...
2. To select the FAN mode, press the button until is displayed at the top of the wireless remote controller. 3. Select the fan speed by pressing the button one or more times until the intended value is displayed: Medium High 11-5 Samsung Electronics...
3. To adjust the temperature, press the buttons one or more times until the required temperature is displayed. Possible temperatures are between 18˚C and 30˚C inclusive. Samsung Electronics 11-6...
Page 7
Possible temperatures are between 16˚C and 30˚C inclusive. 4. Select the fan speed by pressing the button one or more times until the intended value is displayed : Automatic(rotated : ➔ ➔ Medium High 11-7 Samsung Electronics...
Page 8
2. To select the FAN mode, press the button until is displayed at the top of the wired remote controller. 3. Select the fan speed by pressing the button one or more times until the intended value is displayed: Medium High Samsung Electronics 11-8...
Air flow direction Swing button On Timer setting On Timer button Off Timer setting Off Timer button Battery discharge indicator On/Off & Timer Set/ Cancel button Note : • After cleaning the air filter, press the button. 11-9 Samsung Electronics...
You must not press it. • After cleaning the air filter, press the button. Then the wired remote controller will display the Filter Sign indicator when the time to clean the air filter. Samsung Electronics 11-10...
