D-Link AirPremier N DAP- 2590 User Manual

D-Link AirPremier N DAP- 2590 User Manual

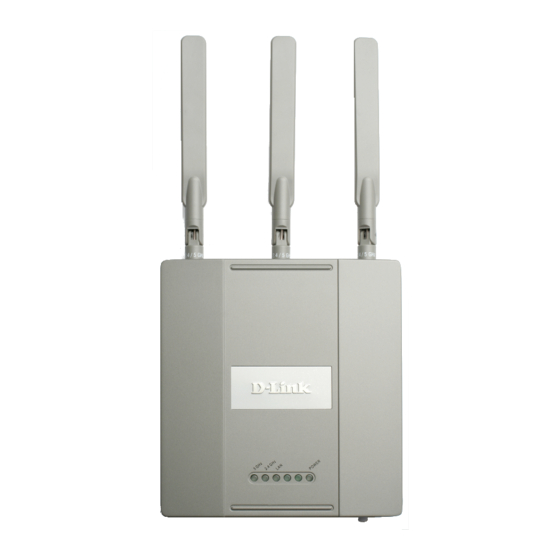

Dual band poe access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for D-Link AirPremier N DAP- 2590

Summary of Contents for D-Link AirPremier N DAP- 2590

  • Page 2: Table Of Contents

    Home > Status > Stats > WLAN Home > Status > Log > View Log Home > Status > Log > Log Settings Maintenance > Administrator Settings Maintenance > Administrator Settings > Limit Administrator D-Link AirPremier N Dual Band PoE Access Point...
  • Page 3 Maintenance > Administrator Settings > Ping Control Setting Maintenance > Firmware and SSL Certification Upload Maintenance > Configuration File Maintenance > Time and Date System > System Settings Help Troubleshooting Technical Specifications Warranty Technical Support Registration D-Link AirPremier N Dual Band PoE Access Point...

  • Page 4: Package Contents

    Package Contents DAP- 590 User’s Manual Package Contents  D-Link DAP-590 AirPremier N Dual Band PoE Access Point  Power Adapter  Manual on CD  Ethernet Cable  Mounting Plate  Quick Installation Guide Warning: Using a power adapter with different specifications than the one included with the DAP-2590 will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. Minimum System Requirements  Computers with Windows , Macintosh , or Linux-based operating systems with ® ®...

  • Page 5: Introduction

    DAP- 590 User’s Manual Introduction Introduction D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation draft 802.11n LANs. D-Link unveils its new AirPremier N Dual Band PoE Access Point (DAP-2590), designed specifically for business-class environments such as large or enterprise corporations to provide secure and manageable dual band wireless LAN options for network administrators.

  • Page 6: Features And Benefits

    Superior wireless AP manager software is bundled with the DAP-2590 for network configuration and firmware upgrade. Systems administrators can also set up the DAP-2590 easily with the Web-based configuration. A D-Link D-View 6.0 module will be downloadable for network administration and real-time network traffic monitoring with D-Link D-View 6.0 software.

  • Page 7: Wireless Basics

    DAP- 590 User’s Manual Wireless Basics Wireless Basics D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home, business or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever you want it. Enjoy the freedom that wireless networking can bring to you. WLAN use is not only increasing in both home and office environments, but in public areas as well, such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are allowing people to work and communicate more efficiently. Increased mobility and the absence of cabling and other types of fixed infrastructure have proven to be beneficial to many users. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing wireless users to use the same applications as those used on a wired network.
  • Page 8 The DAP-2590 Wireless Access Point utilizes the 802.11a, 802.11b, 802.11g, and 802.11n (draft) standards. The IEEE 802.11n (draft) standard is an extension of the 802.11a, 802.11b, and 802.1g standards that came before it. It increases the maximum wireless signal rate up to 300 Mbps* within both * within both the 2.4 GHz and the 5 GHz bands, utilizing OFDM technology. This means that in most environments - within the specified range of this device - you will be able to transfer large files quickly, or even watch a movie in MPEG format over your network without noticeable delays. This technology works by transmitting high-speed digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by splitting the radio signal into multiple smaller sub-signals that are then simultaneously transmitted at different frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in signal transmissions. The D-Link DAP-2590 will automatically sense the best possible connection speed to ensure the greatest possible speed and range. 802.11n offers the most advanced network security features available today, including WPA. * Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 9: Installation Considerations

    Keep the number of walls and ceilings between the DAP-2590 and other network devices to a minimum - each wall or ceiling can reduce your DAP-2590’s range by 3-90 feet (1-30 meters). Position your devices so that the number of walls or ceilings is minimized. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, the wall appears to be over 42 feet (14 meters) thick! Position your devices so that the signal will travel straight through a wall or ceiling - instead of at an angle - for better reception. Building materials can impede the wireless signal - a solid metal door or aluminum studs can have a negative effect on range. Try to position wireless devices and computers with wireless adapters so that the signal passes through drywall or open doorways, and not through other materials. Keep your product away - at least 3-6 feet or 1-2 meters - from electrical devices or appliances that generate RF noise. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even when the phone is not in use. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 10: Four Operational Modes

    Wirelessly connect multiple networks while still functioning WDS with AP as a wireless AP Wirelessly connect multiple networks AP acts as a wireless network adapter for your Ethernet Wireless Client enabled device D-Link AirPremier N Dual Band PoE Access Point...

  • Page 11: Getting Started

    DAP- 590 User’s Manual Getting Started Getting Started You will need broadband Internet access. Consult with your cable or DSL provider for proper installation of the modem. Connect the cable or DSL modem to a router. See the printed Install Guide included with your router . See the printed Install Guide included with the DAP-2590 . If you are connecting a desktop computer to your network, install a wireless PCI adapter into an available PCI slot on your desktop computer. Install the drivers for your wireless CardBus adapter into a laptop computer. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 12 Getting Started DAP-590 User’s Manual Connecting PoE (Power over Ethernet) Connect one end of an Ethernet cable (included with your package) to the LAN port on the DAP-2590 and the other end of the Ethernet cable to either your computer or to your PoE switch. The AP can be powered on by a PoE switch or by the power adapter shipped with the AP. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 13: Using The Configuration Menu

    Type the IP address and http port of the DAP-2590 in the address field (http://192.168.0.50) and press Enter. Make sure that the IP addresses of the DAP-2590 and your computer are in the same subnet. After the connection is established, you will see the user identification window as shown. Note: If you have changed the default IP address assigned to the DAP-2590, make sure to enter the correct IP address.  Type “admin” in the User Name field.  Leave the Password field blank. Click the Login button.  Note: If you have changed the password, make sure to enter the correct password. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 14 DAP-590 User’s Manual Using the Configuration Menu After successfully logging into the DAP-2590 the following screen will appear: When making changes on most of the configuration screens in this section, use the Apply button at the bottom of each screen to save your configuration changes. Click the Apply button to configure changes. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 15: Home > Basic Settings > Wireless > Access Point Mode

    Select Access Point from the pull-down menu. The other three choices are WDS with AP, WDS, and Wireless Client. Network Name (SSID): Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. The SSID can be up to 32 characters and is case-sensitive. SSID Visibility: Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID across the network, thus making it visible to all network users. Auto Channel Selection: Enabling this feature automatically selects the channel that provides the best wireless performance. Enable is set by default. The channel selection process only occurs when the AP is booting up. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 16 Channel Width: Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless clients. Auto 20/40 MHz allows you to both 802.11n and non-802.11n wireless devices on your network. Authentication: Use the pull-down menu to choose Open System, Shared Key, WPA-Personal, or WPA-Enterprise. Select Open System to communicate the key across the network. Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this option is not available. Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 17: Home > Basic Settings > Wireless > Wds With Ap Mode

    Home > Basic Settings > Wireless > WDS with AP mode In WDS with AP mode, the DAP-2590 wirelessly connects multiple networks while still functioning as a wireless AP. Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu. Mode: WDS with AP mode is selected from the pull-down menu. Network Name (SSID): Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. SSID Visibility: Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID across the network, thus making it visible to all network users. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 18 Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless clients. Auto 20/40 MHz allows you to both 802.11n and non-802.11n wireless devices on your network. Remote AP MAC Address: Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks. Site Survey: Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with. Authentication: Use the pull-down menu to choose Open System, Shared Key, or WPA-Personal. Select Open System to communicate the key across the network. Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this option is not available. Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 19: Home > Basic Settings > Wireless > Wds Mode

    Home > Basic Settings > Wireless > WDS mode In WDS mode, the DAP-2590 wirelessly connects multiple networks, without functioning as a wireless AP. Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu. Mode: WDS is selected from the pull-down menu. Network Name (SSID): Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. SSID Visibility: Enable or Disable SSID visibility. Enabling this feature broadcasts the SSID across the network, thus making it visible to all network users. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 20 Channel Width: Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz. Remote AP MAC Address: Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks. Site Survey: Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with. Use the pull-down menu to choose Open System, Shared Key, or Authentication: WPA-Personal. Select Open System to communicate the key across the network. Select Shared Key to limit communication to only those devices that share the same WEP settings. Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 21: Home > Basic Settings > Wireless > Wireless Client Mode 1

    Wireless Client is selected from the pull-down menu. Network Name (SSID): Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network. This option is unavailable in wireless client mode. SSID Visibility: Auto Channel Enabling this feature automatically selects the channel that will Selection: provide the best wireless performance. This feature is not supported in Wireless Client mode. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 22 Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz. Channel Width: Site Survey: Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with. Authentication: Use the pull-down menu to choose Open System or WPA Personal. Select Open System to communicate the key across the network. Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 23: Home > Basic Settings > Wireless > Open System Or Shared Key Authentication 3

    **Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F. is a code that represents *ASCII (American Standard Code for Information Interchange) English letters using numbers ranging from 0-127. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 24: Home > Basic Settings > Wireless > Wpa-Personal Authentication 4

    Home > Basic Settings > Wireless > WPA-Personal authentication WPA Mode: When WPA-Personal is selected for Authentication type, you must also select a WPA mode from the pull-down menu: AUTO (WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use different algorithms. AUTO (WPA or WPA2) allows you to use both WPA and WPA2. Cipher Type: When you select WPA-Personal, you must also select AUTO, AES, or TKIP from the pull down menu. Group Key Update Select the interval during which the group key will be valid. The Interval: default value of 1800 is recommended. PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the corresponding field. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 25: Home > Basic Settings > Wireless > Wpa-Enterprise Authentication 5

    When WPA-Enterprise is selected, you must also select a WPA mode from the pull-down menu: AUTO (WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use different algorithms. AUTO (WPA or WPA2) allows you to use both WPA and WPA2. Cipher Type: When WPA-Enterprise is selected, you must also select a cipher type from the pull-down menu: Auto, AES, or TKIP. Group Key Update Select the interval during which the group key will be valid. Interval: 1800 is the recommended value as a lower interval may reduce data transfer rates. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 26 DAP-590 User’s Manual Using the Configuration Menu Network Access Protection: Enable or disable Microsoft Network Access Protection. RADIUS Server: Enter the IP address of the RADIUS server. RADIUS Port: Enter the RADIUS port. RADIUS Secret: Enter the RADIUS secret. Accounting Mode: Select if you want to use a different server for accounting. Accounting Server: Enter the IP address of the Accounting server. Accounting Port: Enter the Accounting port (1813 is the default). Accounting Secret: Enter the Accounting secret. Note: You can input the secondary RADIUS server and accounting server settings if you have a backup RADIUS and accounting server. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 27: Home > Basic Settings > Lan 7

    DAP-590 User’s Manual Home > Basic Settings > LAN LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DAP-2590. These settings may be referred to as private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet. Get IP From: Static IP (Manual) is chosen here. Choose this option if you do not have a DHCP server in your network, or if you wish to assign a static IP address to the DAP-2590. When Dynamic IP (DHCP) is selected, the other fields here will be grayed out. Please allow about 2 minutes for the DHCP client to be functional once this selection is made. IP Address: The default IP address is 192.168.0.50. Assign a static IP address that is within the IP address range of your network. Subnet Mask: Enter the subnet mask. All devices in the network must share the same subnet mask. Default Gateway: Enter the IP address of the gateway in your network. If there is a gateway in your network, please enter an IP address within the range of your network. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 28: Home > Advanced Settings > Performance 8

    802.11b in the 2.4 GHz band and Mixed 802.11n, 802.11a and 802.11a only in the 5 GHz band. Please note that when backwards compatibility is enabled for legacy (802.11a/g/b) clients, degradation of 802.11n (draft) wireless performance is expected. Data Rate*: Indicate the base transfer rate of wireless adapters on the wireless LAN. The AP will adjust the base transfer rate depending on the base rate of the connected device. If there are obstacles or interference, the AP will step down the rate. This option is enabled in Mixed 802.11g and 802.11b mode (for 2.4 GHz) and 802.11a only mode (for 5 GHz). The choices available are Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6 for 5 GHz and Best (Up to 54), 54, 48, 36, 24, 18, 12, 9, 6, 11 11, 5.5, 2 or 1 for 2.4 GHz. * Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 29 Short GI: Select Enable or Disable. Enabling a short guard interval can increase throughput. However, be aware that it can also increase the error rate in some installations due to increased sensitivity to radio-frequency installations. IGMP Snooping: Select Enable or Disable. Internet Group Management Protocol allows the AP to recognize IGMP queries and reports sent between routers and an IGMP host (wireless STA). When IGMP snooping is enabled, the AP will forward multicast packets to an IGMP host based on IGMP messages passing through the AP. Link Integrity: Select Enable or Disable. If the Ethernet connection between the LAN and the AP is disconnected, enabling this feature will cause the wireless segment associated with the AP to be disassociated from the AP. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 30 Set the maximum utilization of this access point for service. The DAP-2590 will not allow any new clients to associate with the AP if the utilization exceeds the value the user specifies. Select a utilization percentage between 100%, 80%, 60%, 40%, 20%, or 0%. When this network utilization threshold is reached, the device will pause one minute to allow network congestion to dissipate. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 31: Home > Advanced Settings > Multi-Ssid

    Using the Configuration Menu Home > Advanced Settings > Multi-SSID The device supports up to eight multiple Service Set Identifiers. You can set the Primary SSID in the Basic > Wireless section. The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. Check to enable support for multiple SSIDs. Enable Multi-SSID: Band: This read-only value is the current band setting. Index: You can select up to seven multi-SSIDs. With the Primary SSID, you have a total of eight multi-SSIDs. SSID: Service Set Identifier (SSID) is the name designated for a specific wireless local area network (WLAN). The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 32 Select the interval during which the group key will be valid. The Interval: default value of 1800 seconds is recommended. PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the corresponding field. Confirm When you select WPA-Personal, please re-enter the PassPhrase PassPhrase: entered in the previous item in the corresponding field. RADIUS Server: When you select WPA-Enterprise, enter the IP address of the RADIUS server. In addition, you must configure RADIUS Port and RADIUS Secret. RADIUS Port: Enter the RADIUS port. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 33 When you select WPA-Enterprise, this option allows you to use a different server for accounting. In addition, you must configure Accounting Server, Accounting Port, and Accounting Secret. Accounting Server: Enter the IP address of the Accounting server. Accounting Port: Enter the Accounting port (1813 is the default). Accounting Secret: Enter the Accounting secret. Note: You can input the secondary RADIUS server and accounting server settings if you have a backup RADIUS and accounting server. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 34: Home > Advanced Settings > Vlan > Vlan List

    DAP-590 User’s Manual Using the Configuration Menu Home > Advanced Settings > VLAN > VLAN List The DAP-2590 supports VLANs. VLANs can be created with a Name and VID. Mgmt (TCP stack), LAN, Primary/Multiple SSID, and WDS connection can be assigned to VLANs as they are physical ports. Any packet which enters the DAP-2590 without a VLAN tag will have a VLAN tag inserted with a PVID. The VLAN List tab displays the current VLANs. VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit VLAN tab to add or modify an item on the VLAN List tab. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 35: Home > Advanced Settings > Vlan > Port List

    Using the Configuration Menu Home > Advanced Settings > VLAN > Port List The Port List tab displays the current ports. If you want to configure the guest and internal networks on a Virtual LAN (VLAN), the switch and DHCP server you are using must also support VLANs. As a prerequisite step, configure a port on the switch for handling VLAN tagged packets as described in the IEEE 802.1Q standard. VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit VLAN tab to add or modify an item on the VLAN List tab. Port Name: The name of the port is displayed in this column. Tag VID: The Tagged VID is displayed in this column. Untag VID: The Untagged VID is displayed in this column. PVID: The Port VLAN Identifier is displayed in this column. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 36: Home > Advanced Settings > Vlan > Add/Edit Vlan

    DAP-590 User’s Manual Using the Configuration Menu Home > Advanced Settings > VLAN > Add/Edit VLAN The Add/Edit VLAN tab is used to configure VLANs. Once you have made the desired changes, click the Apply button to let your changes take effect. VLAN Status: Use the radio button to toggle to Enable. VLAN ID (VID): Provide a number between 1 and 4094 for the Internal VLAN. VLAN Name: Enter the VLAN to add or modify. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 37: Home > Advanced Settings > Vlan > Pvid Setting

    DAP-590 User’s Manual Using the Configuration Menu Home > Advanced Settings > VLAN > PVID Setting The PVID Setting tab is used to enable/disable the Port VLAN Identifier Auto Assign Status as well as to configure various types of PVID settings. Click the Apply button to let your changes take effect. Use the radio button to toggle to Enable. VLAN Status: PVID Auto Assign Status: Use the radio button to toggle PVID auto assign status to Enable. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 38: Home > Advanced Settings > Intrusion

    DAP-590 User’s Manual Using the Configuration Menu Home > Advanced Settings > Intrusion The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue, and New. Click the Apply button to let your changes take effect. AP List: The choices include All, Valid, Neighbor, Rogue, and New. Click this button to initiate a scan of the network. Detect D-Link AirPremier N Dual Band PoE Access Point...

  • Page 39: Home > Advanced Settings > Schedule

    Using the Configuration Menu DAP-590 User’s Manual Home > Advanced Settings > Schedule The Wireless Schedule Settings window is used to add and modify scheduling rules on the device. Click the Apply button to let your changes take effect. Wireless Schedule: Use the pull-down menu to enable the device’s scheduling feature. Name: Enter a name for the new scheduling rule in the field provided. Day(s): Toggle the radio button between All Week and Select Days(s). If the second option is selected, check the specific days you want the rule to be effective on. All Days(s): Check this box to have your settings apply 24 hours a day. Wireless: Toggle the pull-down menu between Off and On. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 40: Home > Advanced Settings > Qos

    QoS Rules are not required. QoS supports overlaps between rules. If more than one rule matches a specific message flow, the rule with the highest priority will be used. QoS (Quality of Service): Enable this option if you want to allow QoS to prioritize your traffic Priority Classifiers. HTTP: Allows the access point to recognize HTTP transfers for many common audio and video streams and prioritize them above other traffic. Such streams are frequently used by digital media players. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 41 Priority: Use the pull-down menu to select the desired priority: Background (BK), Best Effort (BE), Video (VI), or Voice (VO). Protocol: Use the pull-down menu to choose the appropriate protocol used by the messages: Any, TCP, UDP, Both, IMCP, or Other. Host 1 IP Range: The rule applies to a flow of messages for which one computer’s IP address falls within the range set here. Host 1 Port Range: The rule applies to a flow of messages for which host 1’s port number is within the range set here when the Protocol is set to TCP, UDP, or Both. Host 2 IP Range: The rule applies to a flow of messages for which the other computer’s IP address falls within the range set here. Host 2 Port Range: The rule applies to a flow of messages for which host 2’s port number is within the range set here when the Protocol is set to TCP, UDP, or Both. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 42: Home > Advanced Settings > Dhcp Server > Dynamic Pool Settings

    Enter the number of IP addresses available for assignment. IP (1-254): addresses are increments of the IP address specified in the “IP Assigned From” field. SubMask: All devices in the network must have the same subnet mask to communicate. Enter the submask for the network here. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 43 Using the Configuration Menu DAP-590 User’s Manual Gateway: Enter the IP address of the gateway on the network. Specify the Windows Internet Naming Service (WINS) server address WINS: for the wireless network. WINS is a system that determines the IP address of a network computer that has a dynamically assigned IP address. DNS: Enter the IP address of the Domain Name System (DNS) server. The DNS server translates domain names such as www.dlink.com into IP addresses. Domain Name: Enter the domain name of the network, if applicable. (An example of a domain name is: www.dlink.com.) Lease Time The lease time is the period of time before the DHCP server will (60-31536000 sec): assign new IP addresses. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 44: Home > Advanced Settings > Dhcp Server > Static Pool Setting

    IP addresses. Select Enable to allow the DAP-2590 to function as a DHCP server. Assigned IP: Use the Static Pool Settings to assign the same IP address to a device every time you start up. The IP addresses assigned in the Static Pool list must NOT be in the same IP range as the Dynamic Pool. After you have assigned a static IP address to a device via its MAC address, click Apply; the device will appear in the Assigned Static Pool at the bottom of the screen. You can edit or delete the device in this list. Assigned MAC Address: Enter the MAC address of the device requesting association here. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 45 Define the submask of the IP address specified in the “IP Assigned From” field. Gateway: Specify the Gateway address for the wireless network. WINS: Specify the Windows Internet Naming Service (WINS) server address for the wireless network. WINS is a system that determines the IP address of a network computer with a dynamically assigned IP address, if applicable. DNS: Enter the Domain Name System (DNS) server address for the wireless network. The DNS server translates domain names such as www.dlink.com into IP addresses. Domain Name: Specify the domain name for the network. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 46: Home > Advanced Settings > Dhcp Server > Current Ip Mapping List

    Current DHCP Dynamic These are IP address pools the DHCP server has assigned using Pools: the dynamic pool setting. Binding MAC Address: The MAC address of a device on the network that is assigned an IP address from the DHCP dynamic pool. Assigned IP The current corresponding DHCP-assigned IP address of the Address: device. Lease Time: The length of time that the dynamic IP address will be valid. These are the IP address pools of the DHCP server assigned through Current DHCP Static Pools: the static pool settings. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 47 DAP-590 User’s Manual Using the Configuration Menu Binding MAC Address: The MAC address of a device on the network that is assigned an IP address from the DHCP dynamic pool. Assigned IP Address: The current corresponding DHCP-assigned static IP address of the device. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 48: Home > Advanced Settings > Filters > Wireless Mac Acl

    DAP-590 User’s Manual Home > Advanced Settings > Filters > Wireless MAC ACL Wireless Band: Displays the current wireless band rate. Access Control List: Select Disable to disable the filters function. Select Accept to accept only those devices with MAC addresses in the Access Control List. All other devices not on the list will be rejected. Select Reject to reject the devices with MAC addresses on the Access Control List. All other devices not on the list will be accepted. MAC Address: Enter each MAC address that you wish to include in your filter list, and click Apply. MAC Address List: When you enter a MAC address, it appears in this list. Highlight a MAC address and click Delete to remove it from this list. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 49: Home > Advanced Settings > Filters > Wlan Partition

    Using the Configuration Menu DAP-590 User’s Manual Home > Advanced Settings > Filters > WLAN Partition Displays the current wireless band rate. Wireless Band: Internal Station The default value is Enable, which allows stations to intercommunicate Connection: by connecting to a target AP. When disabled, wireless stations cannot exchange data through the AP. Ethernet to WLAN The default is Enable. When disabled, all data from the Ethernet to Access: associated wireless devices will be blocked. Wireless devices can still send data to the Ethernet. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 50: Home > Status > Device Information

    DAP-590 User’s Manual Using the Configuration Menu Home > Status > Device Information Device Information: This read-only window displays the configuration settings of the DAP-2590, including the firmware version and the device's MAC address. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 51: Home > Status > Client Information

    Home > Status > Client Information Client Information: This window displays the wireless client information for clients currently connected to the DAP-2590. The following information is available for each client communicating with the DAP-2590. SSID: Displays the SSID of the client. MAC: Displays the MAC address of the client. Band: Displays the wireless band that the client is connected to. Authentication: Displays the type of authentication being used. Signal: Displays the client's signal strength. Power Saving Displays the status of the power saving feature. Mode: D-Link AirPremier N Dual Band PoE Access Point...

  • Page 52: Home > Status > Wds Information

    DAP-590 User’s Manual Using the Configuration Menu Home > Status > WDS Information WDS Information: This window displays the Wireless Distribution System information for clients currently connected to the DAP-2590. The following information is available for each client communicating with the DAP-2590. Displays the name of the client. Name: Displays the MAC address of the client. MAC: Authentication: Displays the type of authentication being used. Displays the WDS link signal strength. Signal: Status: Displays the status of the power saving feature. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 53: Home > Status > Stats > Ethernet

    DAP-590 User’s Manual Using the Configuration Menu Home > Status > Stats > Ethernet Ethernet Traffic This page displays transmitted and received count statistics for Statistics: packets and bytes. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 54: Home > Status > Stats > Wlan

    DAP-590 User’s Manual Using the Configuration Menu Home > Status > Stats > WLAN This page displays wireless network statistics for data throughput, WLAN Traffic transmitted and received frames, and frame errors. Statistics: D-Link AirPremier N Dual Band PoE Access Point...

  • Page 55: Home > Status > Log > View Log

    DAP-590 User’s Manual Home > Status > Log > View Log View Log: The AP’s embedded memory displays system and network messages including a time stamp and message type. The log information includes but is not limited to the following items: cold start AP, upgrading firmware, client associate and disassociate with AP, and web login. The web page holds up to 500 logs. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 56: Home > Status > Log > Log Settings

    Log Type: Check the box for the type of activity you want to log. There are three types: System Activity, Wireless Activity, and Notice. Email Notification: Check the box to enable Simple Mail Transfer Protocol. From Email Address: Enter the e-mail address of the e-mail/SMTP sender. To Email Address: Enter the e-mail address of the e-mail/SMTP recipient. Email Server Address: Enter the IP address of the e-mail/SMTP server. SMTP Port: Enter the desired SMTP port number. The default value is 25. User Name: Enter a user name for the SMTP server. Password: Enter a password for the SMTP server. Confirm Password: Confirm the password for the SMTP server by retyping it. Schedule: Use the pull-down menu to set the e-mail log schedule. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 57: Maintenance > Administrator Settings

    Using the Configuration Menu DAP-590 User’s Manual Maintenance > Administrator Settings Administrator Settings Check one or more of the six main categories to display the various hidden administrator parameters and settings displayed on the next six pages. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 58: Maintenance > Administrator Settings > Limit Administrator

    Using the Configuration Menu DAP-590 User’s Manual Maintenance > Administrator Settings > Limit Administrator Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. Limit Administrator Limit Administrator VLAN ID: Check the box provided and the enter the specific VLAN ID that the administrator will be allowed to log in from. Limit Administrator IP: Check to enable the Limit Administrator IP address. IP Range: Enter the IP address range that the administrator will be allowed to log in from and then click the Add button. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 59: Maintenance > Administrator Settings > System Name Settings

    Using the Configuration Menu DAP-590 User’s Manual Maintenance > Administrator Settings > System Name Settings Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. System Name Settings System Name: The name of the device. The default name is D-Link DAP-2590. Location: The physical location of the device, e.g. “office”. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 60: Maintenance > Administrator Settings > Login Settings

    Maintenance > Administrator Settings > Login Settings Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. Login Settings User Name: Enter a user name. The default is admin. Old Password: When changing your password, enter the old password here. New Password: When changing your password, enter the new password here. The password is case-sensitive. “A” is a different character than “a.” The length should be between 0 and 12 characters. Confirm Password: Enter the new password a second time for confirmation purposes. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 61: Maintenance > Administrator Settings > Console Settings

    Maintenance > Administrator Settings > Console Settings Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. Console Settings Status: Status is enabled by default. Uncheck the box to disable the console. Console Protocol: Select the type of protocol you would like to use, Telnet or SSH. Timeout: Set to 1 Min, 3 Mins, 5 Mins, 10 Mins, 15 Mins or Never. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 62: Maintenance > Administrator Settings > Snmp Settings

    Maintenance > Administrator Settings > SNMP Settings Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. SNMP Settings Status: Check the box to enable the SNMP functions. This is enabled by default. Public Community Enter the public SNMP community string. String: Private Community Enter the private SNMP community string. String: Trap Status: Check the box to enable the trap status. Trap Server IP: Enter the trap server IP address. This is the IP address of the SNMP manager to receive traps sent from the wireless access point. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 63: Maintenance > Administrator Settings > Ping Control Setting

    Using the Configuration Menu DAP-590 User’s Manual Maintenance > Administrator Settings > Ping Control Setting Confirm New Confirm by re-entering your new password here. Password: Each of the six main categories display various hidden administrator parameters and settings. Ping Control Setting Status: Check the box to enable Ping control. Ping works by sending ICMP “echo request” packets to the target host and listening for ICMP echo response replies. The default is disabled. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 64: Maintenance > Firmware And Ssl Certification Upload

    Click Upload to update the firmware version. Please don’t turn the power off while upgrading. Upload SSL Click Browse to locate the SSL Certification file on your local computer. After selecting and opening the file, click Upload to Certification From Local Hard Drive: upload the file to the DAP-2590. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 65: Maintenance > Configuration File

    Using the Configuration Menu DAP-590 User’s Manual Maintenance > Configuration File Configuration File Upload File: Click the Browse button to locate a previously saved configuration file on your local computer. After selecting the file, click Upload to apply the configuration settings to the DAP-2590. Download Click Download to save the current DAP-2590 configuration to Configuration File: your local computer. Note that if you save one configuration with the administrator’s password now, after resetting your DAP-2590, and then updating to this saved configuration file, the password will be gone. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 66: Maintenance > Time And Date

    Use the pull-down menu to select the correct Daylight Saving offset. Enable NTP Server: Check to enable the AP to get system time from an NTP server. NTP Server: Enter the NTP server IP address. You can either manually set the time for your AP here, or you can Set the Date and click the Copy Your Computer’s Time Settings button to copy Time Manually: : the time from the computer you are using (Make sure that the computer’s time is set correctly). D-Link AirPremier N Dual Band PoE Access Point...

  • Page 67: System > System Settings

    Using the Configuration Menu DAP-590 User’s Manual System > System Settings Click Restart to restart the DAP-2590. Restart the Device: Click Restore to restore the DAP-2590 back to factory default Restore to Factory settings. Default Settings: D-Link AirPremier N Dual Band PoE Access Point...

  • Page 68: Help

    Using the Configuration Menu DAP-590 User’s Manual Help Help: Scroll down the Help page for topics and explanations. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 69: Troubleshooting

     Check if the LAN LED on the DAP-2590 is ON. If the LED is not ON, check if the cable for the Ethernet connection is securely inserted.  Check if the Ethernet adapter is working properly. Please see item 3 of this Troubleshooting section to check that the drivers for the network adapters are loaded properly.  Check if the IP address is in the same range and subnet as the DAP-2590. Note: The default IP address of the DAP-2590 is 192.168.0.50. All the computers on the network must have a unique IP address in the same range, e.g. 192.168.0.x. Any computers that have identical IP addresses will not be visible on the network. They must all have the same subnet mask, e.g. 255.255.255.0.  Do a Ping test to make sure that the DAP-2590 is responding. Go to Start>Run>Type Command>Type ping 192.168.0.50. A successful ping will show four replies. Note: If you have changed the default IP address, make sure to ping the correct IP address assigned to the DAP-2590. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 70 DAP-590 User’s Manual Troubleshooting 2. The wireless client cannot access the Internet within Infrastructure mode. Make sure the wireless client is associated and joined with the correct access point. To check this connection, right-click on the Local Area Connection icon in the taskbar and select View Available Wireless Networks. The Connect to Wireless Network screen will appear. Please make sure you have selected the correct available network, as shown in the illustrations below.  Check that the IP address assigned to the wireless adapter is within the same IP address range as the access point and gateway. Since the DAP-2590 has an IP address of 192.168.0.50, wireless adapters must have an IP address in the same range, e.g. 192.168.0.x. Each device must have a unique IP address; there may be no two devices with the same IP address. The subnet mask must be the same for all the computers on the network. To check the IP address assigned to the wireless adapter, double-click the Local Area Connection icon in the taskbar, then select the Support tab and the IP address will be displayed.  If it is necessary to assign a Static IP Address to the wireless adapter. If you are entering a DNS Server address, you must also enter the Default Gateway Address. Remember that if you have a DHCP-capable router, you will not need to assign a static IP address. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 71  Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise like microwaves, monitors, electric motors, etc. 5. Why can’t I get a wireless connection? If you have enabled encryption on the DAP-2590, you must also enable encryption on all wireless clients in order to establish a wireless connection.  Make sure that the SSID on the AP and the wireless client are exactly the same. If they are not, wireless connection cannot be established.  Move the DAP-2590 and the wireless client into the same room and then test the wireless connection.  Disable all security settings.  Turn off your DAP-2590 and the client. Turn the DAP-2590 back on again, and then turn on the client.  Make sure that all devices are set to Infrastructure mode.  Check that the LED indicators are indicating normal activity. If not, check that the AC power and Ethernet cables are firmly connected.  Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered for the network.  If you are using 2.4 GHz cordless phones, X-10 equipment, or other home security systems, ceiling fans, or lights, your wireless connection will degrade dramatically or drop altogether. Try changing the channel on your DAP-2590, and on all the devices in your network to avoid interference.  Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise like microwaves, monitors, electric motors, etc. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 72: Technical Specifications

    Security • WPA™ Personal/Enterprise • WPA2™ Personal/Enterprise • WEP™ 64-/128-bit • SSID Broadcast Disable • MAC Address Access Control Wireless Frequency Range • 2.4 to 2.4835 GHz and 5.15 to 5.85 GHz** Operating Voltage • 5V/2.5A or PoE * Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. **Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2590 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 73 For 802.11b/g: 2400 ~ 2483.5 MHz ISM band For 802.11n: 2.4 GHz Band: 2.4 ~ 2.4835 GHz 5 GHz Band: 5.15 ~ 5.85 GHz Dipole Antenna 4dBi Gain @2.4 GHz 6dBi Gain @5 GHz LEDs • Power • LAN • 2.4 GHz • 5 GHz Temperature • Operating: 0˚C to 40˚C • Storing: -20˚C to 65˚C Humidity • Operating: 10%~90% (non-condensing) • Storing: 5%~95% (non-condensing) Certifications • FCC • CE • IC • C-Tick • UL • WiFi Dimensions • L = 184.66 mm • W = 164.59 mm • H = 31.75 mm *Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2590 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 74: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon replacement or refund. Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specifications for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90) days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability D-Link AirPremier N Dual Band PoE Access Point...
  • Page 75 Warranty DAP-590 User’s Manual of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s functional specifications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned to D-Link. The license granted respecting any Software for which a refund is given automatically terminates. Non-Applicability of Warranty: The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary. Submitting A Claim: The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the product is within warranty, the customer shall submit a claim to D-Link as outlined below: • The customer must submit with the product as part of the claim a written...
  • Page 76 LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE PRODUCT. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 77 Warranty DAP-590 User’s Manual Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED...
  • Page 78 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. D-Link AirPremier N Dual Band PoE Access Point...
  • Page 79 This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device has been designed to operate with an antenna having a maximum gain of 6 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. D-Link AirPremier N Dual Band PoE Access Point...

  • Page 80: Technical Support

    DAP-590 User’s Manual Technical Support You can find software updates and user documentation on the D-Link website. U.S. and Canadian customers can contact D-Link technical support through our website, or by phone. Tech Support for customers within the United States...

  • Page 81: Registration

    Registration DAP-590 User’s Manual Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.10 August 11, 2008 D-Link AirPremier N Dual Band PoE Access Point...
