SS-DX60AV/RG30T/RG70AV
SERVICE MANUAL
Ver 1.1 2002. 02
• This set is front speaker system in
MHC-DX60AV/RG30T/RG70AV.
Sony Corporation
9-873-253-02
2002B1600-1
Home Audio Company
© 2002.02
Published by Sony Engineering Corporation

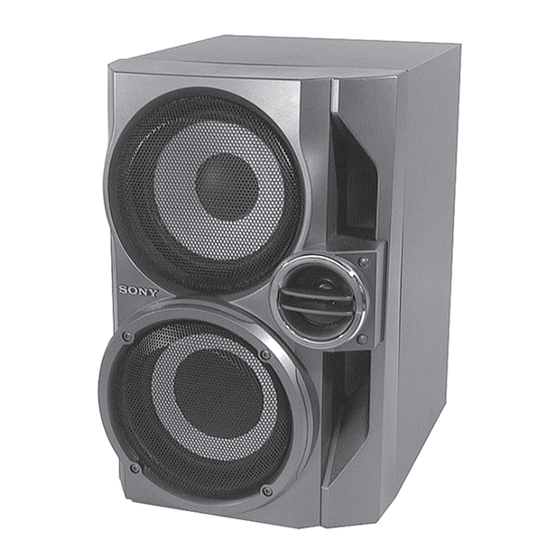

Photo: SS-DX60AV (R-ch)
SPECIFICATIONS
Speaker system
2-way, bass-reflex type
Speaker units
Woofer:
13 cm, cone type
Tweeter:
5 cm, cone type
Nominal impedance
6 ohms
Dimensions (w/h/d)
SS-DX60AV/RG70AV
Approx. 215 x 325 x 255 mm
SS-RG30T
Approx. 200 x 325 x 223 mm
MASS
SS-DX60AV/RG70AV
Approx. 4.0 kg net per speaker
SS-RG30T
Approx. 3.4 kg net per speaker
Design and specifications are subject to change
without notice.
US Model
SS-RG30T/RG70AV
Canadian Model
SS-RG30T
AEP Model
SS-RG30T/DX60AV
UK Model
SS-RG30T
E Model
SS-DX60AV
SPEAKER SYSTEM
