D-Link DWL-8200AP Quick Install Manual
Managed dualband access point
Hide thumbs
Also See for DWL-8200AP:
- Manual (129 pages) ,
- User manual (97 pages) ,
- Install manual (60 pages)
Related Manuals for D-Link DWL-8200AP
Summary of Contents for D-Link DWL-8200AP

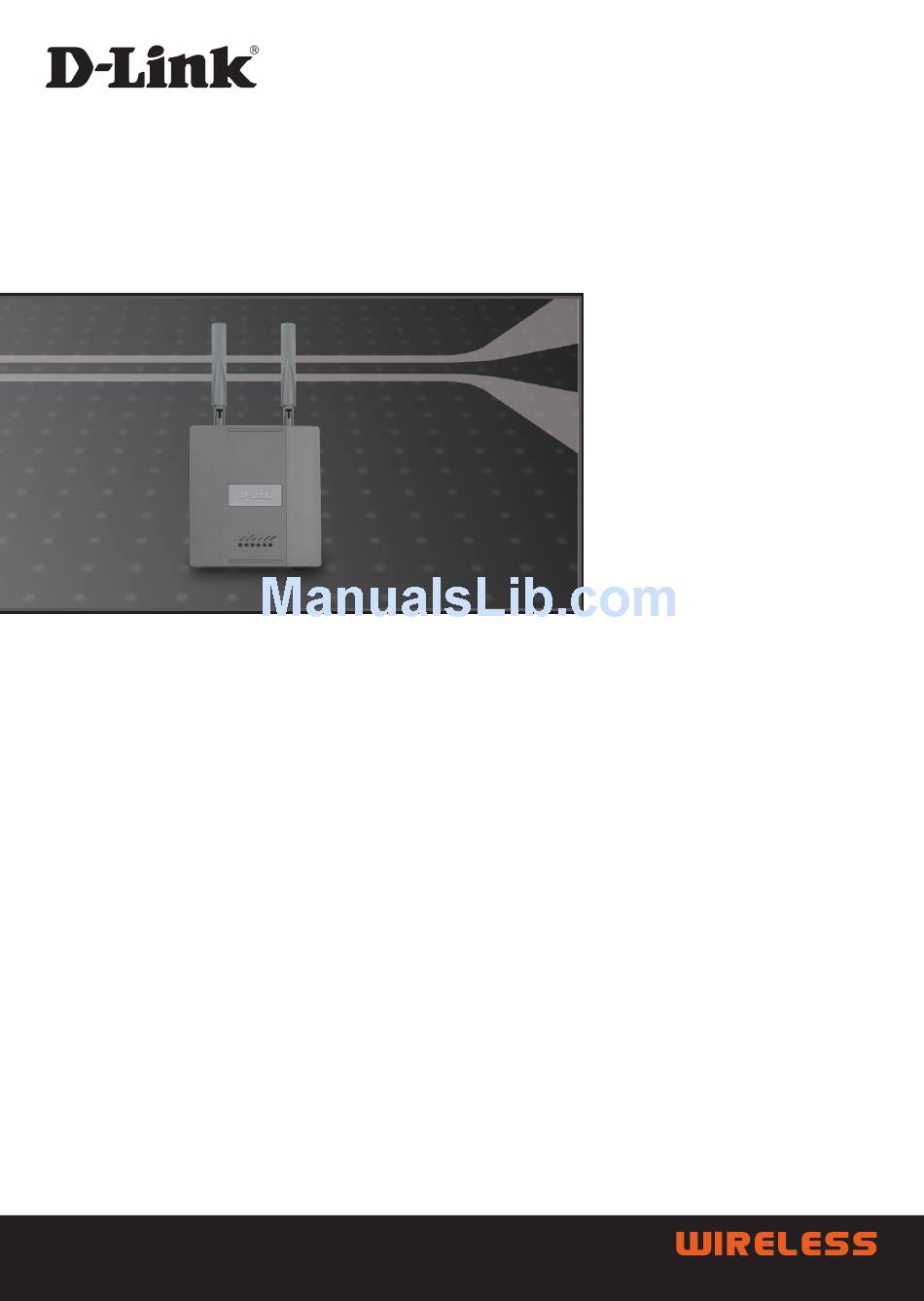

- Page 1 Managed Dualband Access Point DWL-8200AP Quick Install Guide+ Руководство по быстрой установке+ Guía de instalación rápida+ Guia de instalação rápida+ 快速安裝手冊...
-
Page 2: Install Guide
Install Guide DWL-8200AP Managed Dualband Access Point... -
Page 3: System Requirements
(CAT5 UTP/Straight Through) Note: Using a power supply with a different voltage than the one included with the DWL-8200AP will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller. -
Page 4: Installing The Hardware
Installing the Hardware Antennas Power Cord socket LAN 2 LAN 1 (PoE) Reset... - Page 5 Step 1 Connect one end of an Ethernet cable (included with your package) to the LAN 1 (PoE) port on the DWL-8200AP, and the other end of the Ethernet cable to the port labeled P+DATA OUT on the PoE base unit.
- Page 6 Mounting Plate Assembly Step 1: Insert provided wall anchors in the wall where the mounting plate will be attached. Step 2: Use the provided screws to secure the mounting plate on the wall.
- Page 7 Step : Attach the remaining screws securely to the back of the DWL-8200AP. Step : Attach the DWL-8200AP to the mounting plate.
- Page 8 Step : Slide the DWL-8200AP down into the grooves on the mounting plate to secure it to the plate.
- Page 9 Your Setup is Complete When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: * Maximum Wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary.
-
Page 10: Technical Support
Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within Australia: D-Link Technical Support over the Telephone: 100-766-868 Monday to Friday 8:00am to 8:00pm EST Saturday :00am to 1:00pm EST D-Link Technical Support over the Internet: http://www.dlink.com.au...
