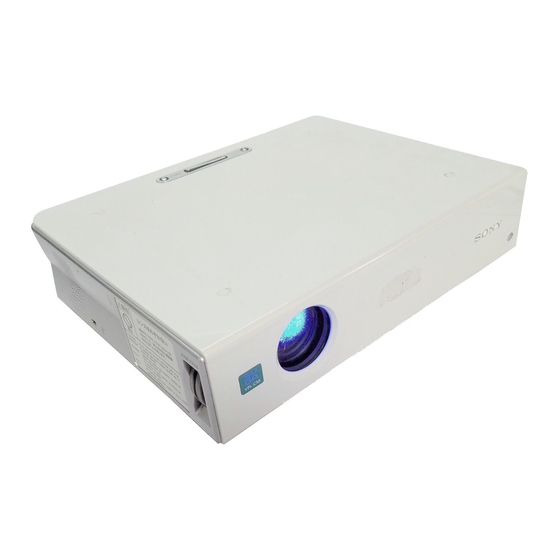

Sony VPL-CS5 Product Information Manual
Ultra compact
Hide thumbs
Also See for VPL-CS5:
- Operating instructions manual (148 pages) ,
- Service manual (126 pages) ,
- Operating instructions manual (148 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Service Manual
Product Information Manual
Sony Display Products
Product Information Manual
© Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands
Cat.:
Prod.:
Cat.:
Prod.:
VPL-CS5/CX5
Ultra Compact LCD Projector
Ultra Compact LC-Projector
VPL-CS5 / CX5
Ultra Compact LCD Projector
VPL-CS5/CX5
1/
27
Advertisement
Table of Contents
Related Manuals for Sony VPL-CS5
Summary of Contents for Sony VPL-CS5
- Page 1 Product Information Manual Cat.: Ultra Compact LC-Projector Sony Display Products VPL-CS5 / CX5 Prod.: Cat.: Ultra Compact LCD Projector Prod.: VPL-CS5/CX5 Product Information Manual VPL-CS5/CX5 Ultra Compact LCD Projector © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands...
-
Page 2: Table Of Contents
7.6.2. Airfilter ............................20 7.6.3. Lamp Replacement ........................21 7.7. New Menu Structure ..................22 7.8. Remote Control ..................24 7.9. Projector Station 4.1 (VPL-CX5 only) ............24 7.10. Throwing Distance ..................26 7.11. Dimensions....................27 © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 3: Introduction
Prod.: Introduction With VPL-CS5 and CX5 Sony introduces a new concept for ultra compact LCD projectors. It's the mixture from unique design and features, performance and cost that will give these products the competitive edge. Due to the increased flexibility the VPL-CS5 and VPL-CX5 will close the gap between compact travel projectors and small-scale installation products. -
Page 4: Product Concept
These two new products are the brightest models in their class with a maximum light output of 2000 lumen for the VPL-CX5 and 1800 lumen for the VPL-CS5. In case of VPL-CX5 this is a 100% brightness increase compared to the previous model VPL-CX4. -
Page 5: Target Customer Segment
It should be noted that the products are designed for presentation purpose. For installations with heavy usage (like 24hours operation) it's recommended not to use these projectors. For such applications products likes the VPL-P and VPL-F are better suited. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 6: Product Features
5. Product Features 5.1. High Brightness and compact size Using new optical technologies in the VPL-CS5 and VPL-CX5 it is possible to achieve a high brightness by keeping a compact size. The VPL-CX5 is rated at 2000 ANSI Lumen and the VPL-CS5 with 1800 ANSI lumen. -
Page 7: Intelligent Auto Set-Up
RGB Computer Input is selected or when the Computer Signal is changed. All of the above features will be triggered after the Power ON Button is pressed. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 8: Memory Stick Function (Vpl-Cx5 Only)
The Maximum resolution for MPEG Movies is 640x480. Digital Camera Mode since the Sony Digital Cameras store the image and movie files in different folders the Digital Camera Mode was added for the image browser. This mode will enable the user to see all pictures and movies from different folders in one view. -
Page 9: Image Flip
Software to help new or inexperienced users. 5.6. Image Flip The VPL-CS5 and CX5 are equipped with an image Flip Function in order to use it in applications such as rear-projection or for ceiling mount. There will be an optional ceiling mount bracket available. -
Page 10: Selectable Lamp Power
2500 hours 38 dB 5.7.3. Zoom Lens The VPL-CS5 and VPL-CX5 are equipped with a 1.2 times Zoom Lens. Focus and Zoom can be easily and precisely adjusted with the focus and Zoom wheel on the side of the projector. -
Page 11: Product Specifications
Mono, 3.5mm mini Jack UP (B type female) x1 UL60950, cUL (CSA No. 60950), FCC Class B, IC Class B, SAFTY REGULATIONS NEMCO (EN60950), CE (LVD, EMC), C-Tick © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 12: Accessory's
Quick reference sheet 8MB Memory supplied Stick CD-ROM supplied MODEL VPL-CS5 VPL-CX5 OPTIONAL LAMP LMP-C150 (User replaceable Lamp) ACCESSORIES Suspension Support optional Prime PS.VPL.DESK.123.1, 3 year Prime support Support © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 13: Pre-Set Memory Table Vpl-Cs5/Cx5
79.976 75.025 RGB SXGA VESA 85 91.146 85.024 RGB 1400 x 1050 SXGA+ 60Hz 63.981 60.020 RGB *) Modes higher then 1024 x 768 are only available in VPL-CX5 © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 14: Notes On Pre-Set Signals
In this case disconnect the input source by changing the input, switch the display to a full screen picture (fe: desk top picture) and the re-apply the signal. This will allow the scan converter to detect the signal correctly. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 15: Product Outline
13 - Speaker 14 - Hole for Kensignton Lock 15 - Focus adjuster ring 16 - Zoom adjuster ring 17 - Air Filter and main air intake © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 16: New Optical Unit
VPL-CS5 / CX5 Prod.: 7.2. New Optical unit The new L-Shaped Optical unit designed for VPL-CS5 and VPL-CX5 uses combines high light efficiency and small size. Using the Sony's own developed "Virtual Light Source" technology provides high brightness and small size. -
Page 17: Virtual Light Source - System
The Lamp Life for this Lamp is 2000 hours High Mode (165W) and 2500 hours in Low Mode (150W). The LMP-C150 directly connected to the iternal cooling sytem once assebled in the projector. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 18: Cooling System
Pixel 7.3. Cooling System The VPL-CS5 and CX5 does have a cooling system that takes the cool air from the bottom of the unit. The Air exhaust is on the right side of the product just behind the lamp that is the main heat source. The Prism Block and the Optical unit are cooled with three low noise fans with a special air duct. -
Page 19: Connector Panels
The USB Port of VPL-CX5 can be used to control the projector via the supplied Projector Station 4.1 Software. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 20: Maintenance
7.6. Maintenance 7.6.1. Indicator LED's The VPL-CS5 and CX5 are equipped with four indicators (LED's) to confirm the projector status. These are the Power Indicator (surrounding the Power Button), the TEMP/FAN and LAMP/COVER and the POWER SAVE indicator at the connector panel. -
Page 21: Lamp Replacement
5. reverse steps 3 - 1 During this operation please make sure that you do no touch the lamp glass since this can damage the new lamp. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 22: New Menu Structure
VPL-CS5 / CX5 Prod.: 7.7. New Menu Structure VPL-CS5 and CX5 are equipped with a new Menu structure. Other new Display Products such as Plasma Monitors also adopt this structure. Also the graphical layout has been changed (see example below). - Page 23 Adjust menu V Keystone Auto Manual Image Flip Background Black Blue Lamp Mode High Information horizontak frequecy in kHz vertical frequency in Hz Memory No. Resolution Lamp Timer © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands...
-
Page 24: Remote Control
Memory Stick. By simply drag and drop a Power Point Presentation will be converted to single JPEG files. This conversion goes much faster the in previous Software Versions. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... - Page 25 Windows 98, 98SE, ME, 2000, XP Pentium 166MHz Pentium II 300MHz or faster available The software can also be used with previous Versions of Projectors such as VPL- CX3 and VPD-MX10. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands...
-
Page 26: Throwing Distance
3.05m 3.81m (diagonal) Minimum 1.5m Distance Maximum diustance There may be a slight difference between the actual value and the design value shown in the table above. © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands... -
Page 27: Dimensions
Product Information Manual Cat.: Ultra Compact LC-Projector VPL-CS5 / CX5 Prod.: 7.11. Dimensions 285 mm 30 mm 68 mm 65 mm © Sony Broadcast & Professional Europe, Schipolweg 295, 1171 PK Badhoevedorp, The Netherlands...
