Service Manual
FV-11VK3
Specifications
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1. Parts Identification
2.Wiring Diagram
3. Parts List
4. Replacement Guide
WARNING
IMPORTANT SAFETY NOTICE

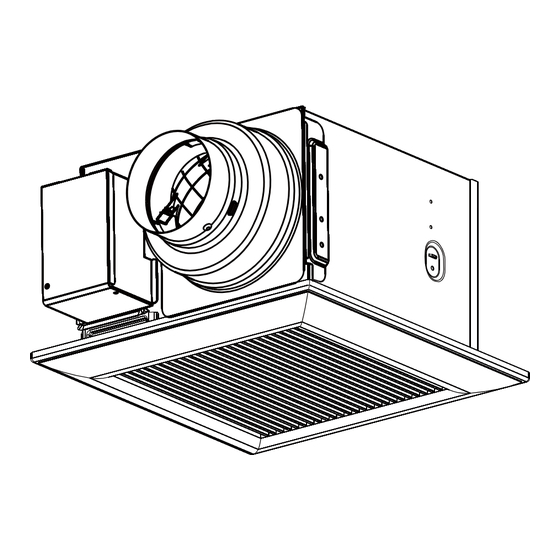

Ceiling Mount Ventilating Fan
Whisper Green
(North America Market)
FV-11VKL3
PEG1111029CE
Version:1302
TM
PAGE
1~4
5
6~9
10~12
Advertisement
Table of Contents
Related Manuals for Panasonic FV-11VK3
Summary of Contents for Panasonic FV-11VK3
-
Page 1: Specifications

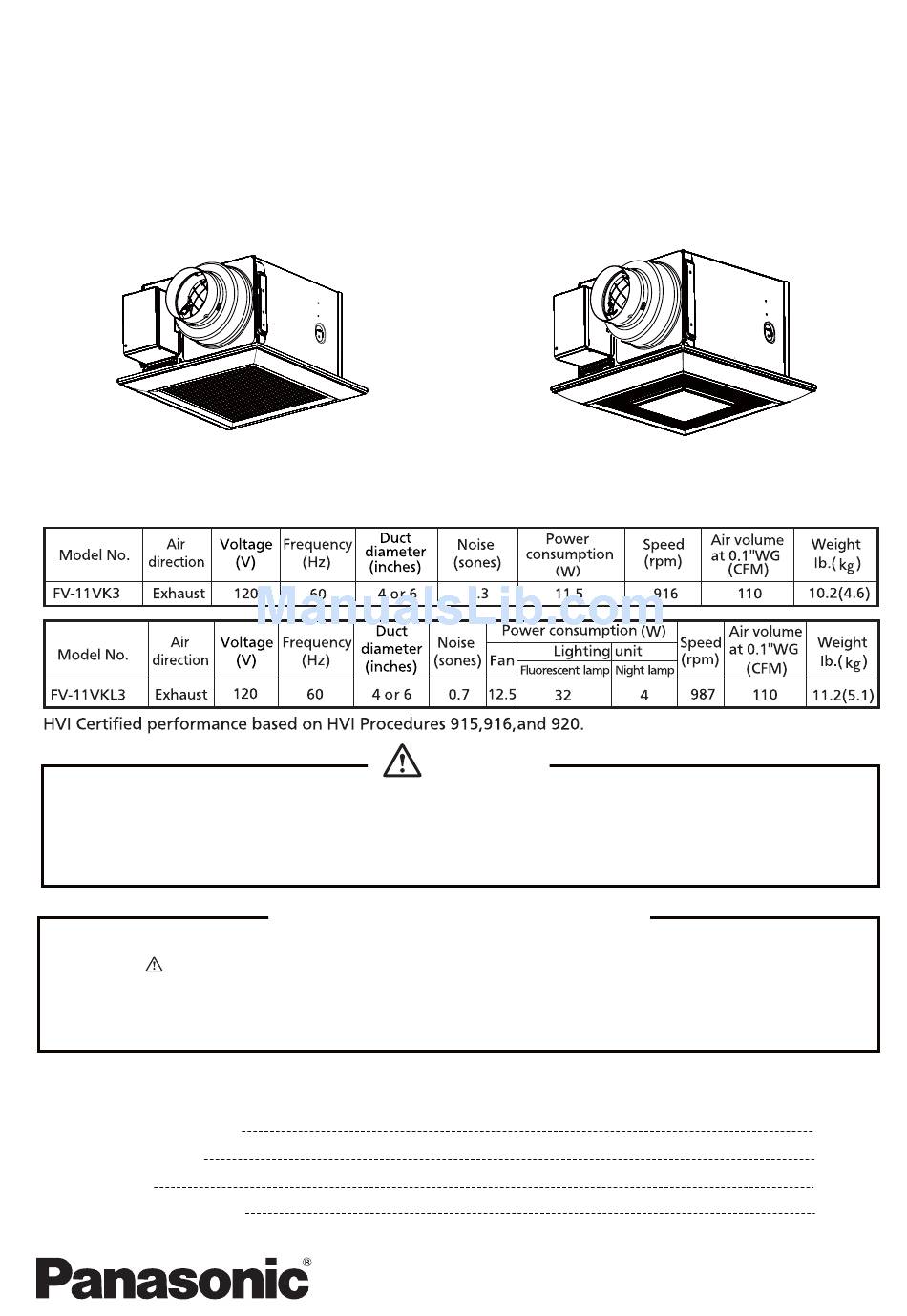

Version:1302 Service Manual Ceiling Mount Ventilating Fan Whisper Green (North America Market) FV-11VK3 FV-11VKL3 Specifications WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. -
Page 2: Parts Identification
1.Parts Identification FV-11VK3 Main Body Section (3pcs) (2pcs) FV-11VK3 Details Of Wiring Section CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. (3pcs) ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. - Page 3 1.Parts Identification FV-11VKL3 Main Body Section (3pcs) (2pcs) FV-11VKL3 CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. Details Of Wiring Section (3pcs) (4pcs)
- Page 4 The main PCB assembly is commonly used in below models.If you replace PCB,please set up the switch according to below table firstly. Switch seting condition for PCB Model Part No. Part Name (SW103、SW102) FV-11VK3 FFV3740024S Main PCB Assembly FV-11VKL3 FFV3740024S Main PCB Assembly...
- Page 5 1.Parts Identification FV-11VKL3 Ballast Assembly Replacement Method If the ballast assembly was damaged,please order the new grille unit section(FFV3420057S) to replace defective ballast assembly& original grille unit .Please refer to P10-P12 for replacement guide. Remark:The minimum quantity of an order for this new grille unit is 10 sets. Replacement Ballast Assembly (18)
-
Page 6: Wiring Diagram
2.Wiring Diagram FV-11VK3 FV-11VKL3... -
Page 7: Parts List
3.Parts List FV-11VK3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000116S Adapter Assembly FFV0900052S Connector Plate FFV0900049S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly 10 FFV3700324S Motor Lead Wire Assembly... - Page 8 3.Parts List FV-11VK3 Part No. Part Name Q'ty Remark 37 FFV6730048S Wiring Label 38 FFV5710023S Suspension Bracket Ⅰ 39 FFV5710024S Suspension Bracket Ⅱ 40 FFV5710018S Suspension Bracket Ⅳ 41 FFV5710019S Suspension Bracket Ⅲ 42 FFV2540110S Installation Instruction English,For CA Market/USA Market...
- Page 9 3.Parts List FV-11VKL3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0900048S Connector Plate FFV0900049S Connector Assembly V FFV0900039S Connector Assembly L FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly 10 FFV3700324S Motor Lead Wire Assembly 11 FFV0000112S Adapter Assembly 12 FFV0960001S Nylon Clamp...
- Page 10 3.Parts List FV-11VKL3 Part No. Part Name Q'ty Remark 37 FFV6730048S Wiring Label 38 FFV5710023S Suspension Bracket Ⅰ 39 FFV5710024S Suspension Bracket Ⅱ 40 FFV5710018S Suspension Bracket Ⅳ 41 FFV5710019S Suspension Bracket Ⅲ 42 FFV2540110S Installation Instruction English,For CA Market/USA Market 43 FFV2540111S Installation Instruction French,For USA Market (43) FFV2540112S Installation Instruction...
-
Page 11: Replacement Guide
4.Replacement Guide INSTALLATION Ceiling WARNING Mounting spring Plug connector Disconnect power source before working on unit. Claw 1. Remove the primary light kit grille by pulling down Ⅰ one mounting spring and remove plug connector , then pull down the other mounting spring (Squeeze mounting spring and pull down carefully) (Fig.1) 2. - Page 12 4.Replacement Guide INSTALLATION 6. Install light kit cover assembly. (Fig.6) Secure screw Light kit cover (M4X8) assembly 7. Insert the grille mounting spring on the wiring side into the slot and insert the plug connector into the housing of the lighting unit.(Fig.7) Fig.6 CAUTION Mounting spring...
-
Page 13: Maintenance(Replacement Of Lamp)
4.Replacement Guide MAINTENANCE(REPLACEMENT OF LAMP) Ceiling WARNING Plug connector lighting unit Disconnect power source before working Gloves on unit. This is a pin type lamp base and the lamp’s Grille glass is fragile.To remove,pull out carefully. Claw Insert Plug connector 4W night lamp has threaded base,Remove Fig.1 by turning counterclockwise.
