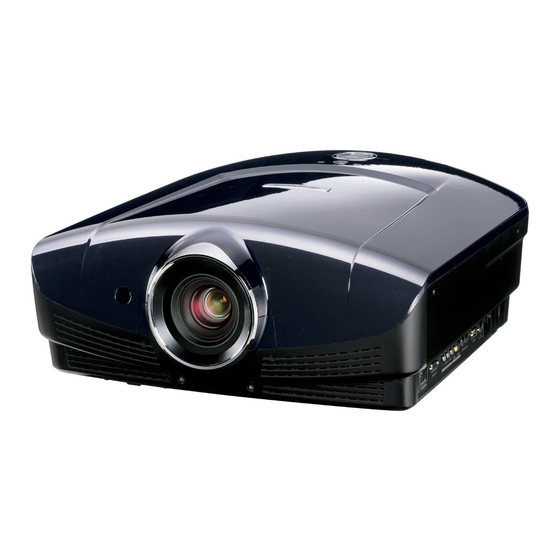

- Page 1 HOME THEATER PROJECTOR MODEL HC9000D HC9000DW User Manual HC9000D HC9000DW This User Manual is important to you. Please read it before using your projector.
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 3: Table Of Contents
Information for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. -
Page 4: Important Safeguards
Important safeguards 10. Power sources Please read all these instructions regarding your projector and retain them for future reference. Follow This projector should be operated only from the all warnings and instructions marked on the projector. type of power source indicated on the marking label. - Page 5 Important safeguards (continued) Do not block the air inlet and outlet grilles. WARNING: If they are blocked, heat may be generated inside the Unplug immediately if there is something wrong projector, causing deterioration in the projector quality and fire. with your projector. Do not operate if smoke, strange noise or odor comes Do not use flammable solvents (benzene, thinner, out of your projector.
-
Page 6: Preparing Your Projector
Preparing your projector Checking accessories The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package. „ „ Cables Power supply parts Mini D-SUB 15-pin D-SUB 9-pin Mini D-SUB D-SUB 15-pin 9-pin... -
Page 7: Control Panel And Indicators
Preparing your projector (continued) Overview Air exhaust grille Air filter Remote control sensor (front) Lens Air intake grille Control panel and indicators Terminal panel Power jack Main power switch O: OFF I: ON 10 Remote control sensor (rear) 11 Lamp cover 12 Air intake grille To attach the supplied lens cap, push it into... - Page 8 Preparing your projector (continued) Bottom side 1 Adjustment feet 2 Air intake grille 1 ON ( I ) button Remote control 2 HDMI2 button 3 HDMI1 button 4 COMPONENT button 5 P.M., F.R.C., USER buttons 6 ENTER button 7 MENU button 8 CONTRAST button* 9 BRIGHTNESS button* 10 GAMMA button*...
-
Page 9: Using The Remote Control
Using the remote control Operational range of the remote control • Keep the remote control photo-sensor out of direct Front of projector Rear of projector sunlight or fluorescent lamp light. • Keep the remote control photo-sensor at least 2 m (6 feet) away from fluorescent lamps. -
Page 10: Setting Up Your Projector
Setting up your projector Setting up the screen Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector. (See page 12.) • Install the screen and projector so that the projector’s lens is placed at the same height and horizontal position of the screen center. - Page 11 Setting up your projector (continued) Screen size and projection distance (continued) Screen width (SW) Screen Down shift Up shift Right shift Left shift ■ Correlation table of the lens shift Lens shift up-down 100% Lens shift right-left 15.3% * The values of the up-down and right-left can not set to maximum simultaneously. SW(=W) When the aspect ratio of the screen is Standard When the aspect ratio of the screen is Standard, the positional...
-
Page 12: Adjusting The Position Of The Projected Image
Setting up your projector (continued) Adjusting the position of the projected image To adjust the position of the projected image on the screen, use the LENS SHIFT button. 1. Press the LENS SHIFT button. • The Lens Shift menu appears at the center of the screen. 2. Press the p, q, t or u button to move the image position. -
Page 13: Trigger Terminal
Setting up your projector (continued) Front projection, ceiling mounting Important: • We don’t recommend using the projector at an altitude For ceiling mounting, of 1500 meters or higher. Use at an altitude of 1500 you need the ceiling meters or higher may affect the projector’s life. mount kit designed for this projector. -
Page 14: Viewing Video Images
Viewing video images A. Connecting the projector to video equipment • When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference. • See the owner’s guide of each device for details about its connections. Preparation: • Make sure that the power of the projector and that of the video equipment are turned off. -
Page 15: Connecting To A Dvd Player Or Hdtv Decoder
Viewing video images (continued) Connecting to a video player, etc. 1. Connect one end of the optional video cable to the Video player, or the like Video cable VIDEO IN terminal of the projector. (option) 2. Connect the other end of the video cable to the video 2. - Page 16 Viewing video images (continued) Connecting to video equipment having a HDMI terminal You can project high-quality images by connecting the HDMI IN terminal of this projector to video equipment having a HDMI output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data that are output from DVD players.
- Page 17 Viewing video images (continued) B. Plugging in the power cord • In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it. 1. Plug the attached power cord into the power cord inlet of this projector.
- Page 18 Viewing video images (continued) C. Projecting images Preparation: • Remove the lens cap. POWER button STANDBY button (ON/STANDBY) ON ( I ) button HDMI2 button HDMI1 button S-VIDEO button POWER indicator STATUS indicator COMPONENT button VIDEO button HDMI/COMPUTER VIDEO button ENTER button , , , ...
- Page 19 Viewing video images (continued) 10. Adjust with the p or q button to get an approximate size while the Zoom menu is displayed. 11. Press the LENS SHIFT button. The Lens Shift menu appears at the center of the screen. 12. Press the p or q button to adjust the vertical position and t or u button to adjust the horizontal position of the displayed image.
-
Page 20: Setting The Aspect Ratio
Viewing video images (continued) Setting the aspect ratio You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the input video signal. : Signal size Setting Standard... -
Page 21: How To Change The Settings
Viewing video images (continued) How to change the settings: With the remote control: 1. Press the ASPECT button. • The screen for selecting the aspect ratio appears. 2. Select your desired aspect ratio by pressing the ASPECT button. • The aspect mode is switched between Standard, Full Screen, Anamorphic1 and Anamorphic2. • Some modes are not available with certain signals. -
Page 22: Viewing Computer Images
Viewing computer images A. Connecting the projector to a computer Preparation: • Make sure that the power of the projector and that of the computer are turned off. • When connecting the projector to a desktop computer, disconnect the computer cables that are connected to the monitor. - Page 23 Viewing computer images (continued) C. Projecting images Preparation: • Remove the lens cap. POWER button STANDBY button (ON/STANDBY) ON ( I ) button COMPUTER button POWER indicator STATUS indicator HDMI/COMPUTER ENTER button button , , , buttons LENS SHIFT button ZOOM/FOCUS button , , , ...
- Page 24 Viewing computer images (continued) 11. Press the LENS SHIFT button. The Lens Shift menu appears at the center of the screen. 12. Press the p or q button to adjust the vertical position and t or u button to adjust the horizontal position of the displayed image.
-
Page 25: Viewing 3D Images
Viewing 3D images You can enjoy the 3D fun when you watch 3D movies with 3D Glasses. The 3D Glasses and 3D Emitter can be purchased individually; to view 3D images, the special 3D Glasses (EY-3DGS-1U) and 3D Emitter (EY-3D-EMT1) must be purchased. -
Page 26: Using 3D Glasses
Viewing 3D images (continued) Glasses(Liquid Crystal Shutter) Using 3D Glasses • Do not use the machine which can generate • Do not press the glasses too hard; and also do electromagnetic waves (such as mobile telephone, not fall on or bend them. •... - Page 27 Viewing 3D images (continued) Attaching the 3D Emitter on the projector Preparation: Turn off the power of the projector. 1. Remove the caps covering the 3D emitter attach- ing part on the projector. 2. Secure the base part of the 3D Emitter to the 3D Emitter attaching part on the projector using the supplied screws.
- Page 28 Viewing 3D images (continued) 3D images viewing This unit can convert the broadcast and signal input of the following 3D images into the three-dimensional image viewing.(as of January,2011) • 3D images input via HDMI IN-1 or HDMI IN-2 terminal from the recorder/player corresponding to the 3D images.(Side by Side,Top and Bottom and Frame Packing) • 3D images by the digital terrestrial broadcasting and BS digital broadcasting.
- Page 29 Viewing 3D images (continued) • Do not use the 3D Glasses if you have a history • Use the 3D Glasses when viewing the 3D images. of over-sensitivity to light, heart problems, or have • Use the 3D Glasses only for the specified purpose. any other existing medical condition.
-
Page 30: Menu Operation
Menu operation • Some menu items can’t be operated or displayed depending on the input signal or signal format. Picture1 Picture Mode Cinema VIDEO Contrast Dynamic Brightness User1 Color User2 Tint User3 Sharpness Gamma Correction Cinema 2 .0 2 .1(Video ) 2 .2 User Setup Level... - Page 31 Menu operation (continued) • Some menu items can’t be operated or displayed depending on the input signal or signal format. Custom2 Red Gain Red Saturation Red Hue Green Green Gain Green Saturation Green Hue Blue Blue Gain Blue Saturation Blue Hue Cyan Cyan Gain Cyan Saturation...
- Page 32 Menu operation (continued) • Some menu items can’t be operated or displayed depending on the input signal or signal format. Screen Aspect Ratio Standard Full Screen Anamorphic1 Anamorphic2 Horizontal Position Vertical Position Shutter Shutter Bottom Pixel Adjust Horiz. Red Horiz. Blue Vert.
- Page 33 Menu operation (continued) • Some menu items can’t be operated or displayed depending on the input signal or signal format. Setup Menu Position Center Top Left Top Right Bottom Left Bottom Right Language 日本語 English Español Deutsch Français Italiano 中文 한국어...
- Page 34 Menu operation (continued) How to set the menus: 5. Press the t or u button to set the desired Off timer setting. The following describes how to set Off Timer time as an example. 1. Press the MENU button. •...
- Page 35 Menu operation (continued) Setup Level 0 IRE Select to make black lighter. 3.75 IRE / 7.5 IRE Select to black intense. When 7.5 IRE is selected, the brightness is decreased by the set-up cancel function for the U.S. Select 0 IRE when the image is dark. Color Temp 5800K –...
- Page 36 Menu operation (continued) The contour of the signal is not reinforced. Low/High The contour of the signal is reinforced. The blur around the color boundary is not improved. Low/High The blur around the color boundary is improved. Overscan 100% - 93% Use to adjust the display area of the projected image when playing blu-ray discs.
- Page 37 Menu operation (continued) . Input menu 6. Setup menu 5. Input menu ITEM SETTING FUNCTION Input HDMI-1 Switch the input terminal to HDMI-1. HDMI-2 Switch the input terminal to HDMI-2. Comp. Switch the input terminal to COMPONENT. Video Switch the input terminal to VIDEO. S-Video Switch the input terminal to S-VIDEO.
- Page 38 Menu operation (continued) 6. Setup menu ITEM SETTING FUNCTION Menu Position Center/Top Left/Top Use to change the position of the menu. Right/Bottom Left/ Bottom Right Language 12 languages Use to select the language used in the menus: 日本語,English, Español, Deutsch, Français, Italiano, 中文, 한국어, Русский, Português, Svenska, Nederlands.
-
Page 39: Adjusting Projected Images
Adjusting projected images To adjust the brightness (Contrast and Brightness): You can make adjustments for the brightness of the projected image using the menu. (See page 34 for menu setting.) 1. Display the Picture 1 menu. 2. Select Contrast or Brightness by pressing the p or q button. 3. Adjust the selected item by pressing the t or u button. -
Page 40: About Color Temperature
Adjusting projected images (continued) To adjust the tone of white (Color Temp.): You can select a preset color temperature (white tone) using the menu. (See page 34 for menu setting.) 1. Display the Picture 1 menu. 2. Select Color Temp. by pressing the p or q button. 3. Select your desired color temperature by pressing the t or u button. -
Page 41: Noise Reduction
Adjusting projected images (continued) To adjust the original ratio of change in brightness (To customize the Gamma Correction): To customize (and store) the Gamma Correction to your preference, carry out the following procedure. (See page 34 for menu setting.) 1. Display the Picture 1 menu. 2. Select Gamma Correction by pressing the p or q button. - Page 42 Adjusting projected images (continued) To adjust the 3D Brightness: You can adjust the 3D Brightness of the projected image using the menu. This menu is available only in 3D mode. (See page 34 for menu setting.) 1. Display the Input menu. 2. Press the p or q button to select 3D Brightness.
-
Page 43: How To Adjust The Image Supplied From The Computer Using The Menu
Adjusting projected images (continued) This projector automatically and properly projects video signals supplied from the computer. However, some video signals may not be projected, depending on the type of the computer. In such a case, Use the Auto Position function to (See page 24.) adjust the projected image using the Input menu. -
Page 44: Replacing The Lamp
Replacing the lamp This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the lamp with a new lamp sold separately that is exclusive to this projector. -
Page 45: To Replace The Lamp
Replacing the lamp (continued) To replace the lamp: 7. Put the handle back to the original position. • Make sure that the handle is locked. 1. Turn off the main power switch and unplug the 8. Tighten up 2 screws (c) using a Phillips screwdriver power cord. - Page 46 Replacing the lamp (continued) When removing the lamp from the ceiling-mounted projector When removing the lamp from the ceiling-mounted projector, use the lamp replacement tray packed with the projector or option lamp to prevent glass fragments from scattering. • Assemble the lamp replacement tray according to the procedure shown on it. 1. Follow steps 1 to 4 on page 45.
-
Page 47: Maintenance
Maintenance Important: Warning • Never use flammable air duster or other materials • If the filter is damaged or becomes extremely dirty, when cleaning the air-filter. Flammable substances change it with a new filter. Contact your dealer for a may ignite causing fire or backdown when the lamp new filter. -
Page 48: Troubleshooting
Troubleshooting Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer. No image appears on the screen. Problem Solution Power can not be • Check whether the indicators are on or off and how they are lightning. - Page 49 Troubleshooting (continued) No image appears on the screen. (continued) Problem Solution “NO SIGNAL” is • Turn on the power of the connected device, or check whether there is something displayed. wrong with the connected device. • Check whether the external device output signals. (Check this especially when the external device is a notebook computer.) • Check that the cable connected to the external device isn’t defective.
- Page 50 Troubleshooting (continued) Images are not displayed correctly. (continued) Problem Solution No sound comes • The projector is not equipped with the speakers. from the speakers • The AV amplifier reads the information that projector is not equipped with the speakers connected to the AV and then passes this information along to the DVD player.
-
Page 51: The Status Indicator
Troubleshooting (continued) Others (continued) Problem Solution Images are not 3D. • Are the image settings switched to 3D mode? → Switch the mode to 3D mode. The 3D Emitter and 3D Glasses are sold separately. • Is there any block in the communication area between the 3D Emitter and the 3D Glasses? Or, is there a They are not supplied with sticker or other such item on the infra-red reception section on the 3D Glasses? this product. -
Page 52: Indicators
Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. POWER indicator STATUS indicator Normal condition POWER STATUS CONDITION... -
Page 53: Specifications
The specifications and outside appearance of the projector are subject to change without prior notice. Type HOME THEATER PROJECTOR Model HC9000D/HC9000DW Display technology 0.61 inch SXRD™ panel: 3 pieces (for R, G, B) (aspect ratio 16:9) Pixel: 1920 x 1080 = 2073600 pixels... - Page 54 Specifications (continued) Specification of input signals in each input of the projector HDMI Signal mode Resolution Horizontal frequency Vertical frequency Normal mode (H x V) (kHz) (Hz) (H x V)*1 480i60.00Hz(Double Rate) 15.75 60.00 1440x1080 480i59.94Hz(Double Rate) 15.73 59.94 1440x1080 576i50.00Hz(Double Rate) 15.63 50.00...
- Page 55 Specifications (continued) Component Signal mode Resolution Horizontal frequency Vertical frequency Normal mode (H x V) (kHz) (Hz) (H x V)*1 480i 60.00Hz 15.75 60.00 1440x1080 480i 59.94Hz 15.73 59.94 1440x1080 576i 50.00Hz 15.63 50.00 1440x1080 480p 60.00Hz 31.50 60.00 1440x1080 480p 59.94Hz 31.47 59.94...
- Page 56 Specifications (continued) Connectors COMPUTER IN SERIAL (D-SUB 9-pin) HDMI IN (Mini D-SUB 15-pin) (HDMI 19-pin) 1 19 Pin No. Spec. R(RED)/P G(GREEN)/Y 2 18 B(BLUE)/P 15 11 PIN No. Spec. PIN No. Spec. – Pin No. Name TMDS Data2+ TMDS Clock Shield –...
- Page 57 MITSUBISHI ELECTRIC CORPORATION 1 Zusho Baba, Nagaokakyo-City, Kyoto Japan...
